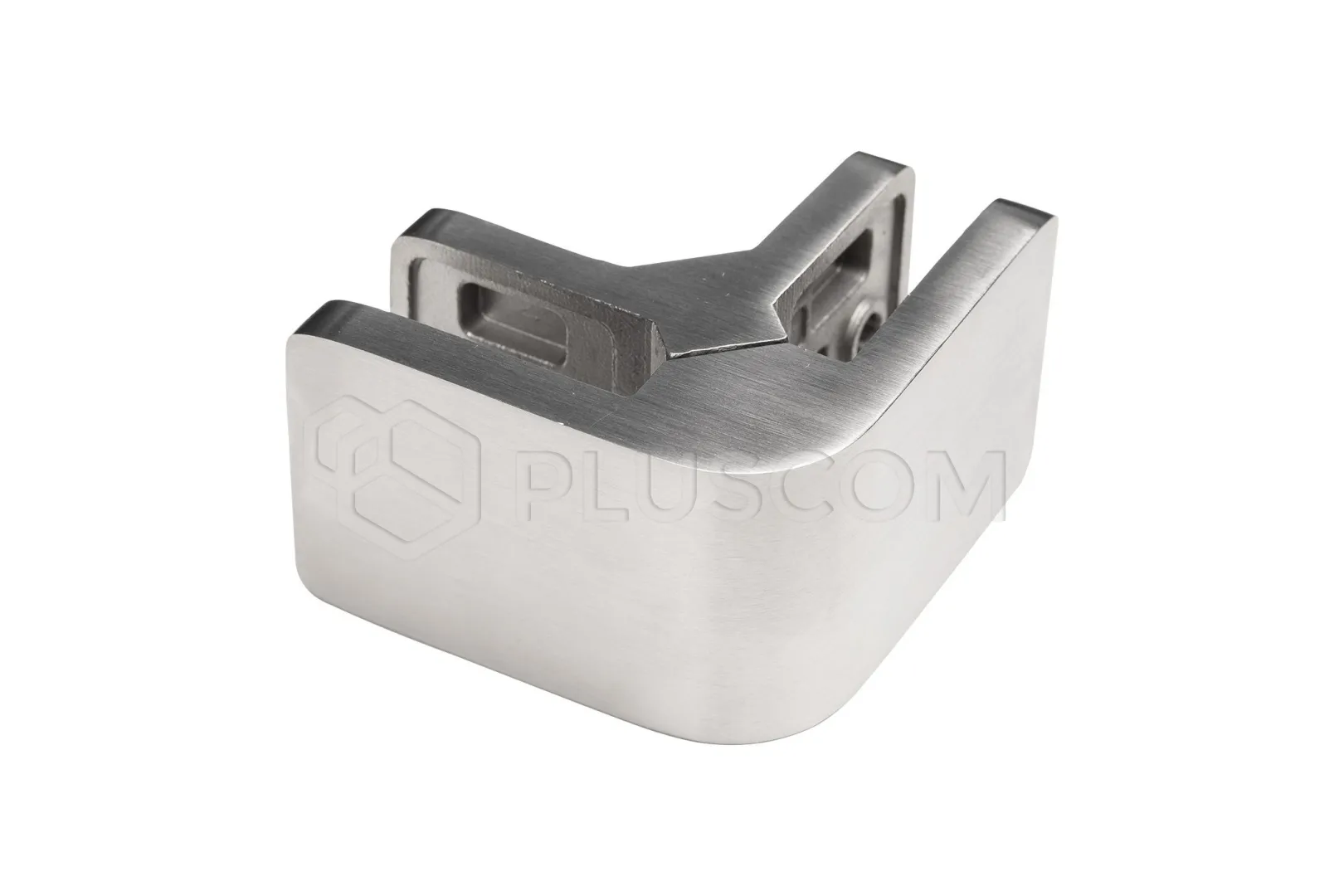

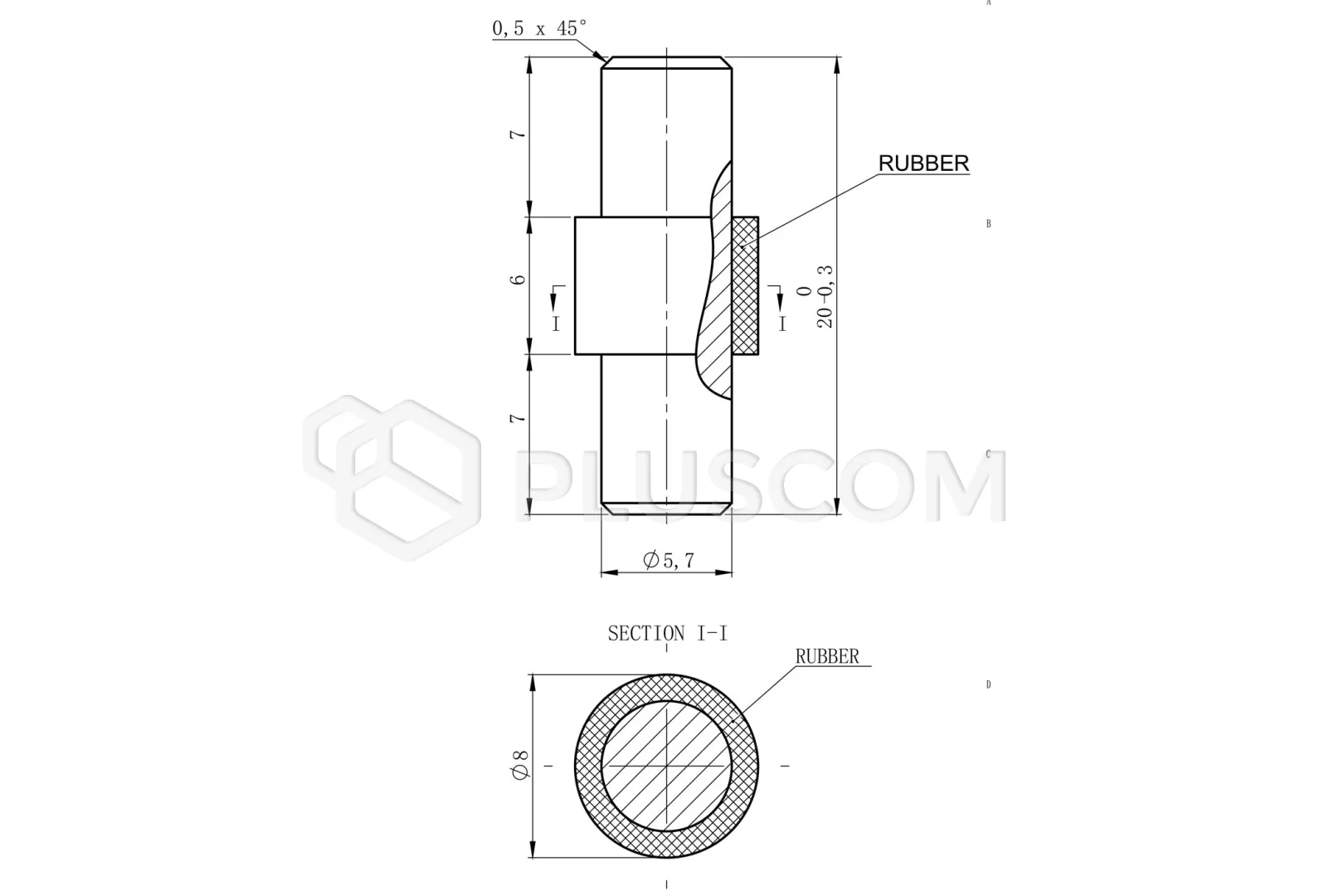

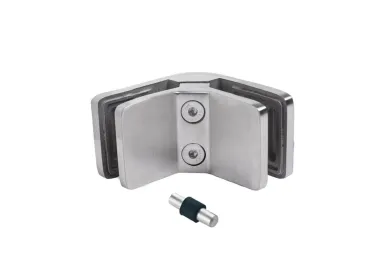

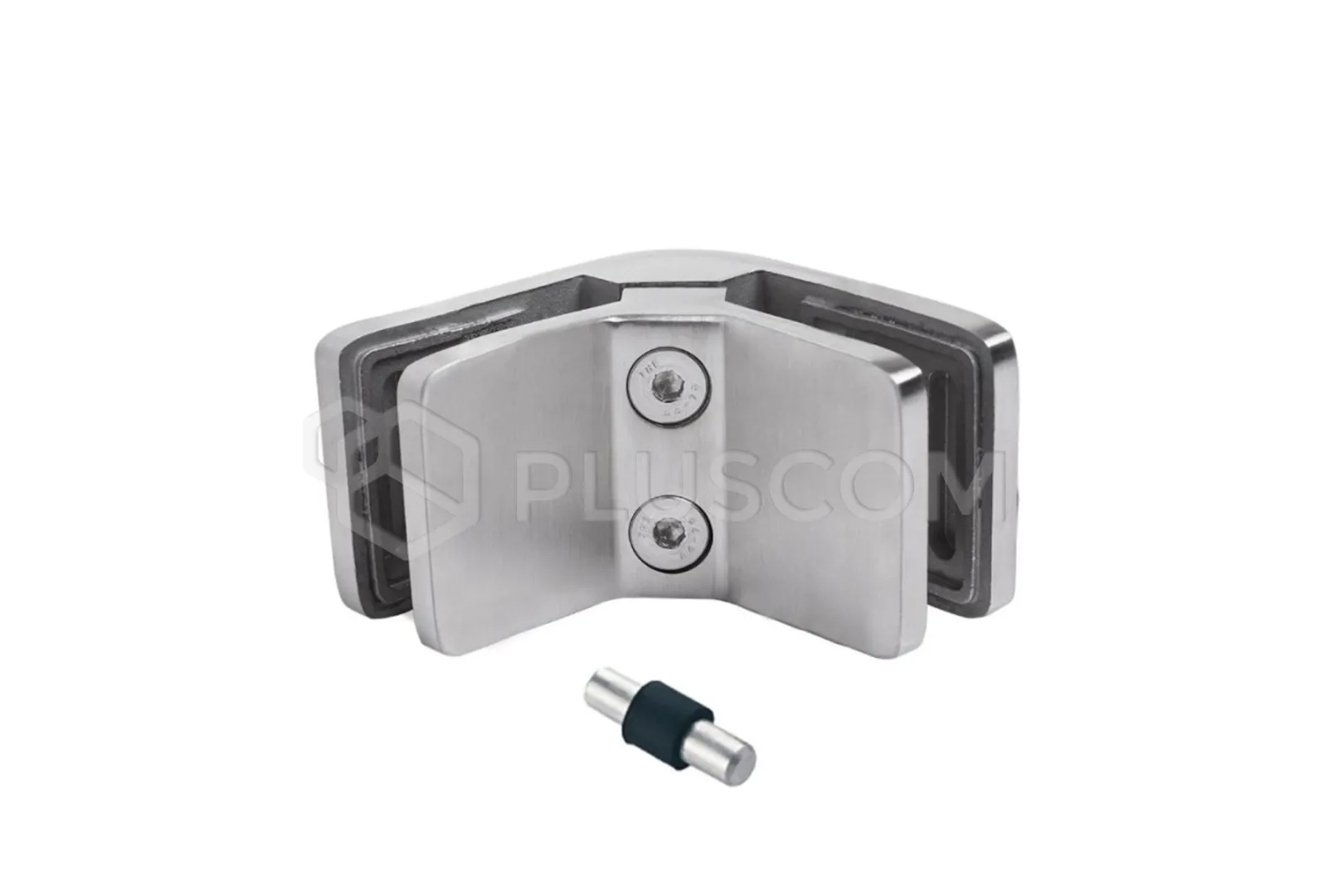

PSG N01.90K2.4US 90° square glass clamp – 53 × 45 × 26 mm, with safety pin, glass 6–10.76 mm (AISI 304, universal, satin)
90° corner glass clamp - 53 x 45 mm, for glass 6 - 10.76 mm thick
The 90° corner glass clamp, 53 × 45 mm, is an indispensable element for installing glass infill in balcony and terrace balustrades. Thanks to its solid AISI 304 stainless steel construction and elegant satin finish, the clamp not only guarantees safety and stability of the structure but also gives modern balustrades an attractive finish.
Suited to tempered or laminated glass from 6 to 10.76 mm thick, the clamp joins two glass panes at a right angle, providing a durable, rigid and attractive connection. Two sets of dedicated rubber gaskets, available in our offer, are required for installation.
WHAT SETS THE PINOX GLASS CLAMP APART:
- 90° angle: allows stable and attractive joining of glass panes at a right angle
- solid material: AISI 304 stainless steel guarantees corrosion resistance and many years of durability
- satin finish: an elegant look that suits modern balustrades
- for glass 6–10.76 mm thick: compatible with the most commonly used thicknesses of tempered and laminated glass
- replaceable gaskets: the right inserts can be fitted depending on the pane thickness
- safe to use: stabilizes the glass and prevents it from slipping out accidentally
STRUCTURAL FUNCTION AND SAFETY
The corner clamp is one of the key elements affecting the stability and safety of the whole balustrade. It prevents the glass from shifting, stiffens the structure and significantly reduces the risk of damage during everyday use. Installing the clamp eliminates the need for additional frames or profiles, allowing minimalist, modern solutions.
TOP-LEVEL AESTHETICS
The satin finish of AISI 304 stainless steel is not only protection against corrosion but also attention to visual detail. The clamp blends perfectly with glass and stainless steel balustrades, emphasizing the modern character of a facade, terrace or balcony. Thanks to its neutral color and subtle sheen, the clamp suits both private homes and public buildings.
COMPATIBILITY AND EASY INSTALLATION
The clamp is designed for glass from 6 mm to 10.76 mm thick - both tempered and laminated. Depending on the chosen pane thickness, you need to select the appropriate rubber inserts (gaskets), which ensure a perfect fit and effective holding of the glass. All the necessary gasket variants are available in our offer, which guarantees trouble-free installation and full compatibility.
Corner glass clamp
|
|---|
Handle type
|
90° corner
|
Dimensions
|
53 x 45 mm
|
Material
|
AISI 304 stainless steel
|
Finish
|
satin
|
Glass thickness
|
6–10.76 mm
|
Glass type
|
tempered or laminated
|
Application
|
balcony and terrace balustrades
|
Function
|
joining two glass panes at a 90° angle
|
Properties
|
stabilizes, stiffens, protects the glass pane
|
Required accessories
|
2 sets of rubber gaskets
|

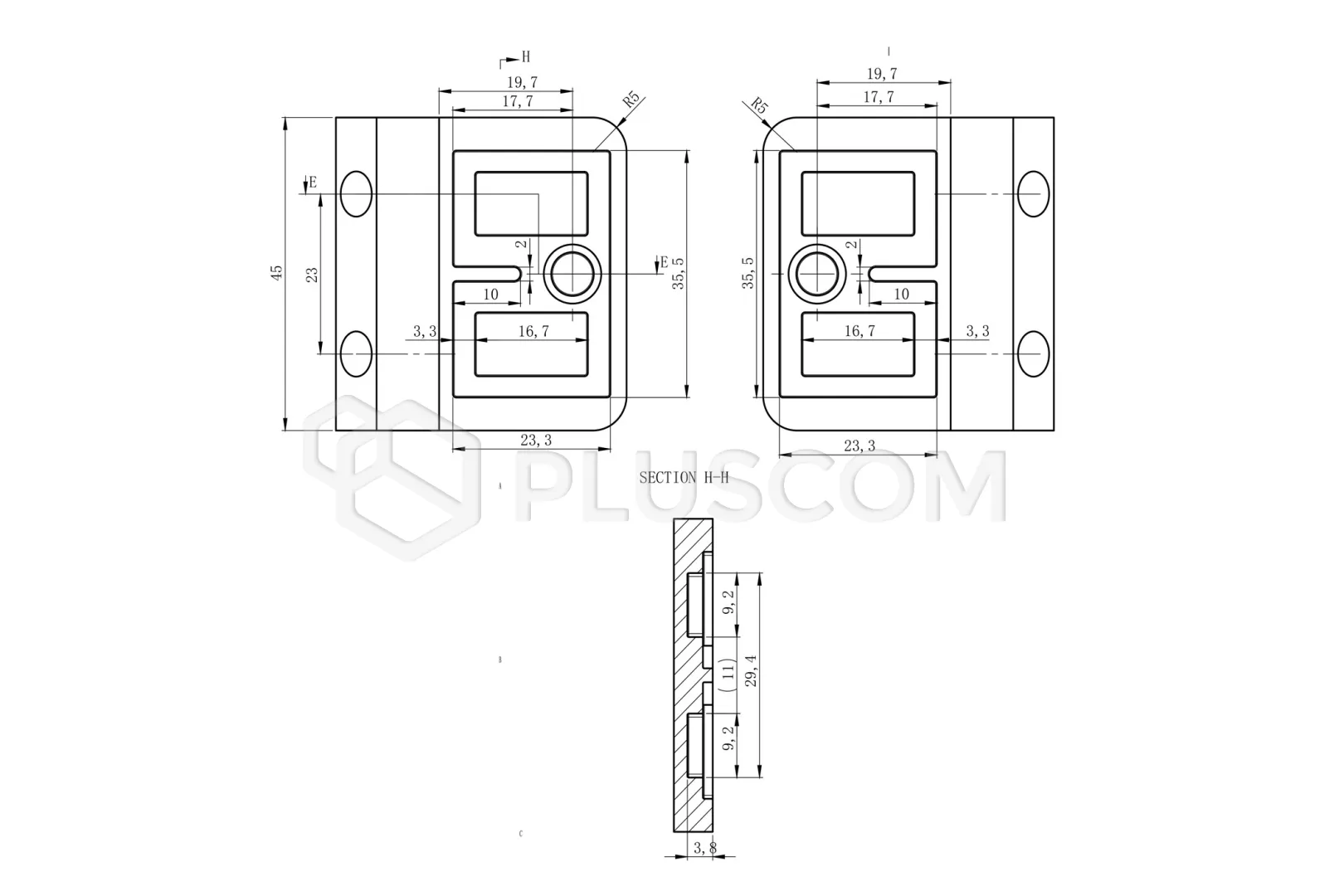

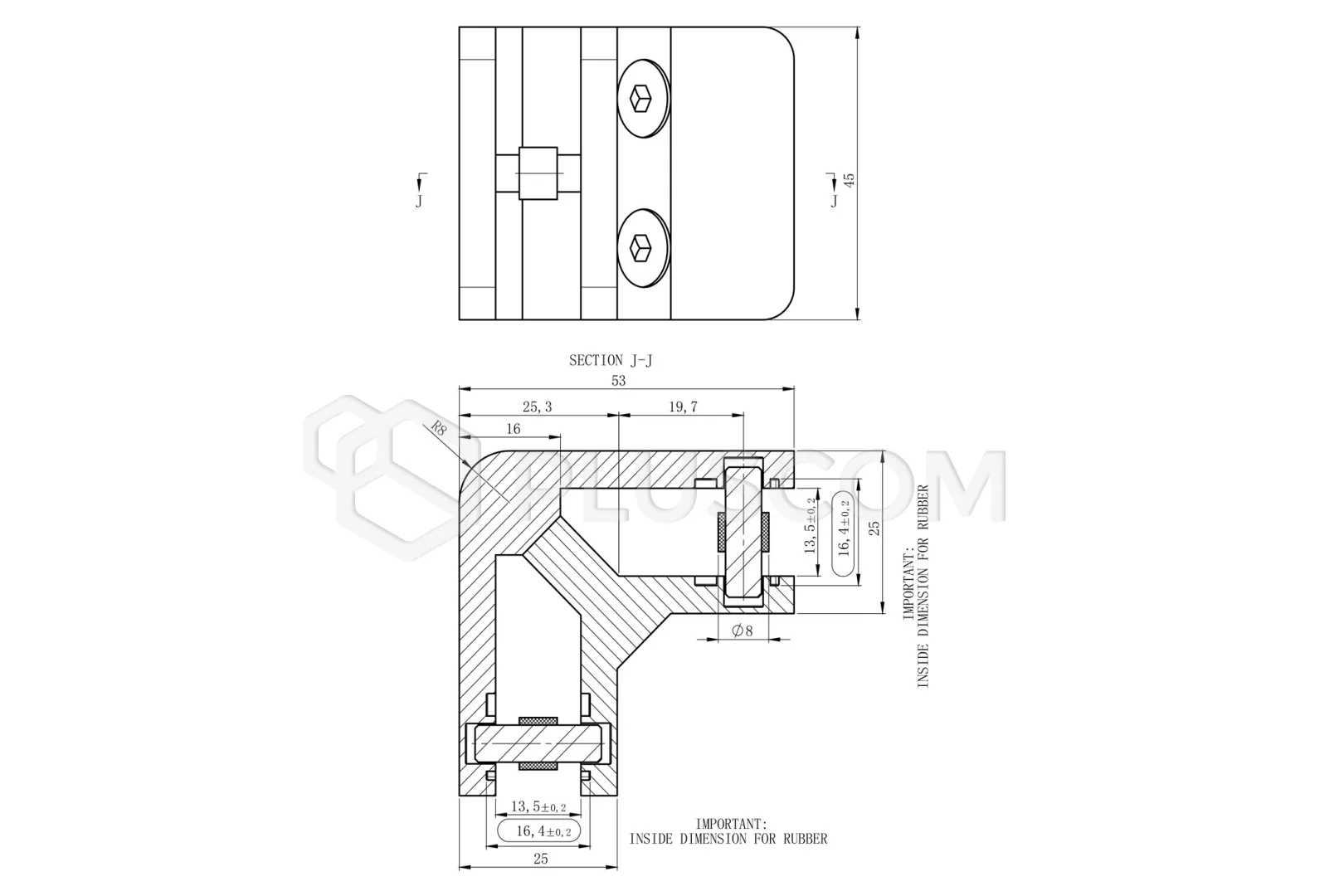

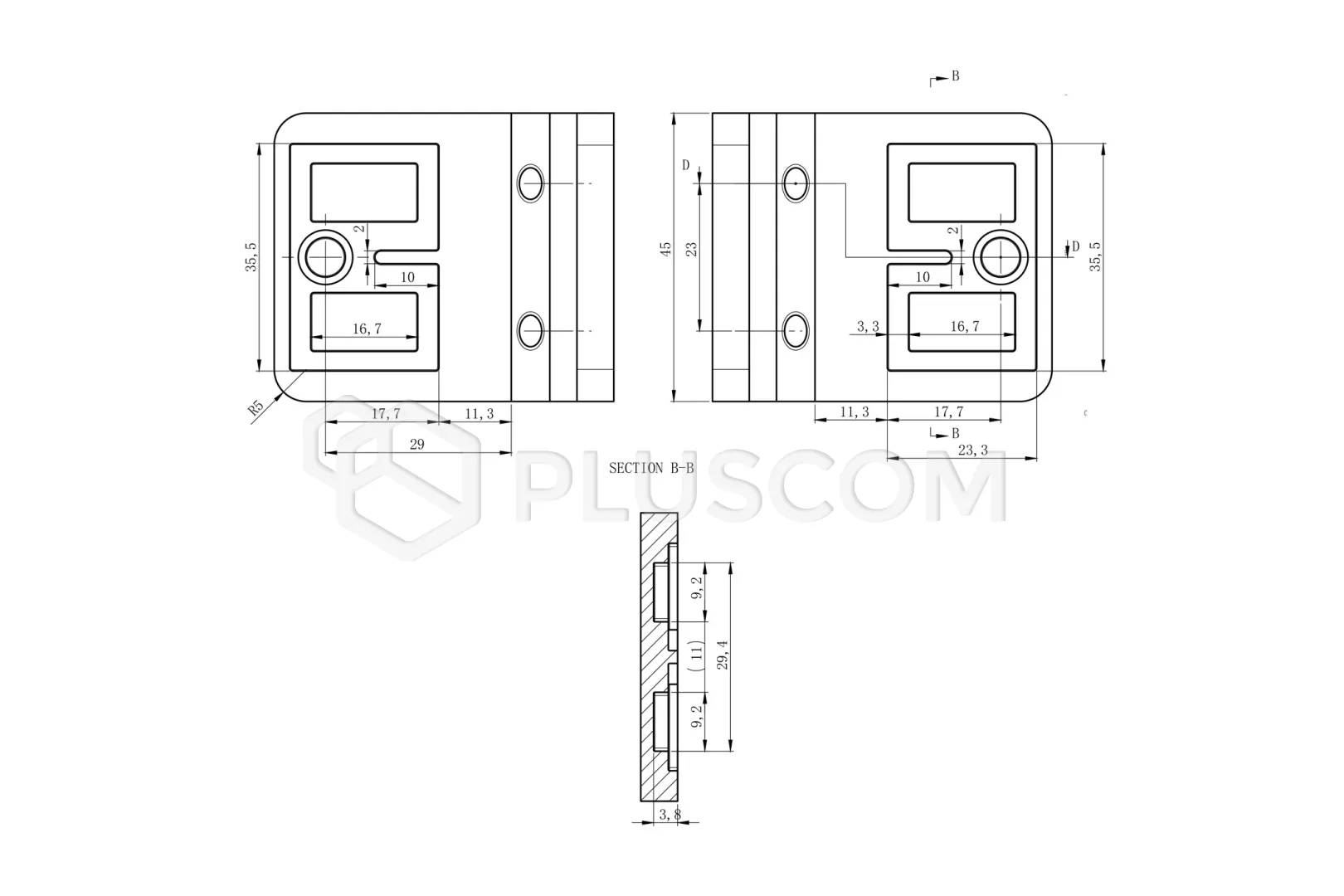

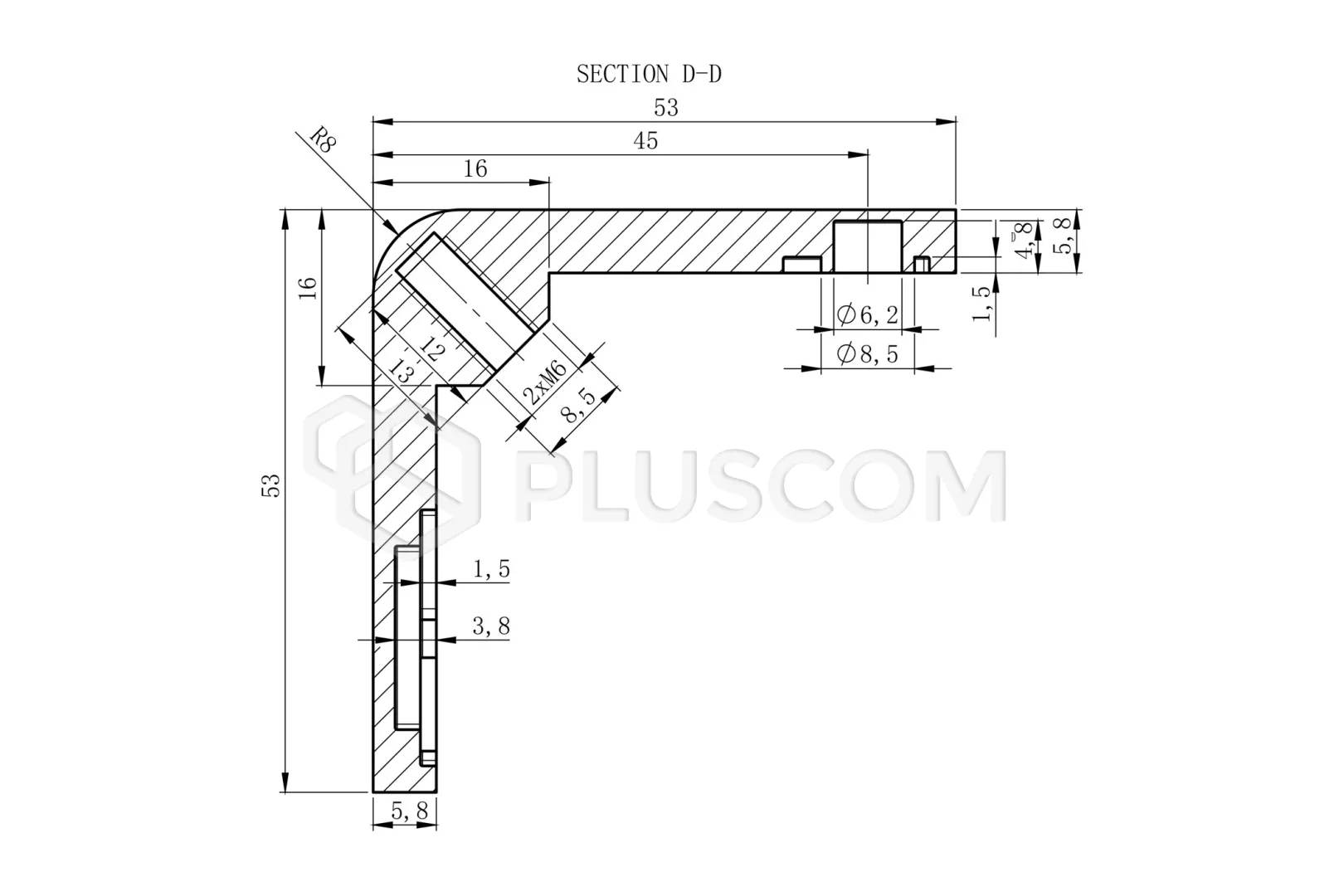

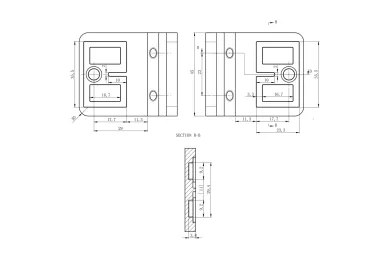

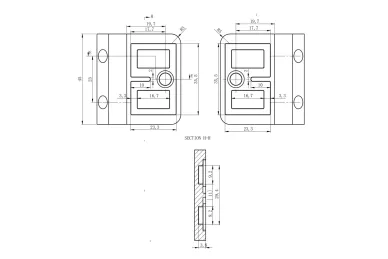

TECHNICAL DATA:
- L (mm): 53
- H (mm): 45
- Width (mm): 26
