PSG N01.5550.4XS Glass point fixing dia. 50/50/M10x60, glass 8-21.52 mm (AISI304, flat system, satin)

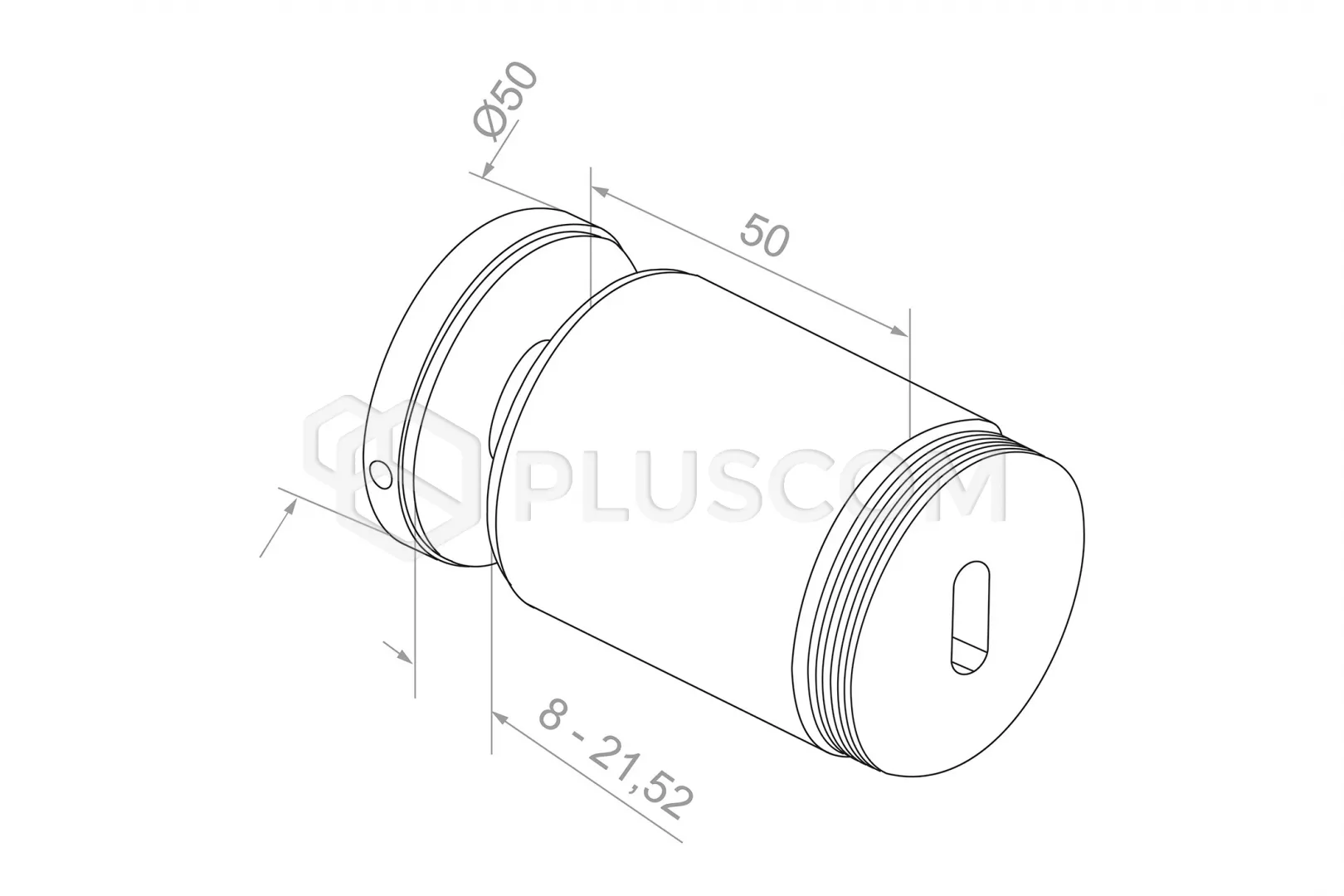

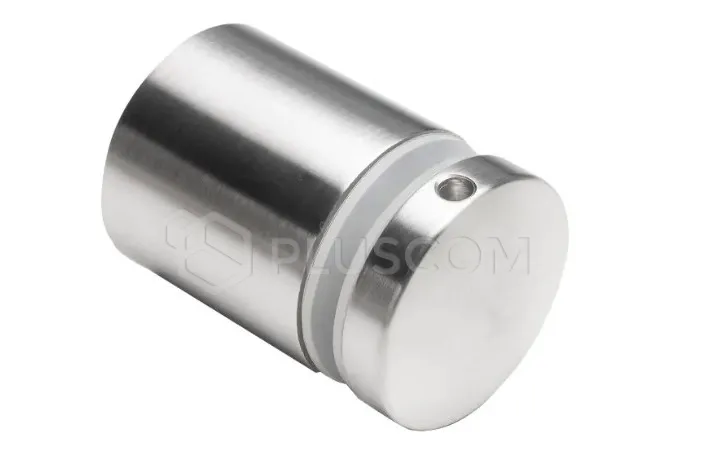

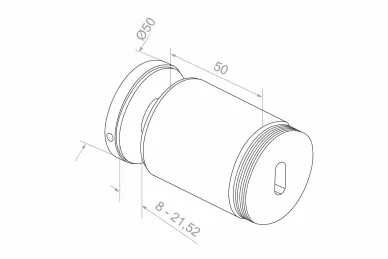

Glass point fixing, 50 mm diameter

The Pinox glass point fixing is a high-quality mounting part designed for stable and attractive fixing of glass in stainless steel structures. Ideal for balustrade systems, shop windows or shower enclosures, it provides solid support for glass from 8 to 21.52 mm thick.


Made of AISI 304 stainless steel with a satin finish, the clamp is not only strong but also elegant, adding a modern character to any space. The M10 threaded point fixing allows safe and easy installation on flat surfaces.

SPECIFICATION:

  • material: AISI 304 stainless steel, ensuring corrosion resistance and a long product life,
  • diameter: 50 mm - provides stability and an attractive look,
  • finish: satin - an elegant finish, ideal for modern interiors,
  • glass thickness range: from 8 mm to 21.52 mm, giving wide application possibilities,
  • thread: M10 - easy, quick installation on flat surfaces,
  • mounting hole: 18 mm - allows precise fit and stability of the whole structure.

Glass point fixing

Diameter: 50 mm
Thread: M10
For glass thickness: 8-21.52 mm
Material: AISI304 stainless steel
Finish: satin
Base system: for flat surfaces
Mounting: screw-in
Mounting hole: 18 mm
