PSG N01.5015N.4XS Point fixing for glass, for flat surface, dia. 50/50/M10X90 - glass 8 - 17.52 mm, hollow spacer, AISI 304, satin

PSG N01.5015N.4XS Point fixing for glass, for flat surface, dia. 50/50/M10X90 - glass 8 - 17.52 mm, hollow spacer, AISI 304, satin

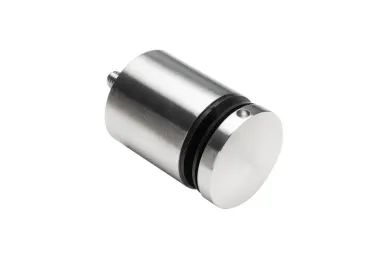

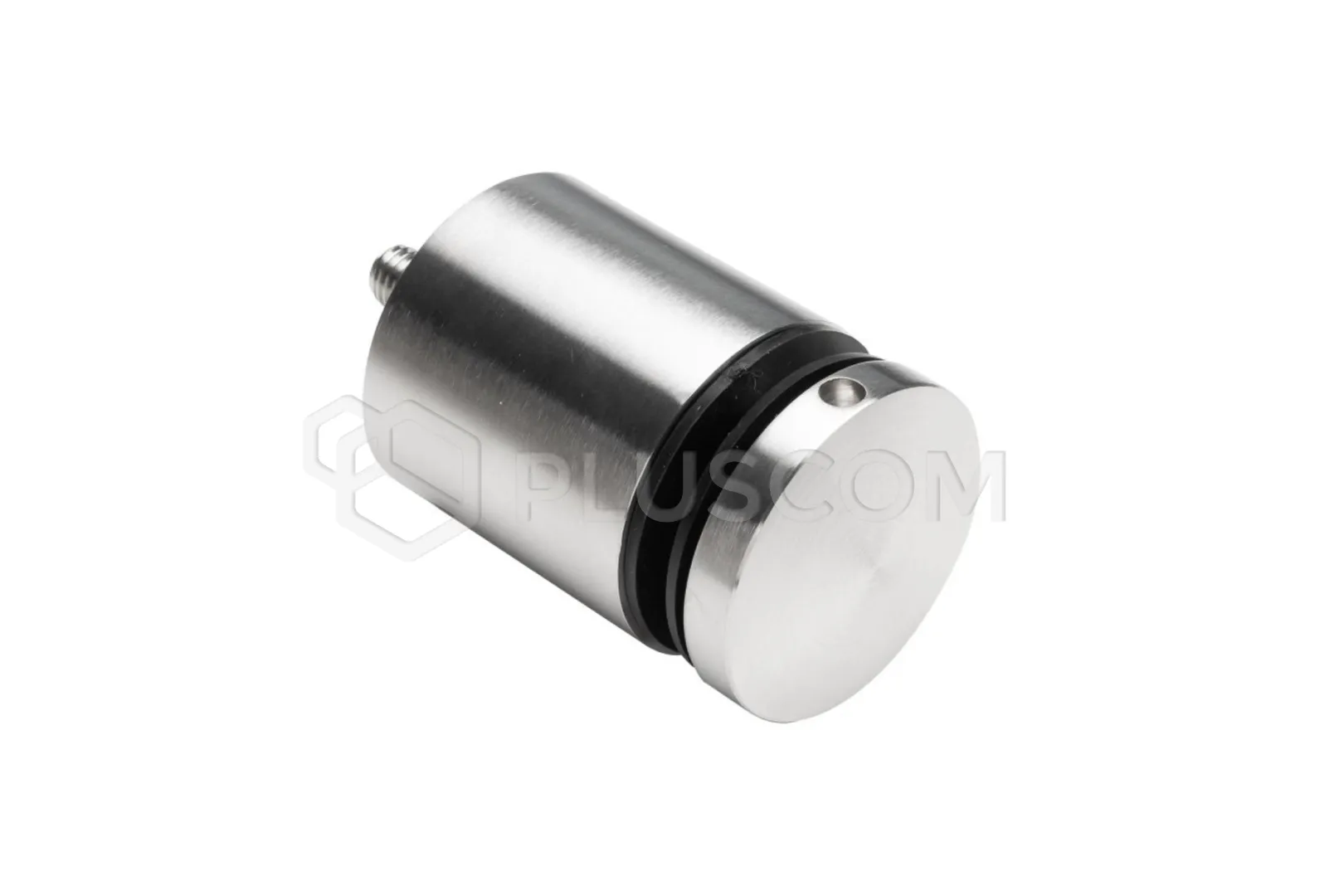

Point fixing for glass - dia. 50 mm, M10 x 90, for glass 8 - 17.52 mm, satin

A point fixing for glass designed for flat surfaces is a solid mounting element that combines durability with an aesthetic finish. It is made of AISI 304 stainless steel, so it works well in everyday use and retains resistance to moisture and corrosion.

The dia. 50/50 model with an M10x90 thread is designed for glass from 8 to 17.52 mm thick, so it can be used in various glass projects. The satin finish gives it a modern look, and the hollow spacer gives an aesthetic and functional installation result. It is a solution that supports stable fixing of the pane while also looking good in the finished structure.

• AISI 304 stainless steel: provides good resistance to corrosion, moisture and wear.
• For flat surfaces: the fixing is designed for mounting on a flat substrate, which increases its versatility.
• For glass 8 - 17.52 mm: this range lets you match the product to many popular glass panes.

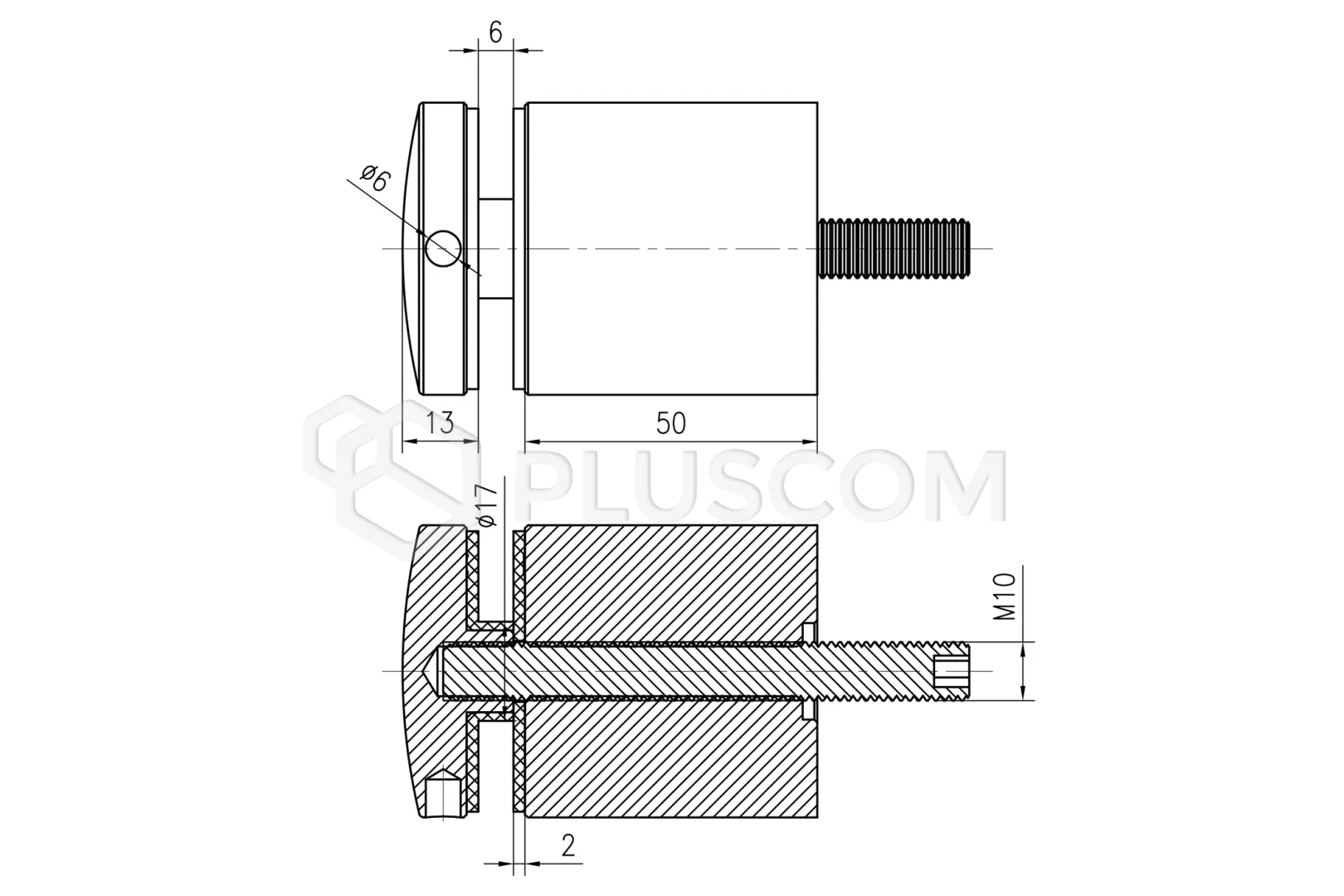

• M10x90 thread: a suitable mounting parameter for stable seating of the fixing.

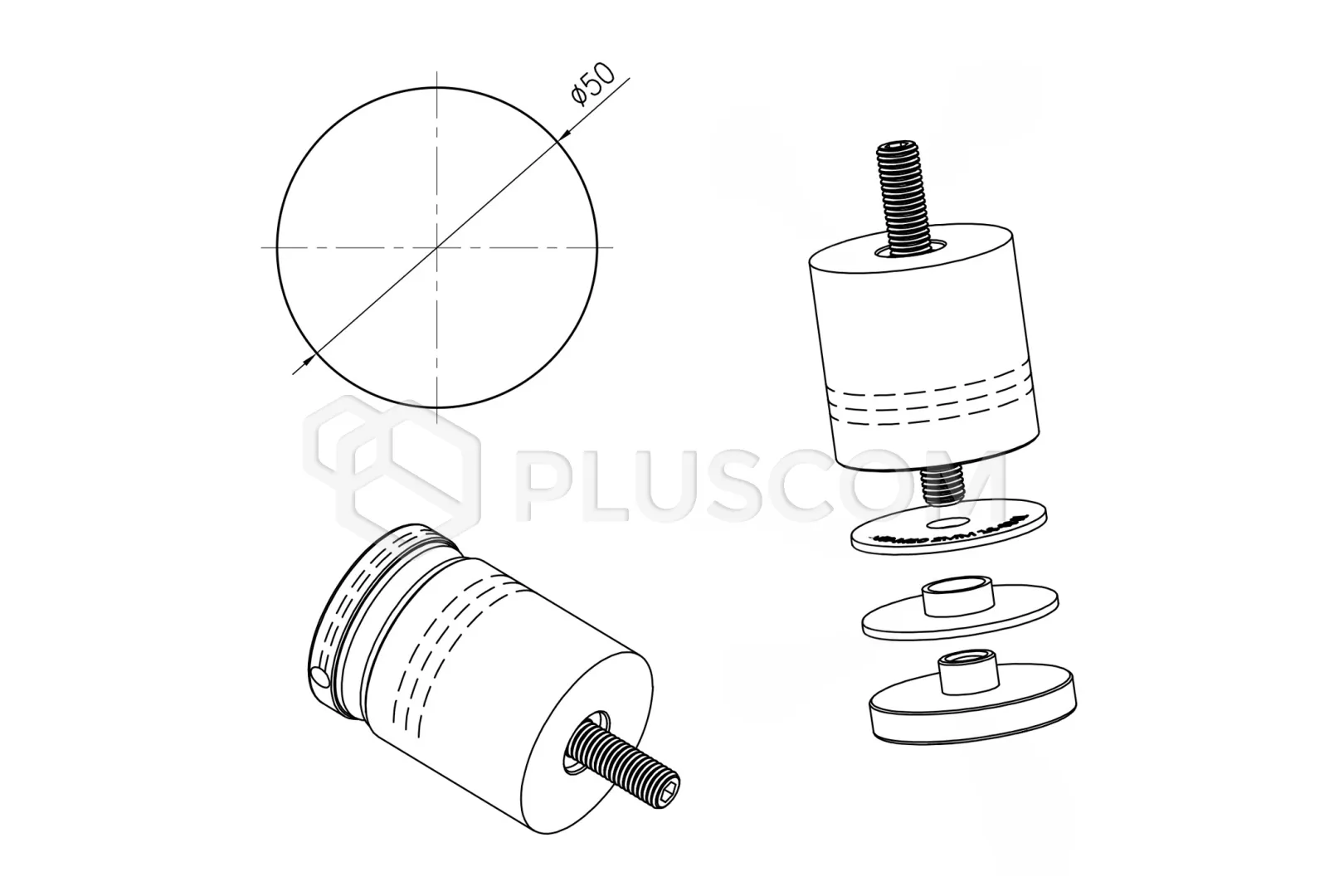

• Diameter 50 mm and base width 50 mm: the dimensions promote secure fixing and an aesthetic look.
• Glass mounting hole dia. 18 mm: makes it easier to fit the fixing to the pane correctly.
• Satin finish: emphasizes the modern character of the product and goes well with glass and steel.

STABLE GLASS FIXING

This type of fixing was designed for secure and durable mounting of glass panes. Properly chosen dimensions and a design for flat surfaces mean the product supports the glass well in everyday use. This is important for both the safety and the aesthetics of the whole project.

AESTHETIC FINISH AND DURABLE MATERIAL

The use of AISI 304 stainless steel and a satin finish makes the fixing look modern and professional. The material copes well in environments exposed to moisture, and the surface keeps a tidy look for a long time. As a result, the product combines practical value with an aesthetic final effect.

TECHNICAL DATA:

• L (mm): 90
