PSG N01.5000.4XM.9005 Point glass fixing dia. 50/8/M8x45, matte black, glass 8-17.52 mm (AISI 304, flat system, painted)

6,56 EUR including 23.00% VAT
Product code: #48881
Manufacturer: Postal Steep Group
  • L (mm): 50
  • Color: Matte black
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,45 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

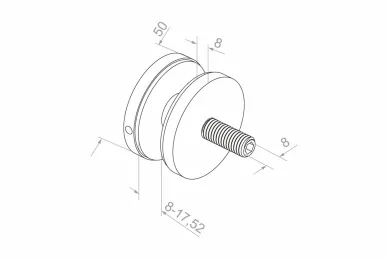

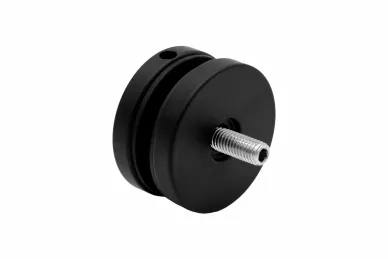

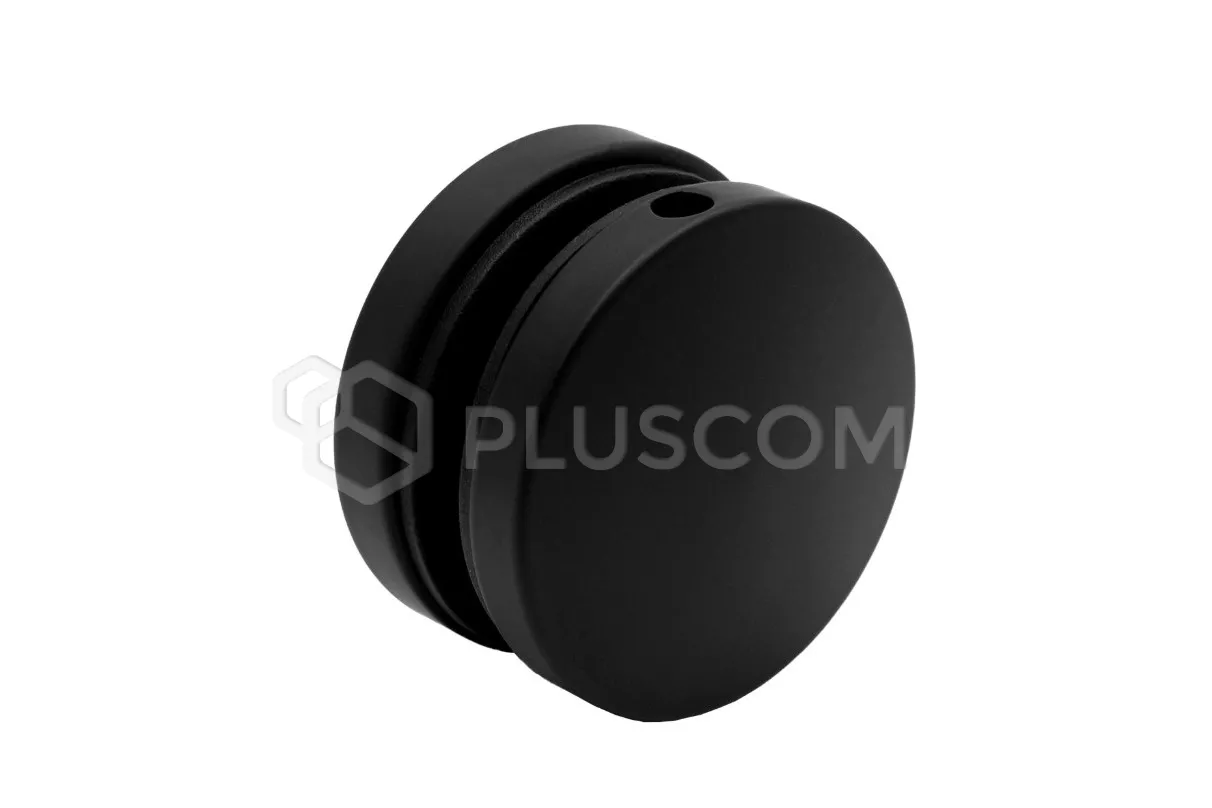

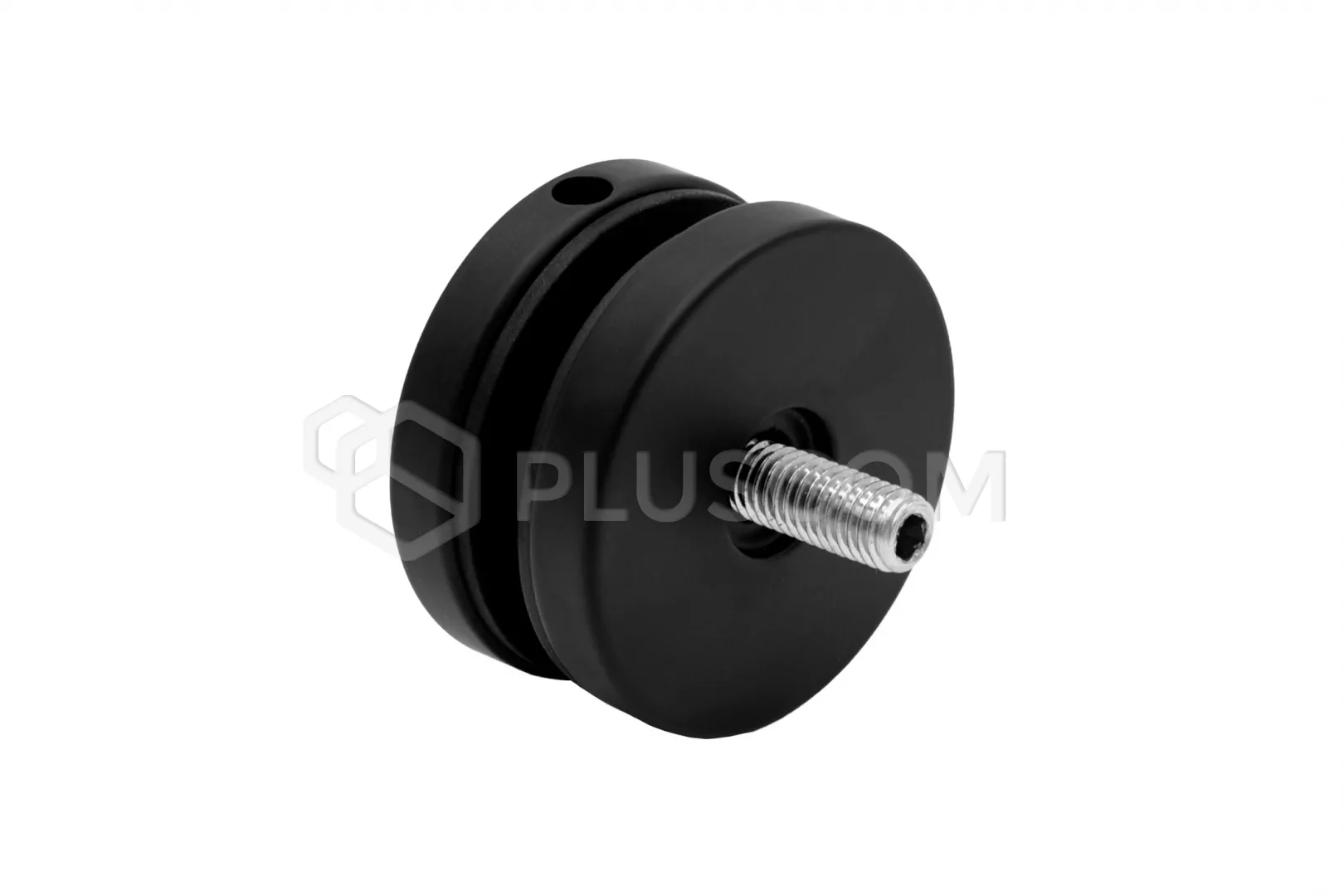

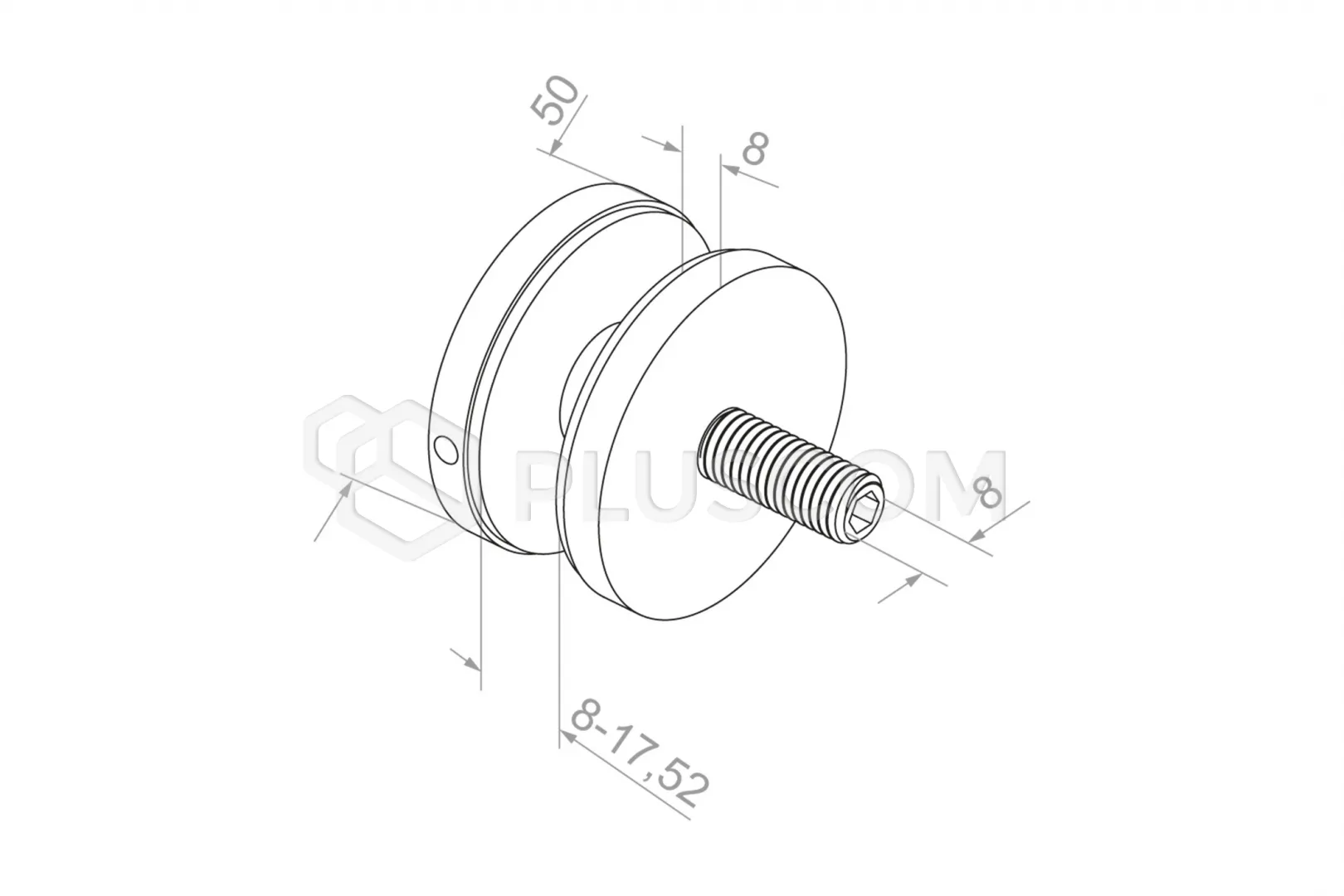

PSG N01.5000.4XM.9005 Point glass fixing dia. 50/8/M8x45, matte black, glass 8-17.52 mm (AISI 304, flat system, painted)


Point glass fixing - point fixing - for flat surface, matte black

Round point fixing by Pinox with a diameter of 50 mm.

Made of high-quality AISI 304 stainless steel, which gives the product excellent mechanical properties - it is durable and corrosion-resistant.

The fixing is designed for flat surfaces and is suitable for screwing in.

It has a neat powder-coated black finish, so it fits perfectly into all modern arrangements. Thanks to the powder coating, which significantly increases anti-corrosion properties, it can be used both indoors and outdoors

Key features:

  • application: for flat surface,
  • diameter: 50 mm,
  • finish: powder-coated black,
  • mounting hole: 16 mm,
  • spacer: 8,
  • mounting thread: M8x45,
  • material: AISI 304 stainless steel.

The fixing is suitable for glass from 8 to 17.52 mm thick.

Model

Point fixing 50/8/M8x45

Diameter

50 mm

Finish

matte black

Material

AISI 304 stainless steel

Gap

8 mm

Mounting thread

M8x45

Glass thickness

8 - 17.52 mm

Mounting hole

16 mm

TECHNICAL DATA:

  • L (mm): 50
  • Color: Matte black
