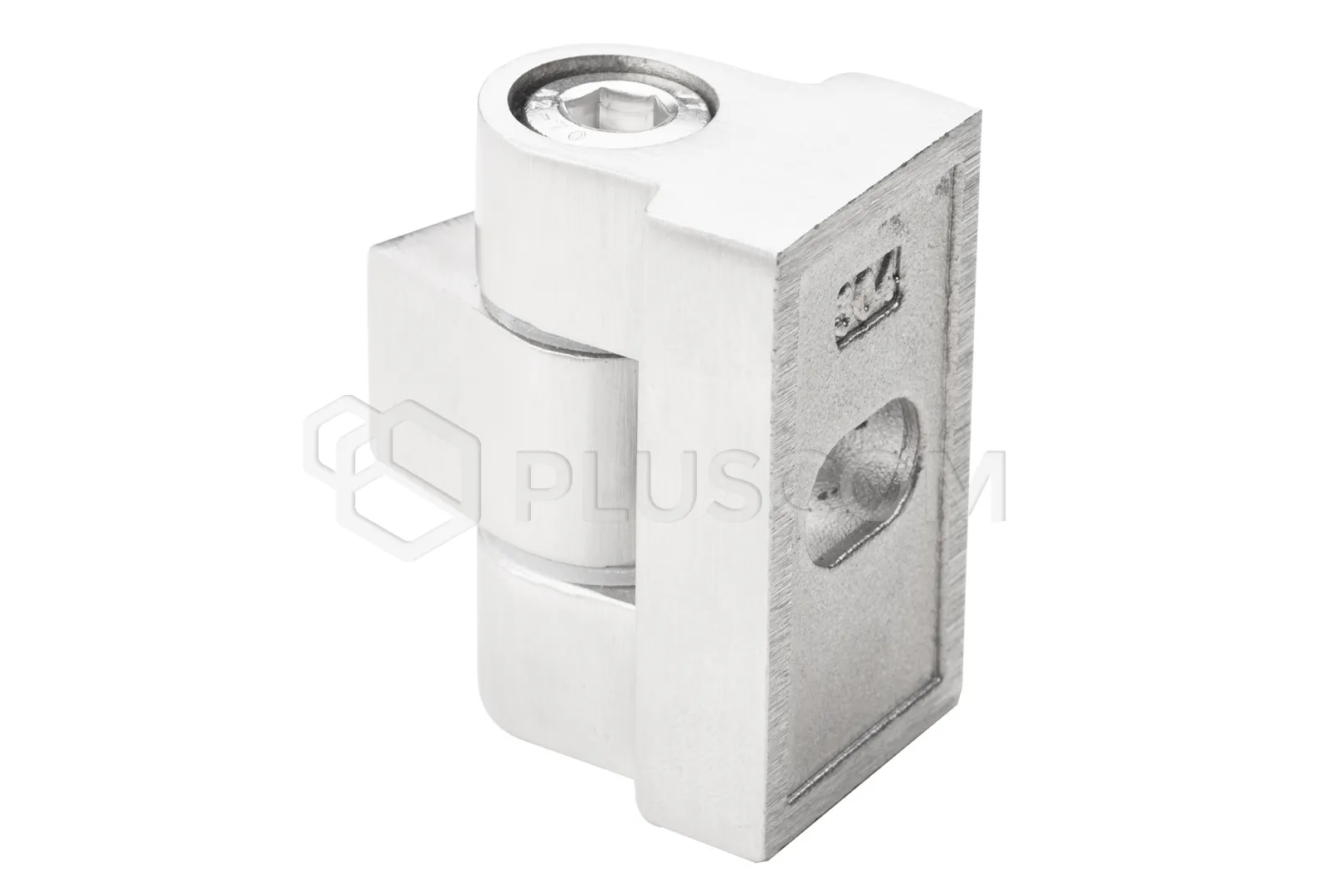

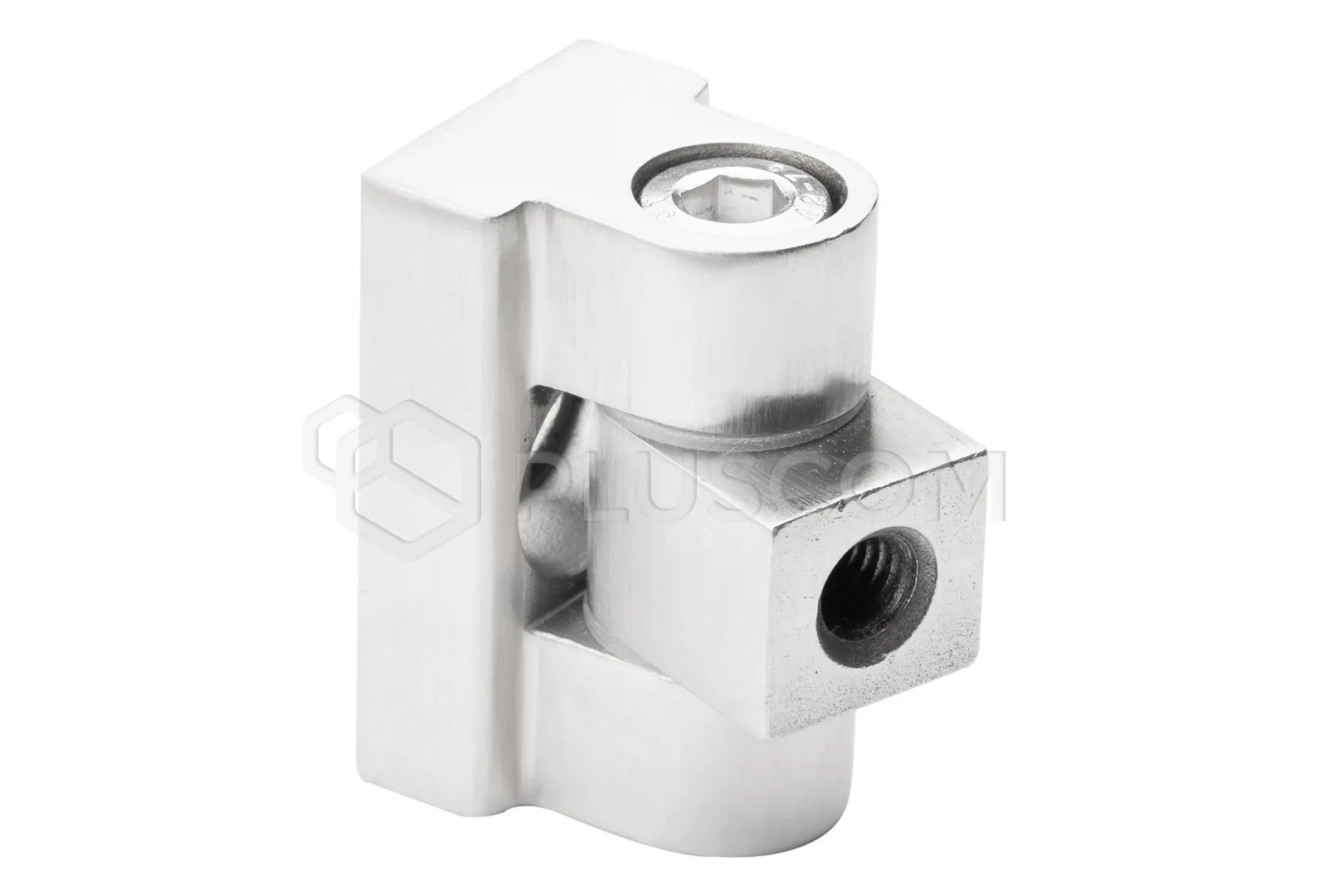

PSG N01.45K1Z180.4BS 180° hinge for 45 x 45 x 26 mm glass clamp - AISI 304, satin

7,53 EUR including 23.00% VAT
Product code: #48861
Manufacturer: Postal Steep Group
  • L (mm): 45
  • H (mm): 45
  • Width (mm): 26
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,45 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

PSG N01.45K1Z180.4BS 180° hinge for 45 x 45 x 26 mm glass clamp - AISI 304, satin


180° hinge for glass clamp - 45 x 45 x 26 mm

The 180° hinge for the glass clamp is a key component in glass structures where not only functionality but also an elegant look is required.

Made of AISI 304 stainless steel, it ensures strength and corrosion resistance, which is extremely important in places with high humidity or variable temperatures.

Its satin finish offers an aesthetic that blends perfectly with modern designs.

Main features:

  • material: high-quality AISI 304 stainless steel guarantees strength and resistance to weather conditions and corrosion
  • mounting type: screw-in product, which makes installation easier and ensures a firm hold on the tube
  • glass thickness: from 6 to 10.76 mm
  • designed for tubes with a diameter of 42.4 mm, which allows wide use in various balustrade and handrail systems
  • satin finish: provides an elegant and modern look while effectively masking possible fingerprints and dirt

Screw-in mounting

This mounting method ensures a strong connection and ease of installation and disassembly when needed. Screw-in mounting does not require specialist equipment, which makes it accessible to a wide range of users and also reduces installation time.

Product 180° hinge for glass clamp
Dimensions 45 x 45 x 26 mm
Material AISI 304
Finish satin
Tube diameter 42.4 mm
Opening angle 180°
Glass thickness from 6 to 10.76 mm

TECHNICAL DATA:

  • L (mm): 45
  • H (mm): 45
  • Width (mm): 26
