PSG N01.3000.4XM.7016 Point glass fixing dia. 30/13/M8x40, anthracite, glass 6-12 mm (AISI 304, flat system, painted)

3,30 EUR including 23.00% VAT
Product code: #48816
Manufacturer: Postal Steep Group
  • Color: Matte anthracite
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,45 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

PSG N01.3000.4XM.7016 Point glass fixing dia. 30/13/M8x40, anthracite, glass 6-12 mm (AISI 304, flat system, painted)

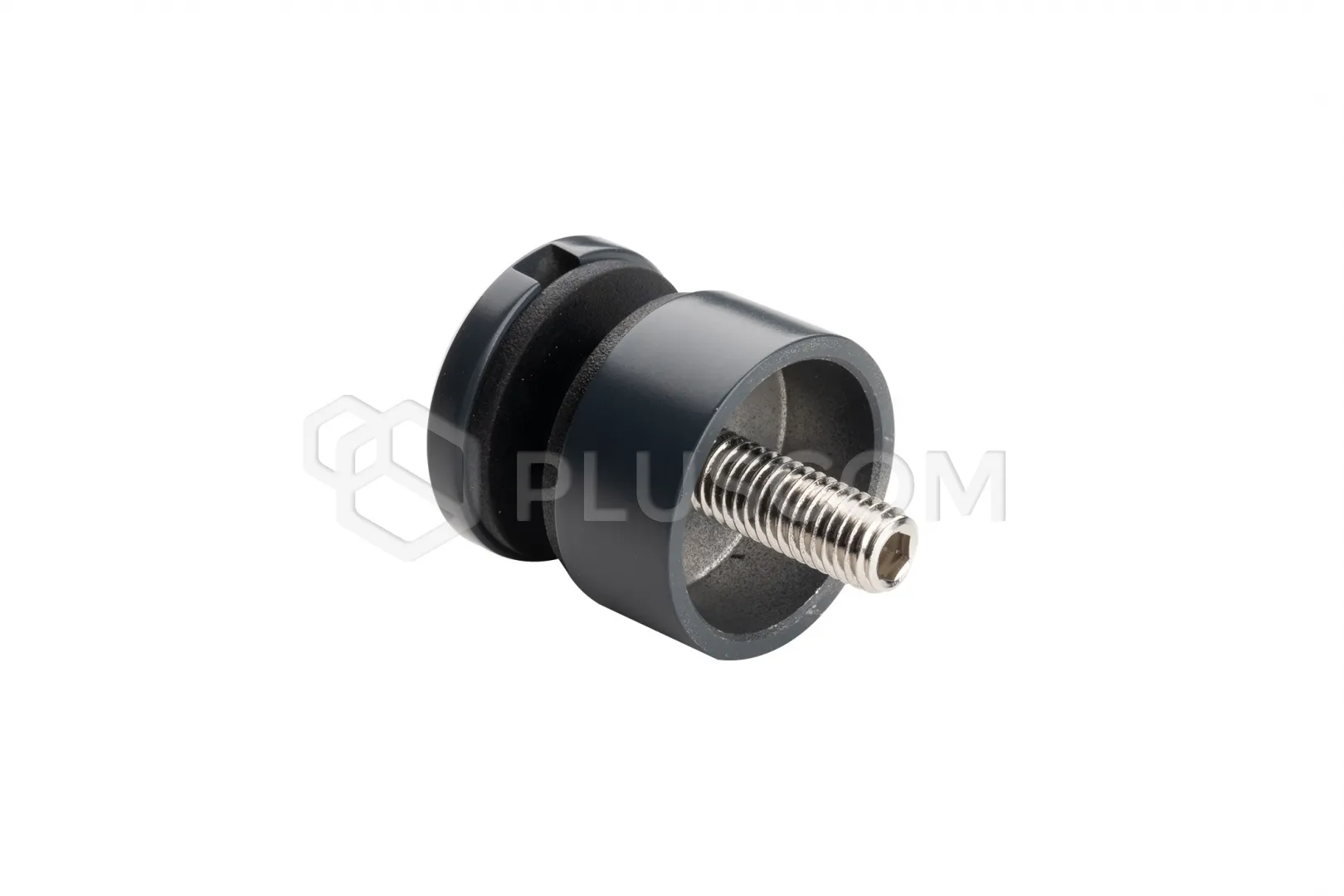

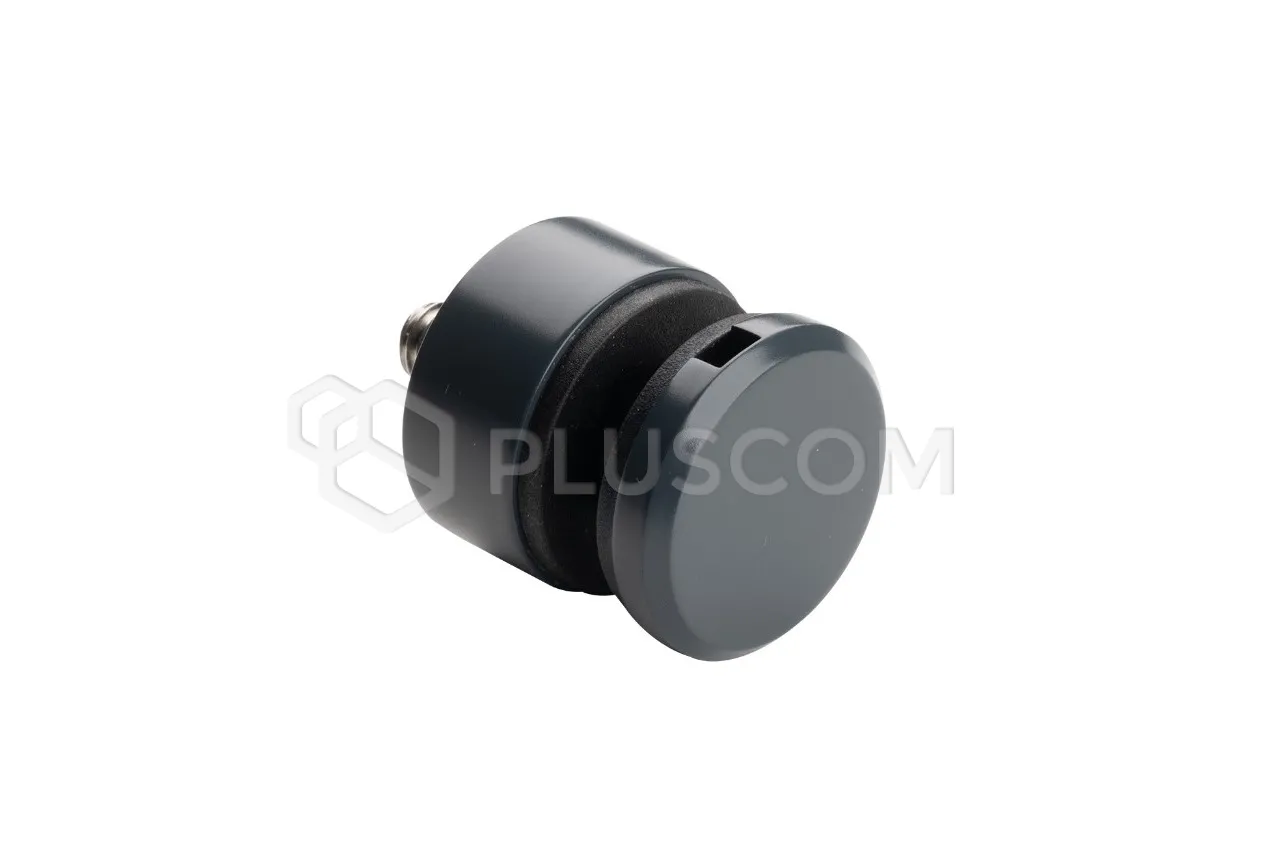

Point glass fixing - point fixing - for flat surface, anthracite

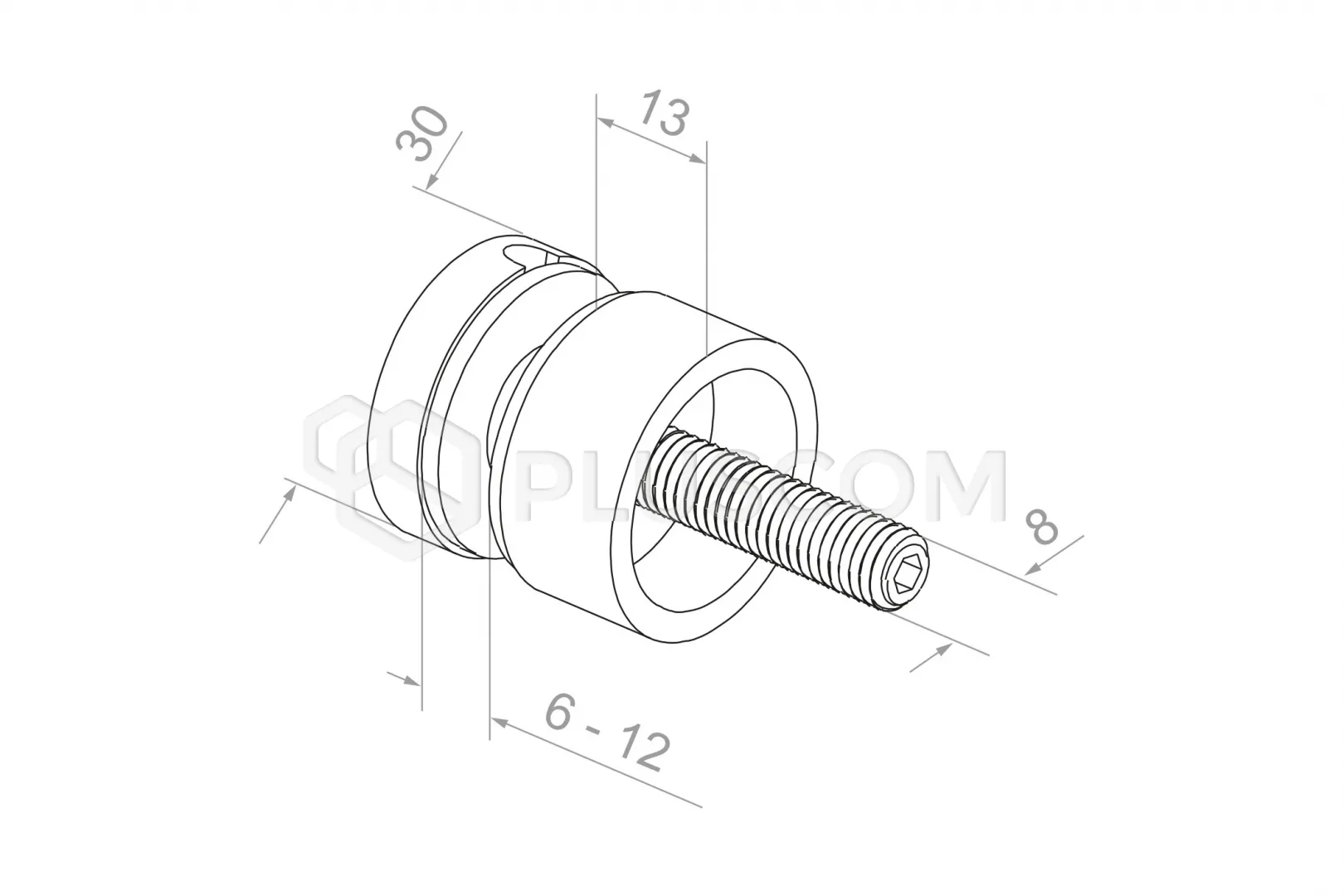

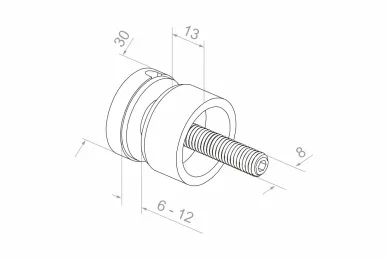

Round Pinox point fixing with a diameter of 30 mm.

The element can be used with glass with a thickness of 6 to 12 mm; this fixing is designed for mounting glass balustrades to a flat surface.

Made of high-quality AISI304 stainless steel, anthracite, powder-coated. Thanks to the powder coating, which significantly increases anti-corrosion properties, it can be used both indoors and outdoors.

  • material: AISI 304 stainless steel,
  • finishing method: powder coating,
  • glass thickness: 6-12 mm,
  • bolt: M8x40,
  • type: for flat surface
  • mounting hole dia. 13

Clamping rubbers are also included - with an adjustment range from 6 to 12 mm.

The color of the fixing may differ slightly from the color shown in the photo - depending on screen settings.

TECHNICAL DATA:

  • Color: Matte anthracite
