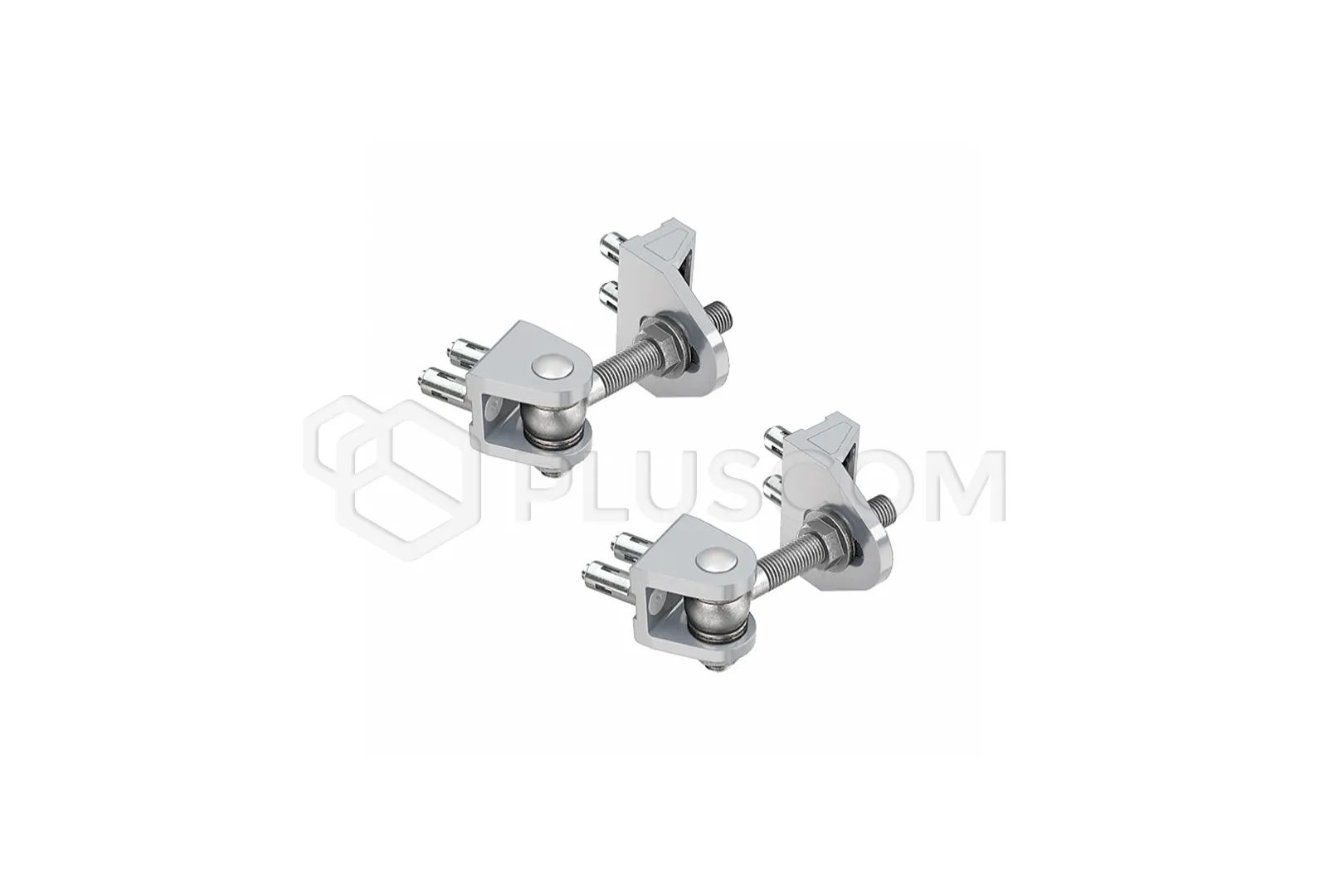

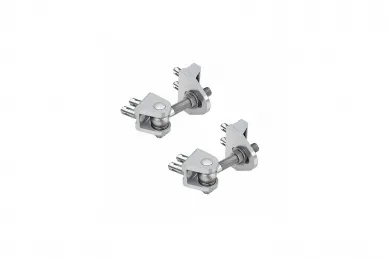

PSG LO.BOLTONHD-4D-M16QF-ALUM-110-02 Screw-on hinge adjustable in 4
directions, angle 180° M16 aluminum - 2 pcs
The Bolton HD screw-on hinge is an excellent solution for gate installation,
which requires both precision and durability.
Thanks to the use of modern assembly technologies, such as Quick-Fix, and
vandal-resistant construction, it is an ideal choice for both private and
industrial fences.
The hinge is characterized by high quality of workmanship and adjustment, which
means that it can be easily adapted to different types of gates, offering users
comfort and safety.
FEATURES:
- 180° opening angle: The wide opening angle of the gate allows for easy
use even in difficult spatial conditions
- Universal use: The hinge can be easily changed from the left to the right
gate wing, which increases its functionality
- Easy assembly: Quick attachment possible using Quick-Fix or a screw,
which saves time and makes installation easy
- Height and depth adjustment: Precise adjustment to various gate designs
thanks to height adjustment in the range of 15 mm and depth adjustment in the
range of 25 mm
- Weather resistance: Hot-dip galvanized screws provide long-term
protection against corrosion
- Application for large gates: The hinge supports gates with a maximum
width of 2000 mm

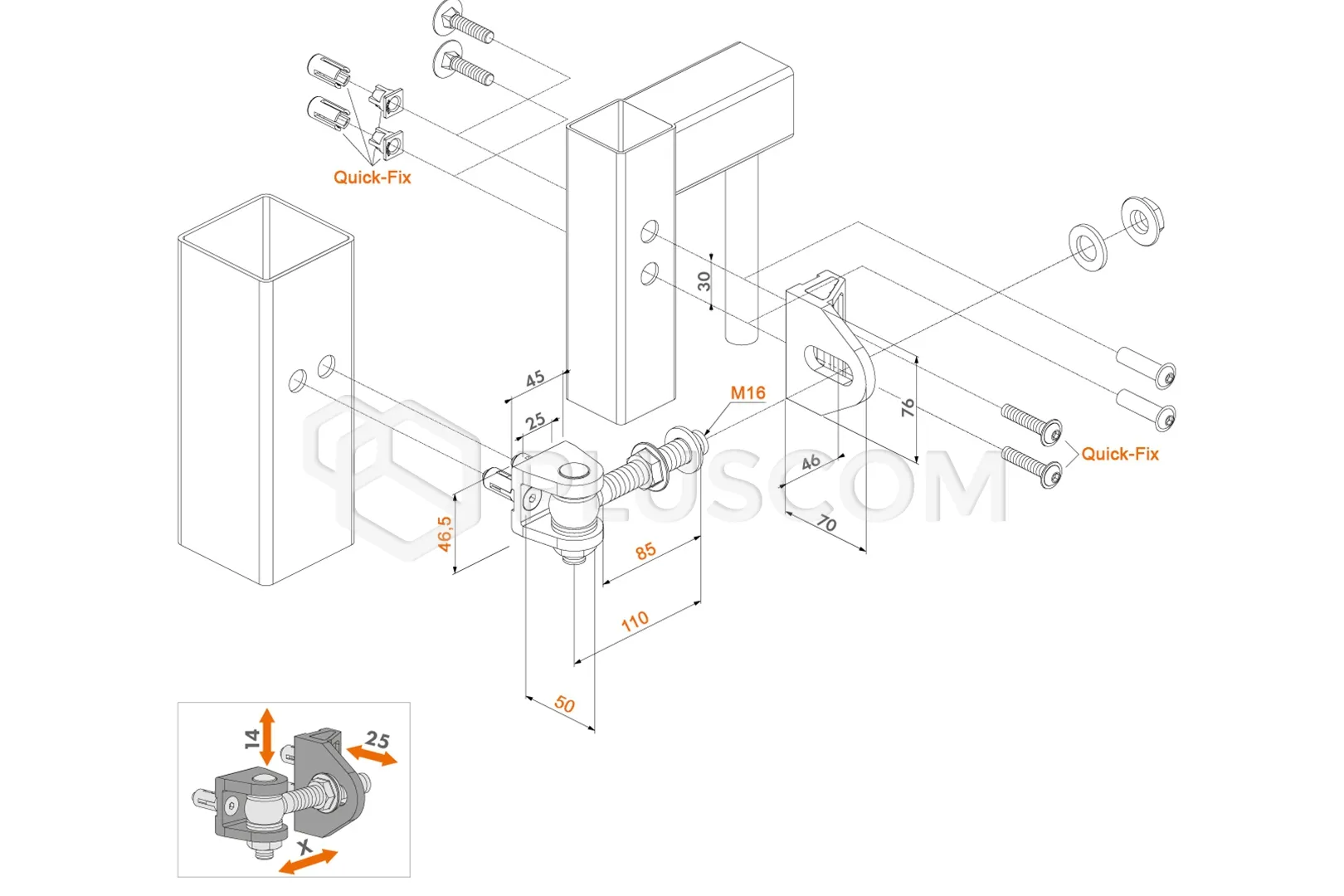

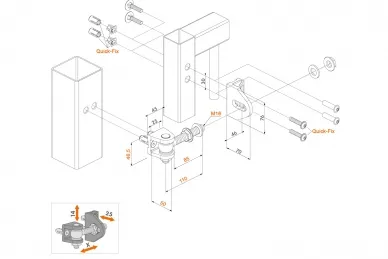

EASY INSTALLATION WITH QUICK-FIX SYSTEM
One of the greatest advantages
of the Bolton HD hinge is its ease of installation. >Thanks to the use of
the Quick-Fix system, the installation of the hinge is quick and does not
require specialist tools.
This solution saves time, which is particularly important when installing
larger numbers of gates. Additionally, Quick-Fix guarantees secure mounting,
which affects the safety of use of the gate.
VANDAL-RESISTANT EYE-BOLT
The Bolton HD hinge has been designed with
increased resistance to vandalism in mind. The vandal-proof eye-bolt makes the
product ideal for public places or industrial facilities where the risk of
mechanical damage is greater.
The solid construction and hot-dip galvanizing additionally enhance its
strength and durability, making this hinge an investment for years to come.
Technical data:
- Adjustable in 4 directions
- Thread: M16
- Colour: Aluminium, unpainted
- Mounting: Quick-Fix
- Screw: Eyelet, vandal-proof
- Opening angle: 180°
- Height adjustment: Within 15 mm
- Depth adjustment: Within 25 mm
- Handle: U-shaped
- Maximum gate width: 2,000 mm
- Maximum gate weight: 200 kg
