PSG LO.BOLTONHD-4D-M16QF-ALUM-110-02 Screw-on hinge adjustable in 4 directions, angle 180° M16 2 pcs.
The Bolton HD screw-on hinge is an excellent
solution for gate installation, which requires both precision and
durability.
Thanks to the use of modern assembly technologies, such as Quick-Fix, and vandal-resistant construction, it is
an ideal choice for both private and industrial fences.
The hinge is characterized by high quality
of workmanship and adjustment, which means that it can be easily adapted to
different types of gates, offering users convenience and safety.
FEATURES:
- 180° opening angle: The wide opening angle of the gate allows for easy use even in difficult spatial conditions
- Universal use: The hinge can be easily changed
from the left to the right gate wing, which increases its functionality
- Easy assembly: Quick attachment possible using
Quick-Fix or a screw, which saves time and makes installation easy

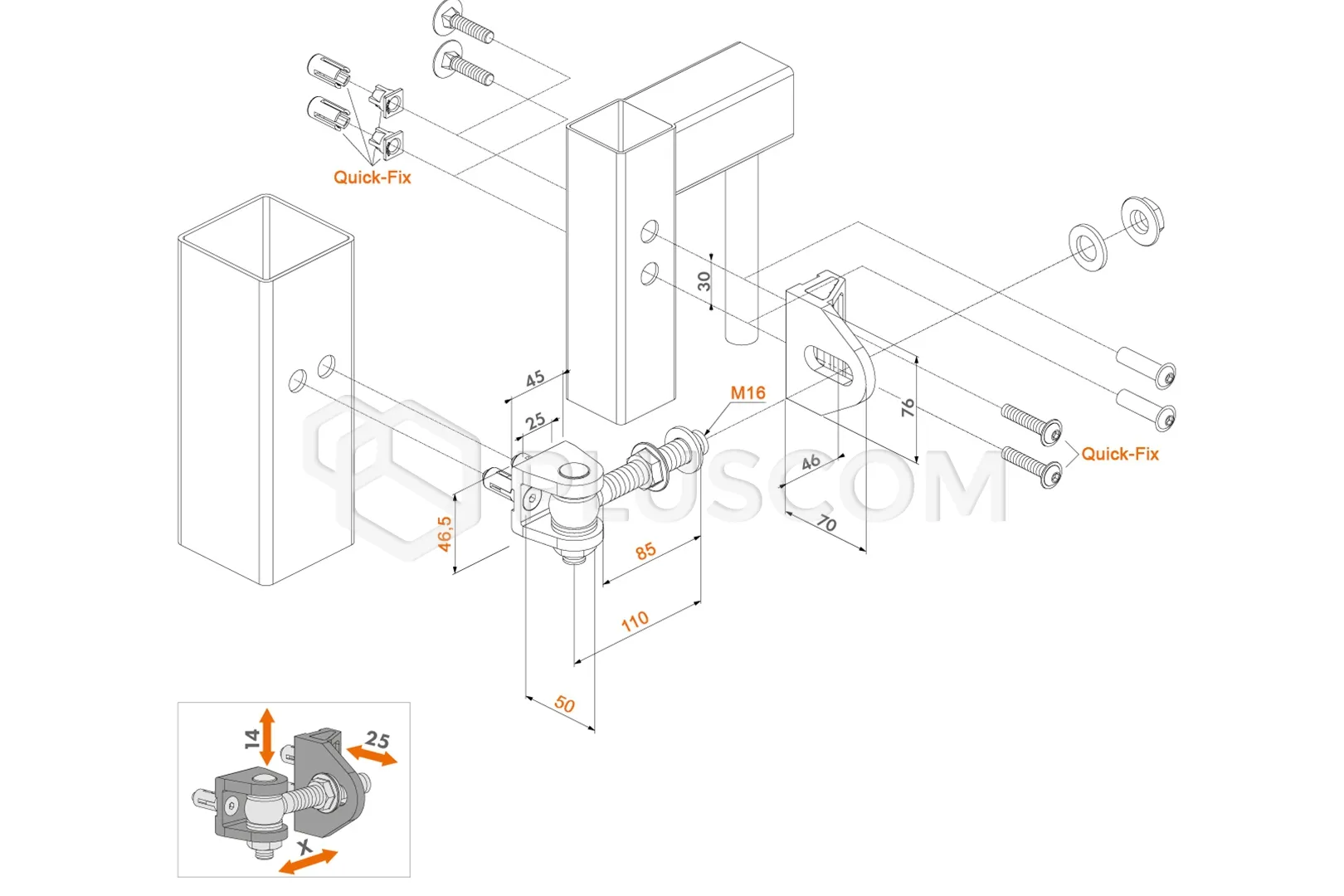

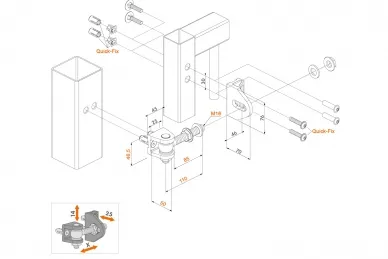

- Height and depth adjustment: Precise adjustment
to various gate designs thanks to height adjustment in the range of 15 mm and
depth adjustment in the range of 25 mm
- Weather resistance: Hot-dip galvanized screws
provide long-term protection against corrosion
- Application for large gates: The hinge supports gates with a maximum width of 2000 mm
EASY INSTALLATION WITH QUICK-FIX SYSTEM
One of the greatest advantages of the Bolton HD hinge is
its ease of installation. Thanks to the Quick-Fix system, the installation
of the hinge is quick and does not require specialist tools.
This solution saves time, which is
particularly important when installing larger numbers of gates. Additionally, Quick-Fix
guarantees secure mounting, which affects the safety of use
of the gate.
VANDAL-RESISTANT EYE-BOLT
The Bolton HD hinge has been designed with increased resistance to
vandalism in mind. The vandal-proof eye-bolt makes the product
ideal for public places or industrial facilities where the risk of
mechanical damage is greater.
The solid construction and hot-dip galvanizing additionally enhance its
strength and durability, making this hinge an investment for years to come.
Technical data:
- Adjustable in 4 directions
- Thread: M16
- Colour: Aluminium, unpainted
- Mounting: Quick-Fix
- Screw: Eyelet, vandal-proof
- Opening angle: 180°
- Height adjustment within 15 mm
- Depth adjustment within 25 mm
- Handle: U-shaped
- Maximum gate width: 2,000 mm
- Maximum gate weight: 200 kg
