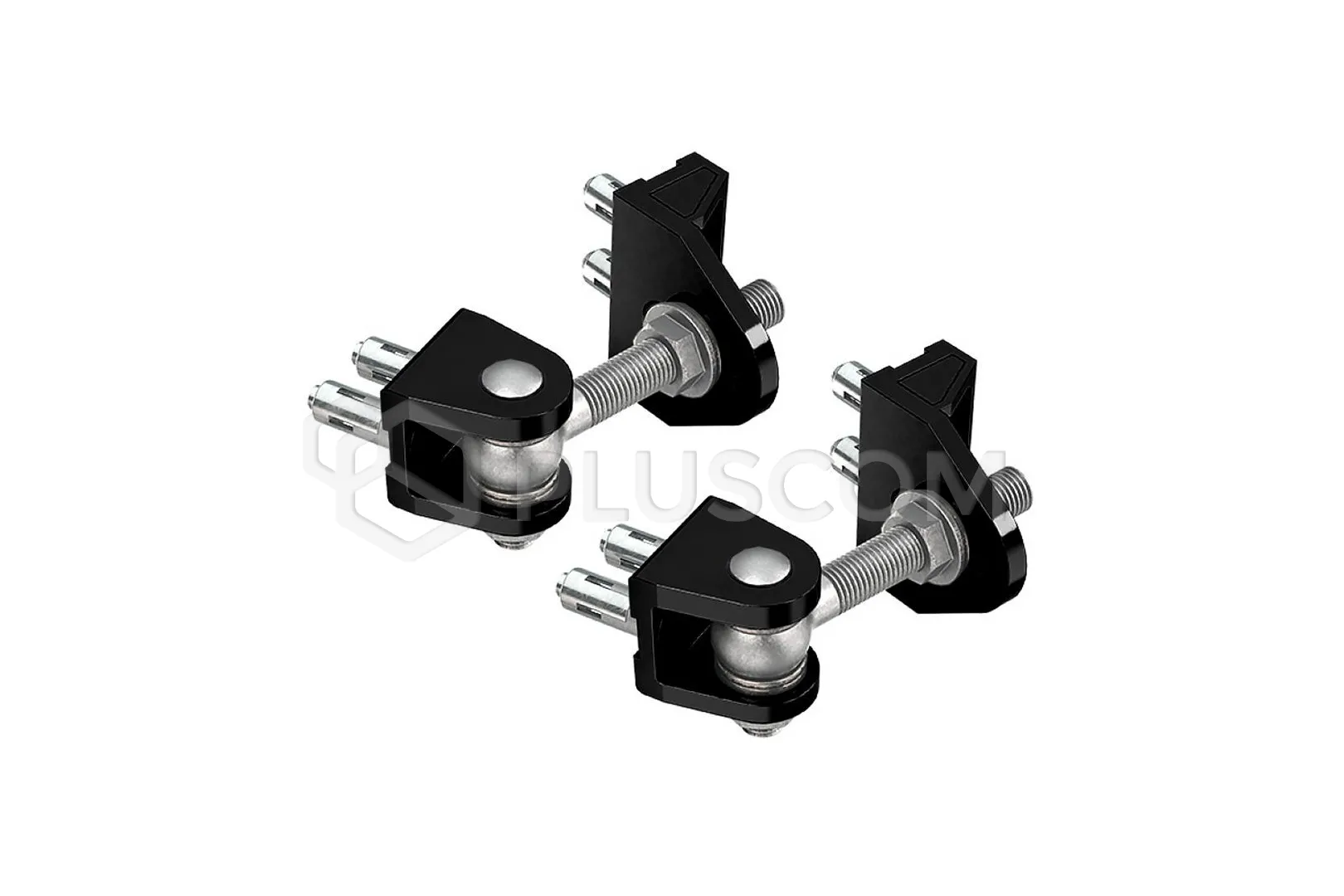

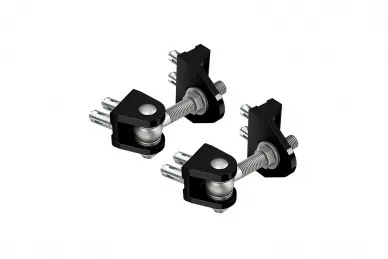

PSG LO.BOLTONHD-4D-M16QF-9005-110-02 Screw-on hinge adjustable in 4
directions 180° angle M16 black

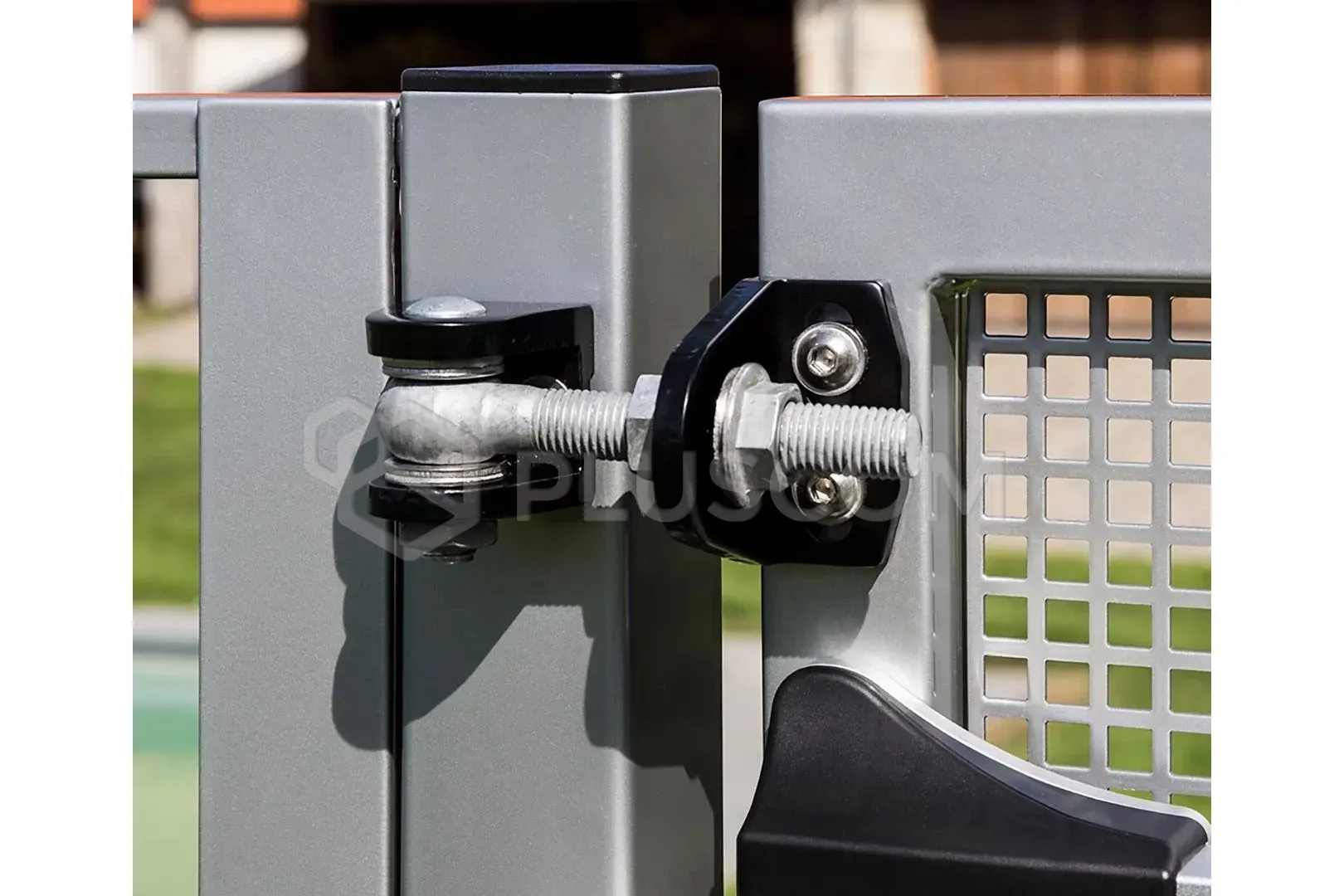

The BoltonHD hinge by Locinox is screw-on, adjustable in four directions -
ideal for use in gates.
Thanks to the possibility of opening at an angle of 180° and changing the
finished wing from left to right, the hinge provides maximum flexibility and
comfort of use.
The product is easy to mount, making it an ideal solution for professionals and
DIY enthusiasts.
FEATURES:
- Screwed hinge adjustable in four directions
- Opening option at 180°
- Vandal-proof eyebolt
- Height adjustment within 15 mm
- Depth adjustment within 25 mm
- Quick-Fix mounting system
- Possibility to change the leaf from left to right and vice versa
- U-shaped handle and GRIP hinge claw in aluminum color
- Hot-dip galvanized eyebolt and cross bolt
- Maximum gate width: 2000 mm
- Color: black

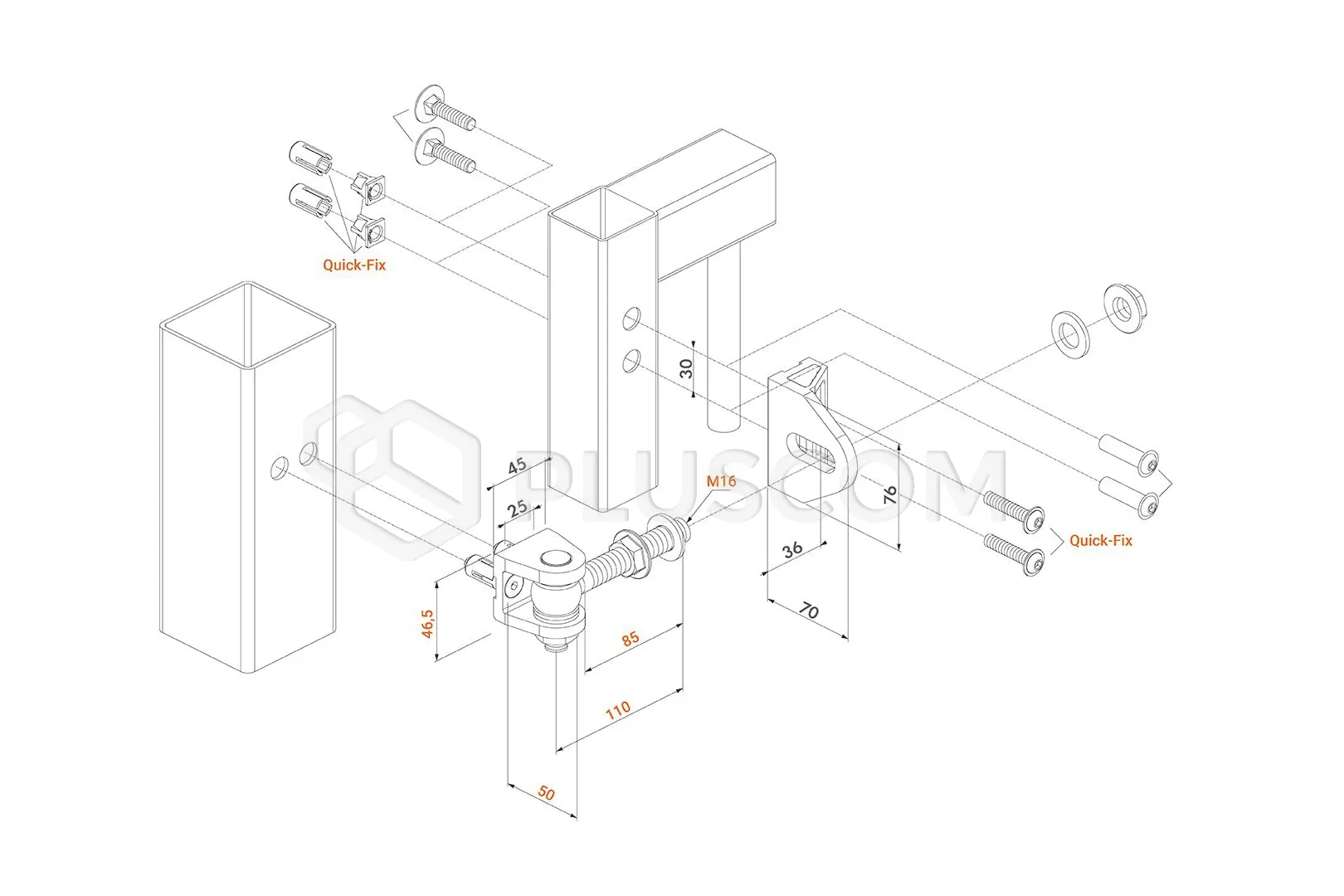

QUICK-FIX MOUNTING SYSTEM
The Quick-Fix mounting system is an
innovative solution used in the BoltonHD hinge, which allows for quick and easy
assembly without the need for welding. Thanks to this technology, the user can
attach the hinge using special screws that hold the elements securely, while at
the same time allowing their position to be adjusted.
Quick-Fix, which is the hallmark of Locinox products, makes the installation of
hinges less time-consuming and more precise, which translates into convenience
and work efficiency.
EASY HEIGHT AND DEPTH ADJUSTMENT
Another important feature of this
hinge is the possibility of adjusting the height and depth. The BoltonHD hinge
allows for height adjustment within a range of 15 mm and depth within a range
of 25 mm, which allows for perfect adjustment to the gate structure. Thanks to
this, the user can precisely adjust the leaf, which is crucial for its correct
and trouble-free operation.
Such flexibility in adjustment makes the hinge very versatile and easy to adapt
to various installation requirements.
Technical data:
- Height adjustment: Within 15 mm
- Depth adjustment: Within 25 mm
- Maximum gate width: 2000 mm
- Opening angle: 180°
- Maximum gate weight: 200 kg
- Color: Black
