PSG LO.BOLTONHD-4D-12-QF-ALUM-90-02 LOCINOX screw-on hinge for gates M12
angle 180° 2 pcs.
Locinox screw-on hinge for gates is a unique solution that provides full
adjustment in four directions, as well as easy assembly thanks to the Quick-Fix
system.
It is an ideal choice for people who value solidity, precise adjustment and
aesthetics in assembly elements.
The product is suitable for both left and right swing gates.
FEATURES:
- 4-way adjustment: Hinge adjustment in height, depth and fixing
possible
- Easy assembly: Quick-Fix system or screws guarantee fast and stable
fixing
- Vandal-proof eyebolt: Protection against vandalism thanks to durable
construction elements
- Versatile: The hinge allows the gate to be moved from the left to the
right without having to replace the hinges
- 180° opening angle: Maximum opening angle provides full freedom in using
the gate
- Galvanized screws: The eyebolt and crossbolt are hot-dip galvanized,
which guarantees their durability and corrosion resistance
- Height and depth adjustment: Precise adjustment in the height range (15
mm) and depth (25 mm) allows for perfect adjustment
- Aluminium handles: U-shaped handle and GRIP hinge in aluminium colour
provide aesthetic appearance and durability

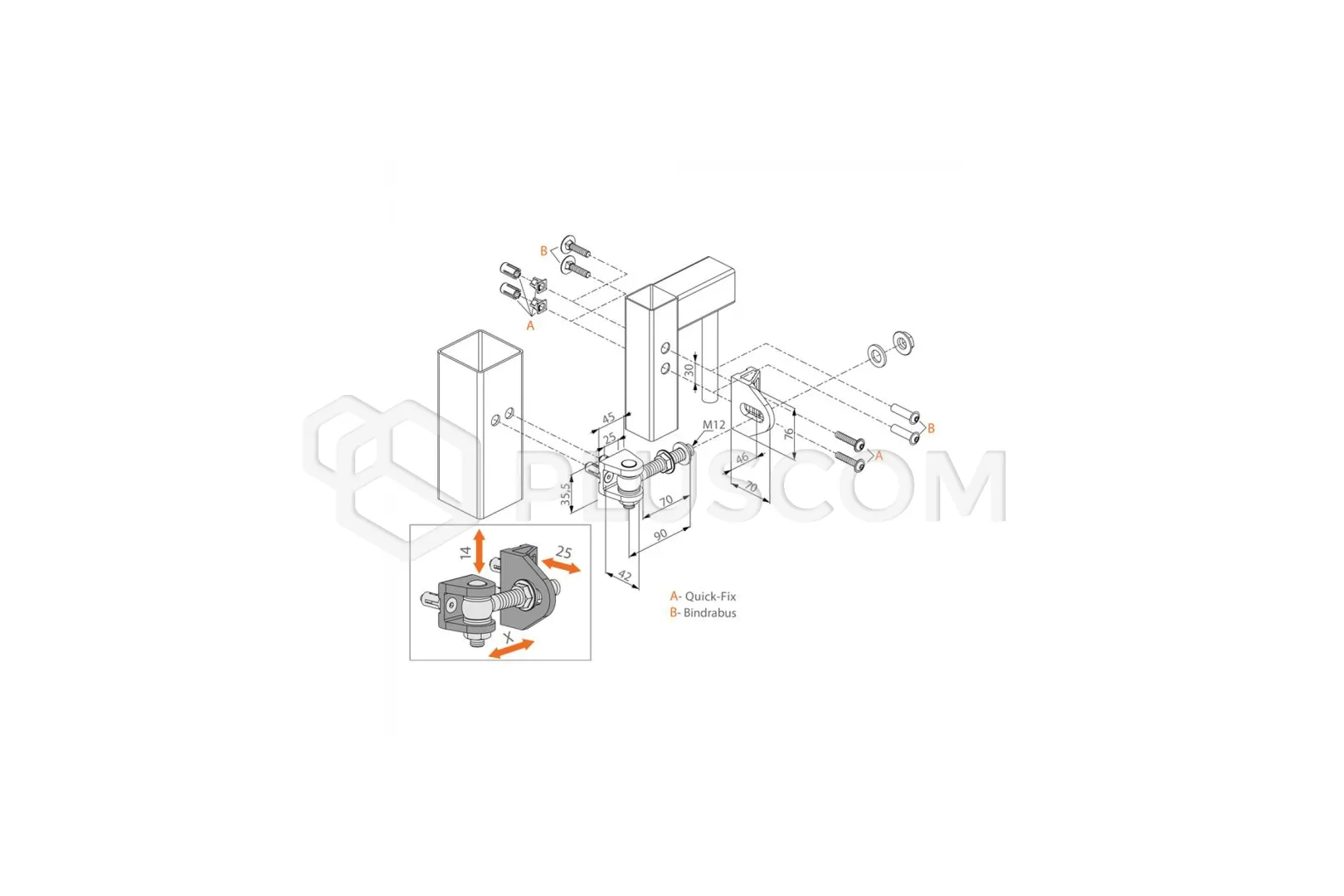

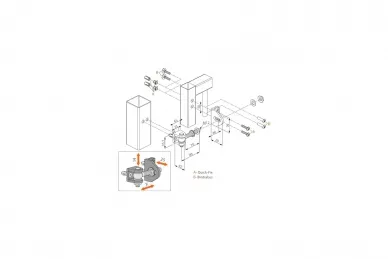

ADJUSTMENT IN 4 DIRECTIONS - FULL FLEXIBILITY OF MOUNTING
The Locinox
hinge offers a unique possibility of adjustment in four directions, which
allows for a perfect fit to any gate.
The possibility of adjusting the height by 15 mm and the depth by 25 mm ensures
precision and comfort of use. Such flexibility makes installation quick and
easy, even in difficult conditions, where perfect alignment of the gate leaf is
necessary.
VANDAL-RESISTANT EYE-BOLT
One of the key features of this hinge is the
use of a vandal-resistant eye-bolt. Thanks to this, this hinge guarantees not
only solidity, but also safety, especially in places exposed to acts of
vandalism.
Made of durable materials and hot-dip galvanizing ensure resistance to
mechanical damage and corrosion, which significantly extends the life of the
entire structure.
Technical data:
- Maximum gate leaf weight: 100 kg
- Opening angle: 180°
- Height adjustment range: 15 mm
- Depth adjustment range: 25 mm
- Handle: U-shaped
- Maximum gate width: 2000 mm
- Color: Aluminum
- Thread: M12
