GRS gate leaf safety restraint – up to 260 kg – Gatemaster

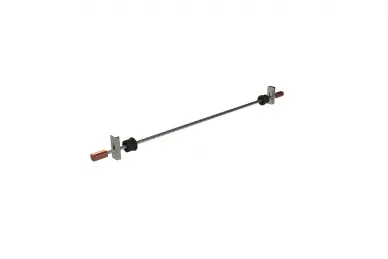

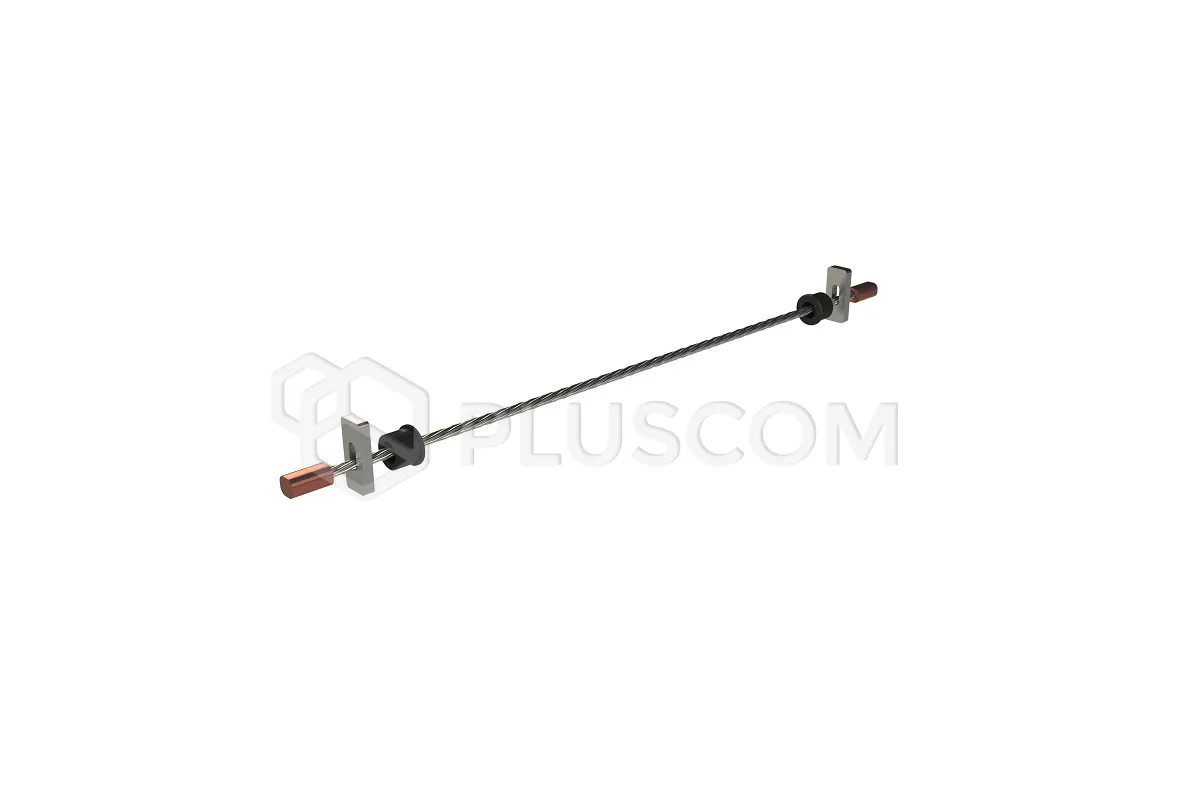

Gate safety restraint made of stainless steel – the limiter prevents the gate from falling if a hinge fails. This strong but simple device is essential for swing gates, where there is a risk of the gate failing and causing harm to pedestrians and property.

• durable – a lasting solution made of flexible braided stainless steel wire and stainless steel end stops,
• easy to install – only 2 holes with a diameter of 13 mm are needed,
• adaptable – fits any gate with rectangular-section posts and can be easily fitted at a later time,
• neat and discreet – a nice finish for any gate in any color,
• 3mm cable for gates with a leaf weight of up to 260kg (at a maximum gate width of 2.5m).

Simple installation:

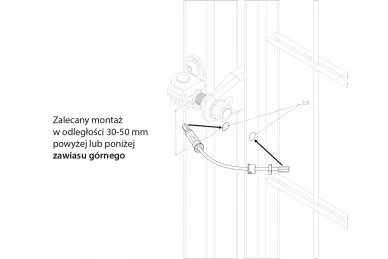

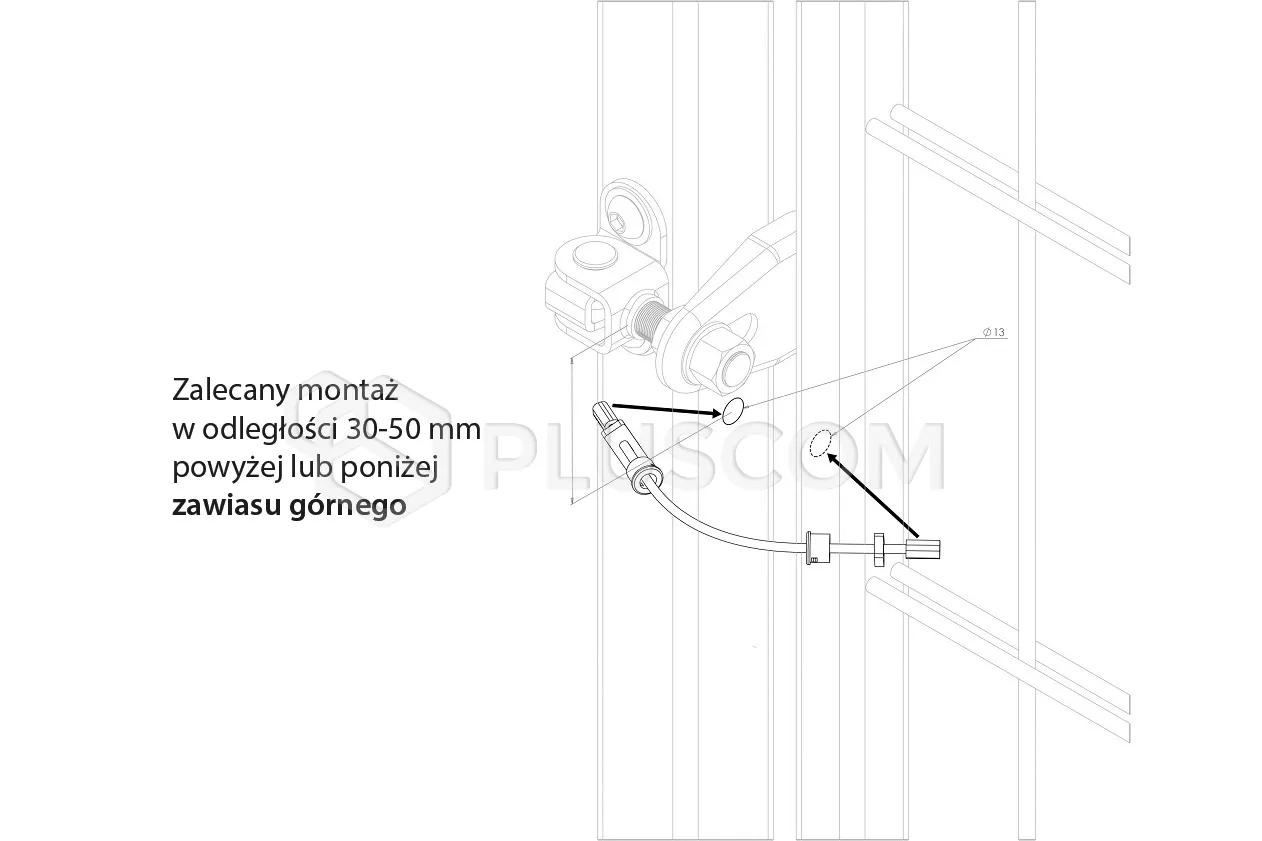

Simply drill a 13 mm hole in the gate and a corresponding 13 mm hole in the post, then pass the end stops through the holes. Press the plastic sleeves into the holes for a neat finish and to prevent the wire from scratching the gate.

TECHNICAL DATA:

• L (mm): 250
• H (mm): 10
