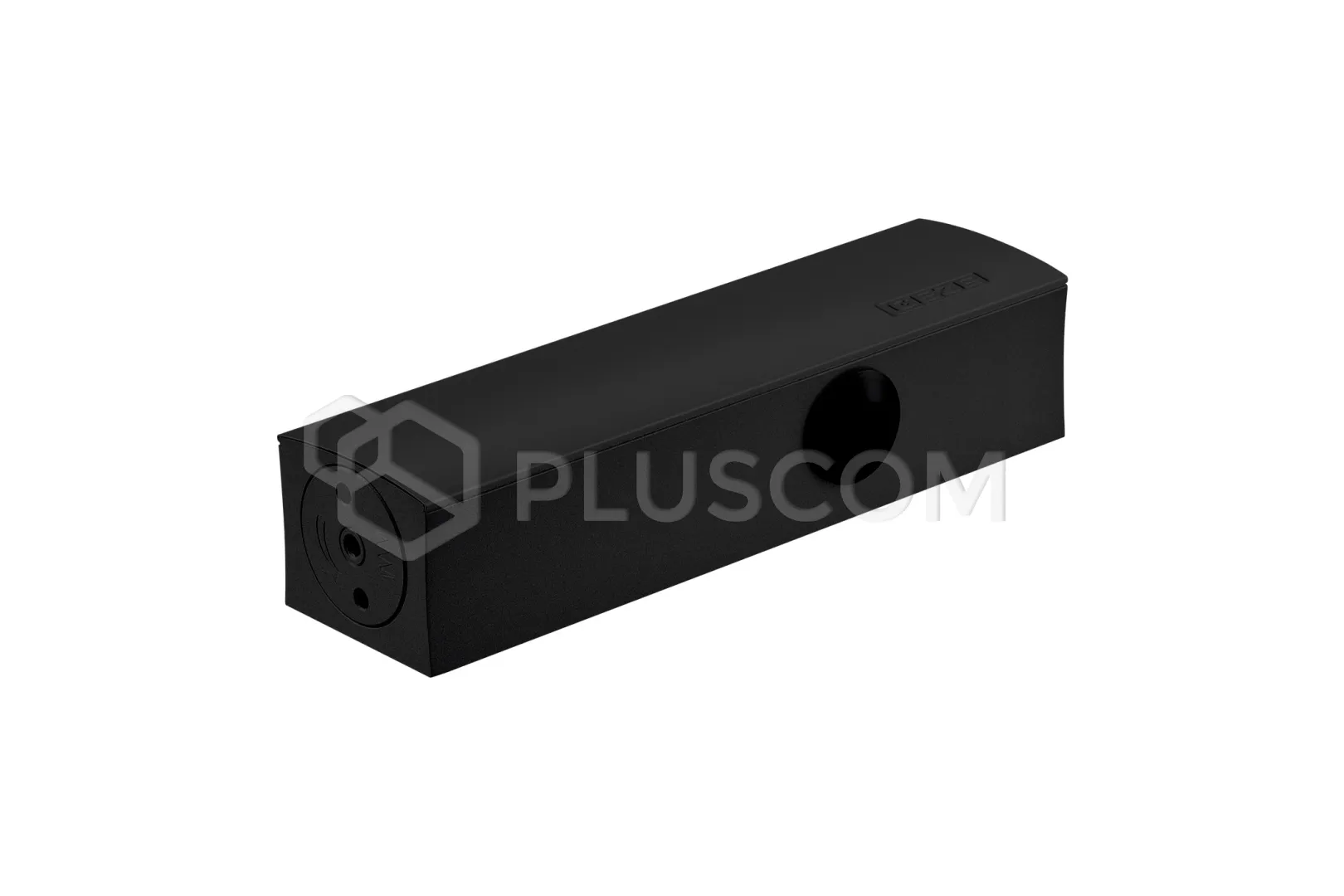

PSG GE.TS2000.NV BC.9005 GEZE TS 2000 NV BC fire-rated door closer without arm (max. 1100 mm) black RAL 9005
GEZE TS 2000 NV BC door closer for fire doors
The GEZE TS 2000 NV BC door closer is a popular solution for exterior and interior doors that has won recognition thanks to its solid construction and excellent technical parameters. Its black housing gives it a modern and elegant look that suits a variety of interiors, both home and commercial.
The product is valued for its reliability and durability, which makes it the first choice for many door manufacturers and installers. Thanks to its properties, the door closer has been used for many years and enjoys unfailing popularity.
SPECIFICATION:
- infinitely variable closing force adjustment EN 2/3/4,
- closing speed adjustment,
- hydraulic valve adjustment of the final closing phase (latching action),
- integrated opening damping,
- mounting on the leaf on the hinge side and on the side opposite the hinges,
- leaf width up to 1100 mm,
- opening angle up to 180 degrees,
- corrosion resistance: class 4,
- approved for fire and smoke-proof doors,
- compliance with the EN 1154:1996/A1:2002/AC:2006 standard,
- thermostable valves for constant operation in different temperature conditions.
SAFETY AND COMPLIANCE WITH STANDARDS
The GEZE TS 2000 NV BC door closer is an excellent choice for fire and smoke-proof doors. Its compliance with the DIN 18040 hardware standard allows installation in barrier-free buildings, which makes it an ideal solution for people with disabilities. Thanks to these features, the door closer provides the highest level of safety, which is essential in public places such as hospitals, schools and office buildings. In addition, thanks to the thermostable valves, the door closer works reliably in different temperature conditions, which ensures its long and trouble-free operation.
FORCE AND CLOSING SPEED ADJUSTMENT
Closing force adjustment makes it possible to adapt the door closer to different conditions of use, which is key to ensuring optimal performance and comfort of use. Thanks to the hydraulic valve, the door closing speed and force can be set precisely, which allows ideal adaptation to the individual needs of the user. This solution is particularly important in high-traffic places, where fast and safe door closing is necessary.
CORROSION RESISTANCE
One of the distinguishing features of the door closer is its corrosion resistance, which guarantees long-lasting and reliable operation, even in difficult weather conditions. Corrosion resistance class 4 means that the product can withstand the most demanding conditions, which makes it an ideal choice for exterior applications and humid environments. Thanks to this, users can be sure that the door closer will work trouble-free for many years.
| Product: |
GEZE TS 2000 NV BC door closer |
|---|
| Maximum leaf width: |
1100 mm |
| Mounting type: |
mounting on the leaf on the hinge side, mounting on the frame on the opposite-hinge side, mounting on the leaf on the opposite-hinge side |
| Maximum opening angle: |
180°
|
| Use on fire doors: |
yes - with standard arm
no - with hold-open arm |
| Compliance with standard requirements: |
EN 1154:1996/A1:2002/AC:2006 |
| Length: |
226 mm |
| Width: |
51 mm |
| Height: |
60 mm |
| Adjustable closing force: |
yes, infinitely variable |
| Closing speed adjustment: |
yes |
| Adjustable final closing phase: |
yes, by valve |
| Integrated opening damping: |
yes, hydraulic adjustment |
| Closing force adjustment position |
on the side |
| Thermostable valves: |
yes |
| Color: |
black |
TECHNICAL DATA:
- Color: black
- H (mm): 65
- L (mm): 333
