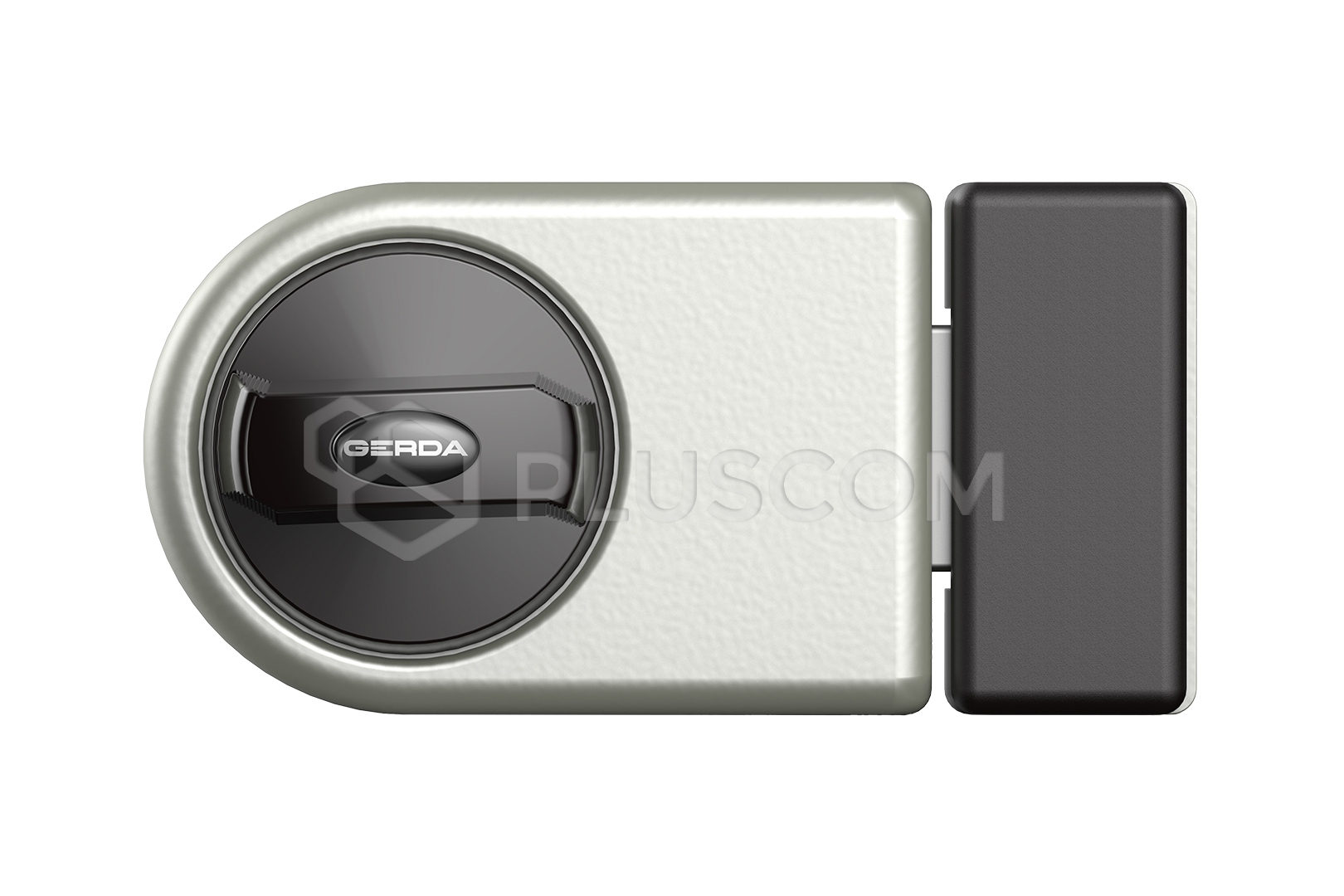

PSG GD.0ZN100U0000.12E30P Gerda ZN 100 universal lock satin varnish
The ZN 100 lock is characterized by solid workmanship, significantly improves
security. It can be used for internal and external doors, e.g. leading to a home workshop.
FEATURES:
- High durability: over 200 thousand cycles
- Security class: 2 (according to PN-EN 12209:2005)
- Installation at a distance of 50 or 60 mm from the edge
of the door leaf
- Door thickness: from 38 to 68 mm
- Durable RIM E1 inserts
- Design suitable for left and right doors
- Corrosion resistance
CONSTRUCTION AND INSTALLATION
The lock consists of a steel body, thanks to which it is characterized by high
durability and resistance to damage and atmospheric factors. It also includes a convenient overlay for turning, which is used for smooth
opening and closing of the door without the need to use a key.
The method of installation is adapted to both rebated and non-rebated doors, it will work great in both external and
internal doors. The ZN series lock is characterized by easy installation,
it can be installed using basic tools.
UNIVERSALITY:
The main advantage of the ZN series lock is its universality, its design
fits both left and right doors. Spacers
under the clamp allow for adjustment to various door rebates.
The product
is also characterized by high durability, over 200 thousand cycles.
The lock offers
discreet and aesthetic protection, which is due to its small
size and the highest utility values.
The lock with its satin finish goes well with any color scheme
of the door.
Package Contents:
- Gerda ZN 100 Surface Mount Lock
- Spacer Washers
- RIM E1 Insert + 3 Keys

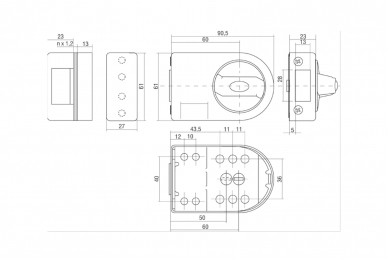

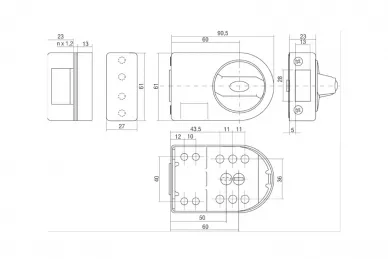

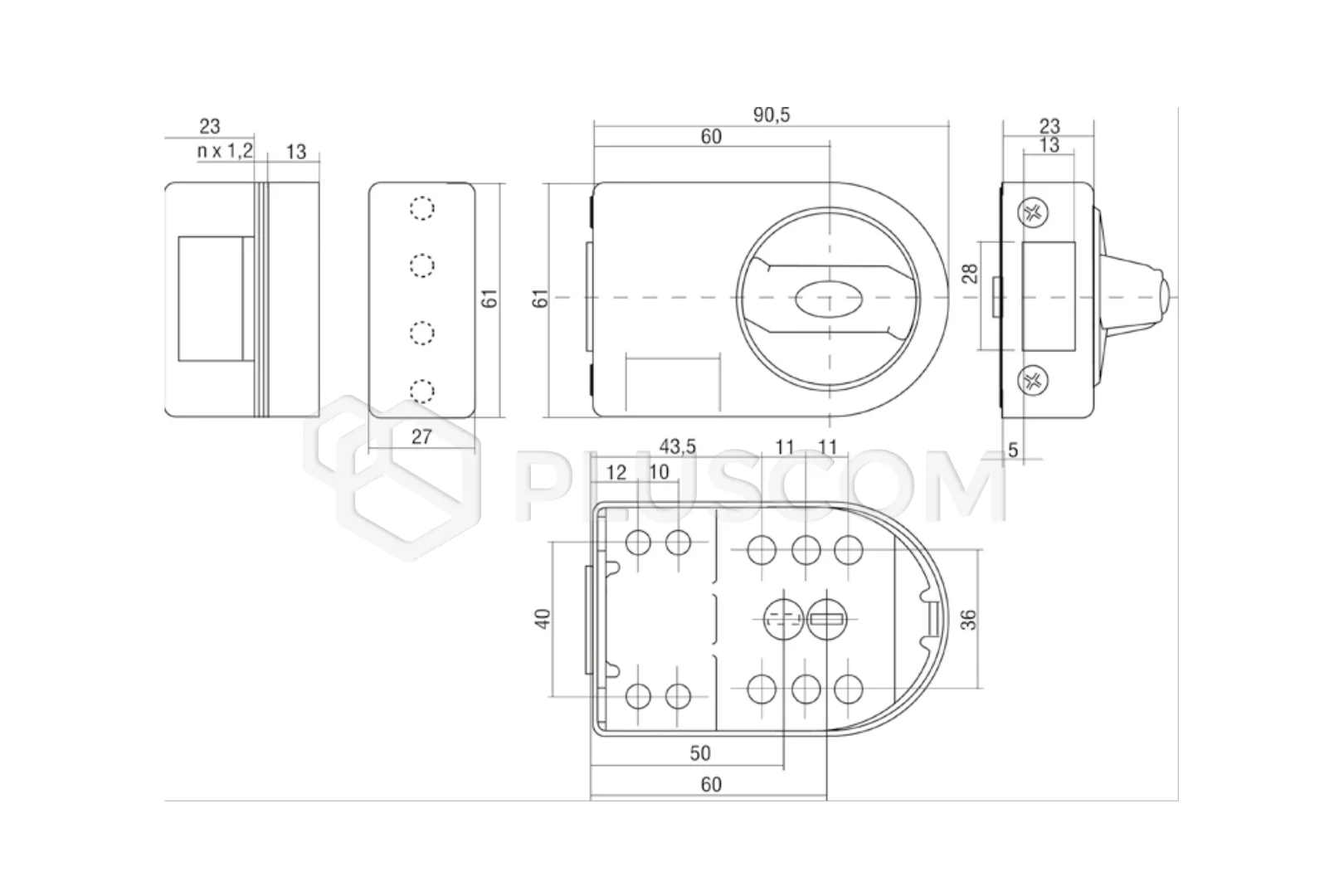

Technical Data:
- Backlash: 50 mm
- Color: Satin Lacquered
- Compatibility: Notched Key
- Included: RIM E1 Cylindrical Insert
- Use Frequency: Over 200,000 Cycles
- Door Thickness: From 38 to 68 mm
- Security Class: 2
- Gerda Class Product Security Class: 7/8
- Certificates: NATO, IMP
- Number of keys: 3/4
