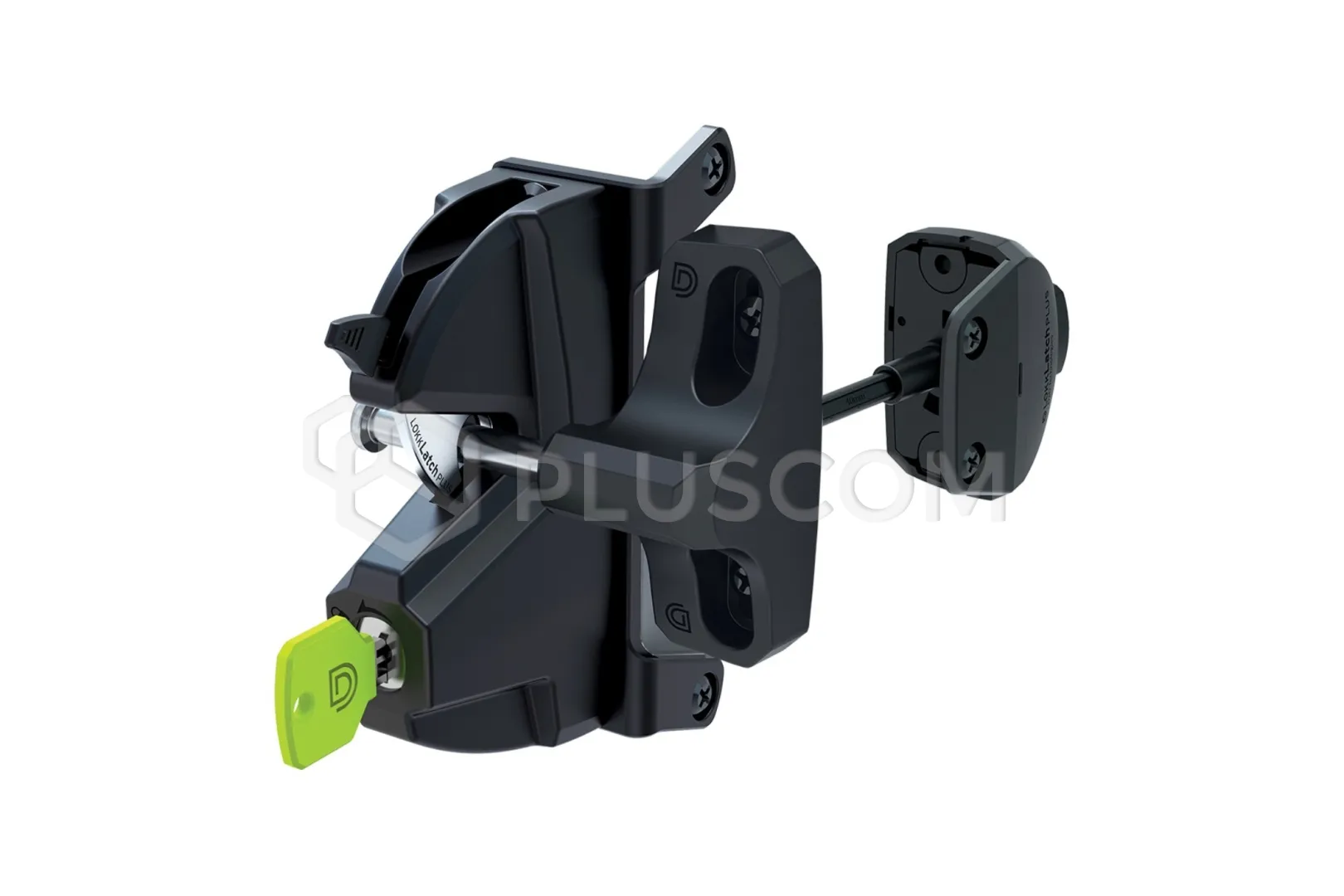

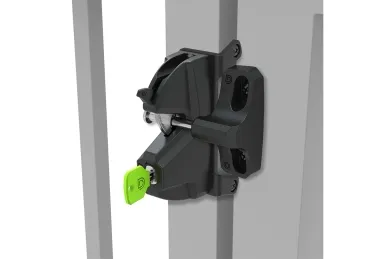

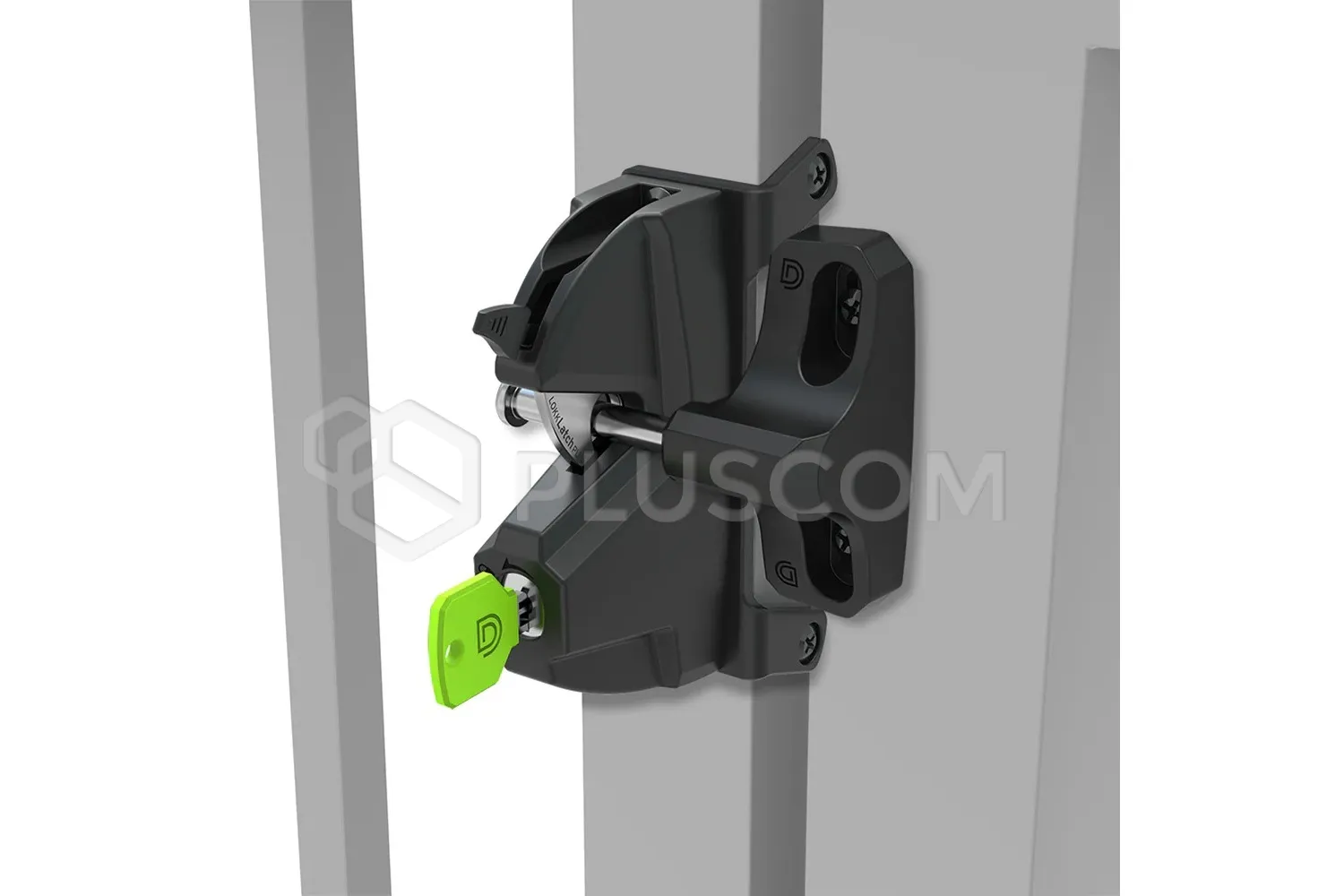

PSG DD.LL3PWA Self-latching, double-sided gate lock LL3PWA - with key, 3rd generation
Self-latching gate lock LL3PWA - double-sided, with key
The 3rd generation LL3PWA bolt is an advanced, double-sided self-latching lock for a wicket gate or gate, combining modern design with durability and functionality. It allows opening and closing from both the front and the back - with one key.
Designed for maximum ease of use and resistance to weather conditions, it is ideal for garden gates, playgrounds or security zones.
KEY FEATURES OF THE D&D LOCK:
- Double-sided locking: the gate can be locked with a key from both sides.
- Permissible gap range: 16 - 38 mm (25 mm recommended).
- Keyless opening: a catch or button allows quick unlocking.
- Solid construction: durable polymer body and grade 316 stainless steel.
- Position adjustment: easy vertical and horizontal adjustment.
- Wide installation range: fits posts with a depth of 38 to 150 mm.
- Two mounting spindles: 125 mm and 150 mm long included in the set.
- Easy installation: only one mounting hole in the post.
- Suitable for various materials: wood, metal and plastic.
- 200 key combinations: different codes, two keys included.

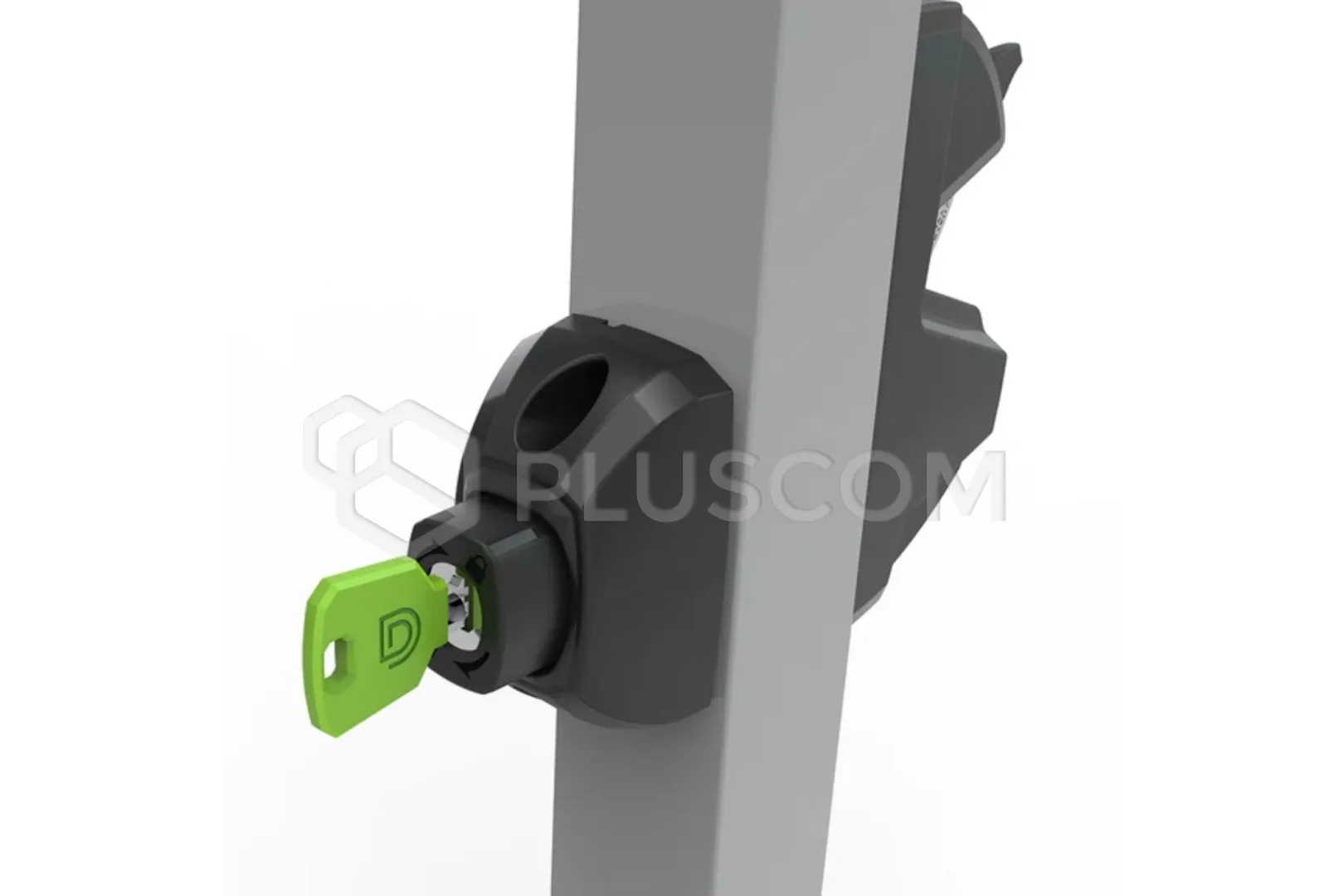

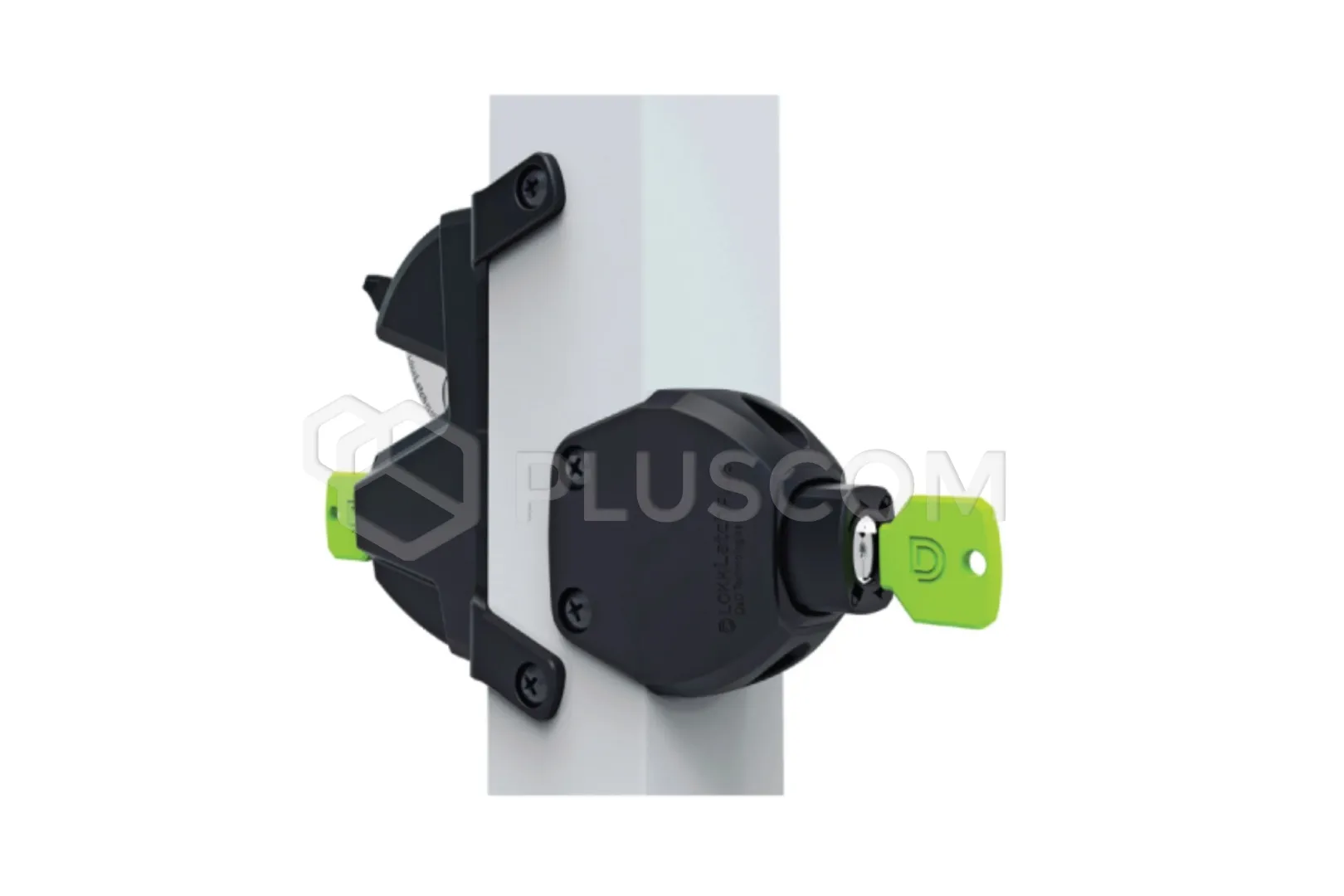

ACCESS FROM TWO SIDES
The LL3PWA is a bolt that provides full access control - it allows the gate to be locked from both sides with the same key. This makes it suitable for both private and public places, e.g. playgrounds or housing estate fences.
DURABILITY AND WEATHER RESISTANCE
The lock is made of a polymer body resistant to mechanical damage and grade 316 stainless steel - a material used, among others, in the marine industry. As a result, the LL3PWA retains its properties even in difficult conditions - in rain, frost and even in a highly saline environment.
EASY INSTALLATION AND FLEXIBLE FIT
The lock can be installed on posts of various depths - from 38 to 150 mm. The set includes two mounting spindles (125 and 150 mm), which makes it easier to choose the right variant. The whole installation requires drilling only one hole in the post, which significantly shortens installation time.
INSTALLATION INSTRUCTIONS: CLICK
LL3PWA self-latching lock
|
|---|
Kind
|
Double-sided
|
Operation type
|
Latching
|
Working gap
|
10 - 35 mm
|
Color
|
Black
|
Post profile
|
Rectangular
|
Substrate type
|
Wood, Metal, Plastic
|
Locking type
|
Bolt
|
Additional security
|
Key
|
Locking element
|
Metal latch
|
