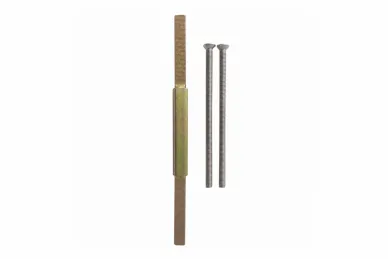

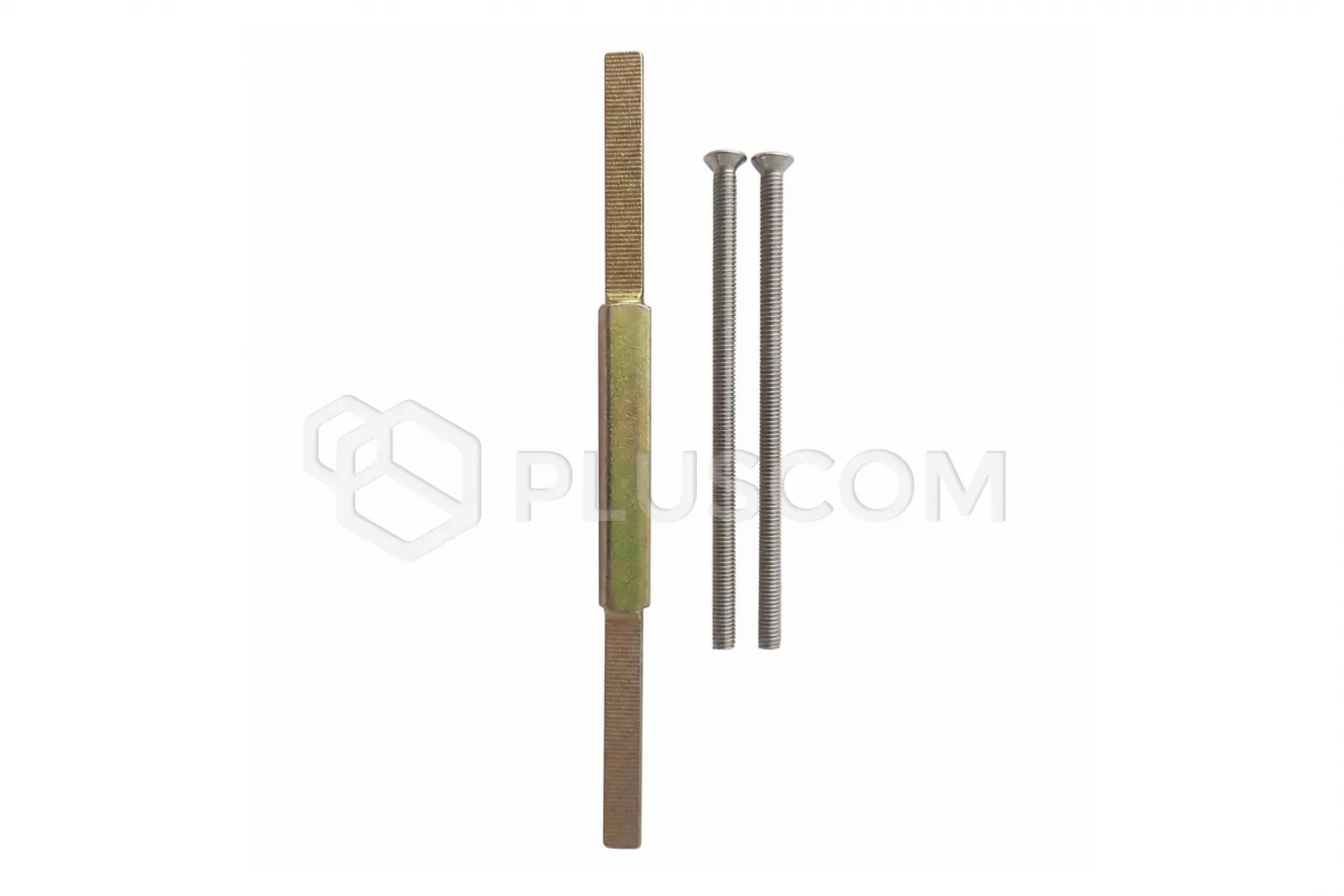

PSG BL.S535A XL latch bolt Borg Locks - for the BL5000 and BL5400 series, 130 mm long, with 80 mm screws

PSG BL.S535A XL latch bolt Borg Locks - for the BL5000 and BL5400 series, 130 mm long, with 80 mm screws

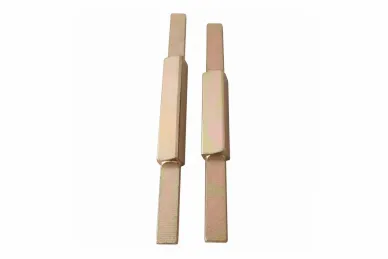

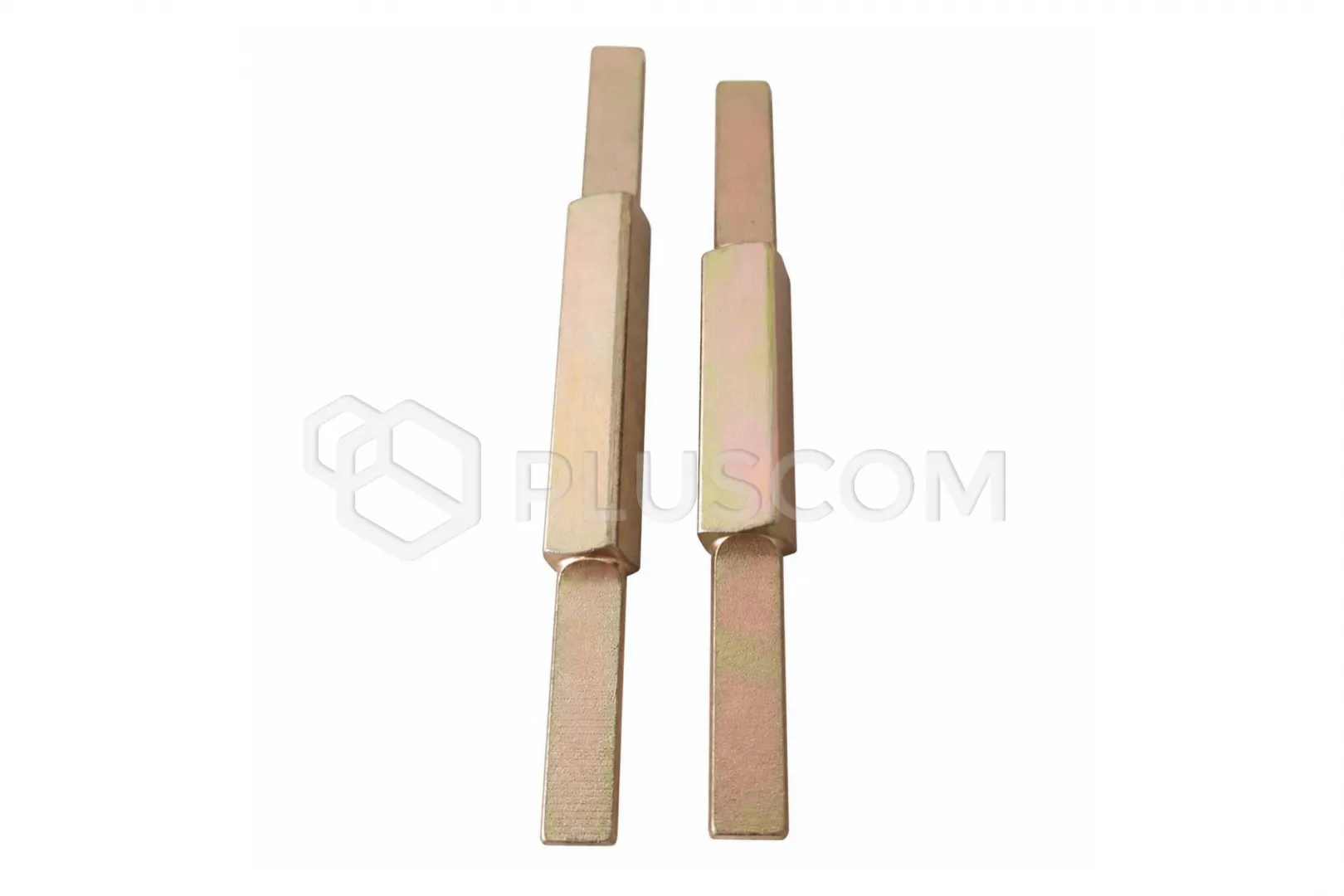

8 mm spindle for Borg Locks BL5000 and BL5400 series locks

The BL5000 lock case spindle is designed for mechanisms from the Borglocks BL5000 and BL5400 series. The element has an 8 mm cross-section and is used to connect the outer and inner parts of the lock in installations using a lock case. A properly chosen spindle length ensures correct transmission of handle movement and stable operation of the whole mechanism.

KEY FEATURES OF THE BORG LOCKS SPINDLE:

• 8 mm cross-section: compatible with the mechanisms used in BL5000 and BL5400 locks.
• For lock cases: designed for lockcase installations.
• Standard lengths 80 and 90 mm: suitable for doors 30 to 60 mm thick.
• XL variant: allows installation in doors up to 85 mm thick.

MATCHING THE DOOR THICKNESS

The standard set includes spindles 80 mm and 90 mm long, so they can be used in doors 30 to 60 mm thick. Choosing the right variant is important for correct seating of the element in both parts of the lock. The spindle should not be too short, as this may lead to improper cooperation of the handles with the lock case mechanism.

TECHNICAL DATA:

• L (mm): 130
