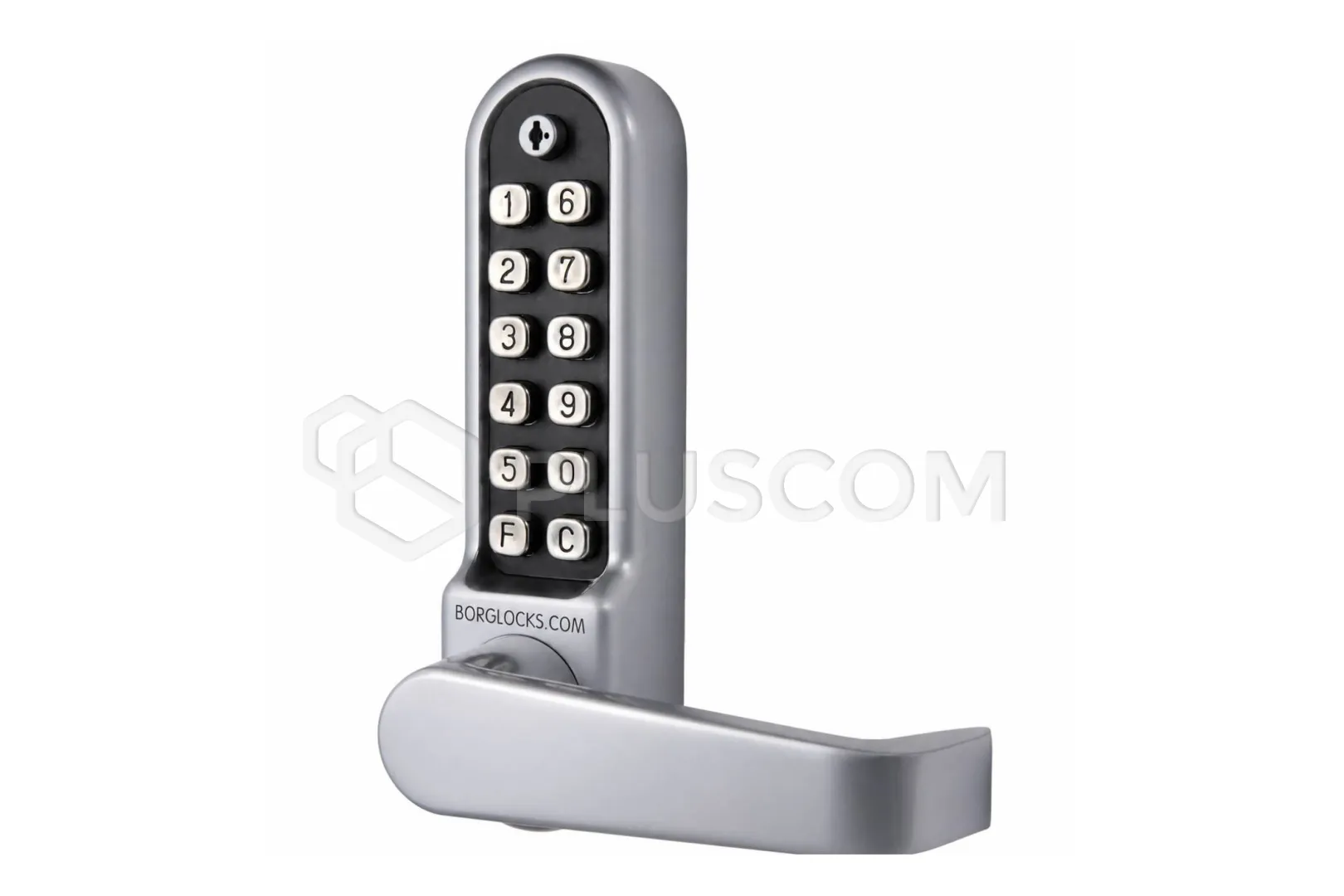

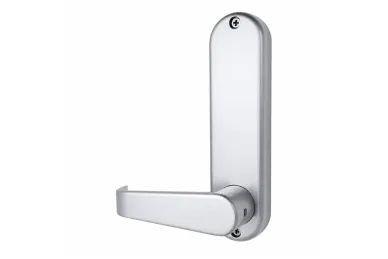

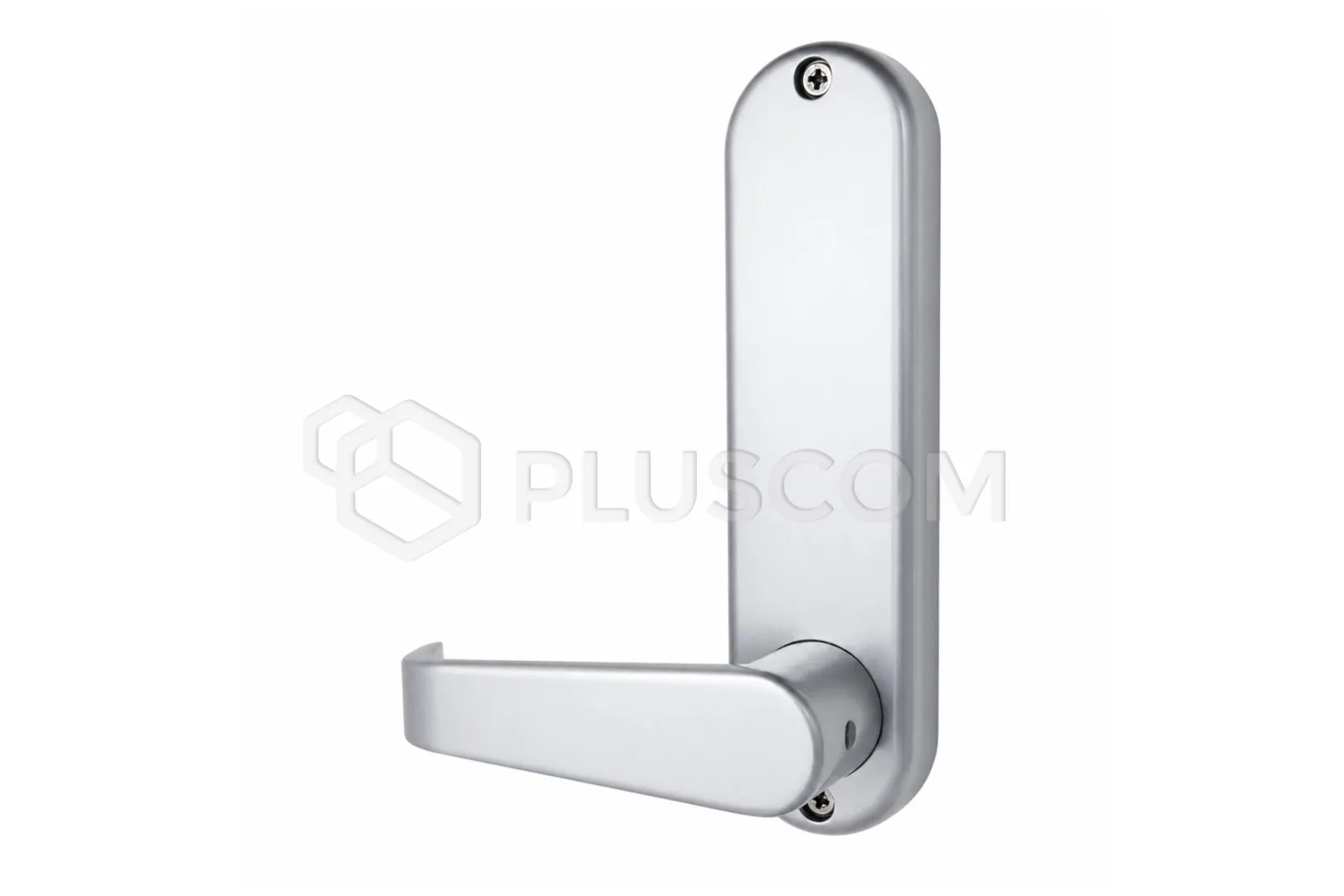

PSG BL.BL5401.SS.ECP Metal gate lock Borg Locks BL5401 ECP - single-sided with handle, ECP keypad and 60 mm latch
Mechanical combination lock Borg Locks BL5401 ECP for demanding passages

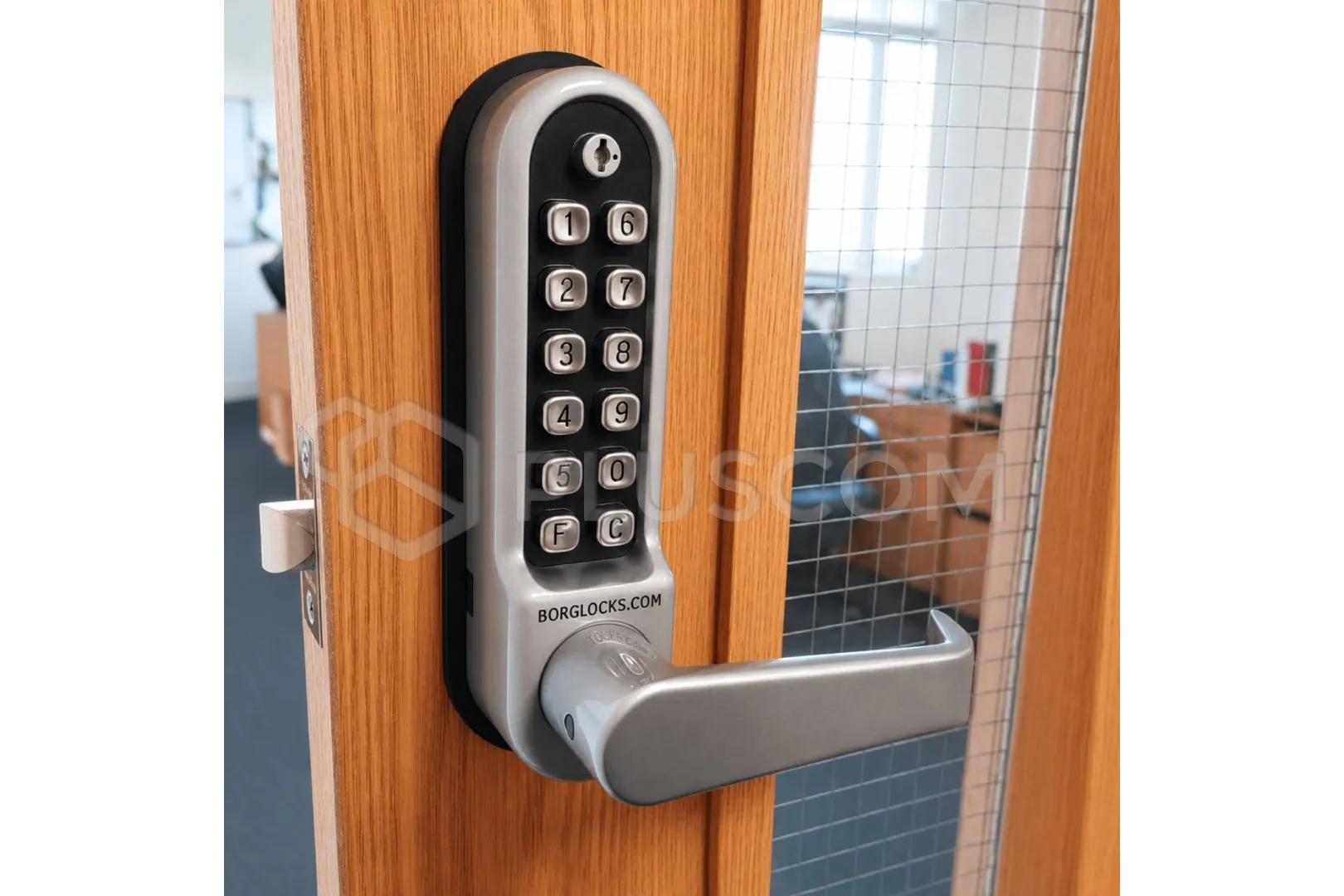

The Borglocks BL5401 ECP is a single-sided mechanical combination lock with a flat handle, designed for wooden, composite and steel doors. The model is suitable for passages with medium and heavy traffic, where lighter locks might not provide adequate durability.
The Easicode Pro system allows a quick code change without removing the device from the door, which makes access management simple and convenient. The lock can be used inside buildings and in sheltered outdoor locations.
KEY FEATURES OF THE BORG LOCKS BL5401 ECP GATE LOCK:
- Easicode Pro system: lets you change the code directly on the door, without removing the housing or interfering with the mechanism.
- Free-turning handle: rotates freely until the correct combination is entered, protecting the mechanism from overload.
- Optional free passage mode: allows the door to be temporarily opened without entering the code each time.

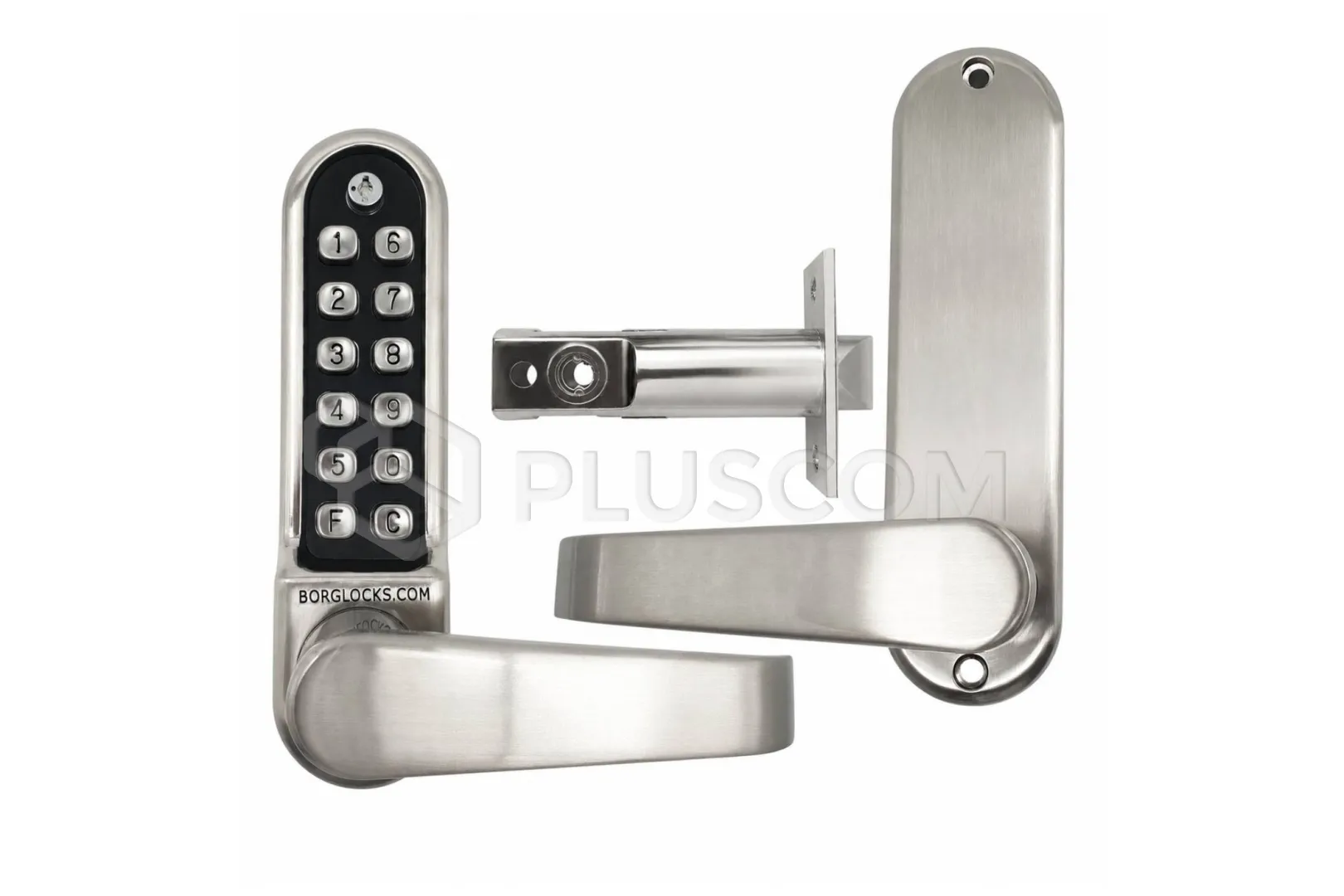

- 60 or 70 mm tubular latch: lets you match the lock variant to the door construction and parameters.
- Mechanical operation: the lock requires no power, batteries or connection to an electrical installation.
- Wide compatibility: suitable for wooden, composite and steel doors.
- Indoor and sheltered outdoor use: works well in residential buildings, offices, warehouses and commercial facilities.
- For medium and heavy loads: the solid construction is designed for frequent use in demanding passages.
CODE CHANGE WITHOUT REMOVAL THANKS TO EASICODE PRO
The patented coding chamber used in the BL5401 ECP allows a new combination to be set without removing the lock from the door. The whole process takes only a few moments and does not require disassembling the mechanism, which reduces the risk of incorrect installation or accidental damage to internal components. The solution is especially useful in offices, service premises, warehouses and facilities where access permissions change regularly. Quick coding without specialist tools streamlines day-to-day management of the passage.
FREE-TURNING HANDLE AND FREE PASSAGE MODE
The flat handle is equipped with a clutch mechanism that remains disengaged until the correct code is entered. An attempt to use the handle without authorization makes it rotate freely, without transmitting excessive force to the latch mechanism. After the correct combination is entered, the handle is engaged and allows the door to be opened. The optional free passage mode allows the code lock to be temporarily disabled, which is practical during working hours, deliveries or increased user traffic.
Borglocks BL5401 ECP gate lock
|
|---|
Application
|
Wooden doors, steel doors, composite doors
|
Color
|
Satin chrome, satin stainless steel
|
For indoor / outdoor use
|
For outdoor use in a sheltered location
|
Category
|
Locks for computer rooms and server rooms, entrance door locks, office door locks, steel door locks
|
Latch
|
60 mm tubular latch, 70 mm tubular latch
|
Load class
|
Medium-heavy
|
Handle type
|
Flat bar handle
|
Latch type
|
Tubular latch
|
TECHNICAL DATA:
