PSG BL.BL3430.ECP Double-sided mechanical combination lock BL3430 Borg Locks for metal gates - with ECP keypad, handle and 65-80 mm slide bolt

PSG BL.BL3430.ECP Double-sided mechanical combination lock BL3430 Borg Locks for metal gates - with ECP keypad, handle and 65-80 mm slide bolt

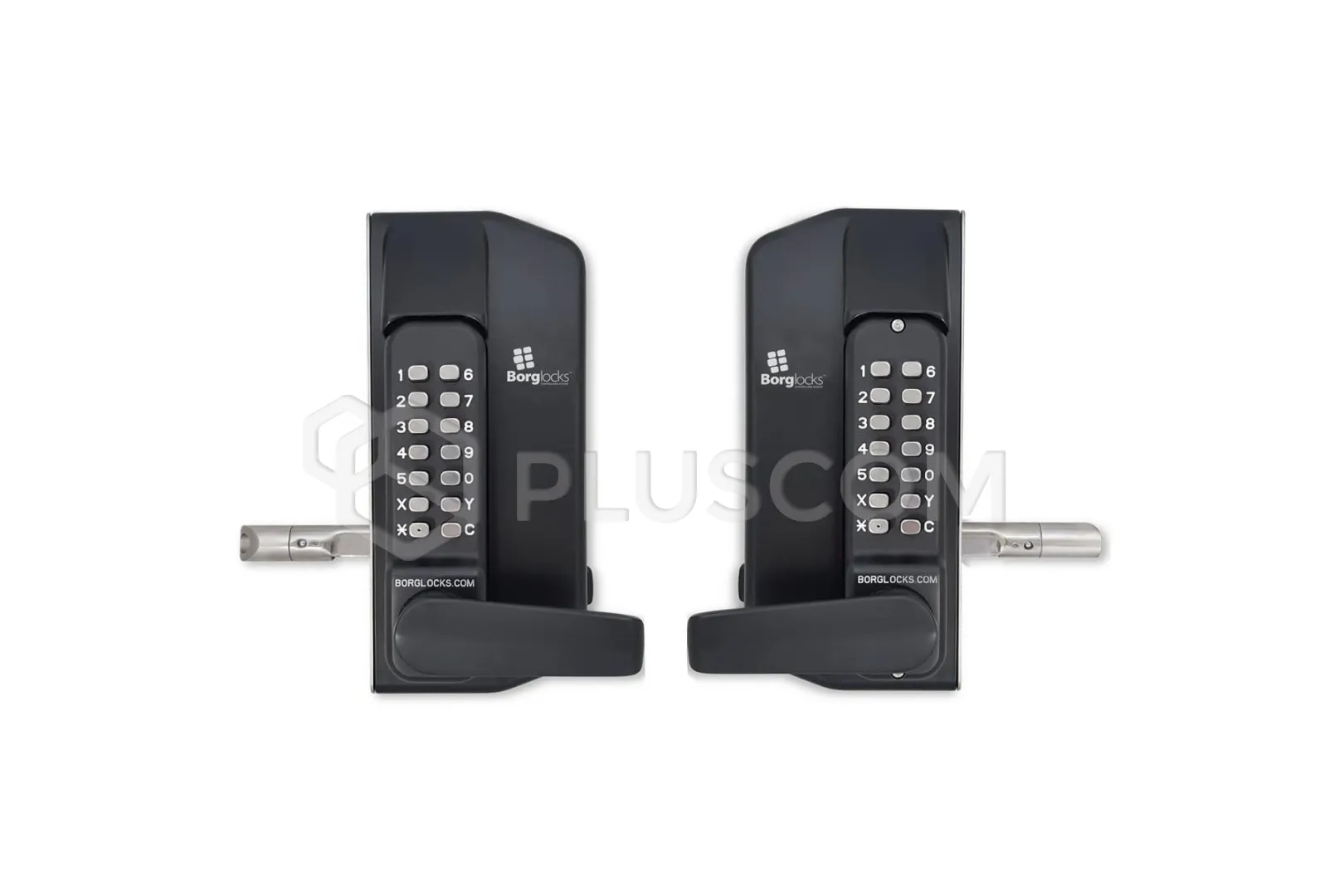

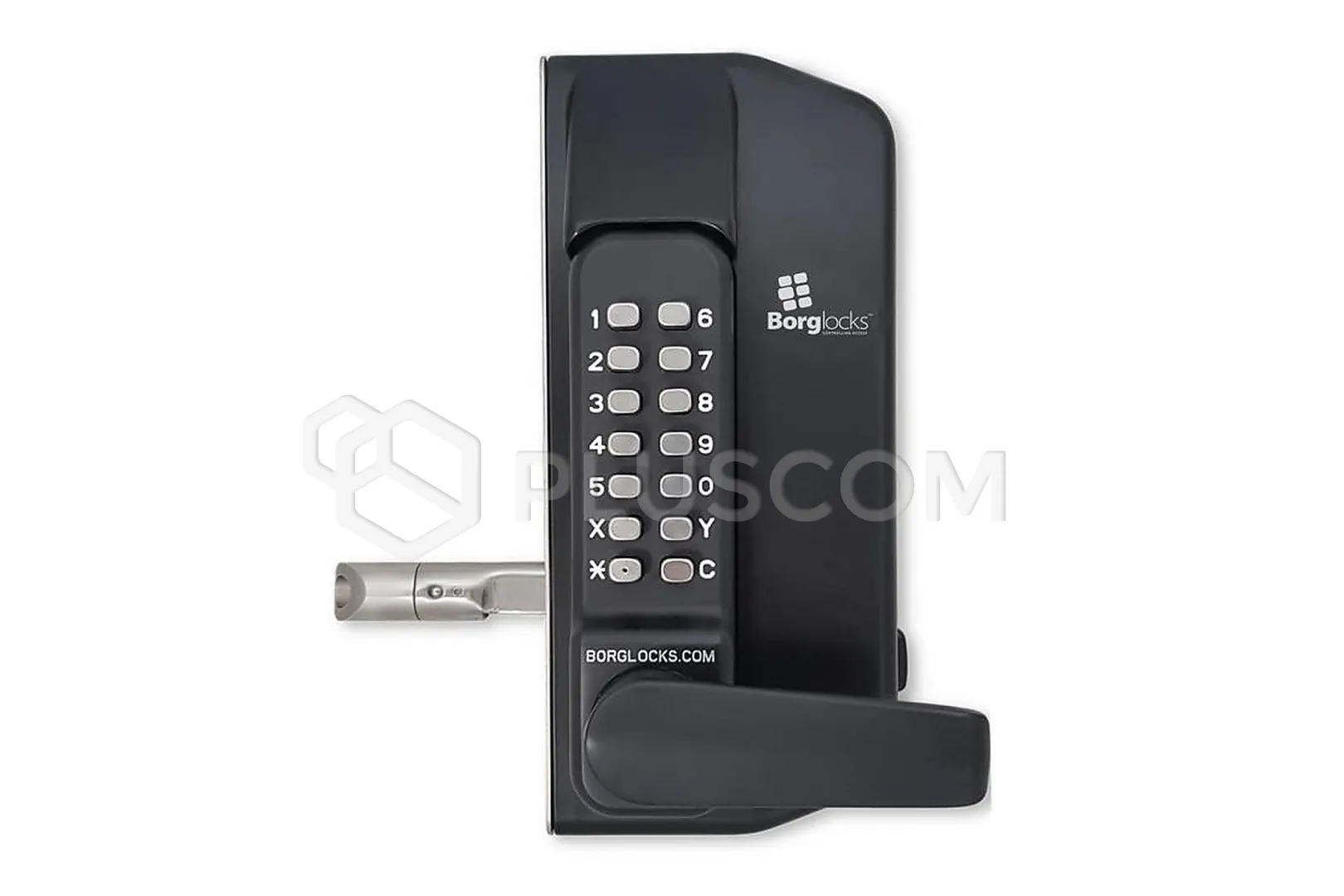

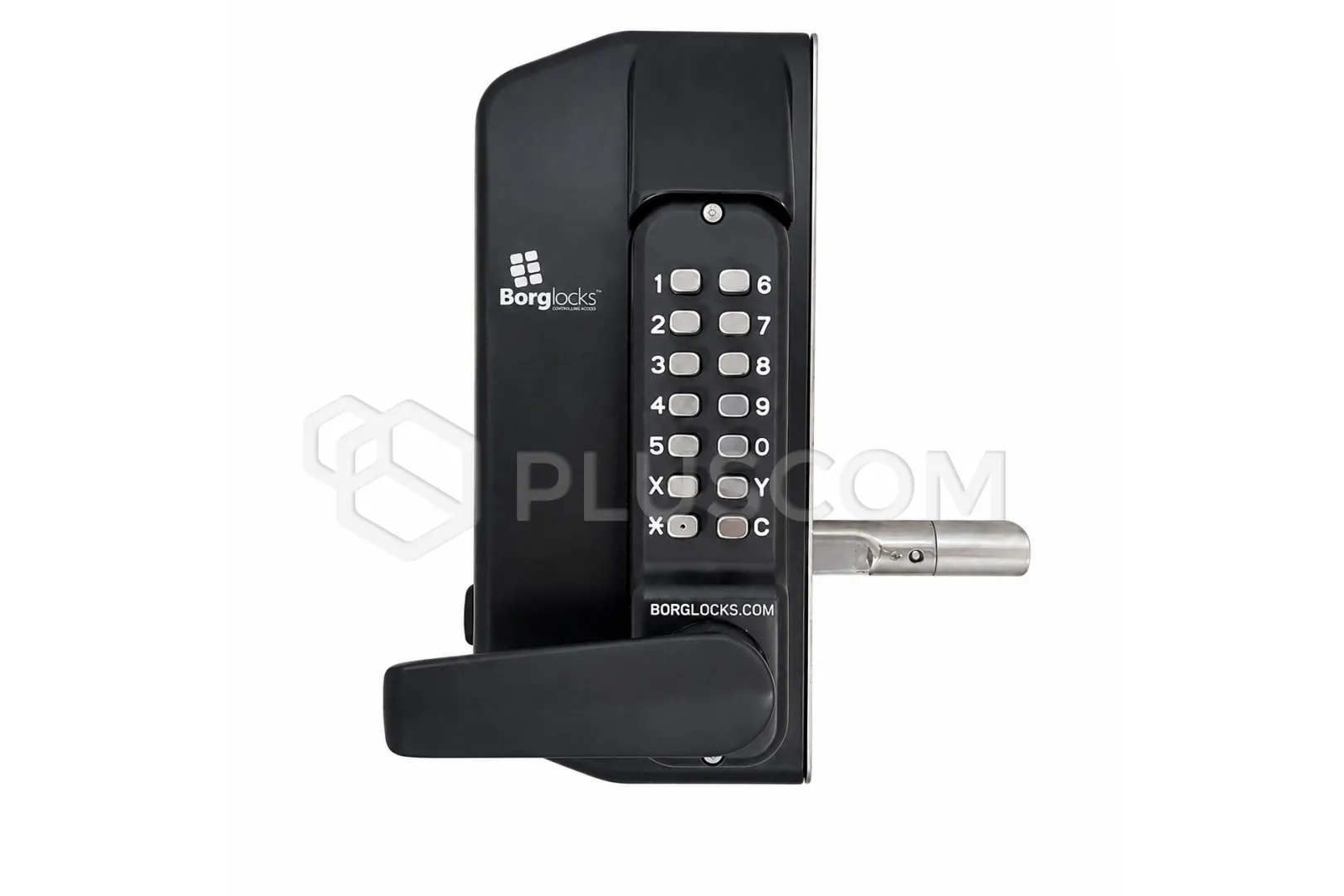

Double-sided combination lock Borg Locks BL3430 ECP for metal gates

The Borg Locks BL3430 ECP mechanical combination lock is a durable solution designed for outdoor metal gates and wicket gates made of closed profiles. This model works well in places where effective access control without traditional keys is needed. The double-sided construction with keypads secures the passage on both the entry and exit side. The lock is a good choice for private properties, commercial facilities, technical areas and other places where durability, resistance to outdoor conditions and convenient operation matter.

Check the lock specification:

• designed for metal gates and wicket gates made of closed profiles
• double-sided keypads allow access control from both sides of the gate
• the Easicode Pro mechanism allows a quick code change without removing the lock from the gate
• free-turning handles remain loose until the correct code is entered, which reduces wear of the mechanism
• the anti-climb housing makes it harder to use the lock as a foothold when trying to climb the gate
• the adjustable 65-80 mm bolt makes it easier to adapt the lock to different gate constructions
• the marine-grade construction is designed for work in outdoor conditions
• the lock was tested for 1000 hours in salt spray, which confirms its high corrosion resistance
• the model fits metal gates 30 to 60 mm thick with standard installation
• the front-fixing system simplifies installation and reduces problems when fitting the lock
• the heavy duty class makes the lock suitable for intensive use

Free-turning handles - greater durability and better protection of the mechanism

One of the most important features of the BL3430 ECP lock is the free-turning handles, which rotate freely until the correct code is entered. As a result, the lock mechanism is not engaged by accidental pressing, pulling or attempts to use the handle forcefully. It is a practical solution for outdoor gates, especially where many people use the passage or the lock is exposed to heavy wear. The handle starts working only after the correct code is entered, which improves security and at the same time extends the life of the working parts. Combined with a durable marine-grade housing and a 1000-hour salt spray test, this model provides solid access protection in demanding outdoor conditions.

BL3430 lock installation instructions

BL3430 lock code change instructions

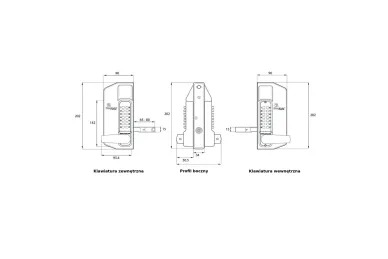

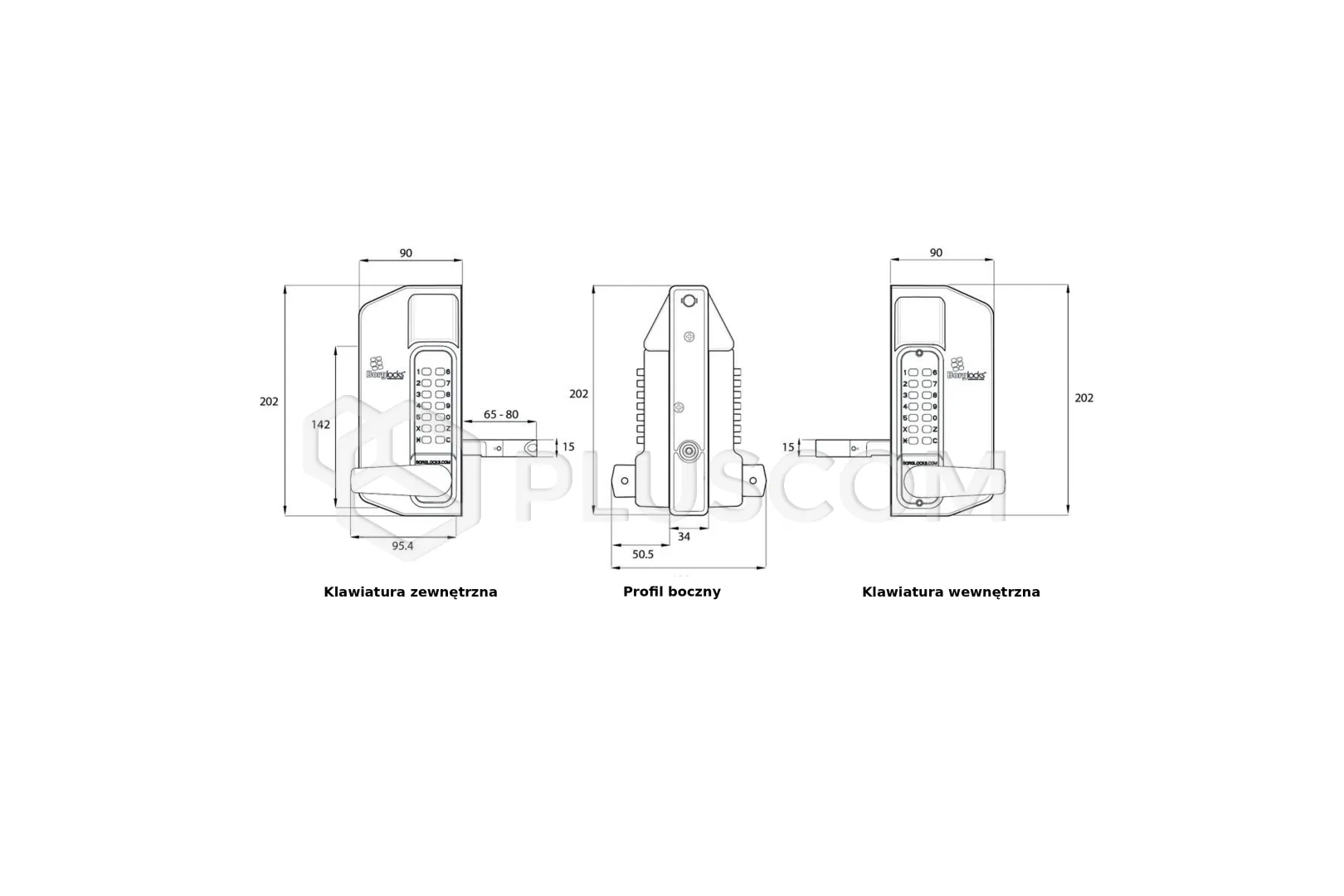

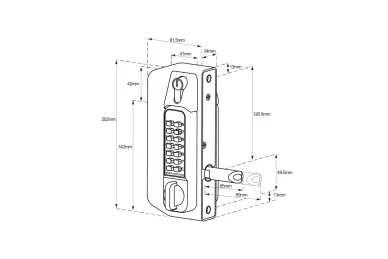

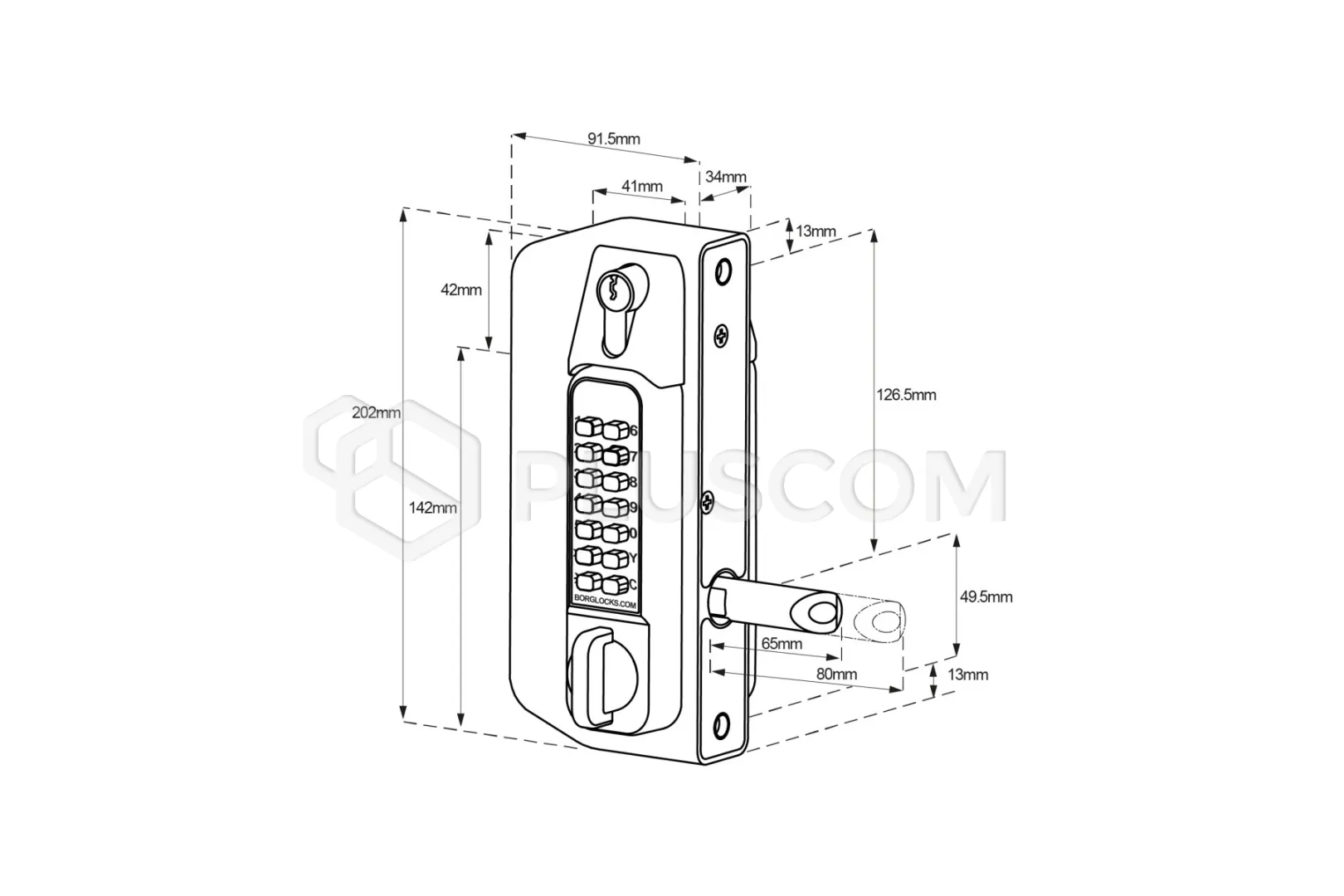

Drilling template

TECHNICAL DATA:

• L (mm): 270
