PSG BL.BL3130DKO.ECP Double-sided mechanical combination lock BL3130DKO Borg Locks for metal gates - with ECP keypad, anti-lift knob, key lock-out and 65-80 mm slide bolt

PSG BL.BL3130DKO.ECP Double-sided mechanical combination lock BL3130DKO Borg Locks for metal gates - with ECP keypad, anti-lift knob, key lock-out and 65-80 mm slide bolt

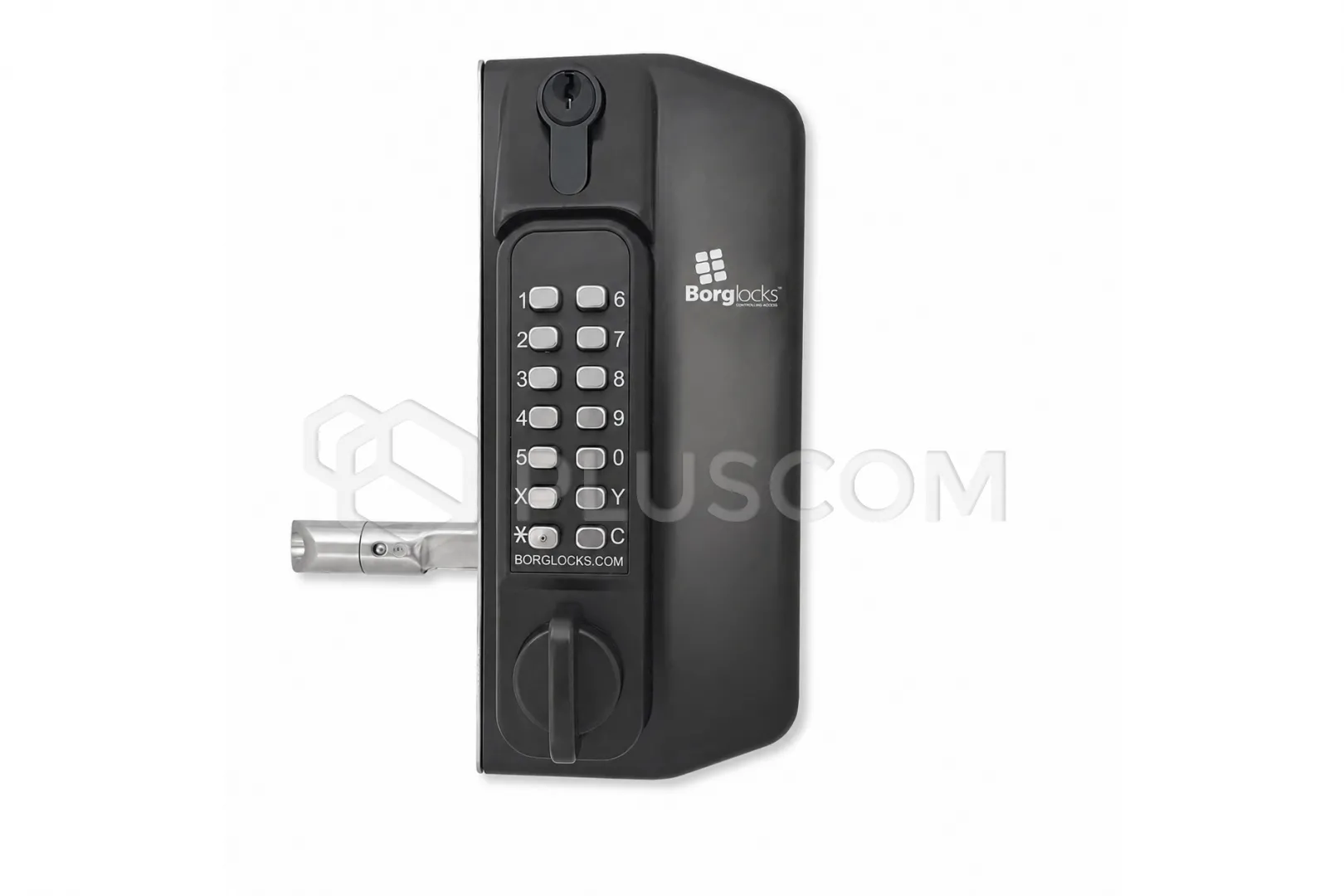

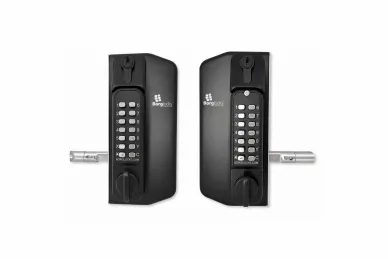

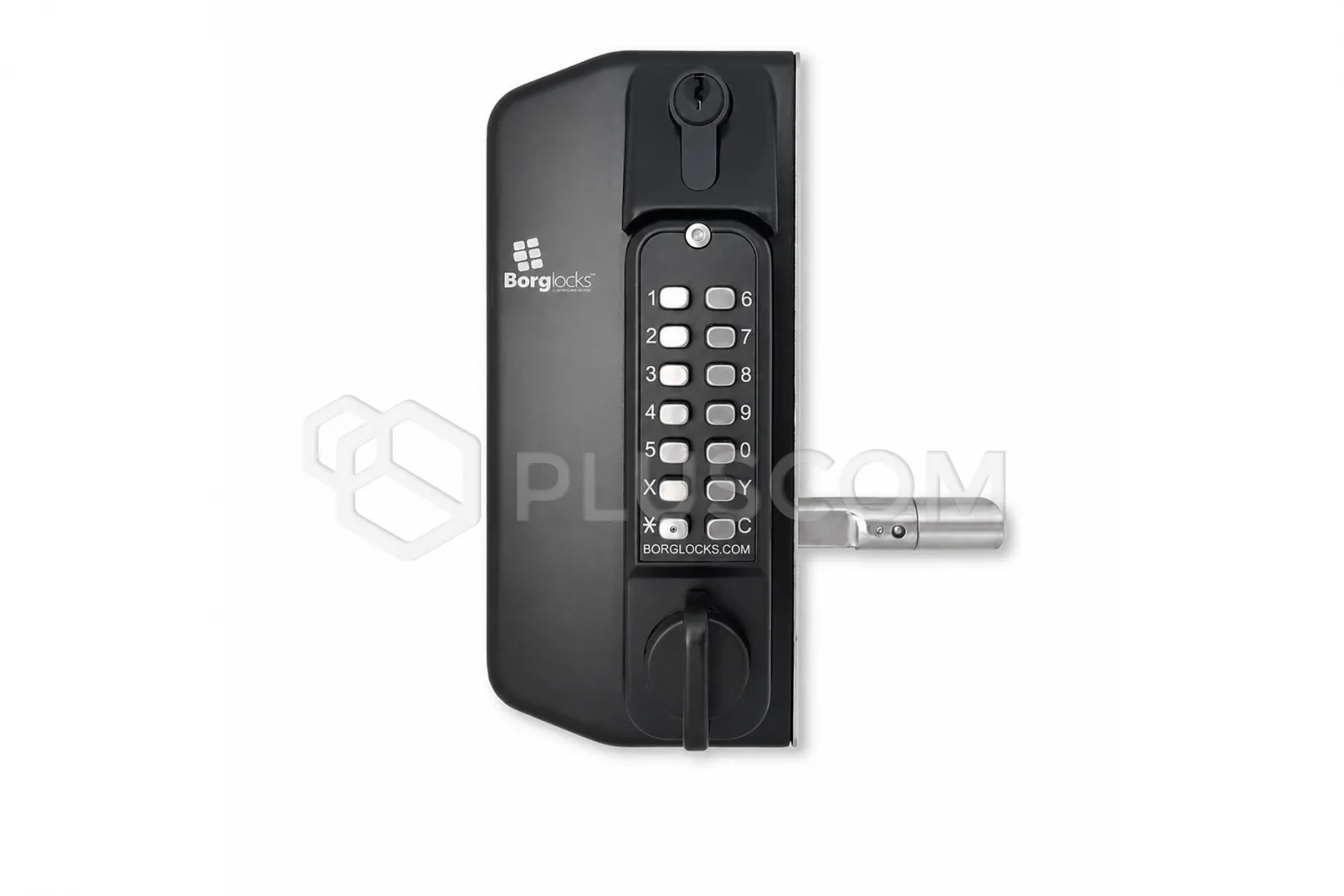

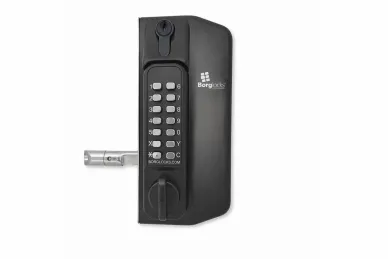

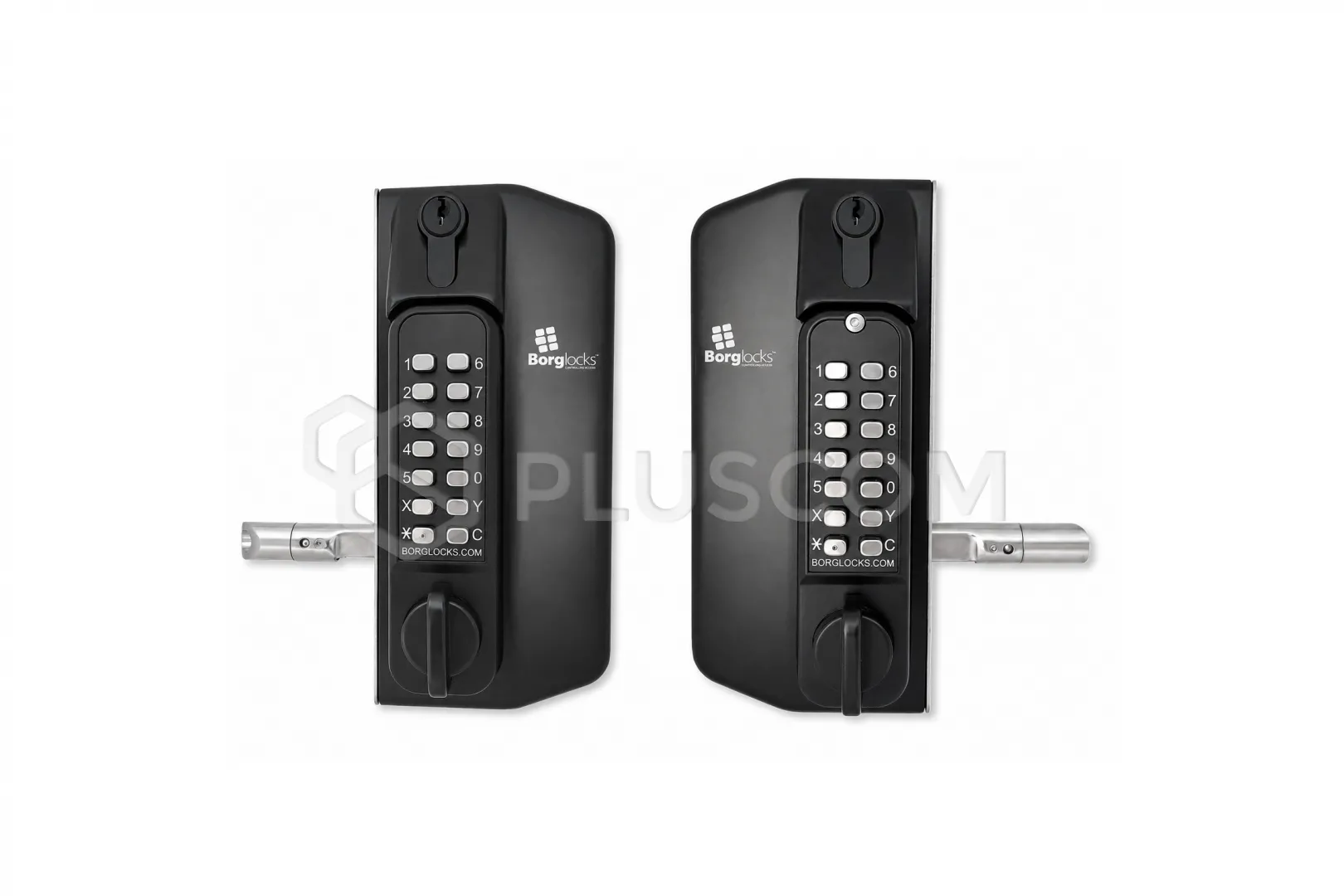

Double-sided mechanical combination lock Borg Locks BL3130DKO ECP for metal wicket gates and gates

The Borg Locks BL3130DKO ECP mechanical combination lock is a solution designed for metal wicket gates and gates made of closed profiles. This model works well where access control in both directions is needed, because the code is required both when entering and when exiting. The lock is equipped with double-sided keypads with a knob, a durable construction for outdoor use and a cylinder that allows opening with a key and use of the slide bolt function. It is a practical choice for private, commercial and technical sites and fenced areas where security, durability and convenient access management matter.

Check the lock specification:

• designed for metal gates and wicket gates made of closed profiles
• the double-sided combination keypad requires the code to be entered when entering and exiting
• keypads with a knob on both sides ensure convenient operation of the lock
• the Easicode Pro mechanism allows a quick code change without removing the lock from the gate
• separate coding chambers allow a separate code to be set for each side, if needed
• a 60 mm (30/30) Euro cylinder allows the lock to be opened with a key
• the key-operated slide bolt function increases the level of gate security
• the anti-climb housing makes it harder to use the lock as a foothold when trying to climb the gate
• the marine-grade construction is adapted for outdoor use
• the adjustable and reversible bolt allows the lock to be fitted to left-hand and right-hand gates
• fits profiles 30 to 60 mm thick as standard - with the optional XL bolt it can be used with profiles up to 120 mm
• the front-fixing system simplifies installation and reduces problems during fitting
• the medium duty usage class makes the lock well suited to everyday use on outdoor gates.

Access control from both sides and emergency key opening

The key feature of the BL3130DKO ECP is the combination of double-sided code control with the ability to open the lock with a key. Thanks to keypads on both sides of the gate, the user must enter the code both when entering and when exiting, which increases control over traffic through the wicket gate or gate. Separate coding chambers allow different codes to be set for each side, which is useful in commercial, warehouse and technical facilities or in restricted-access areas. The cylinder serves as an emergency opening and allows the lock to be operated with a key when needed. The additional slide bolt function increases the level of security and allows the gate to be locked more effectively after closing.

Downloads

Lock installation and user manual

Code change instructions

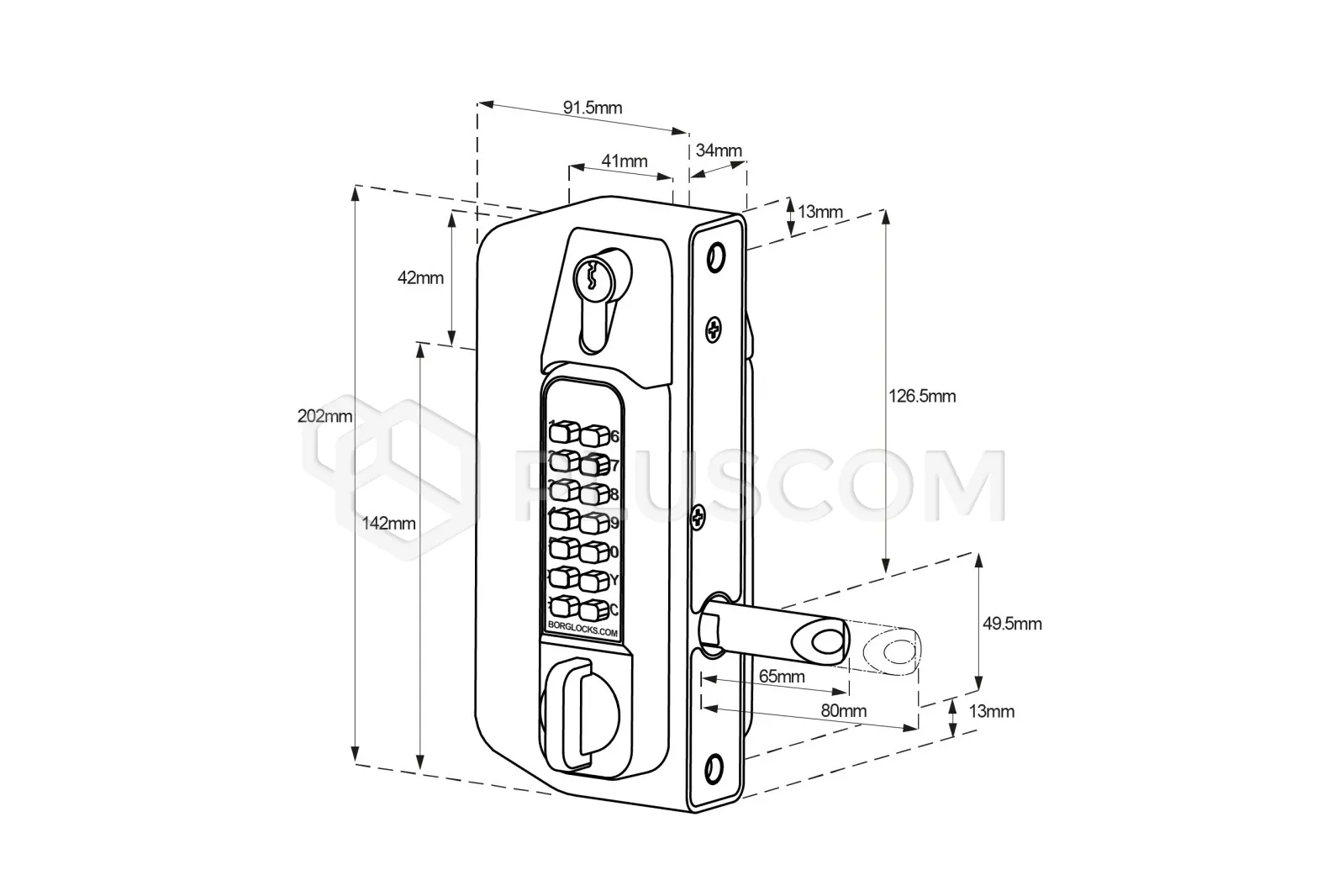

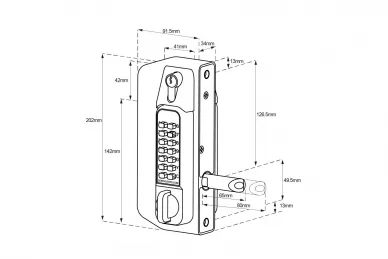

Drilling template

TECHNICAL DATA:

• L (mm): 270
