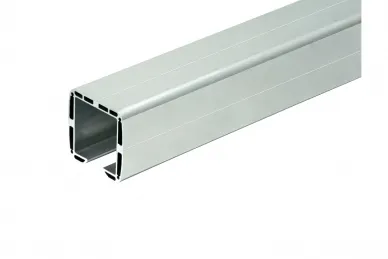

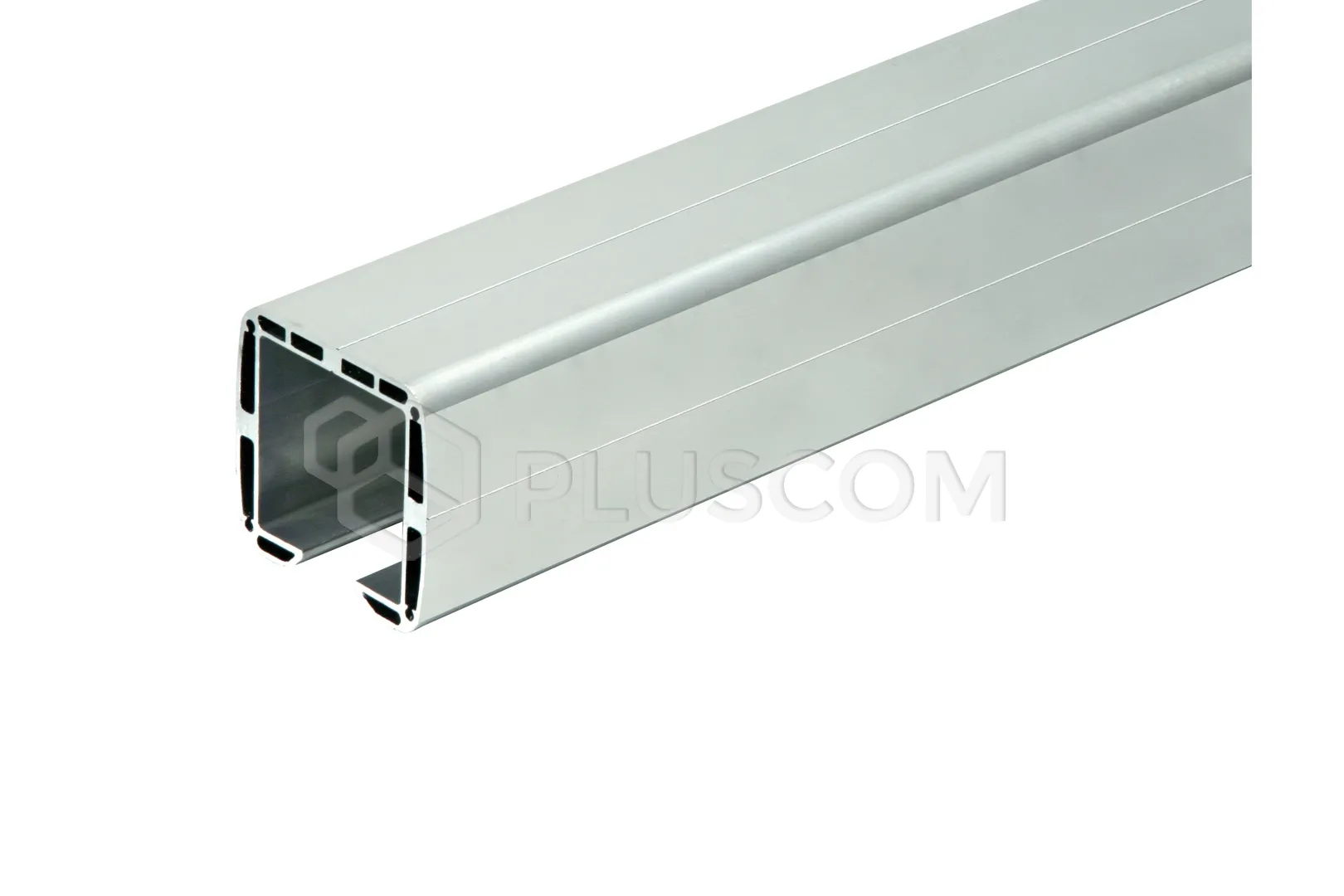

PSG A60.080.5 Aluminium P-profile guide for sliding gate 6 m

PSG A60.080.5 Aluminum P-guide profile for 6 m sliding gate

The CGA-345P aluminum guide profile is a key element of the construction of self-supporting sliding gates. Its task is to ensure stable and smooth movement of the gate, thanks to which the system operates quietly and without failures.
Mounted under the lower transverse profile of the gate, it works with trolleys equipped with nylon wheels, which minimizes friction and extends the life of the entire structure.

FEATURES:

• Lightweight and durable construction - the profile is made of aluminum, which combines high corrosion resistance with low weight (31.98 kg). Thanks to this, the gate remains solid, but at the same time easier to install
• Optimal dimensions - width 106 mm, height 102 mm and length 6 m make the profile perfect for standard and larger sliding gates, providing them with stability
• Compatibility with nylon trolleys - the use of the profile in running systems with nylon wheels guarantees quiet and smooth operation of the gate and reduces the wear of mechanical elements
• Resistance to weather conditions - aluminum is a material insensitive to rust and changing weather conditions, which ensures long-term and trouble-free use of the gate without the need for maintenance
• Easy installation - the profile is mounted under the lower transverse element of the gate, which allows for quick and precise adjustment to the structure without the need for complicated modifications

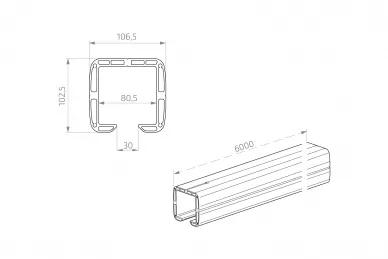

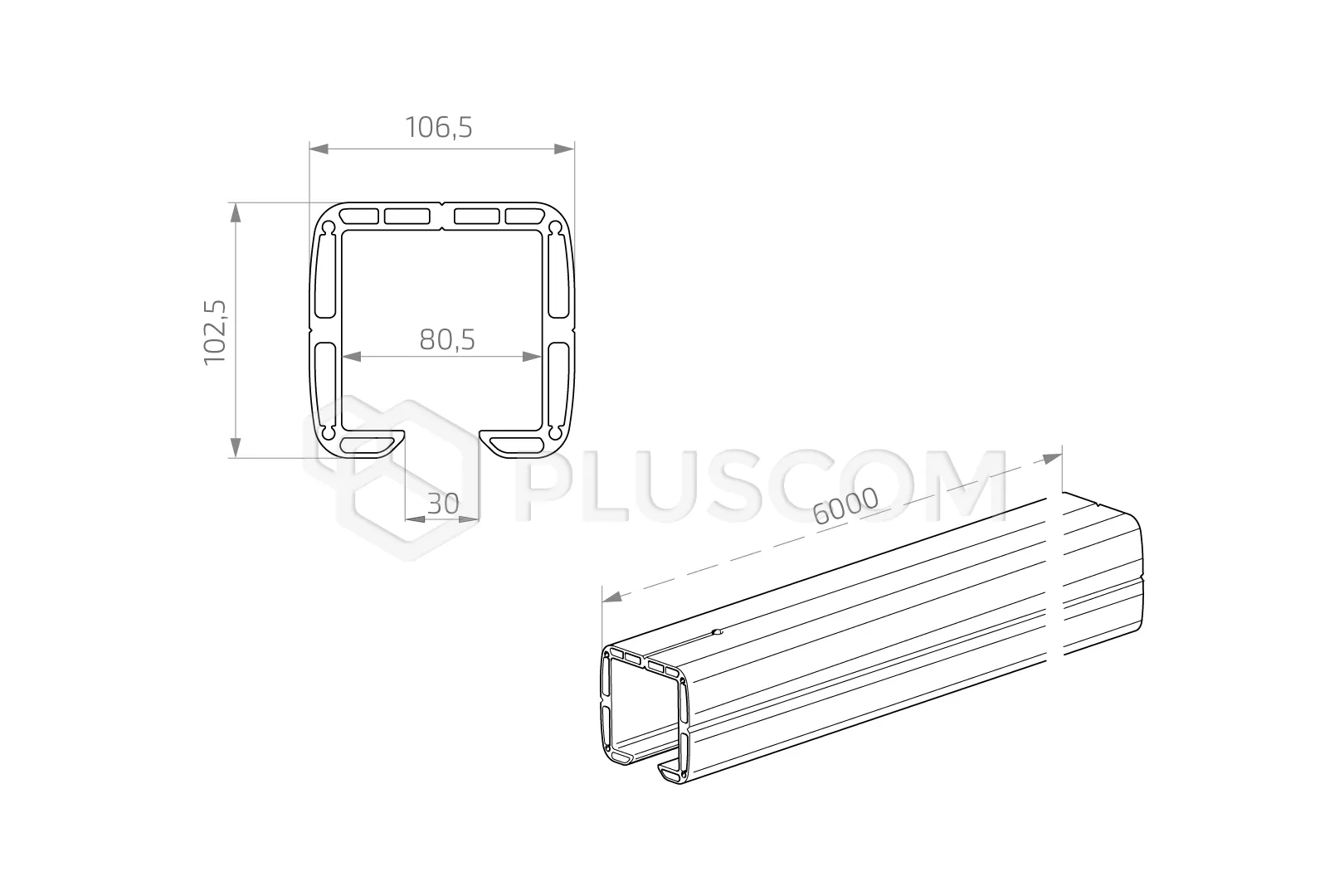

Technical data:

• Manufacturer code: CGA-345P
• Material: Aluminum
• Length: 6 m
• Width: 106 mm
• Height: 102 mm
• Weight: 31.98 kg
• Clear width: 80.5 mm
