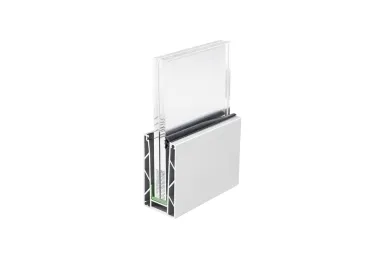

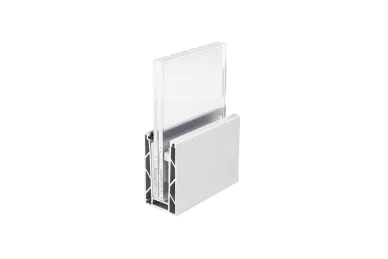

PSG A04.P100.500.AXA U profile for Pinox frameless glass balustrades - series 100, 5000 mm, top fixing, aluminum, matte anodized
U profile for Pinox frameless glass balustrades - type 100, top fixing, 5000 mm, aluminum

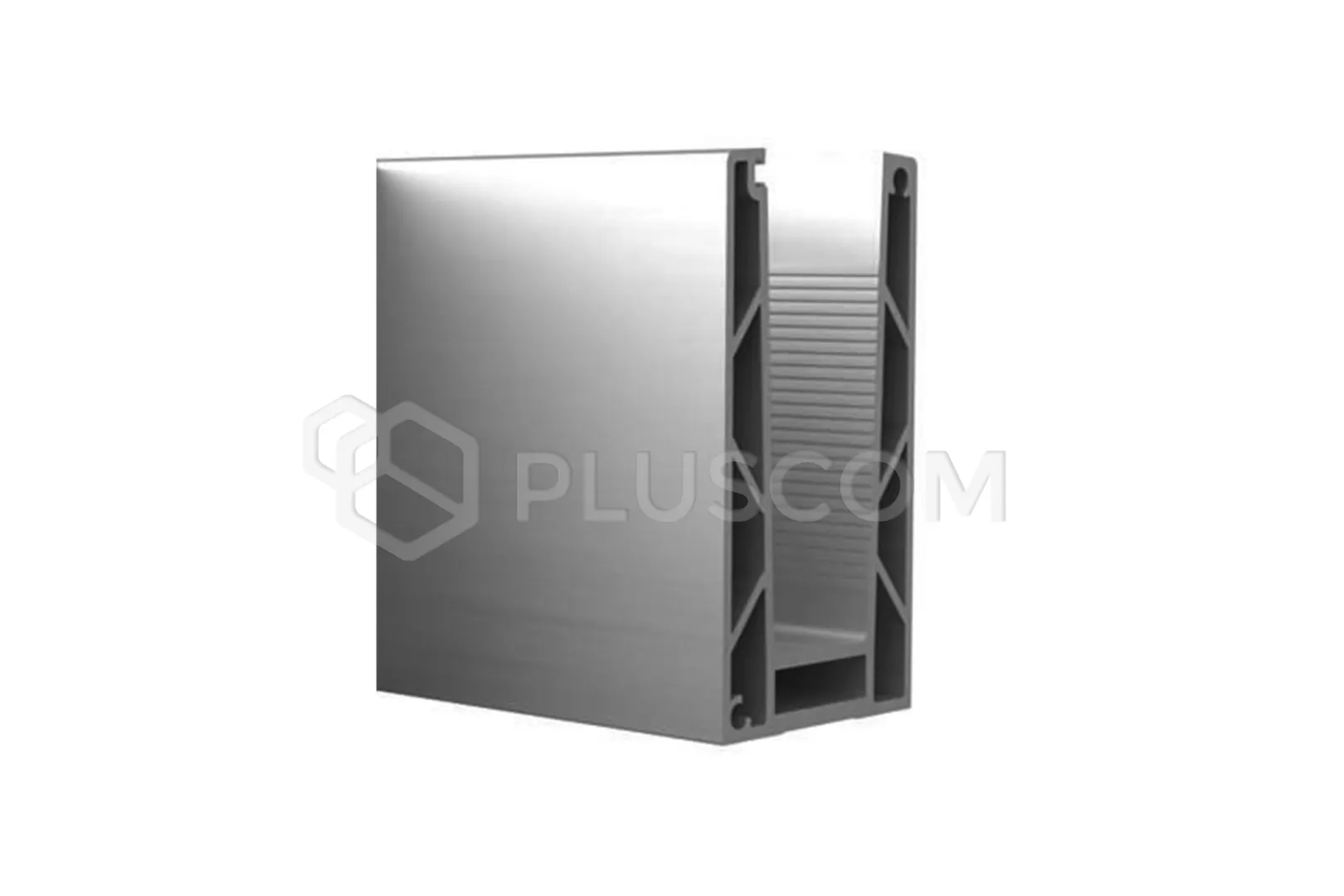

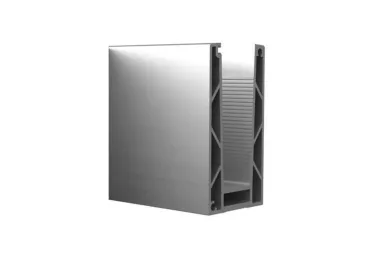

The type 100 U profile is an aluminum mounting profile designed for frameless glass balustrades, where aesthetics, safety and secure seating of the glass pane matter. The model works with glass from 12 to 21.5 mm thick, which gives great freedom when designing balustrades on balconies, terraces, mezzanines, stairs or walkways. Thanks to the flat system and top mounting, the profile allows you to create a modern, visually light structure without posts, which fits contemporary architecture well.
WHAT CHARACTERIZES THE PINOX PROFILE FOR FRAMELESS GLASS BALUSTRADES:
- For glass 12 - 21.5 mm thick: the profile allows installation of different types of glass panes, which makes it easier to match the system to a specific balustrade project.
- Length 5 m: works well for longer balustrade runs and helps reduce the number of joints.
- Top fixing: the system is mounted directly to the substrate from above, so it is a practical solution on balconies, terraces, slabs and stairs.
- Aluminum with matte anodizing: the material combines low weight with high durability in use, and the matte finish goes well with glass and modern facade elements.
- Flat system: the simple, economical form of the profile emphasizes the minimalist character of the balustrade and does not visually dominate the glass pane.

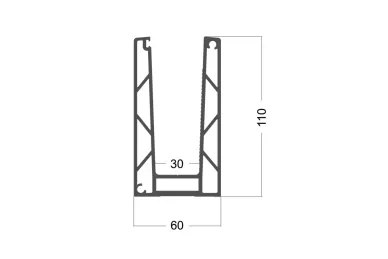

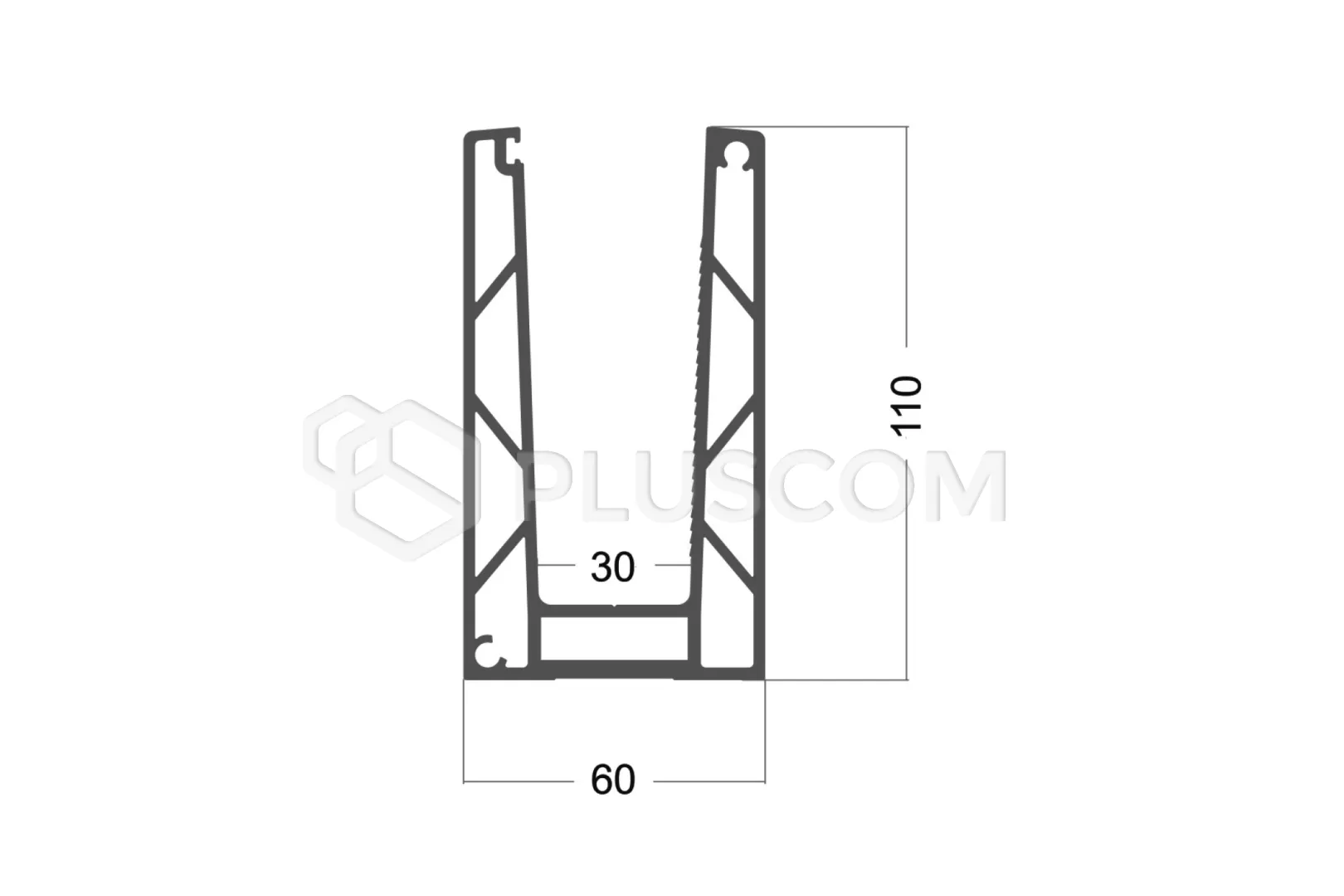

- Dimensions 110 x 60 mm: the profile section provides a stable base for the glass while keeping the attractive proportions of the whole system.

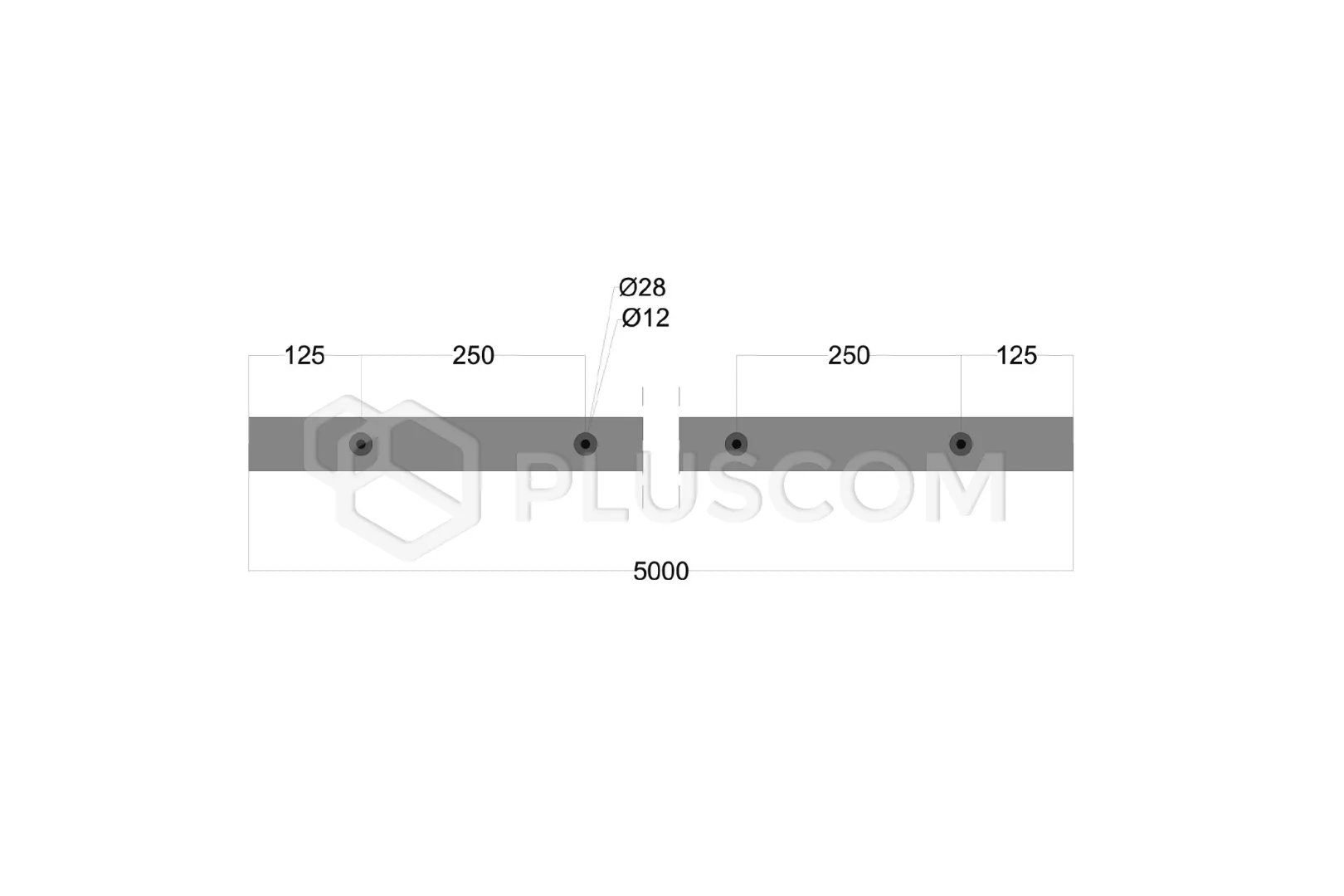

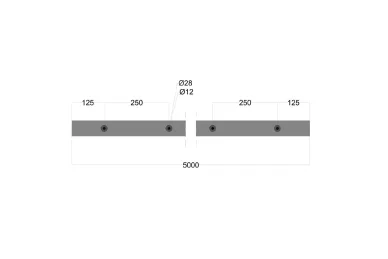

TOP FIXING - EASY INSTALLATION AND SOLID SUPPORT FOR THE GLASS
Top fixing is one of the most commonly chosen solutions in frameless glass balustrades. The profile sits on the surface of the substrate, which makes installation work easier to plan and keeps the balustrade line clear and orderly. This solution is especially suitable where the structure must be stable yet visually as light as possible. When installed correctly, the profile forms a secure base for the glass pane and helps achieve an elegant effect without additional posts.
MATTE ANODIZED ALUMINUM - DURABILITY IN AN ATTRACTIVE FORM
An aluminum balustrade profile is a good choice where resistance to everyday use and a neat look over a long time are important. Matte anodizing gives the surface a modern, technical character and reduces excessive gloss, so the profile looks good with clear glass as well as with frosted or tinted glass. Aluminum does not load the structure as much as steel, while still providing adequate rigidity for balustrade systems. It is a practical combination of durability, aesthetics and easy adaptation to modern buildings.
GLASS 12 - 21.52 MM - GREATER DESIGN FLEXIBILITY

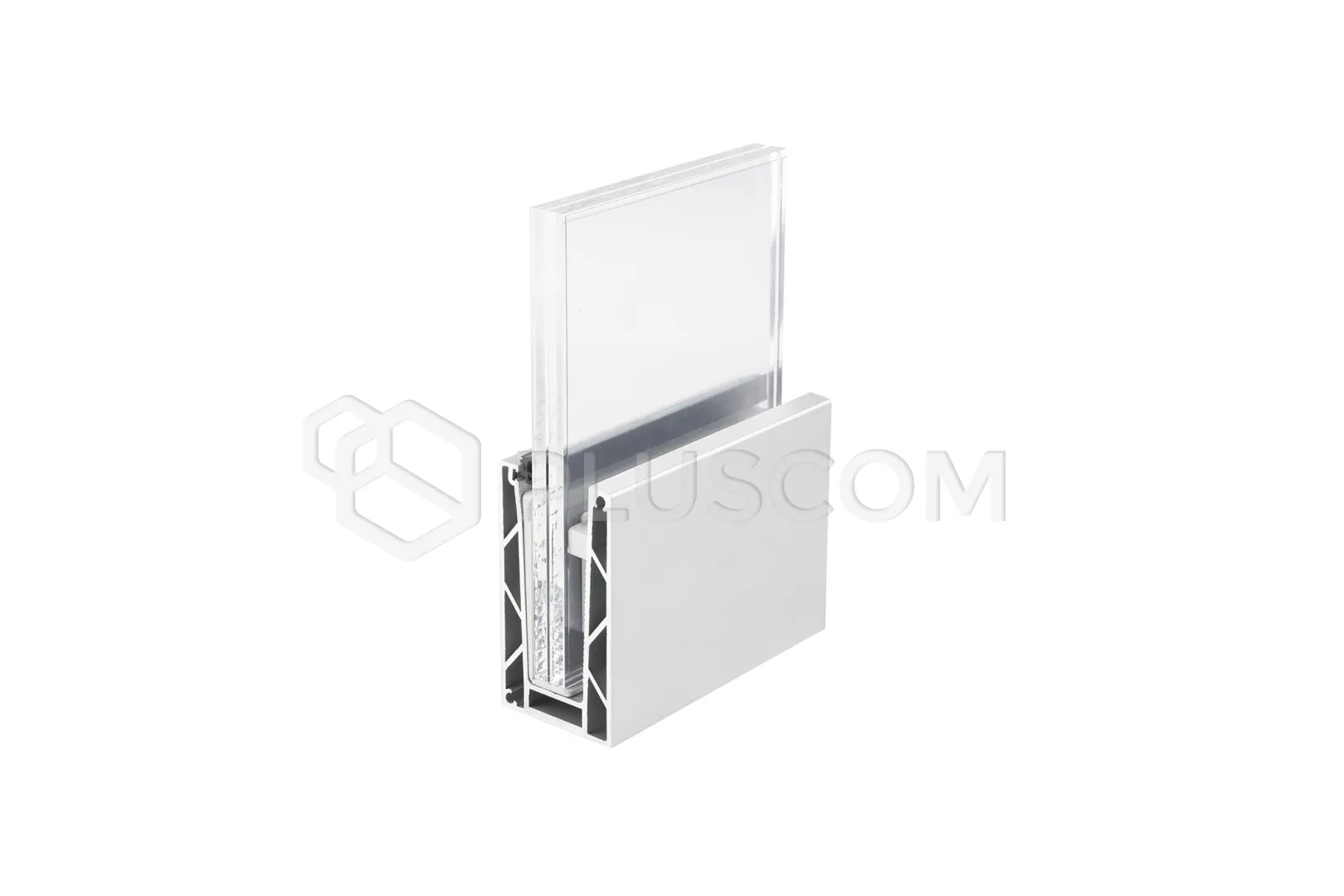

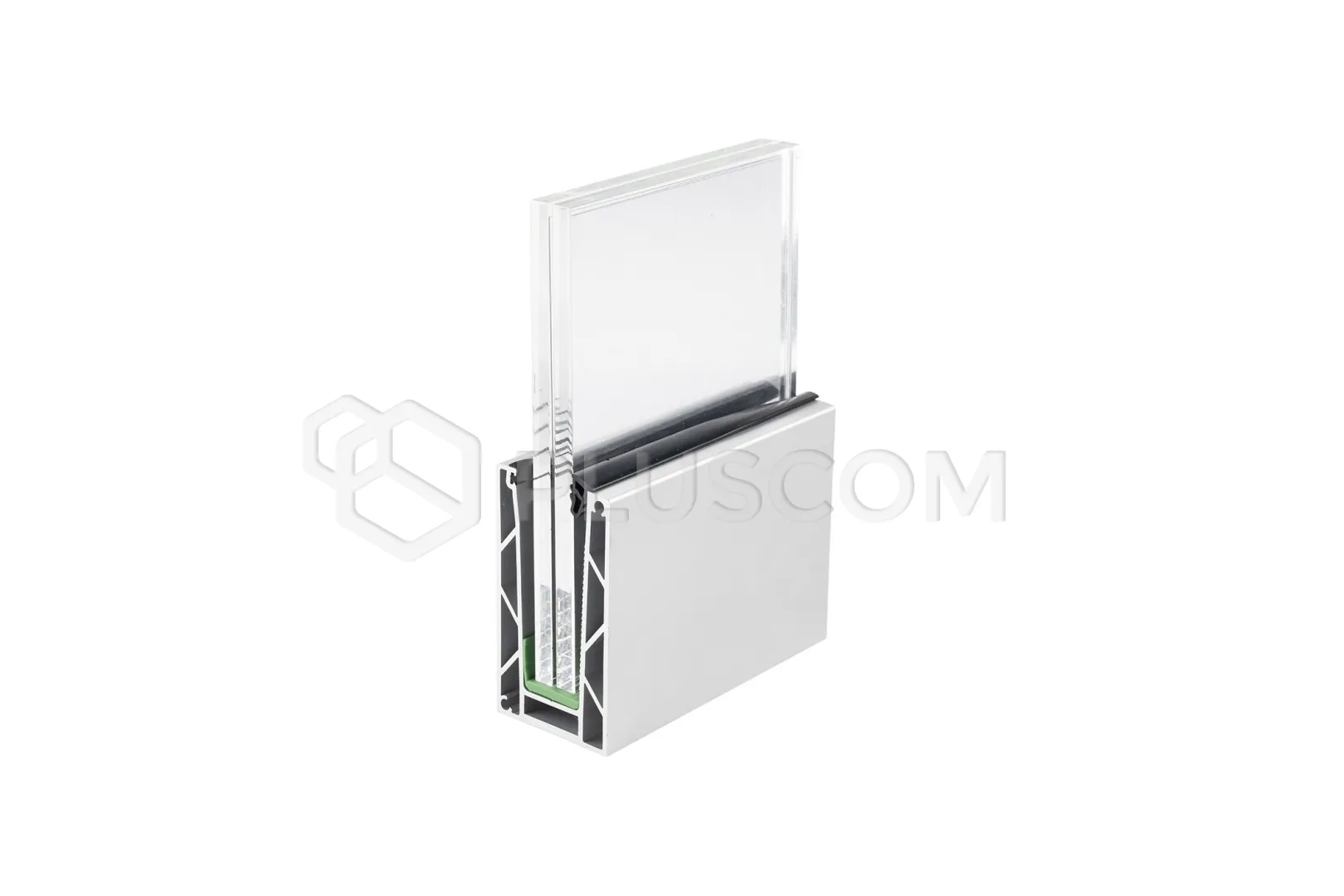

The type 100 U profile accepts glass from 12 to 21.5 mm thick, which gives a wide range of applications in frameless glass balustrades. Such tolerance allows the pane to be matched to the project requirements, the installation location and the desired visual effect. In practice, this means greater freedom when choosing glass for a balcony, terrace or stair balustrade. The profile can be used both in simple private projects and in more demanding commercial installations.
U profile for frameless glass balustrades
|
|---|
Product type
|
U profile for frameless glass balustrades
|
Profile type
|
Type 100
|
System
|
Flat system
|
Application
|
Frameless glass balustrades
|
Mounting method
|
Top fixing
|
Glass thickness range
|
12 - 21.5 mm
|
Profile length
|
500 mm
|
Profile dimensions
|
110 x 60 mm
|
Material
|
Aluminum
|
Surface finish
|
Matte anodized
|

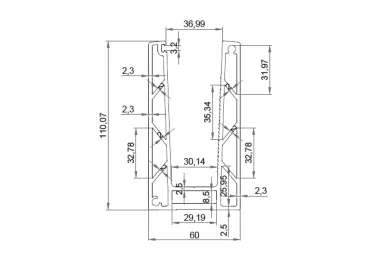

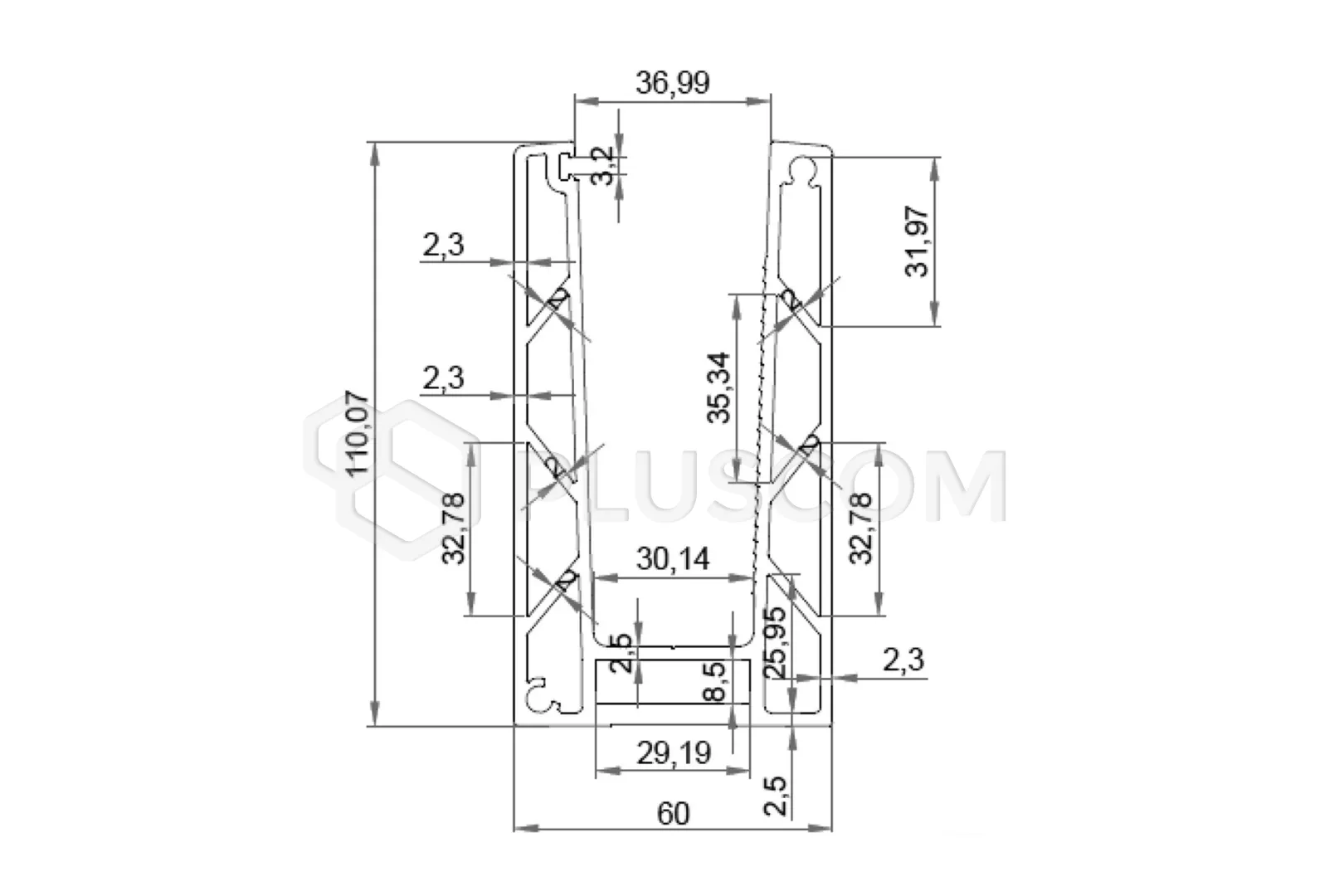

TECHNICAL DATA:
- L (mm): 5000
- H (mm): 110
- Width (mm): 60.00
