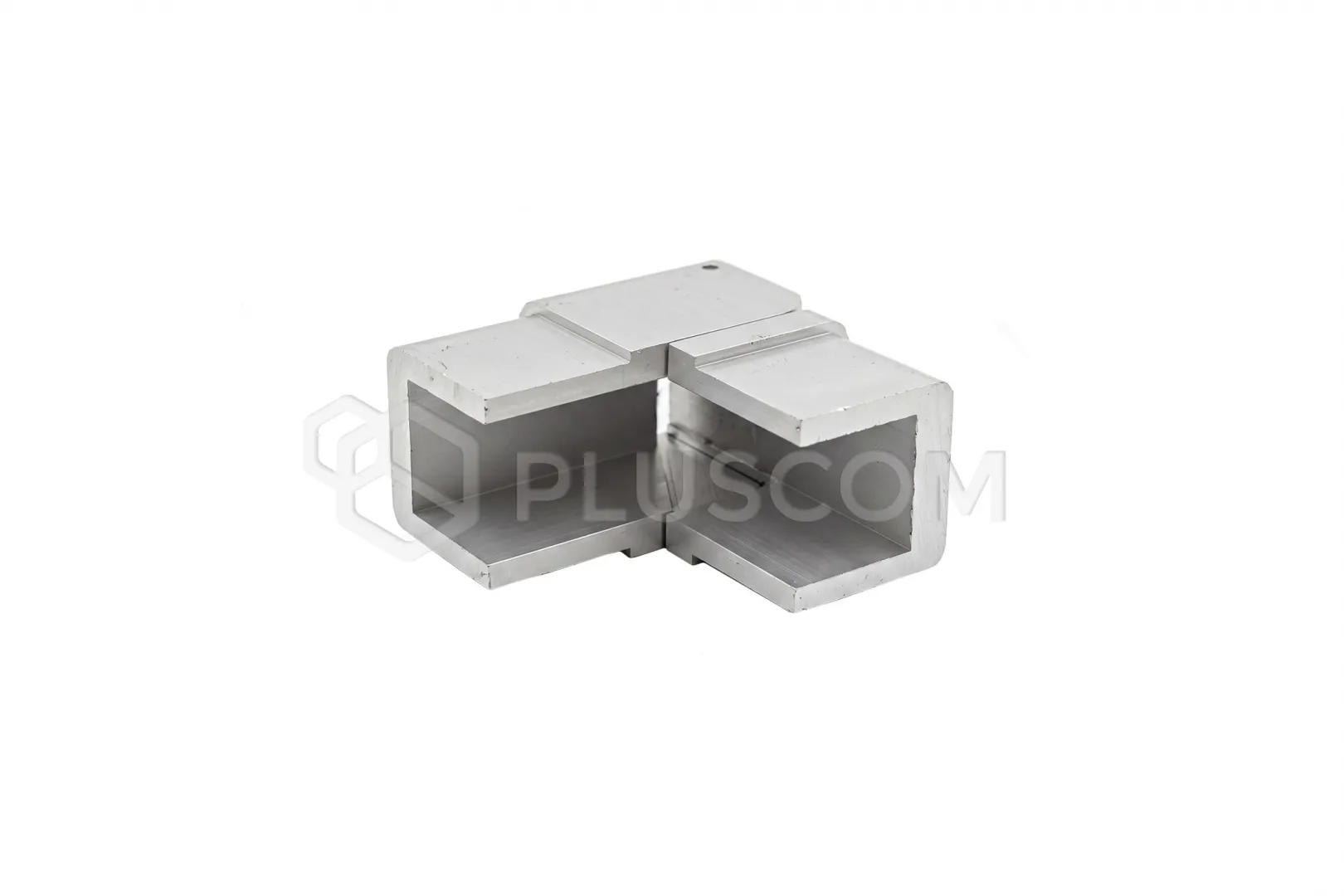

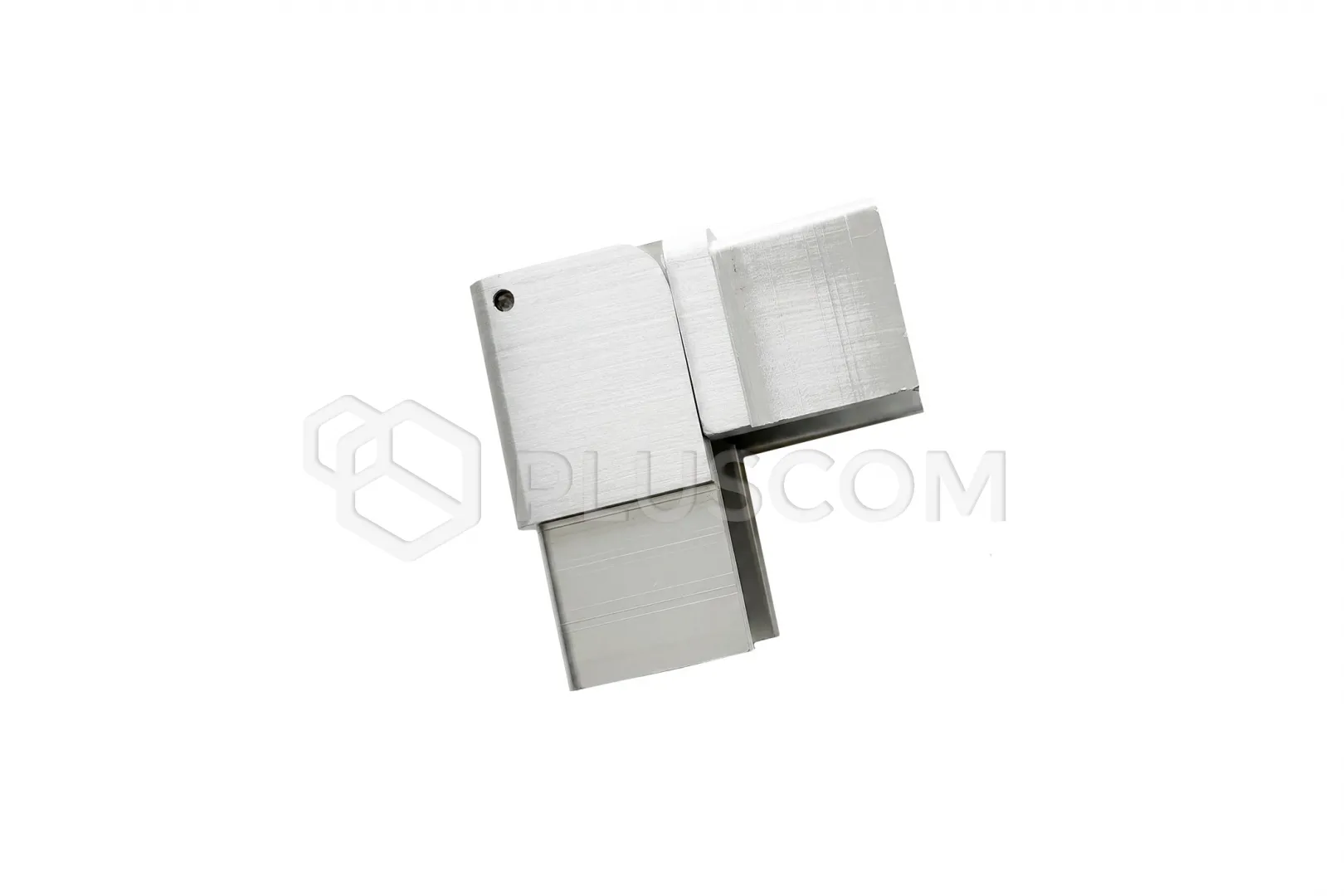

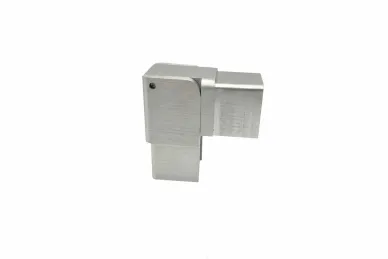

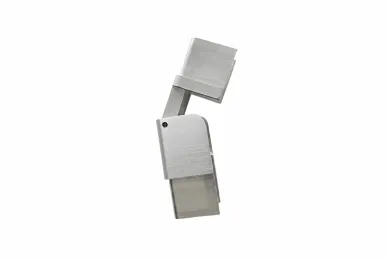

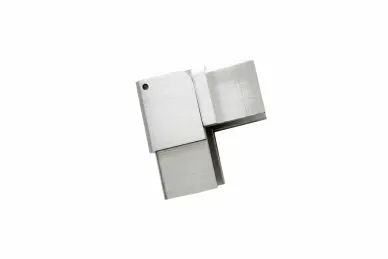

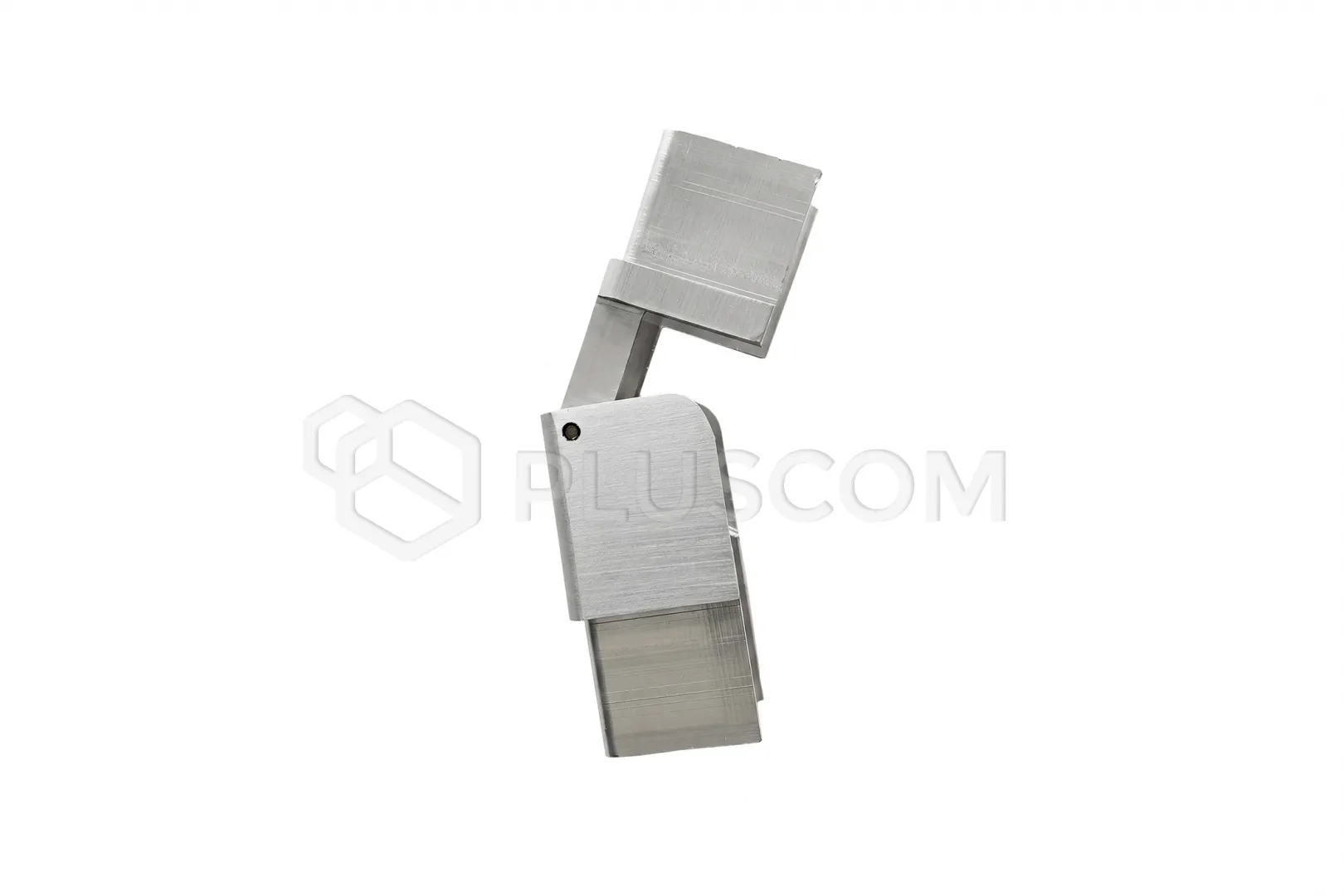

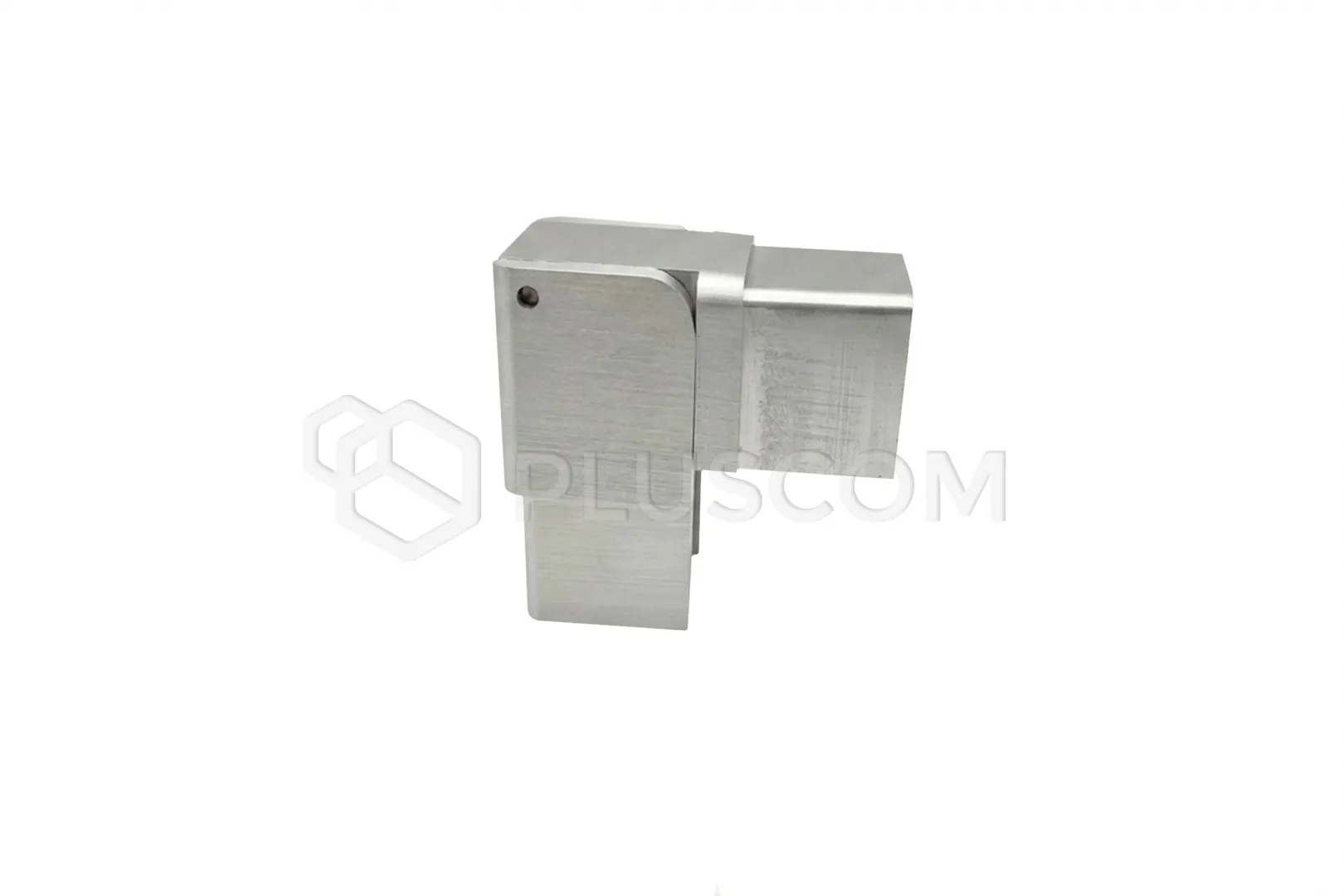

PSG A04.KPP1031.AXA Vertical articulated elbow for glass-mounted handrail PS1031

PSG A04.KPP1031.AXA Vertical articulated elbow for glass-mounted handrail PS1031

Vertical articulated connector for glass-mounted handrail, glass 16 - 17.52 mm

It is used in glass balustrades where a neat and stable connection of handrail sections is needed when the angle changes in the vertical plane. The matte anodizing gives it a modern, technical look and blends well with glass, aluminum and steel structural elements.

WHAT CHARACTERIZES THE PINOX ARTICULATED CONNECTOR:

• Vertical joint: lets you connect handrail sections where the balustrade changes angle in the vertical plane.
• For glass 16-17.52 mm: the connector fits the popular glass thicknesses used in balustrades.
• For glass-mounted handrails: the element is designed for systems in which the handrail is mounted directly on the top edge of the pane.
• Aluminum: the material provides lightness, durability and an attractive look of the whole connection.
• Matte anodizing: the finish reduces gloss and gives the connector an elegant, understated character.
• Neat handrail connection: helps keep the handrail line continuous, without accidental gaps and mismatched transitions.

VERTICAL JOINT FOR DEMANDING BALUSTRADE TRANSITIONS

The biggest advantage of this connector is the ability to adapt the handrail to a change of angle in the vertical plane. This matters especially for stairs, landings and balustrades that do not run along a single straight line.

The articulated design makes it easier to create a smooth transition between handrail sections, improves the look of the installation and lets you better adapt the system to a specific glass layout. As a result, the balustrade looks consistent and the handrail keeps its practical function along its entire length.

SAFETY INSTRUCTIONS FOR PINOX ALUMINUM ELEMENTS: DOWNLOAD

TECHNICAL DATA:

• Color: Matte anodized
• H (mm): 25
• L (mm): 50
