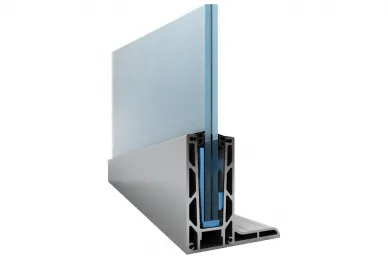

PSG A04.KF1050.500.20 L-profile for frameless glass balustrades KF1050, glass 12-21.5 mm, 5M, longitudinal top-mounted (aluminum, flat system, matte anodized)

813,34 EUR including 23.00% VAT
Product code: #48661
Manufacturer: Postal Steep Group
  • L (mm): 5000
  • H (mm): 130
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
4,41 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

PSG A04.KF1050.500.20 L-profile for frameless glass balustrades KF1050, glass 12-21.5 mm, 5M, longitudinal top-mounted (aluminum, flat system, matte anodized)

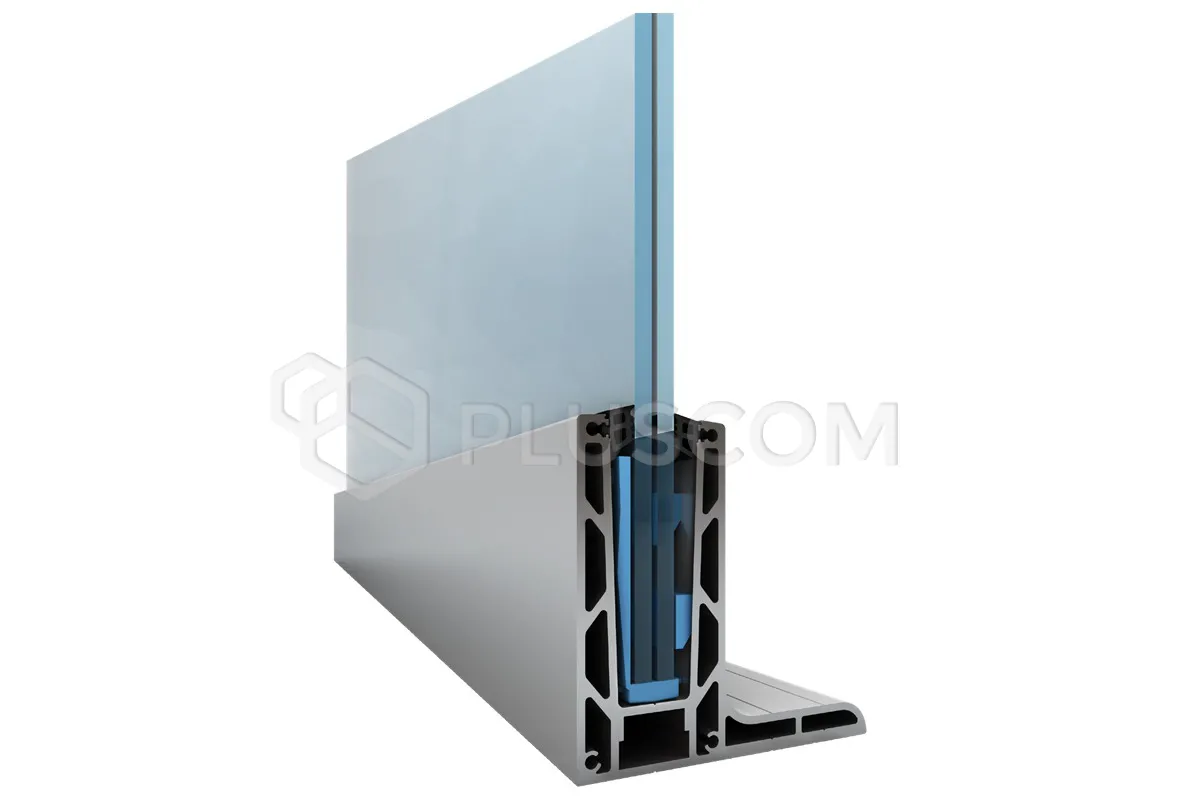

L-type profile with water drainage system for frameless glass balustrades – Kozza, KF 1050 series

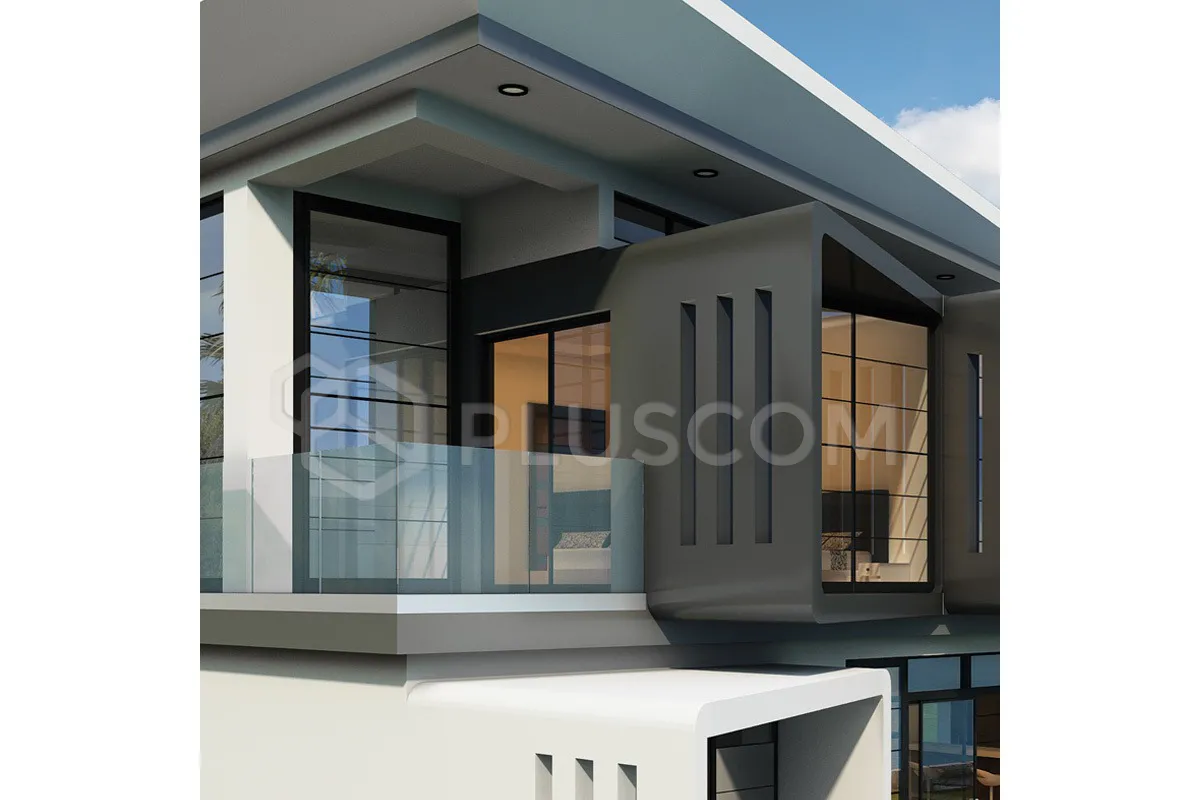

Chambered L-type profiles for frameless glass balustrades from the KF 1050 series were developed and built in accordance with the recommendations and requirements of architects. Longitudinally top-mounted, they work great in residential spaces as well as larger projects such as hotels and shopping centers.

The series KF 1050 stands out with a water drainage system – in both profiles and corners. Its advantages also include excellent technical parameters for wind and impact loads.

  • profile length: 5000 mm,
  • width: 135 mm,
  • height: 130 mm,
  • mounting: longitudinal top-mounted,
  • system: flat,
  • anodized: matte,
  • glass thickness range: from 12 to 21.52 mm.

Aluminum alloy EN AW 6063. Displacement results for a profile with a base length of 1 m, under a horizontal load below 500 kg (5000 nt), from the base to the highest point of the profile.

Technical drawing:

GLASSMOVE mounting system:

Anchoring method:

Water drainage system details:

Maximum wind and impact load results:

TECHNICAL DATA:

  • L (mm): 5000
  • H (mm): 130
