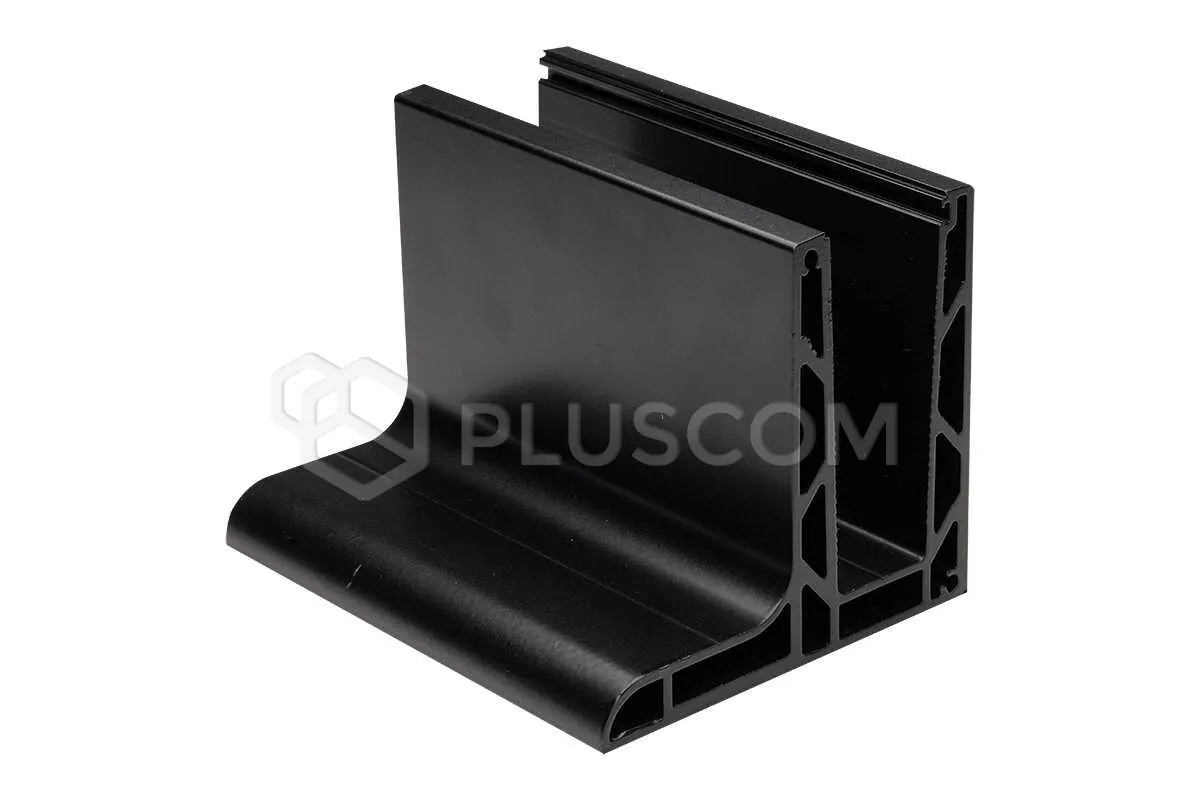

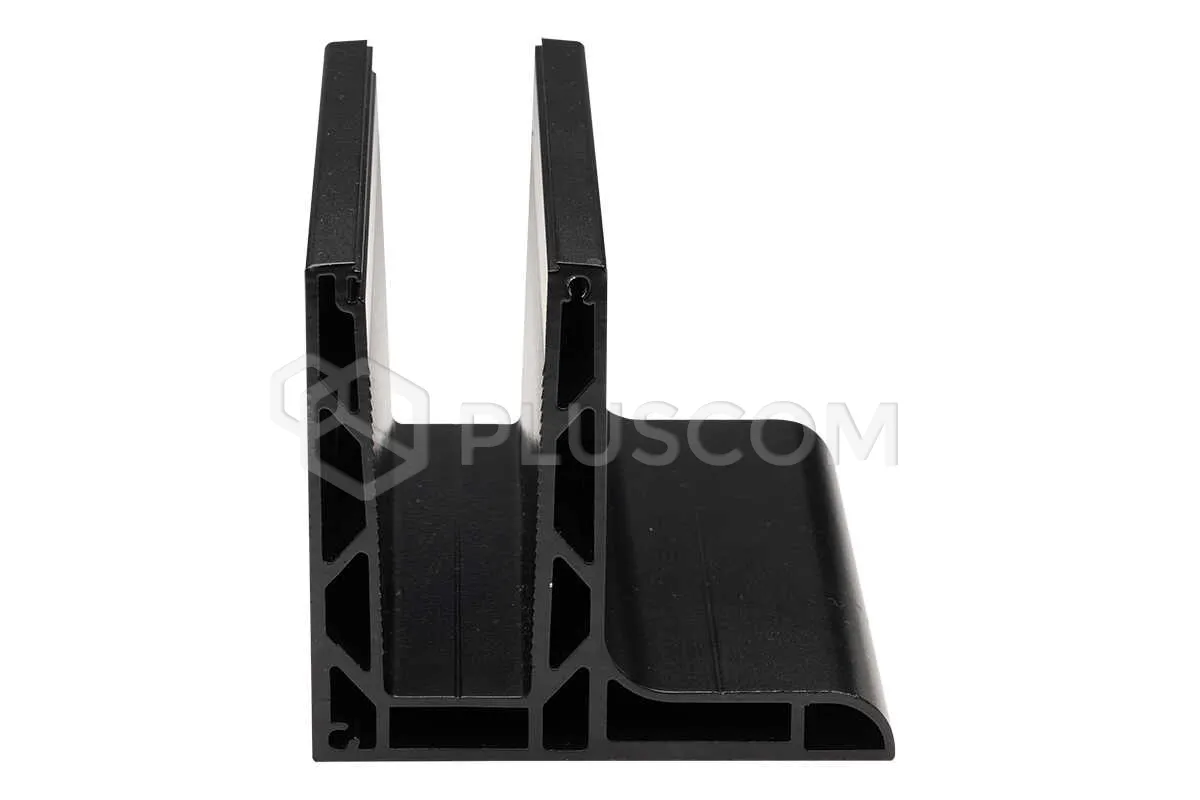

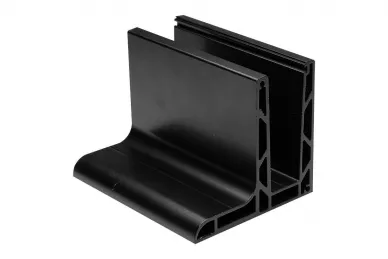

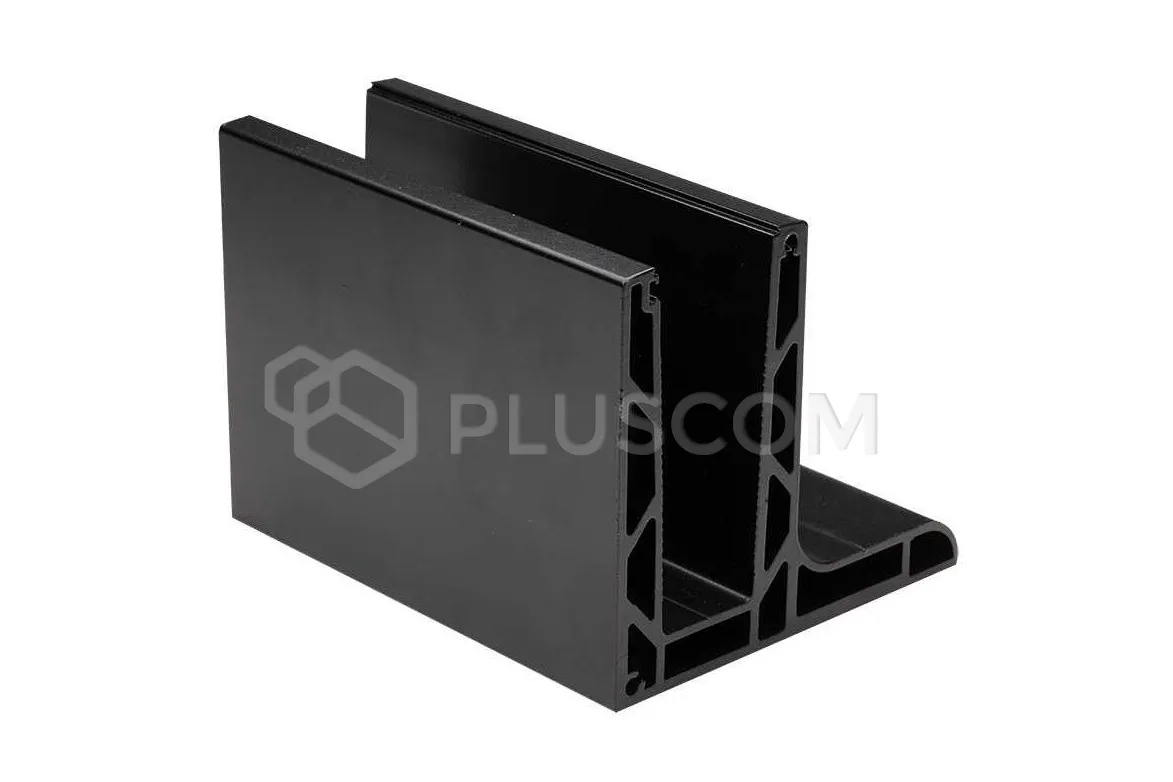

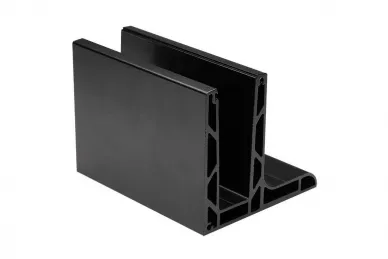

PSG A04.KE105.500.50 L-profile for frameless glass balustrades KE105, glass 12-21.5 mm, 5M, longitudinal top-mounted (aluminum, flat system, black)

644,15 EUR including 23.00% VAT
Product code: #48640
Manufacturer: Postal Steep Group
  • L (mm): 5000
  • Color: Black
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
4,41 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

PSG A04.KE105.500.50 L-profile for frameless glass balustrades KE105, glass 12-21.5 mm, 5M, longitudinal top-mounted (aluminum, flat system, black)


L-type profile for frameless glass balustrades 5000 mm – longitudinal top-mounted – Kozza, KE 105 series, black

Chambered L-type profiles for frameless glass balustrades from the KE 105 series were developed and built in accordance with the recommendations and requirements of architects. Longitudinally top-mounted, they work great in residential spaces as well as larger projects such as hotels and shopping centers.

  • profile length: 5000 mm
  • width: 120 mm
  • height: 110 mm
  • mounting: longitudinal top-mounted
  • system: flat
  • glass thickness range: from 12 to 21.52 mm

Aluminum alloy EN AW 6063. Displacement results for a profile with a base length of 1 m, under a horizontal load below 500 kg (5000 nt), from the base to the highest point of the profile.

Technical drawing

GLASSMOVE mounting system

Anchoring method

Maximum height

Maximum wind and impact load results

TECHNICAL DATA:

  • L (mm): 5000
  • Color: Black
