PSG A04.KE100.500.50.7021 U-profile for frameless glass balustrades KE100, dark gray, glass 12-21.5 mm, 5M, top-mounted (aluminum, flat system, painted)

479,00 EUR including 23.00% VAT
Product code: #48621
Manufacturer: Postal Steep Group
  • L (mm): 5000
  • Color: Dark gray
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,45 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

PSG A04.KE100.500.50.7021 U-profile for frameless glass balustrades KE100, dark gray, glass 12-21.5 mm, 5M, top-mounted (aluminum, flat system, painted)

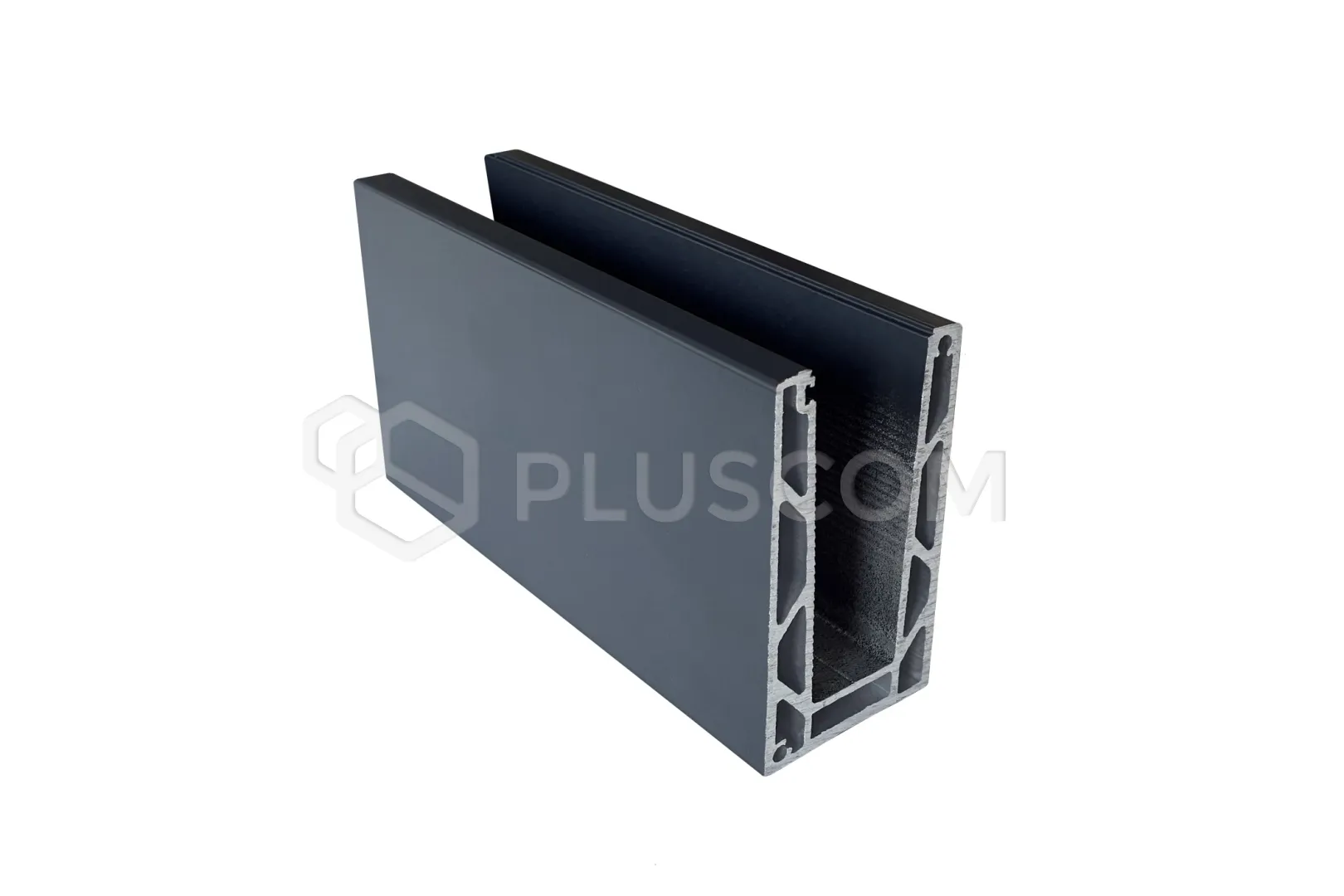

U-type profile for frameless glass balustrades 5000 mm – Kozza, KE 100 series, dark gray

The chambered U-type profile from the Kozza KE 100 series is a modern, precisely designed solution for installing frameless glass balustrades. Developed in cooperation with architects and contractors, it combines aesthetics, safety and durability. Thanks to top mounting, the profile works well both in residential developments and in commercial buildings – hotels, office buildings or shopping malls.

The solid construction made of high-grade EN AW 6063 aluminum guarantees stability and resistance to deformation. The dark gray color of the profile gives the balustrade an elegant, modern look that blends perfectly with the minimalist architecture of contemporary spaces.

Check the profile specifications:

  • system designed for easy installation and a high-quality finish
  • provides stable and secure glass fixing without the need for additional covering profiles
  • load resistance – a profile with a base length of 1 m under a horizontal load of up to 500 kg (5000 N·t) retains high rigidity and minimal displacement
  • an excellent choice for frameless glass balustrades in balcony, terrace and stair systems
  • compatible with KE 100 series accessories
  • profile length: 5000 mm
  • profile width: 60 mm
  • height: 110 mm
  • glass thickness range: from 12 to 21.52 mm
  • material: EN AW 6063 aluminum

Technical drawing

GLASSMOVE mounting system

Anchoring method

Maximum wind and impact load results

Maximum height

U-type balustrade profile
Series: Kozza KE 100
Profile length: 5000 mm
Width: 60 mm
Height: 110 mm
Mounting: top-mounted
System: flat
Glass thickness range: from 12 to 21.52 mm
Color: dark gray

Maximum wind and impact load results

Installation instructions

TECHNICAL DATA:

  • L (mm): 5000
  • Color: Dark gray
