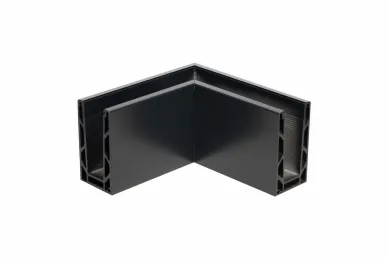

PSG A04.KE100.100.50.7021 U-profile corner for frameless glass balustrades KE100, dark gray, 90°, inner, top-mounted (aluminum, flat system, painted)

PSG A04.KE100.100.50.7021 U-profile corner for frameless glass balustrades KE100, dark gray, 90°, inner, top-mounted (aluminum, flat system, painted)

Inner U-type corner profile for frameless glass balustrades 90° – Kozza, KE 100 series

The U-type corner profile for frameless glass balustrades from the Kozza KE 100 series is a top-mounted element, designed for clean, even lines and stable support of the glass pane at a 90° corner. It works well in interior spaces where solidity and a consistent finish matter. The KE 100 system allows you to choose glass from 12 to 21.52 mm thick, so the balustrade can easily be matched to project requirements.

Check the product features:

• angle and profile type: 90°, U — the element forms an inner corner that guides the panes in two perpendicular directions; it ensures channel continuity and rigidity of the entire edge
• mounting: top-mounted (flat system) — the channel is anchored from the horizontal surface of the floor slab or ring beam; this method of installation makes layout marking easier and shortens finishing work
• dimensions: 197 × 197 × 110 mm — the geometric proportions let you guide the glass around the corner without unnecessary cutting and keep the optimal anchoring area
• material: aluminum — a light yet rigid section that works well with a mineral substrate; the material helps with precise positioning of the pane and keeping tolerances
• color: dark gray — the finish harmonizes with modern floors, anthracite profiles and brushed stainless steel
• application: interior — the profile suits corridors, lobbies and shopping malls, where a clean glass line without elaborate posts matters
• glass range: 12–21.52 mm — the wide range makes it easier to choose a pane for the required service load and acoustics
• system compatibility: KE 100 + Glassmove® — together with the Glassmove® mounting set you get convenient adjustment and sealing along the full run of the profile

Aluminum durability

The profile is made of aluminum, which stands out for its corrosion resistance, dimensional stability and low weight. As a result, the element retains its properties even with long-term use inside public buildings. Aluminum also makes precise machining and installation easier, which translates into a high-quality final visual effect and comfort for the installation crew.

TECHNICAL DATA:

• L (mm): 197
• Color: Dark gray
