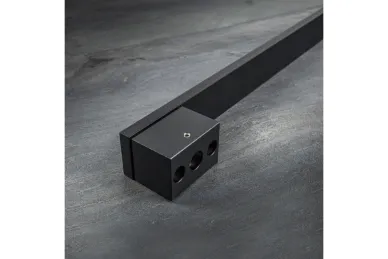

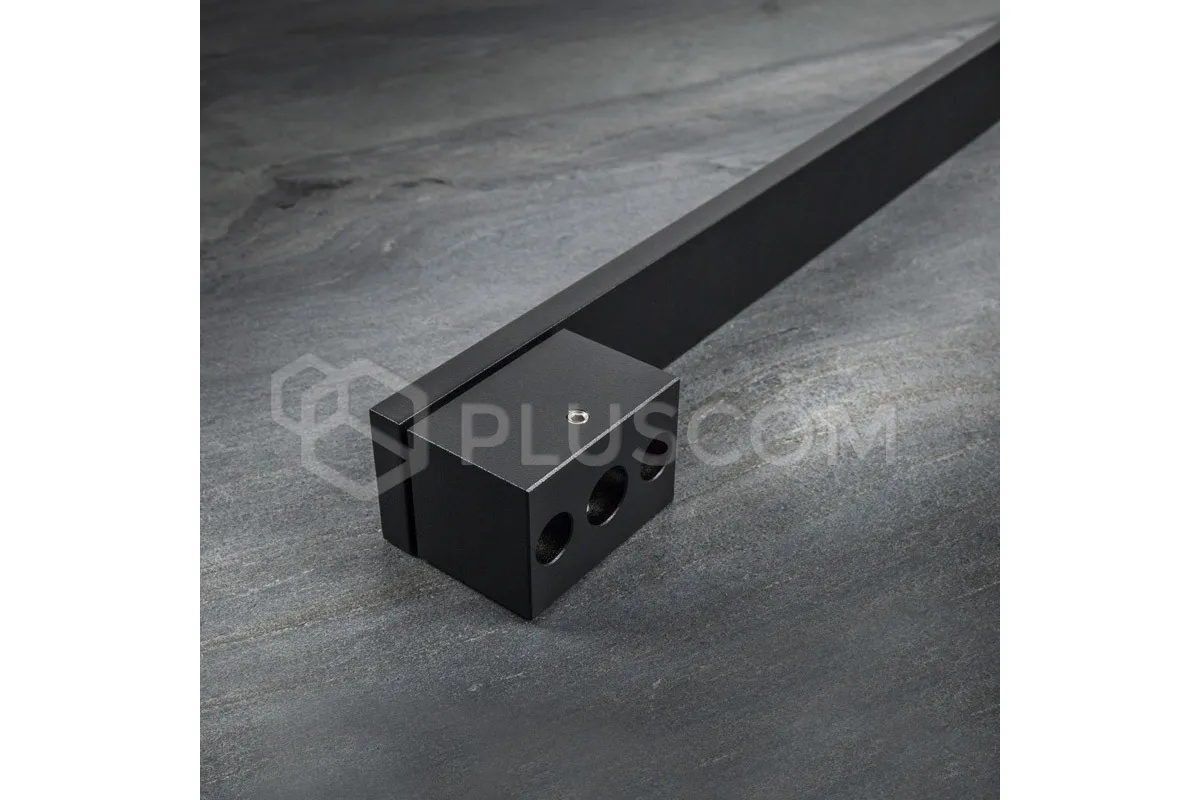

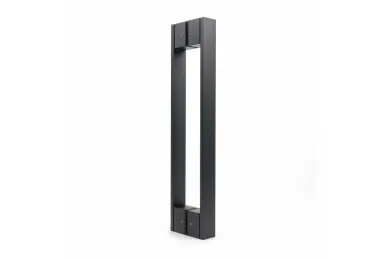

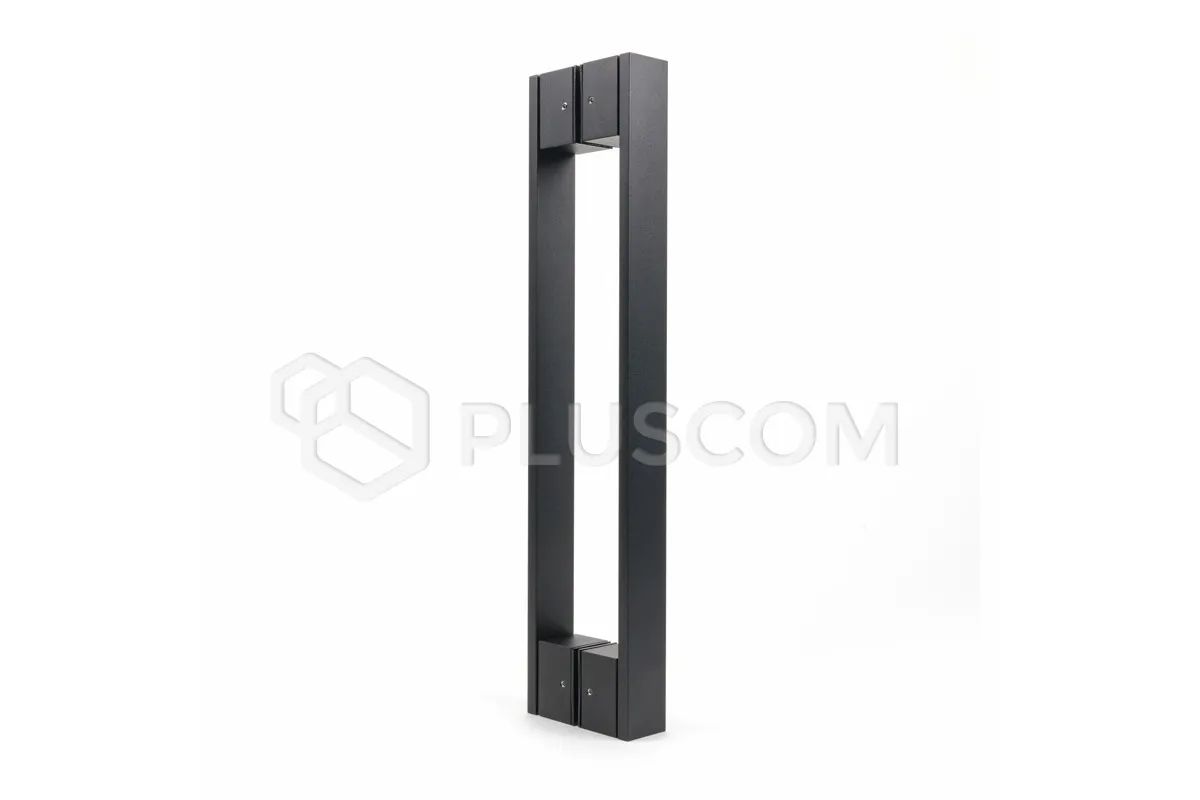

Double-sided rectangular pull handle 90° – steel, 40 x 493 mm (universal, black, painted)

This modern handle stands out for its universal use – it fits all types of door leaves. Powder-coated with a matte finish, it is attractively made – it will work perfectly in modern interiors.

The handle grip is made of steel, the supports of aluminum. The whole is painted black using the electrostatic method.

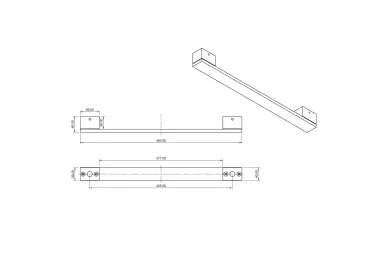

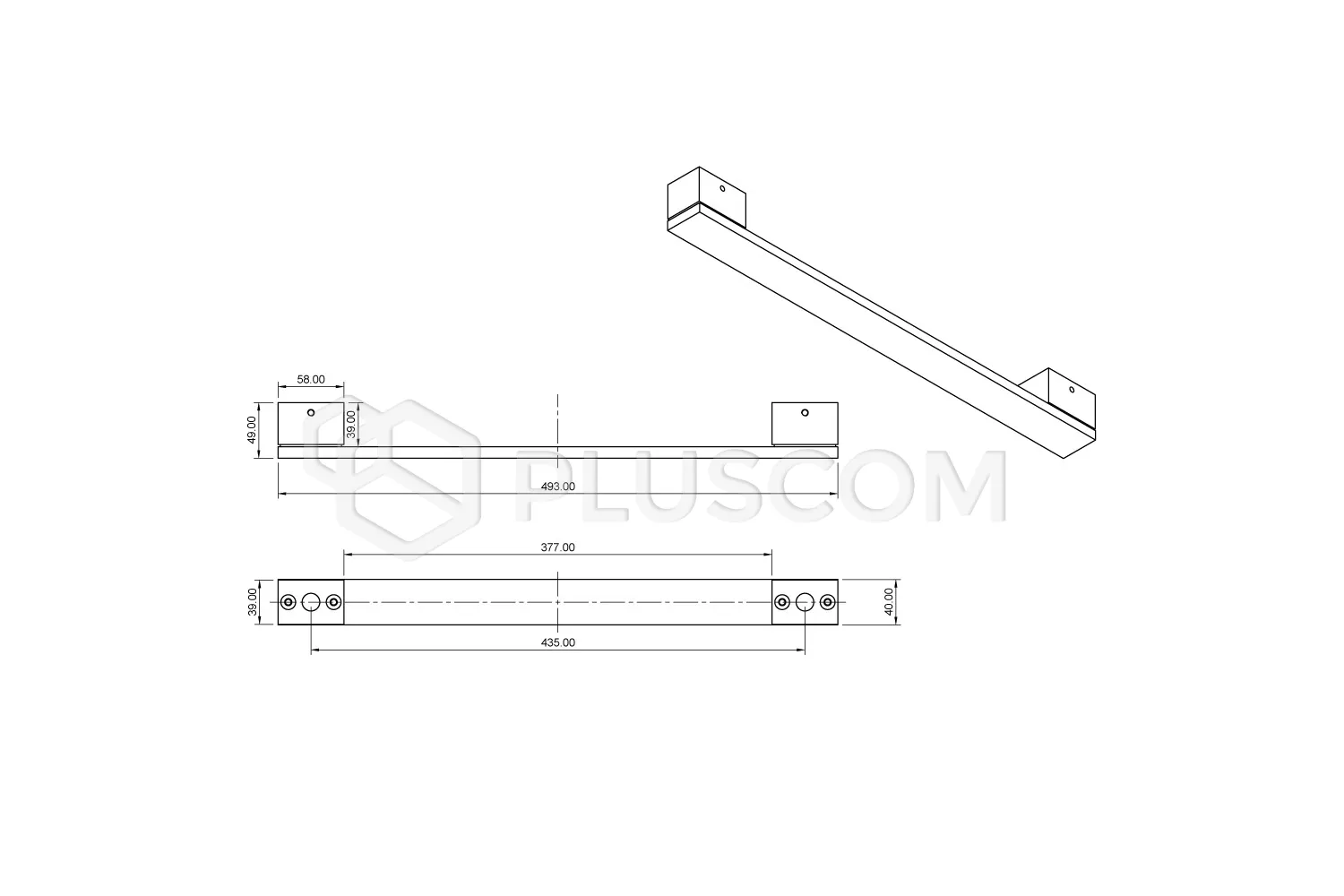

Dimensions:

• handle length: 493 mm,
• handle width: 40 mm,
• distance between mounting holes: 435 mm.


Features:

• handle: double-sided, rectangular,
• grip material: powder-coated steel,
• support material: powder-coated aluminum,
• finish: matte,
• stable mounting at a 90° angle,
• weight: 5 kg,
• the product is scratch-resistant.

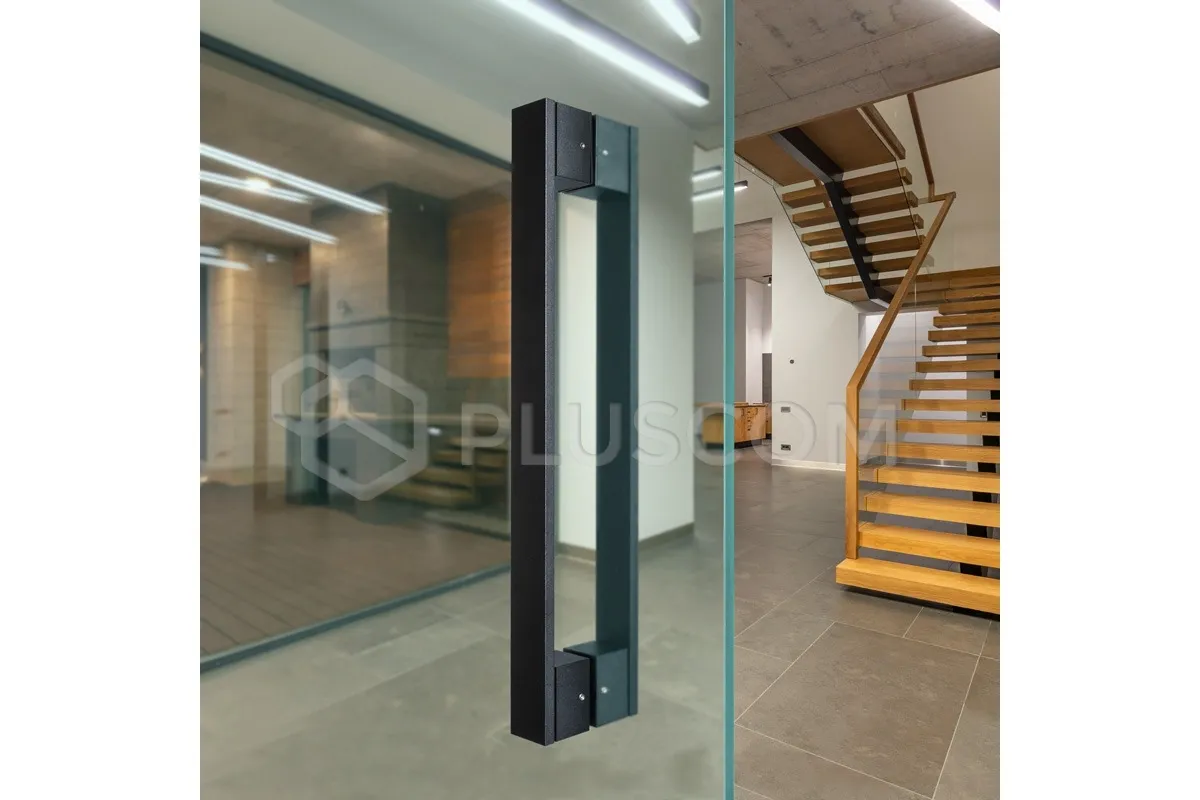

The mounting included in the set is suitable for every type of door – metal, wooden and glass.

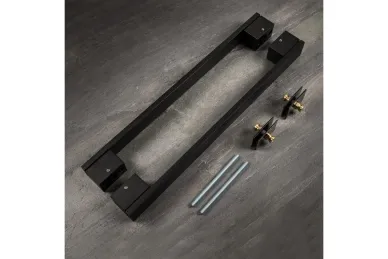

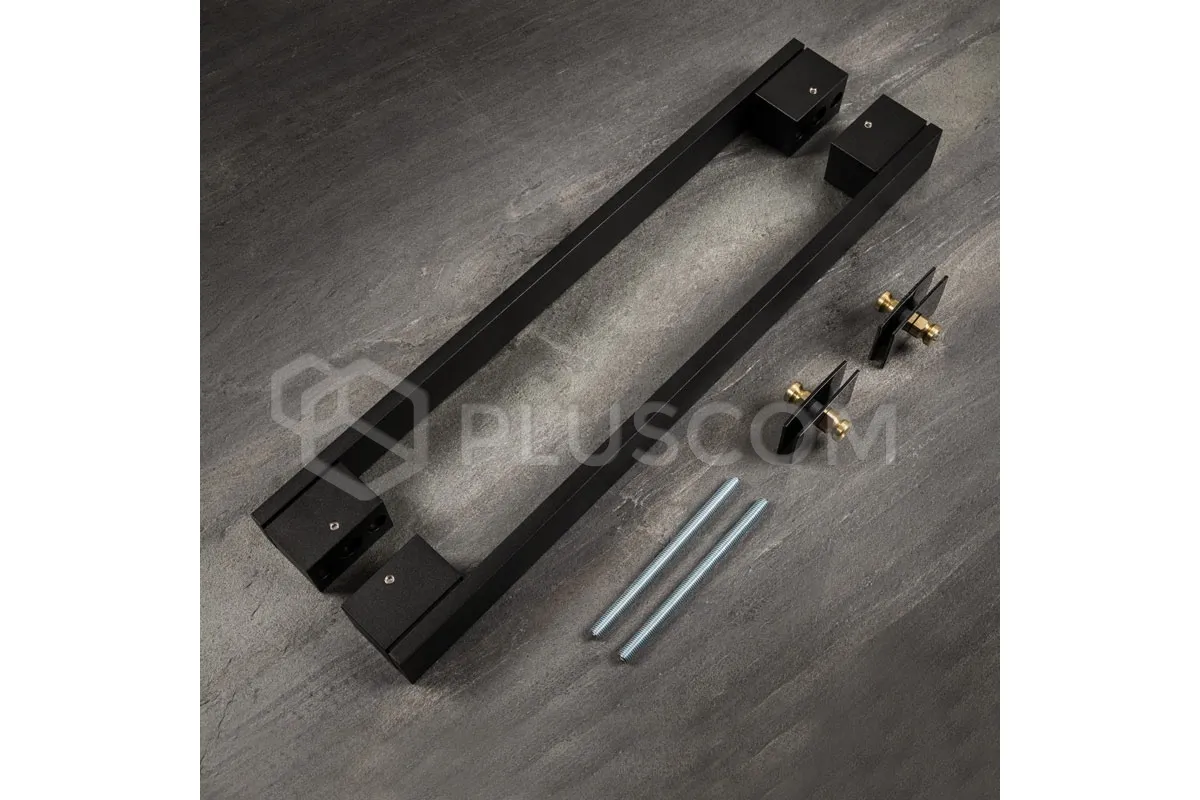

The set includes two studs:

• one 130 mm long with an M8 thread, for wooden and metal doors with a maximum thickness of 100 mm,
• the other 42 mm long with an M8 thread, for glass doors with a maximum thickness of 8 to 12 mm.

TECHNICAL DATA:

• L (mm): 493
