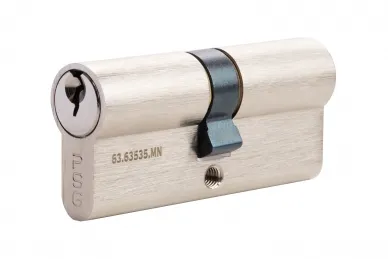

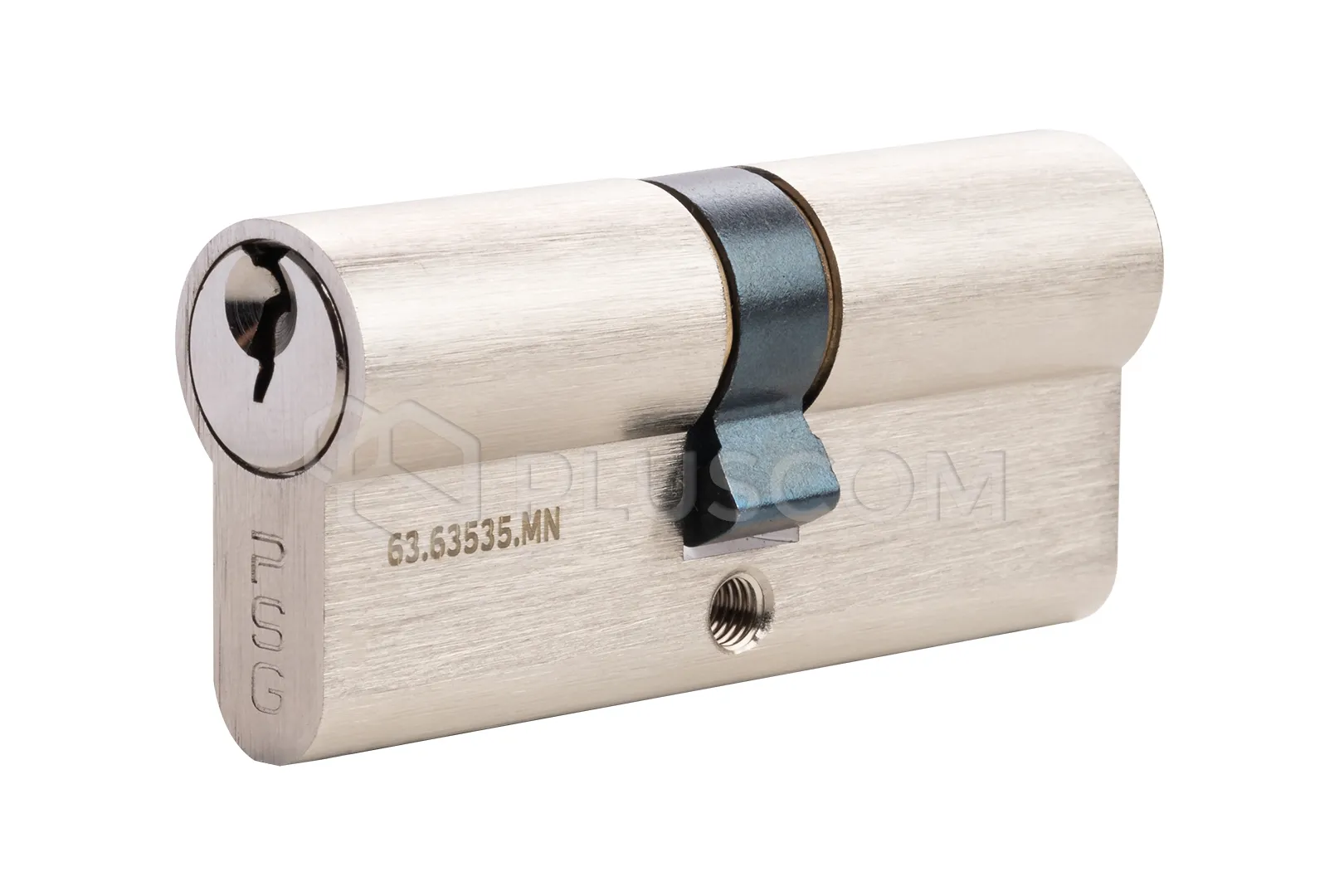

PSG 63.63535.MN Brass cylinder insert 35/35 satin nickel
The 35/35 cylinder insert is a key element of security systems, used in a wide
range of locks.
The insert is characterized by high quality of workmanship and resistance to
external factors. Its universal dimensions and solid construction make it
suitable for use in various types of doors.
CYLINDER FEATURES:
- Material: The body and rotor are made of brass, which ensures durability
and corrosion resistance

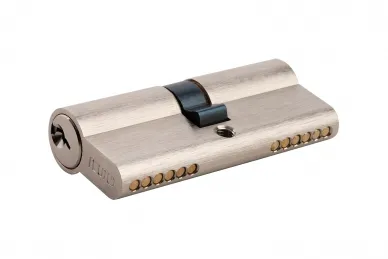

- Security: The insert is equipped with 6 tumblers on both sides, which
increases security against unauthorized access

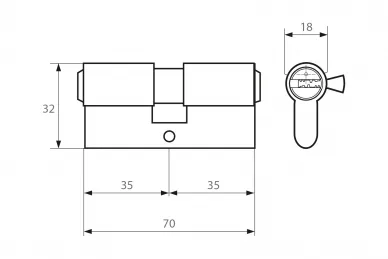

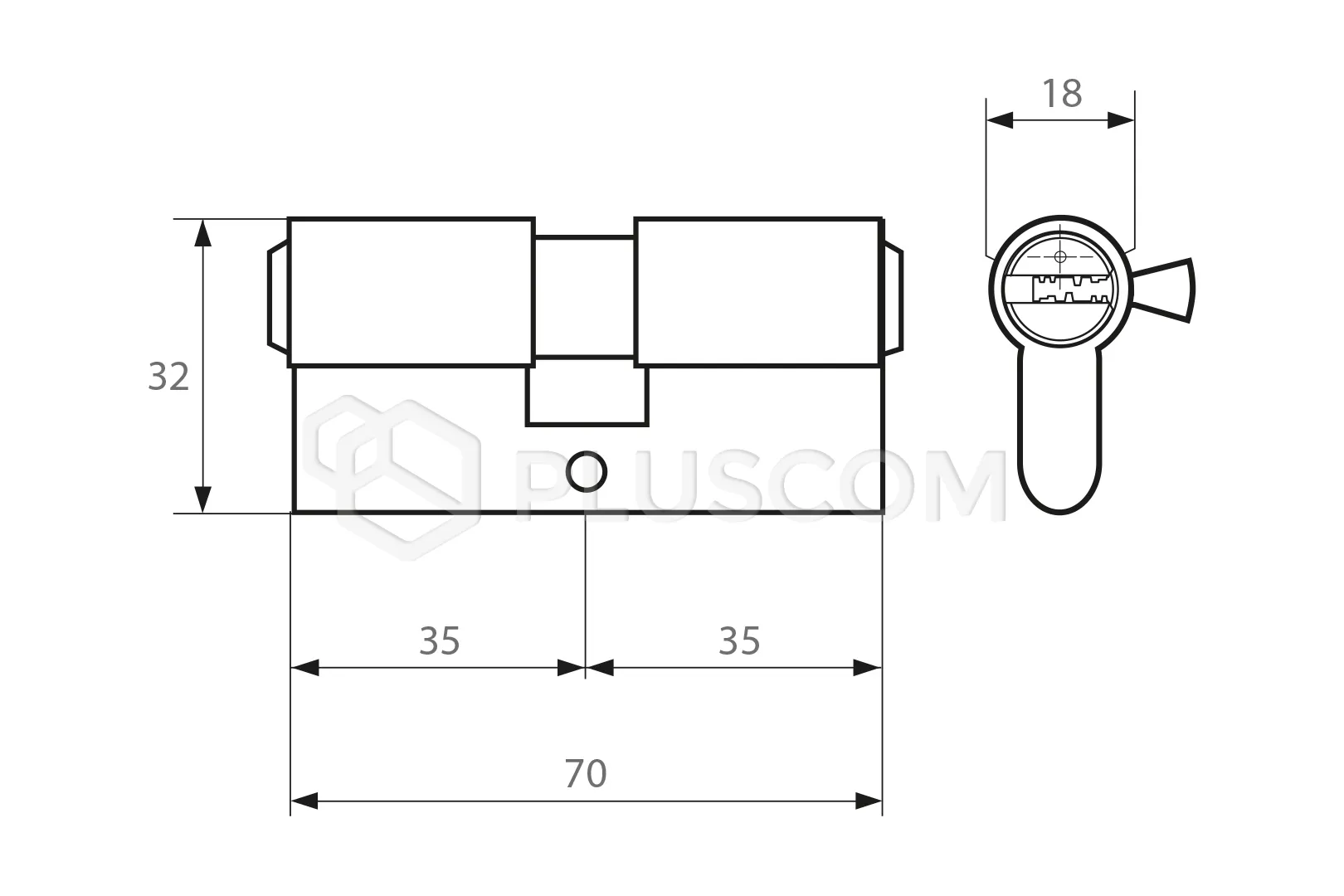

- Dimensions: The width of the insert is 18 mm, height 32 mm, and depth 70
mm, which allows for installation in standard doors
- Drive: It has a 15 mm long drive, which ensures effective transmission of
rotational force
- Mounting: The M5x70 mm mounting screw makes installation easy and ensures
the stability of the insert

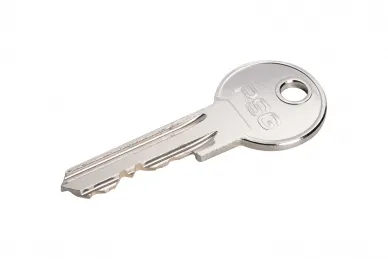

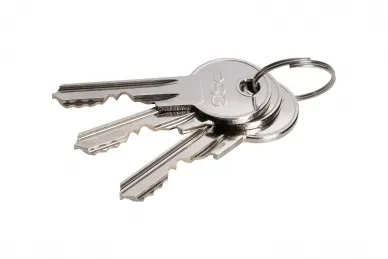

- Accessories: The set includes 3 nickel-plated brass keys, which increases
the comfort of use
- Finish: The insert is nickel-plated, has a satin finish, which gives it
an aesthetic appearance and at the same time protects against damage
- Standards: The product complies with the EN1303:2015 standard, which
confirms its high quality and safety of use
- Classification: 16000C60, which proves a high standard of safety
MATERIAL OF MANUFACTURE
The use of brass as the main material in the
construction of the body and rotor of the 35/35 cylinder insert is crucial for
its durability and resistance to corrosion.
Brass, an alloy of copper and zinc, is characterized by high mechanical
strength and aesthetic appearance.
Thanks to this, the insert not only effectively protects, but also maintains
its attractive appearance for a long time.
SECURITY
Particular attention should be paid to the lock cylinder
security system, which includes 6 tumblers on both sides. This design
significantly increases the level of security, making unauthorized access
difficult.
The tumblers, acting as independent locking elements, require precise
adjustment of the key, which minimizes the risk of forcing the lock. This is
important both in the context of protection against burglary and ensuring the
privacy of users.
Technical data:
- Width: 18 mm
- Height: 32 mm
- Depth: 70 mm

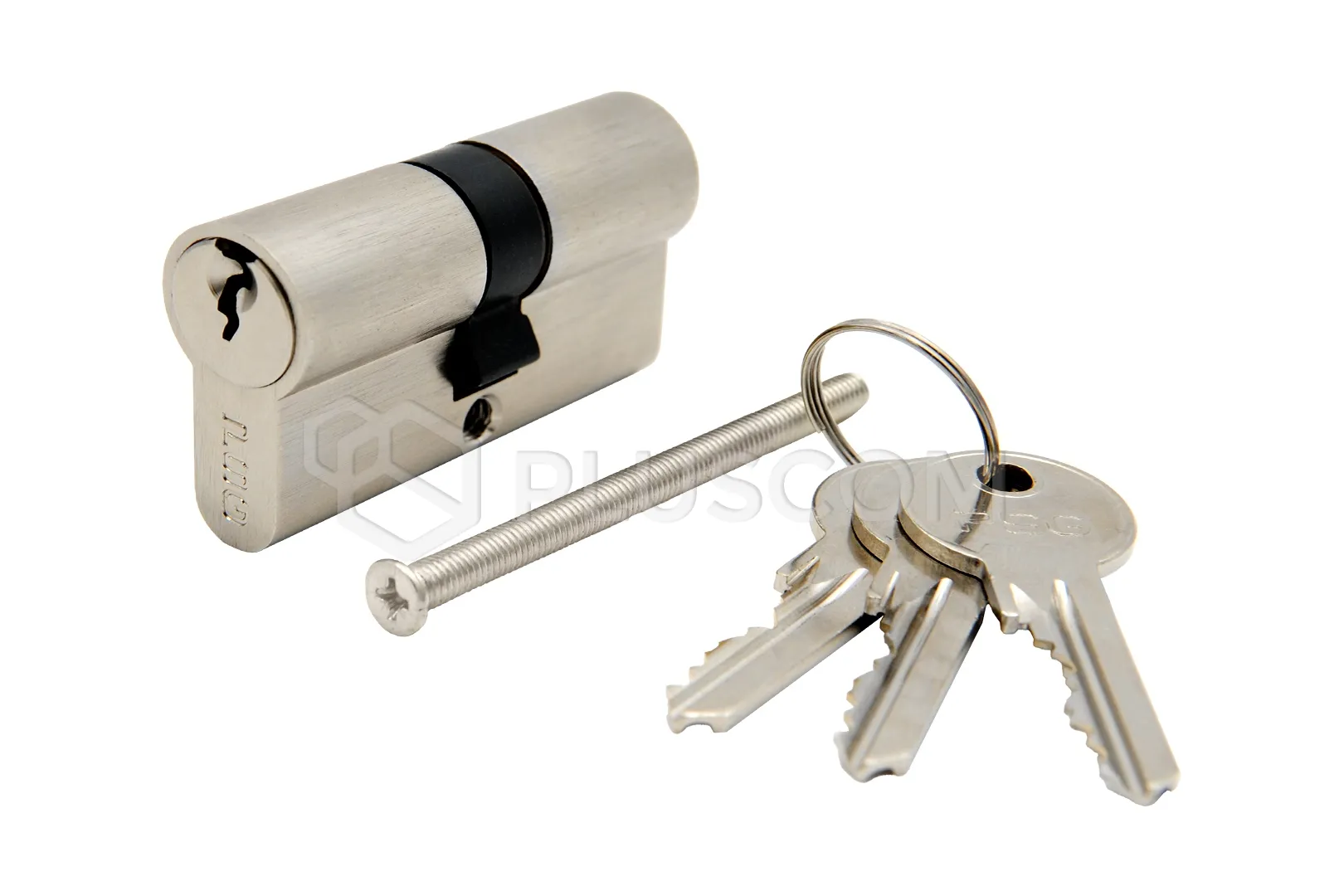

- Included: 3 keys, mounting screw
- Material: Brass
- Finish: Nickel, satin
