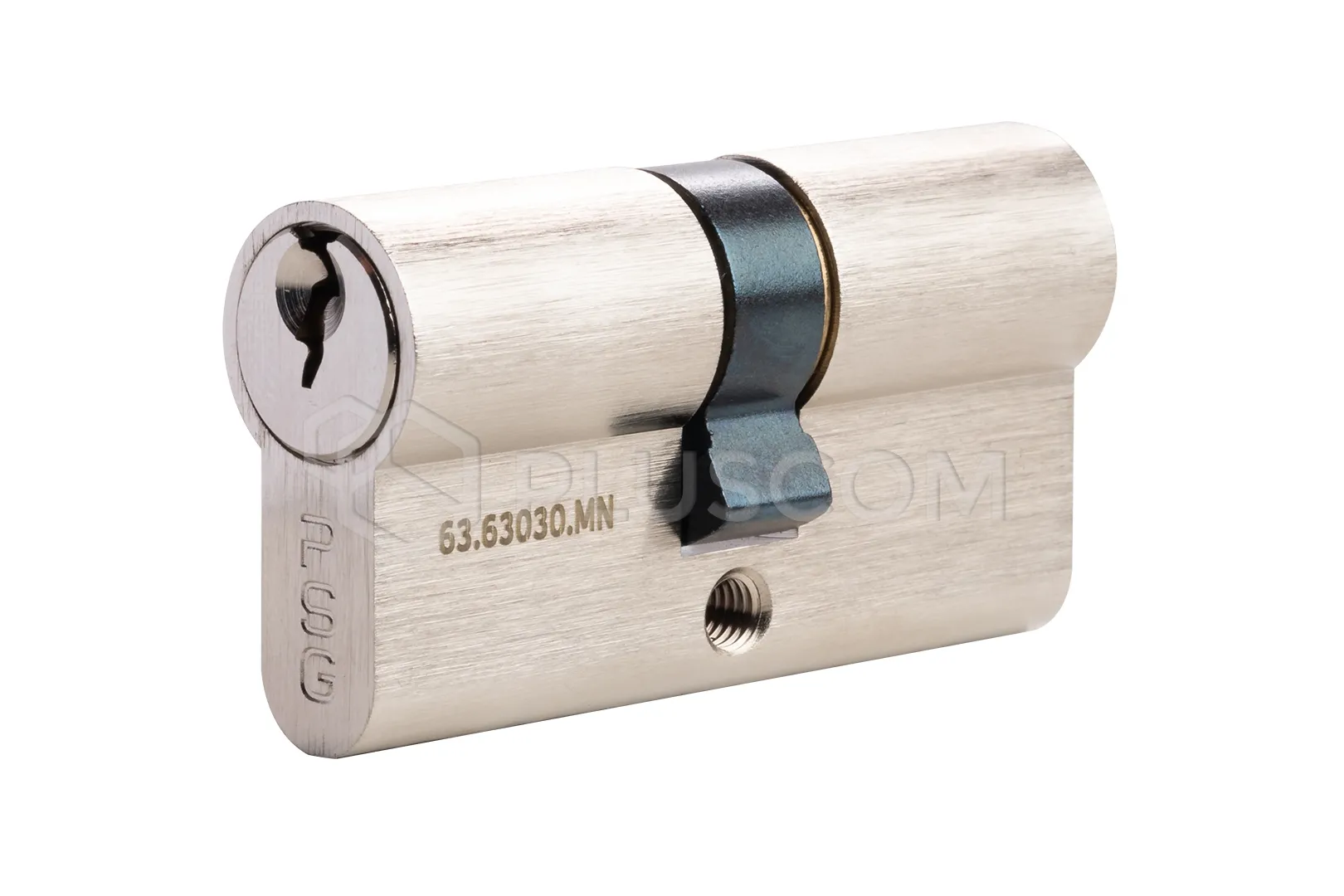

PSG 63.63030.MNB 30/30 cylinder insert
30/30 cylinder insert is an advanced security element,
combining durability and modern technologies. Made of
high-quality brass, equipped with a number of security functions,
it is ideal for use in various types of doors.
Compliance with the EN1303:2015 standard and the 16000C60 classification prove the high
safety standard of the insert.
FEATURES:
- Material: Body and rotor made of brass, ensuring
durability and resistance to damage
- Security: 6 tumblers on both sides, increasing
resistance to manipulation

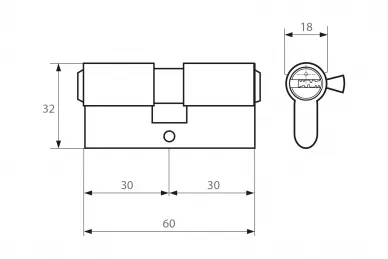

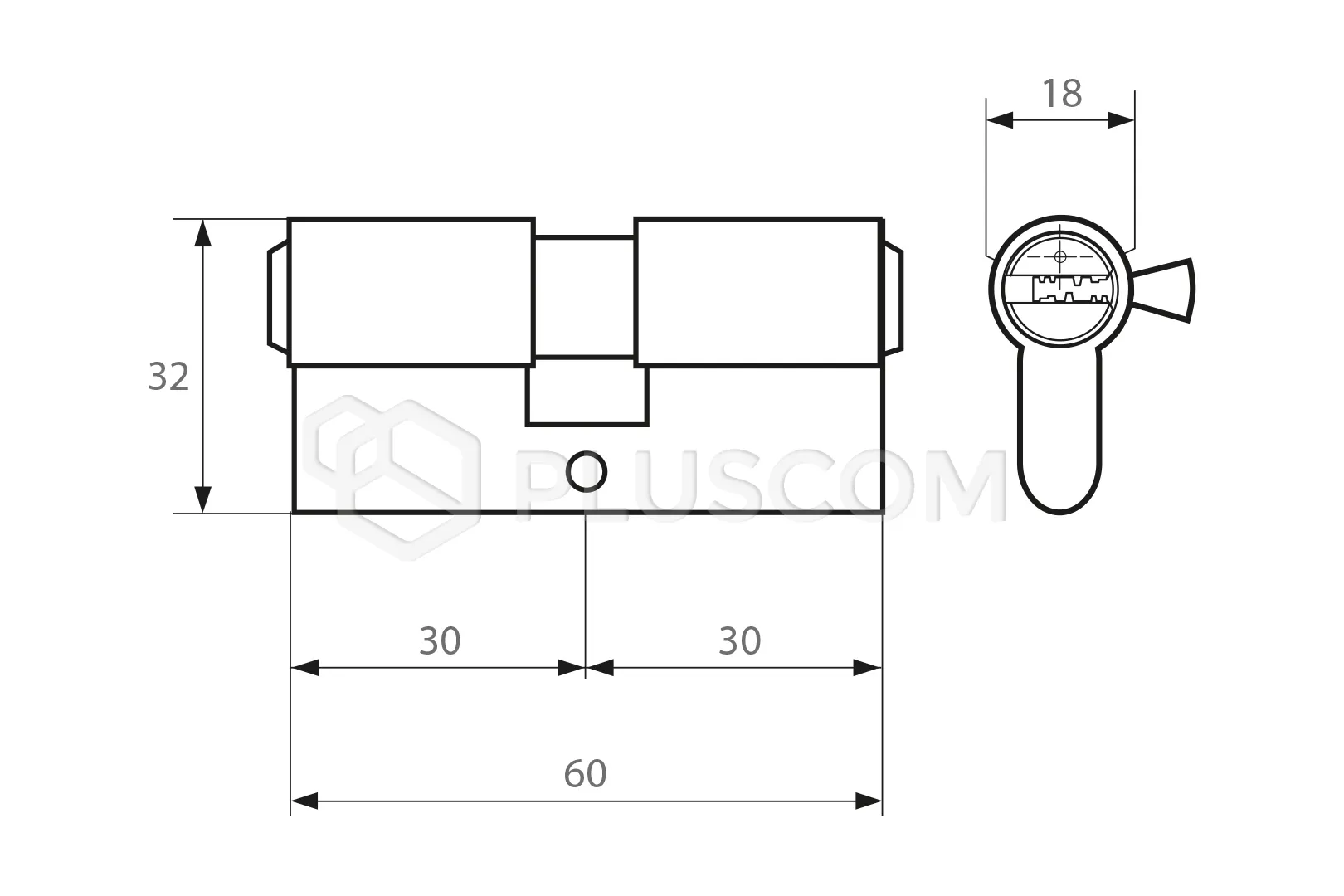

- Dimensions: Width 18 mm, height 32 mm, depth 60 mm, enabling
easy assembly
- Drive: Length 15 mm, ensuring efficient operation of the mechanism
- Highest durability of the insert: 100,000 cycles
- Mounting: M5x70 mm mounting screw, facilitating
installation

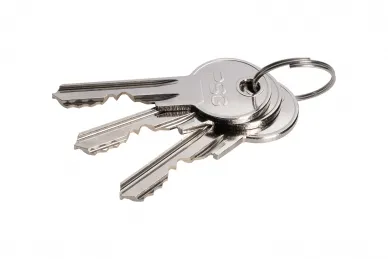

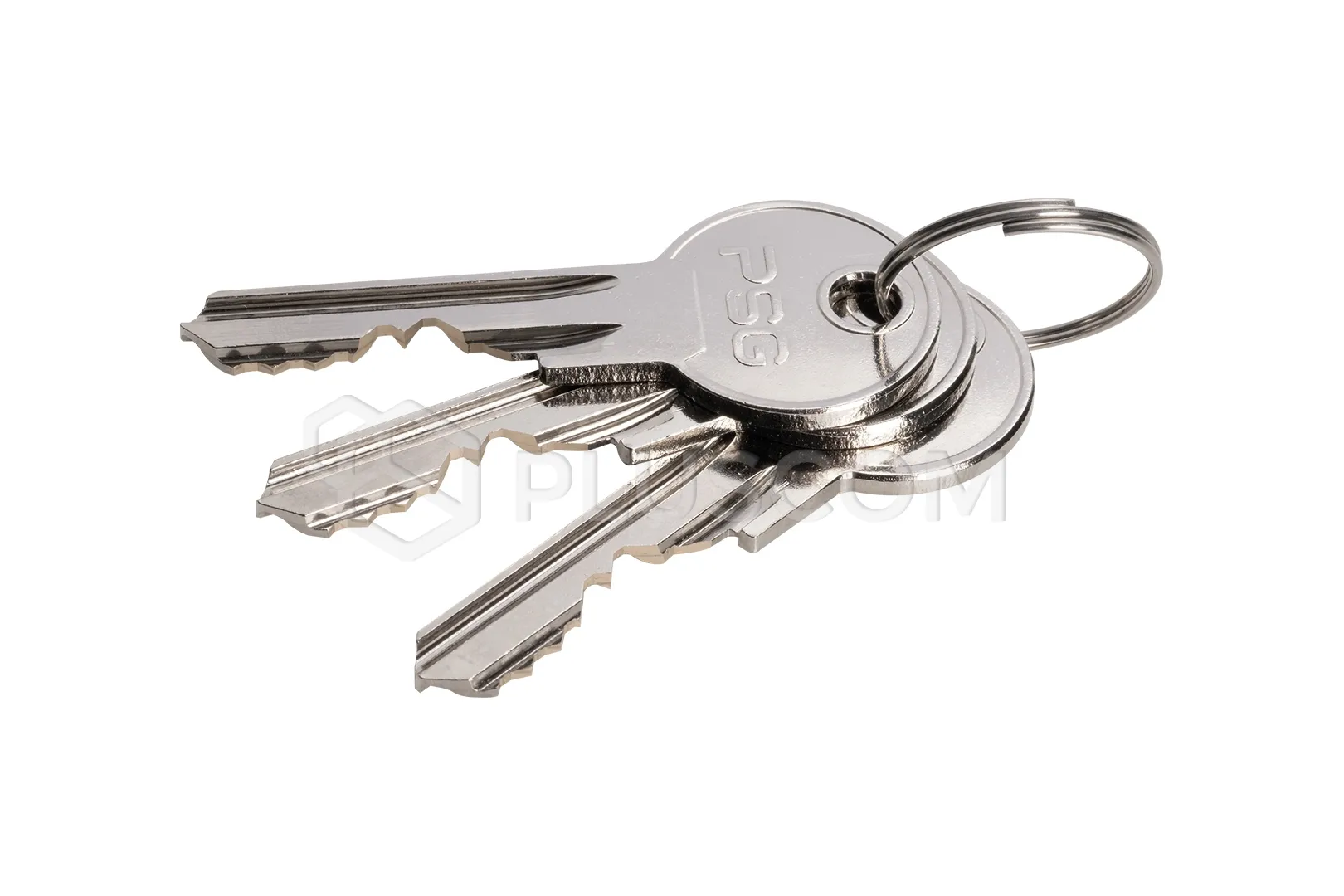

- Keys: 3 nickel-plated brass keys, increasing comfort of use
- Finish: The insert is nickel-plated, has a satin finish
- Standards and classification: compliance with EN1303:2015, classification 16000C60,
confirming high safety standards
- Brass keys, which translate into reliable and failure-free
operation of the insert
MATERIAL AND DURABILITY
Brass, from which the insert body and rotor are made,
is a material with exceptional properties. Its resistance to
corrosion and mechanical strength make the insert reliable and
long-lasting.
Brass also provides protection against external factors,
which is crucial in maintaining the functionality of the insert for a long time.
Highest class of resistance C: for corrosion (tested in a salt spray chamber, 96
hours) and operation at temperatures: -25°C to +65°C.
SECURITY AND SECURITY

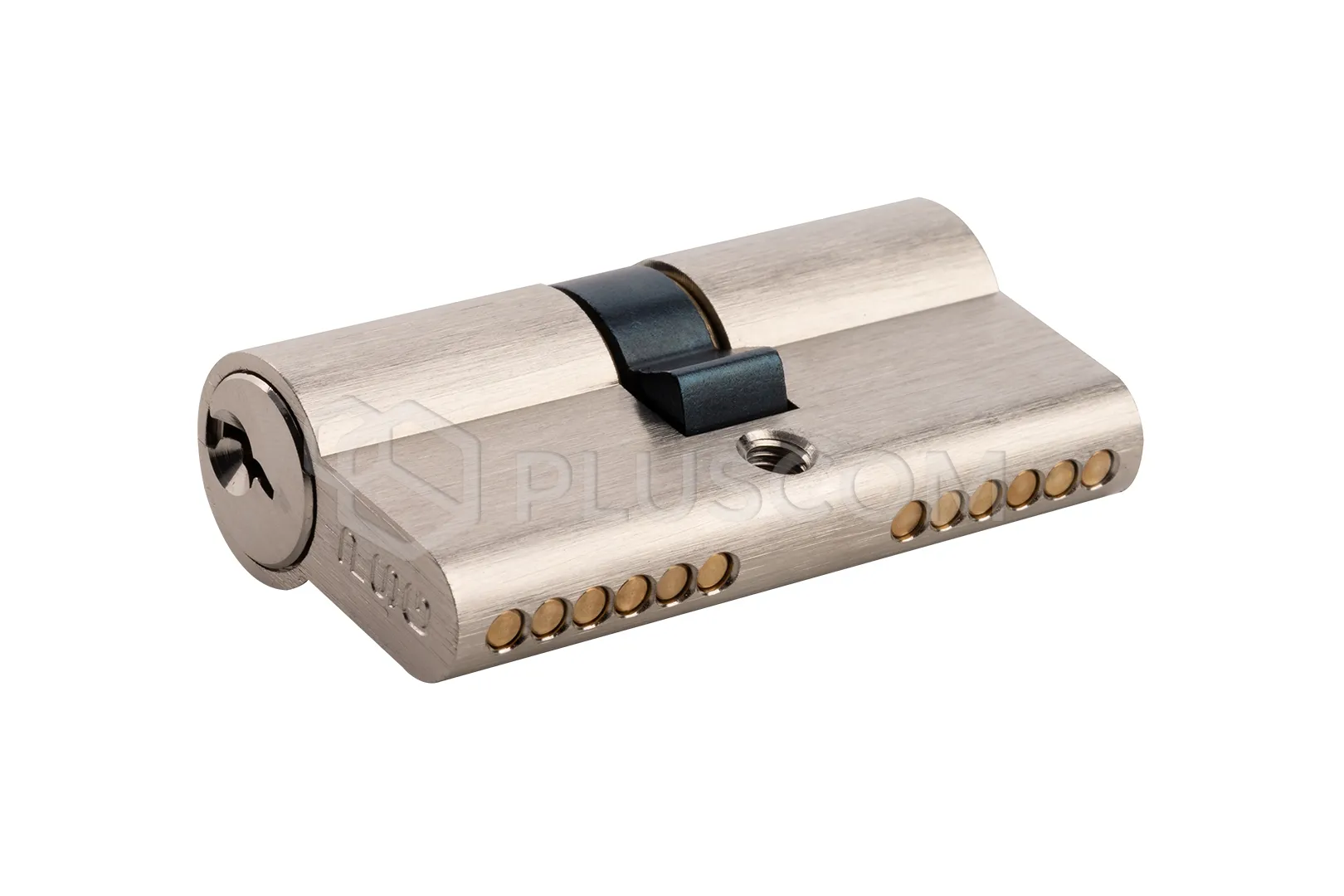

The use of 6 tumblers on both sides of the insert provides its
high level of security. This design prevents attempts to
manipulate and force the lock, which is particularly important in places
that require solid protection.
The tumblers act as independent locking points, which, combined with precise key matching, significantly
increases the difficulty of unauthorized access.
Technical data:
- Width: 18 mm
- Height: 32 mm
- Depth: 60 mm

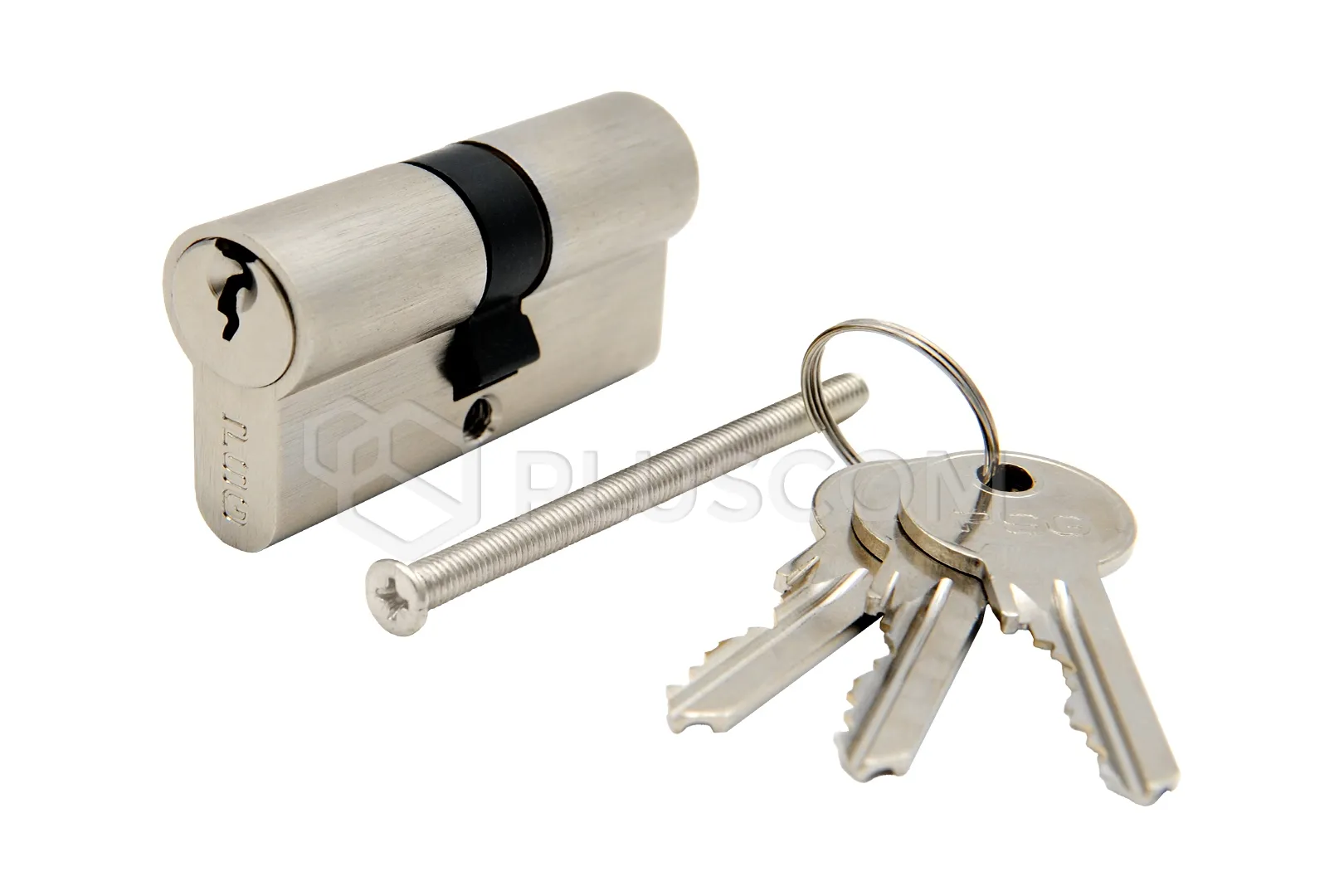

- Included: 3 keys, mounting screw
- Material: Brass
- Finish: Nickel, satin
- Use category: 1
- Durability: 6
- Corrosion and temperature resistance: C
- Key-related security: 6
- Packaging: Blister
