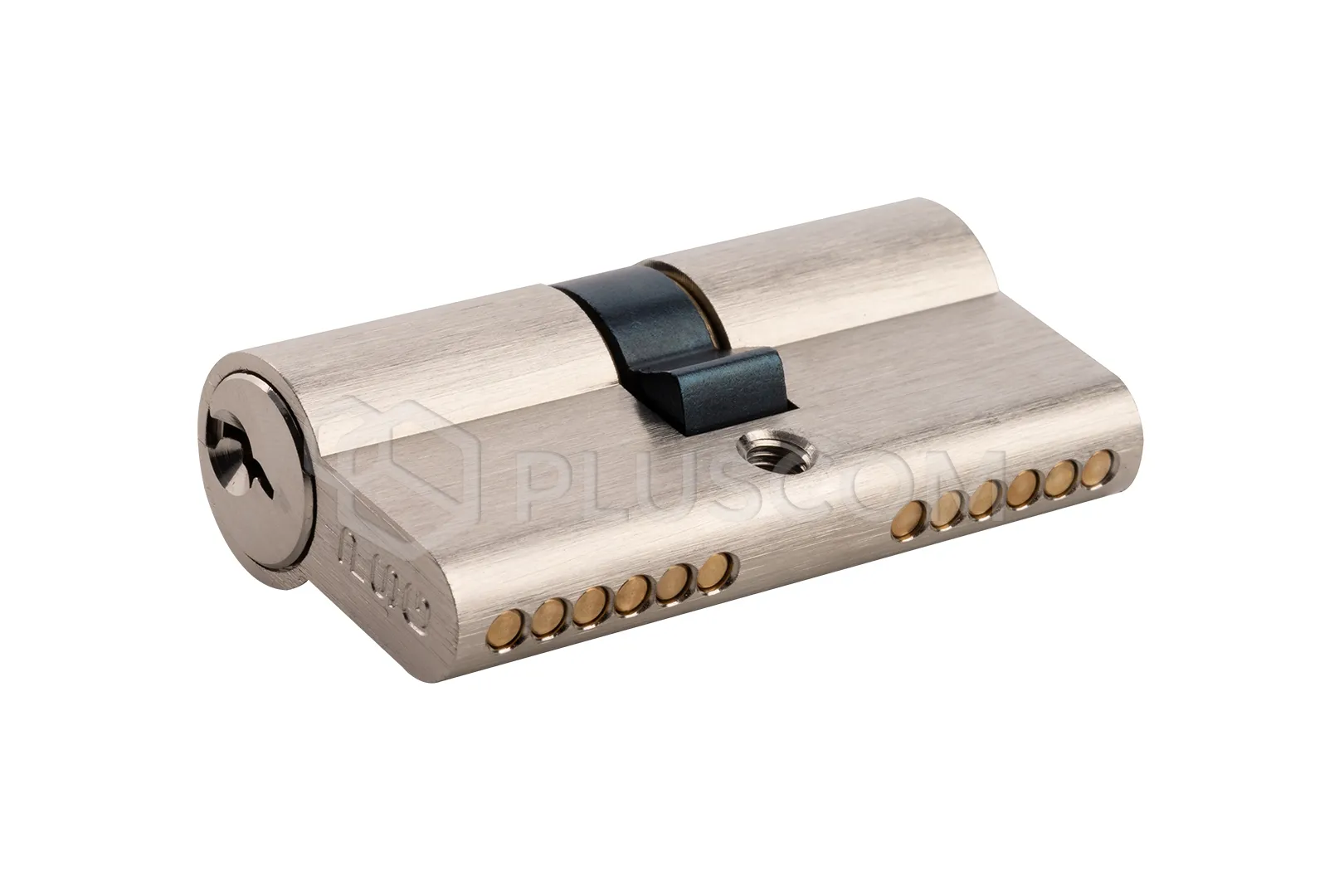

PSG 63.63030.MN Brass cylinder insert 30/30 satin nickel
The 30/30 cylinder insert is an advanced security element
that combines durability and modern technologies. Made of
high-quality brass, equipped with a number of security functions,
it is ideally suited for use in various types of doors.
Compliance with the EN1303:2015 standard and the 16000C60 classification prove the high
safety standard of the insert.
FEATURES:
- Material: Body and rotor made of brass, ensuring
durability and resistance to damage
- Security: 6 tumblers on both sides, increasing
resistance to manipulation
- Dimensions: Width 18 mm, height 32 mm, depth 60 mm, enabling
easy assembly
- Driver: Length 15 mm, ensuring efficient operation of the mechanism
- Mounting: M5x70 mm mounting screw, facilitating
installation

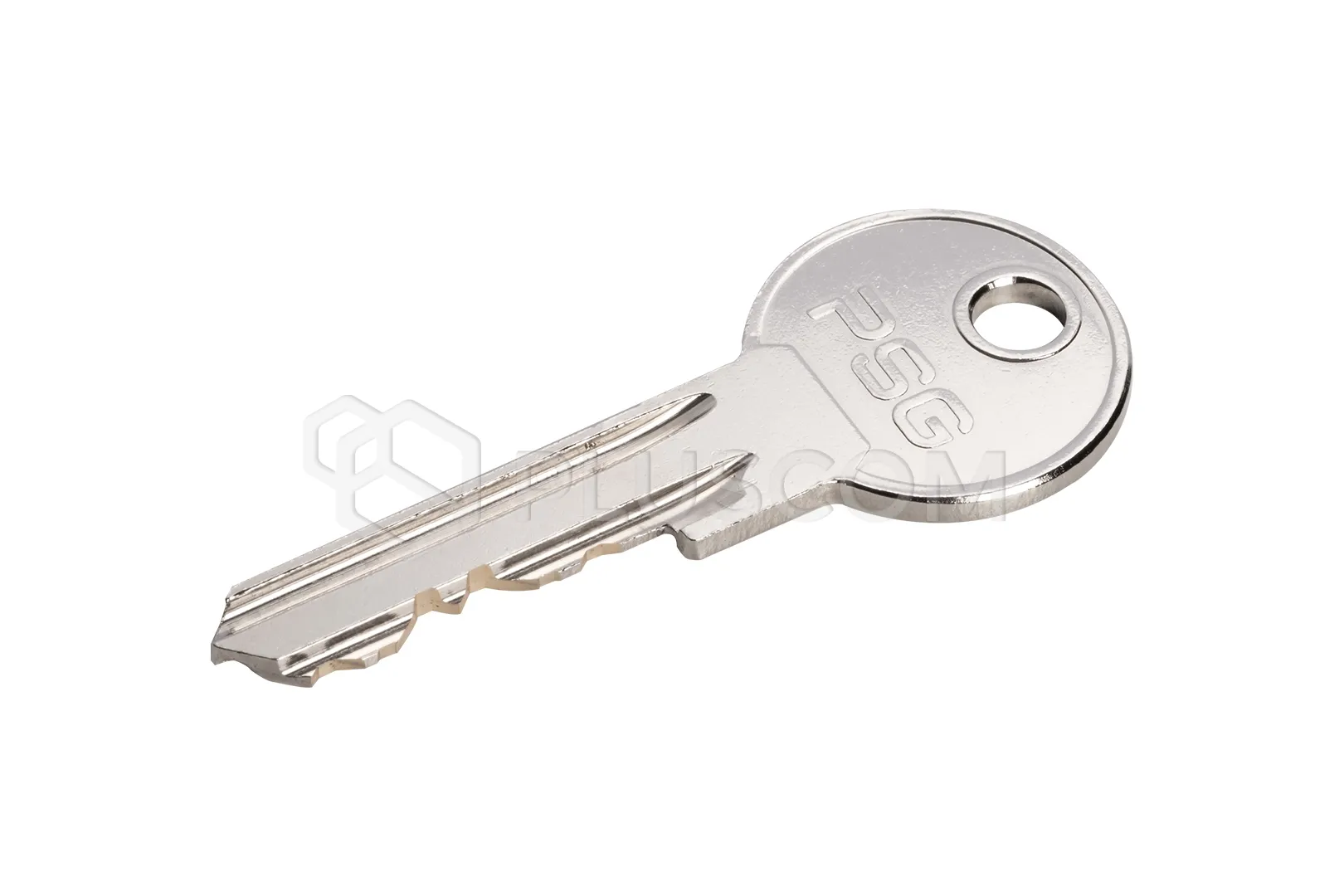

- Keys: 3 nickel-plated brass keys, increasing comfort of use
- Finish: The insert is nickel-plated, has a satin
finish
- Standards and classification: Compliance with EN1303:2015, classification 16000C60,
confirming high safety standards
MATERIAL AND DURABILITY
Brass, from which the body and rotor of the insert are made, is a material
with exceptional properties. Its corrosion resistance and
mechanical strength make the insert reliable and long-lasting.
Brass also provides protection against external factors, which is
key in maintaining the functionality of the insert for a long time.
SECURITY AND SECURITY
The use of 6 tumblers on both sides of the insert provides its
high level of security.
This design prevents attempts to
manipulate and force the lock, which is particularly important in places
requiring solid protection.
The tumblers act as independent locking points, which, combined with precise key adjustment, significantly increases the difficulty of unauthorized access.

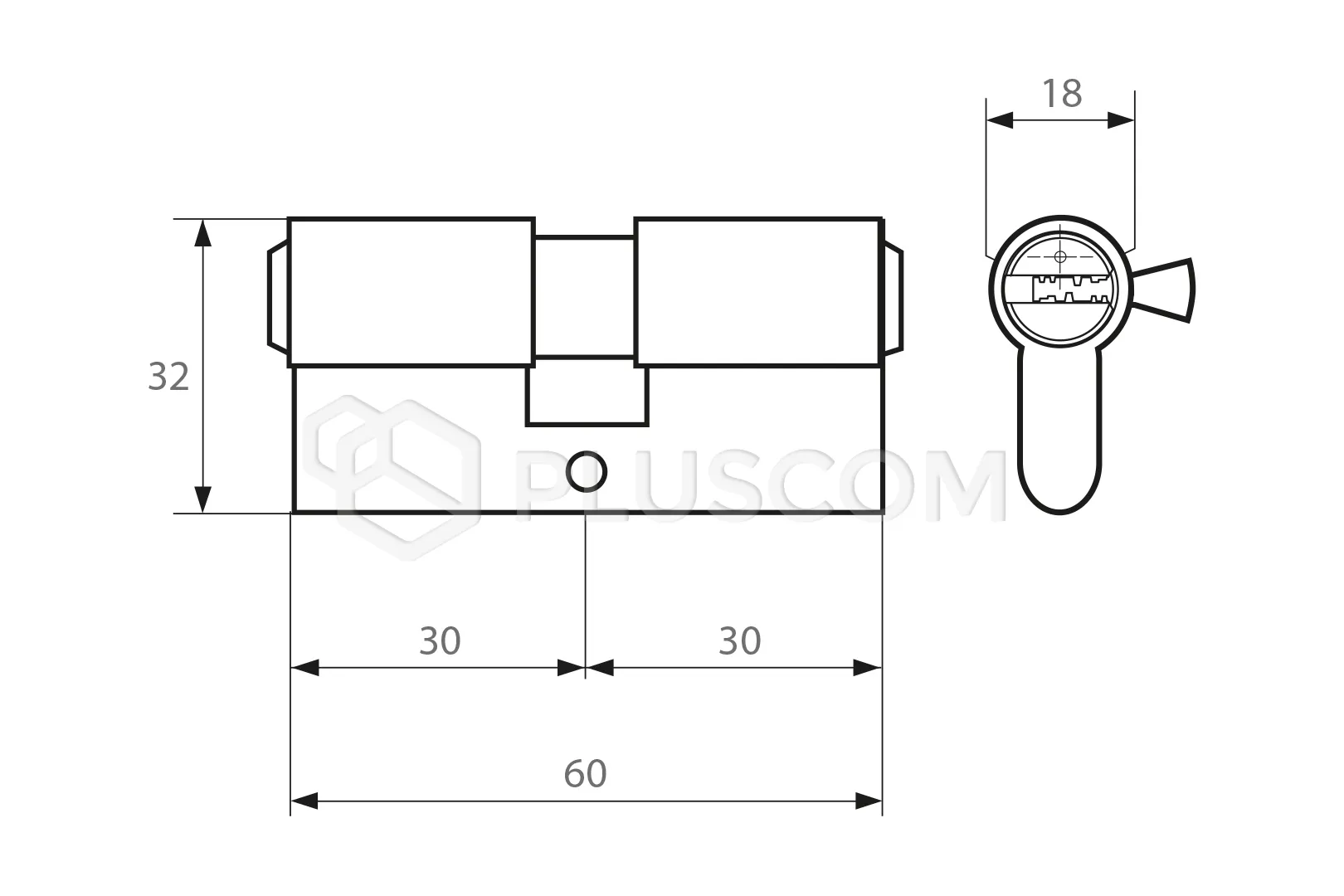

Technical data:
- Width: 18 mm
- Height: 32 mm
- Depth: 60 mm
- Included: 3 keys, mounting screw
- Material: Brass
- Finish: Nickel, satin
