PSG 63.390 Electric strike 12V AC/DC standard asymmetrical

21,55 EUR including 23.00% VAT
Product code: #42045
  • Power supply: 12 AC/DC
  • Dimensions: 20 x 90 x 27.5 mm
  • Tongue adjustment: 4 mm
  • For left and right doors
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

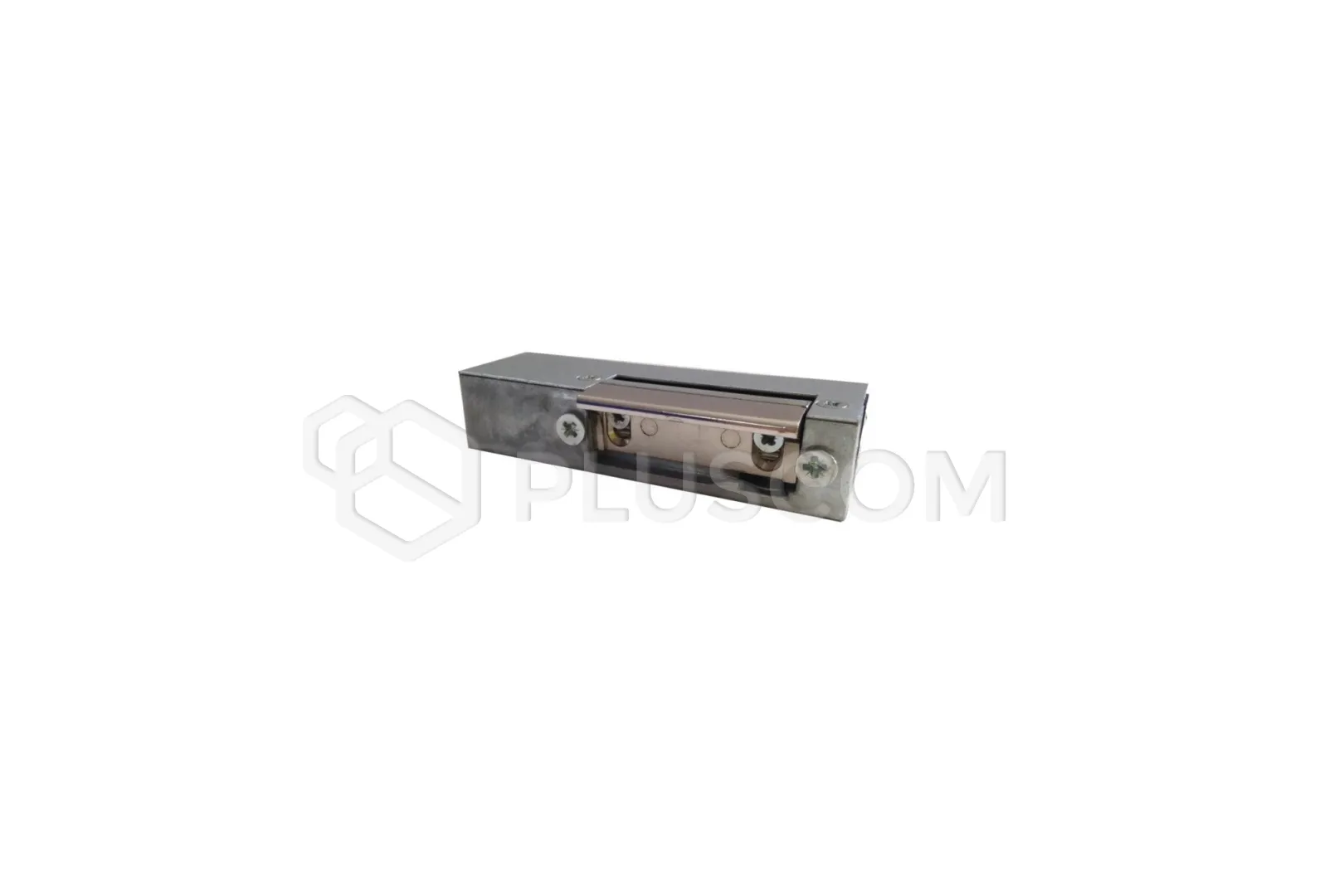

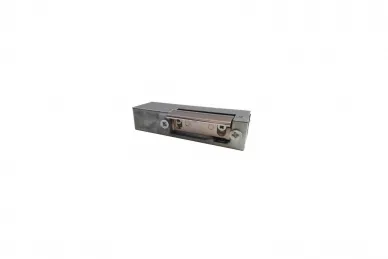

PSG 63.390 Electric strike 12V AC/DC standard asymmetrical


The electric strike has an asymmetrical housing and is covered with a galvanic coating that protects against corrosion. It is suitable for right-handed and left-handed doors of various types: wooden, metal and PVC, as well as gates and cabinets.

The electric strike cooperates with other elements of the access control system, including: intercoms, video intercoms, doorphones, card readers - it is often used in multi-family, office and commercial buildings.

The electric strike is adjustable within a range of 4 mm.

FEATURES:

  • Asymmetric housing with 4 mm adjustment
  • NC (Normally Closed) operation type
  • Mechanical strength – Pressure 3,000 N (300 kg)
  • Mechanical strength – Opening cycles 200,000
  • For left and right doors

Technical data:

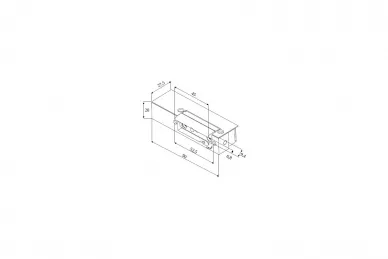

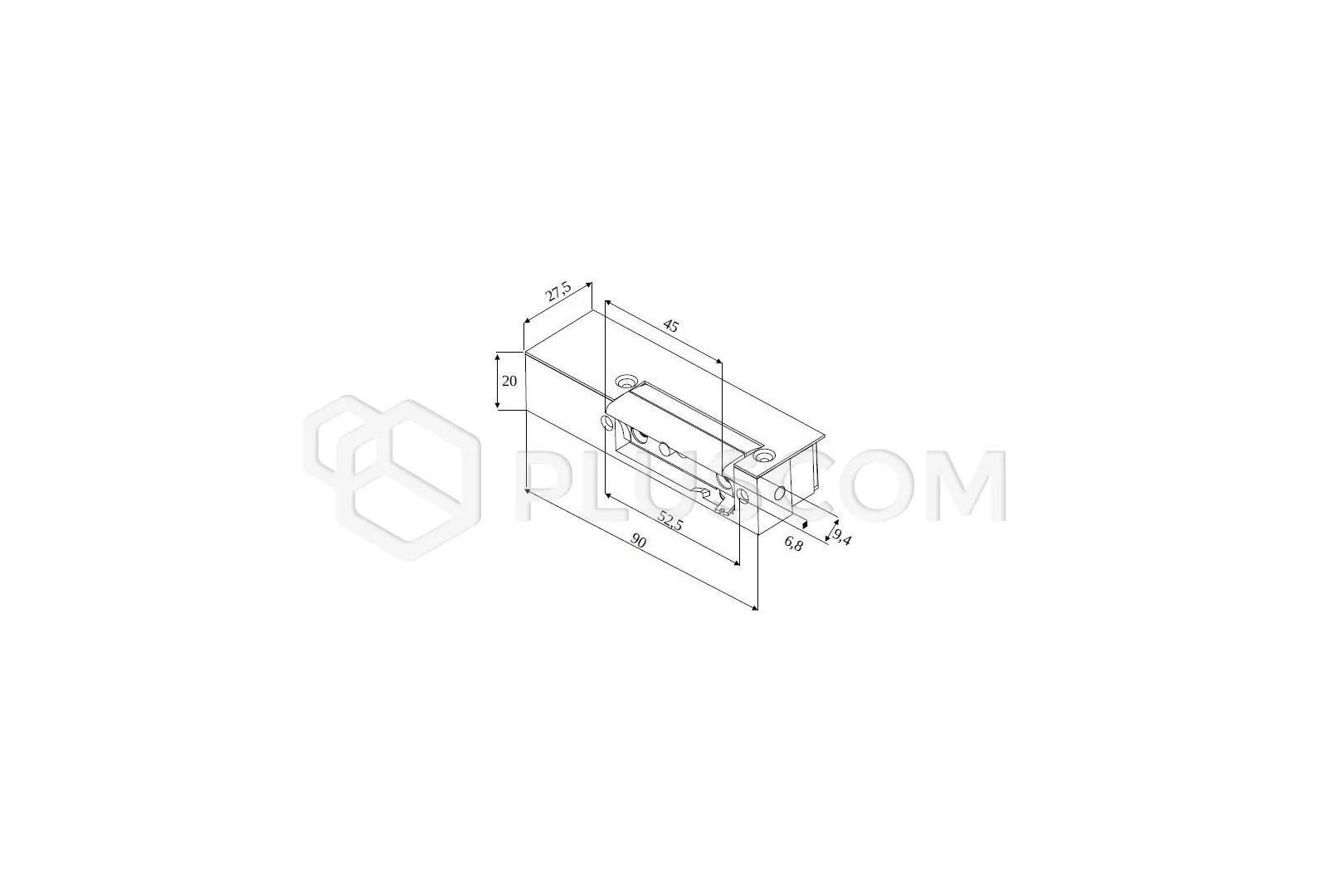

  • Dimensions: Width: 20 mm, height: 90 mm, depth: 27.5 mm
  • Voltage tolerance (V): 9-14
  • Resistance (Ohm): 20
  • AC current consumption (mA): 426
  • DC Current Consumption (mA): 600
  • Continuous operation under current (100% ED): no
