PSG 63.389 Electric strike symmetrical 12V DC reversible

32,84 EUR including 20.00% VAT
Product code: #42054
  • Power supply: 12V DC
  • Dimensions: 20.5 x 75 x 28.5 mm
  • Universal (right and left side)
  • Tongue adjustment: 4mm
Delivery and tax:
France metropolitan VAT: 20.00% change
Shipping cost from:
12,76 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

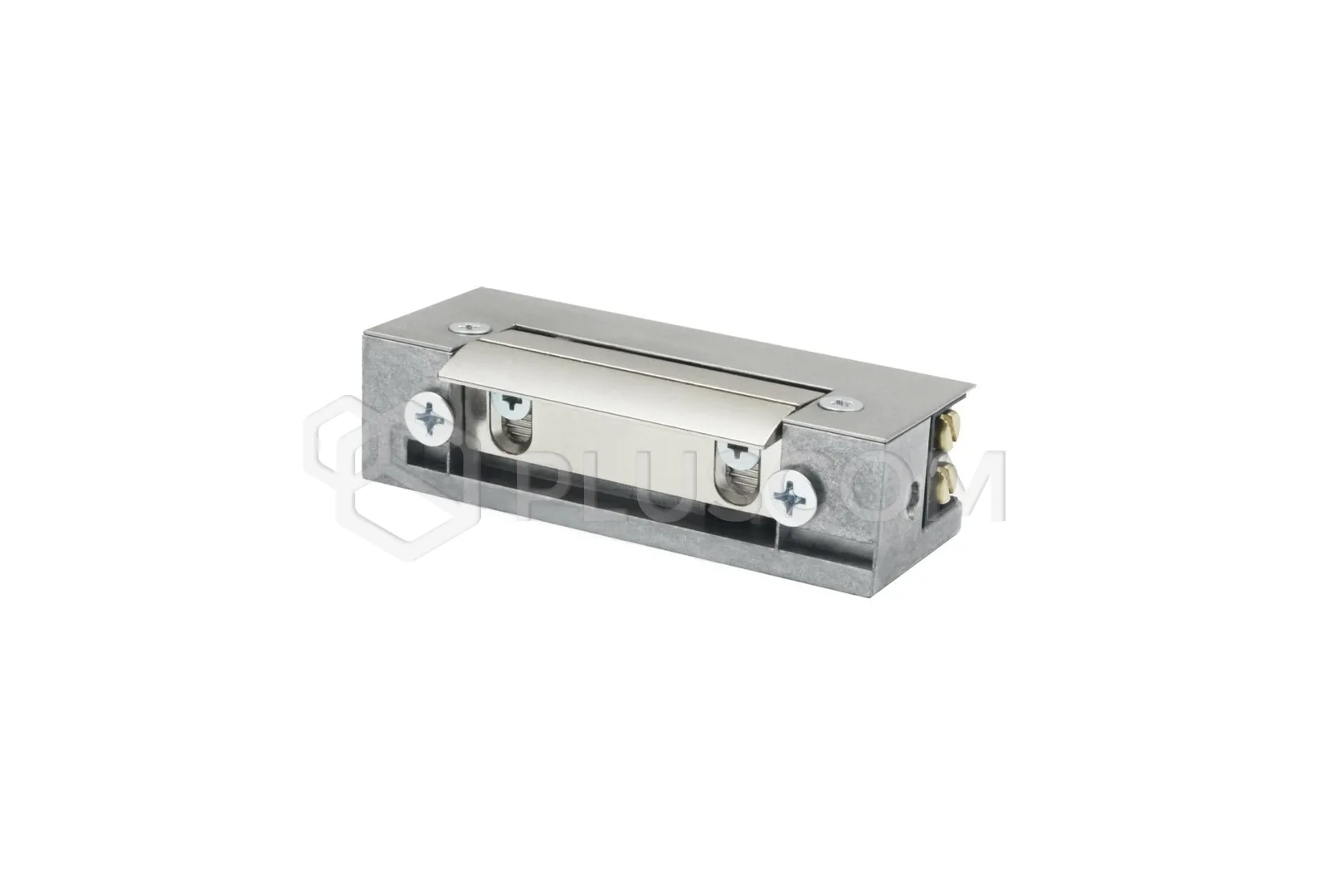

PSG 63.389 Symmetrical electric strike 12V DC reversible


The S series electric strike has a symmetrical housing - it is adjustable within 4 mm. It is most often used in wooden, steel, aluminum and PVC doors. The product cooperates with other elements of the access control system - it is often used in multi-family, office and commercial buildings.

FEATURES:

  • The electric strike is universal: Suitable for left- and right-hand doors
  • Operation type: NO (reversible)
  • Symmetrical design
  • Mechanical strength: 3500 N (350 kg)
  • Number of opening cycles: 200,000
  • 4 mm adjustable strike

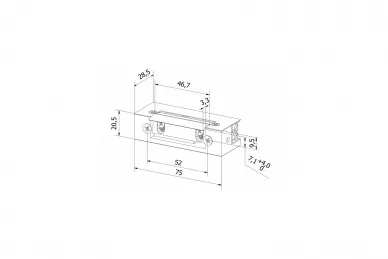

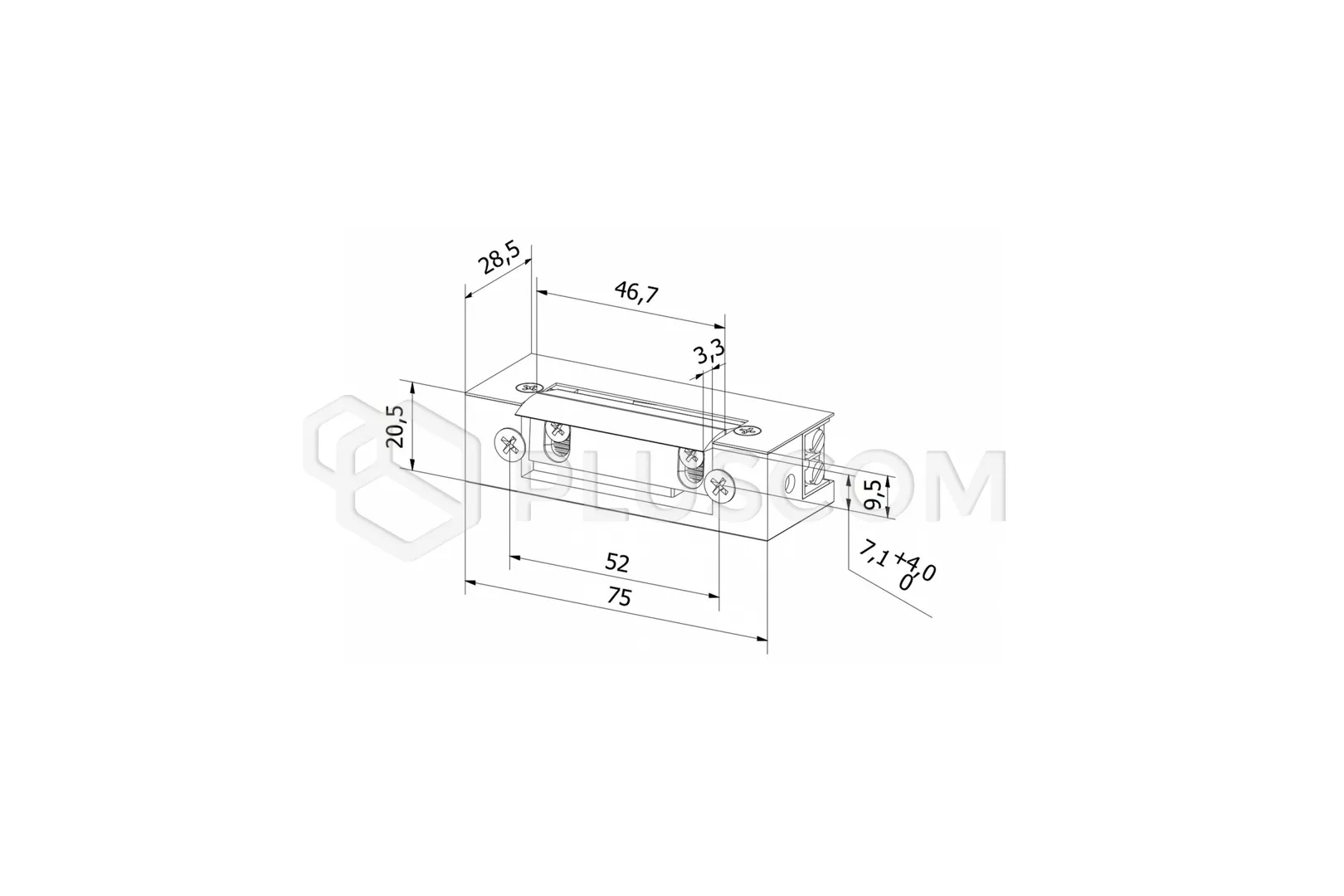

Dimensions:

  • Width: 20.5 mm
  • Height: 75 mm
  • Depth: 28.5 mm

Data technical:

  • Voltage tolerance (V): 10-14
  • Resistance (Ohm): 63
  • AC current consumption (mA): –
  • DC current consumption (mA): 190
  • Continuous operation under current (100% ED): yes
