PSG 63.388 Symmetrical electric strike 12V AC/DC with memory and switch

32,77 EUR including 23.00% VAT
Product code: #42053
  • Power supply: 12 AC/DC

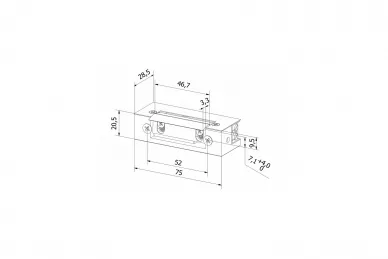

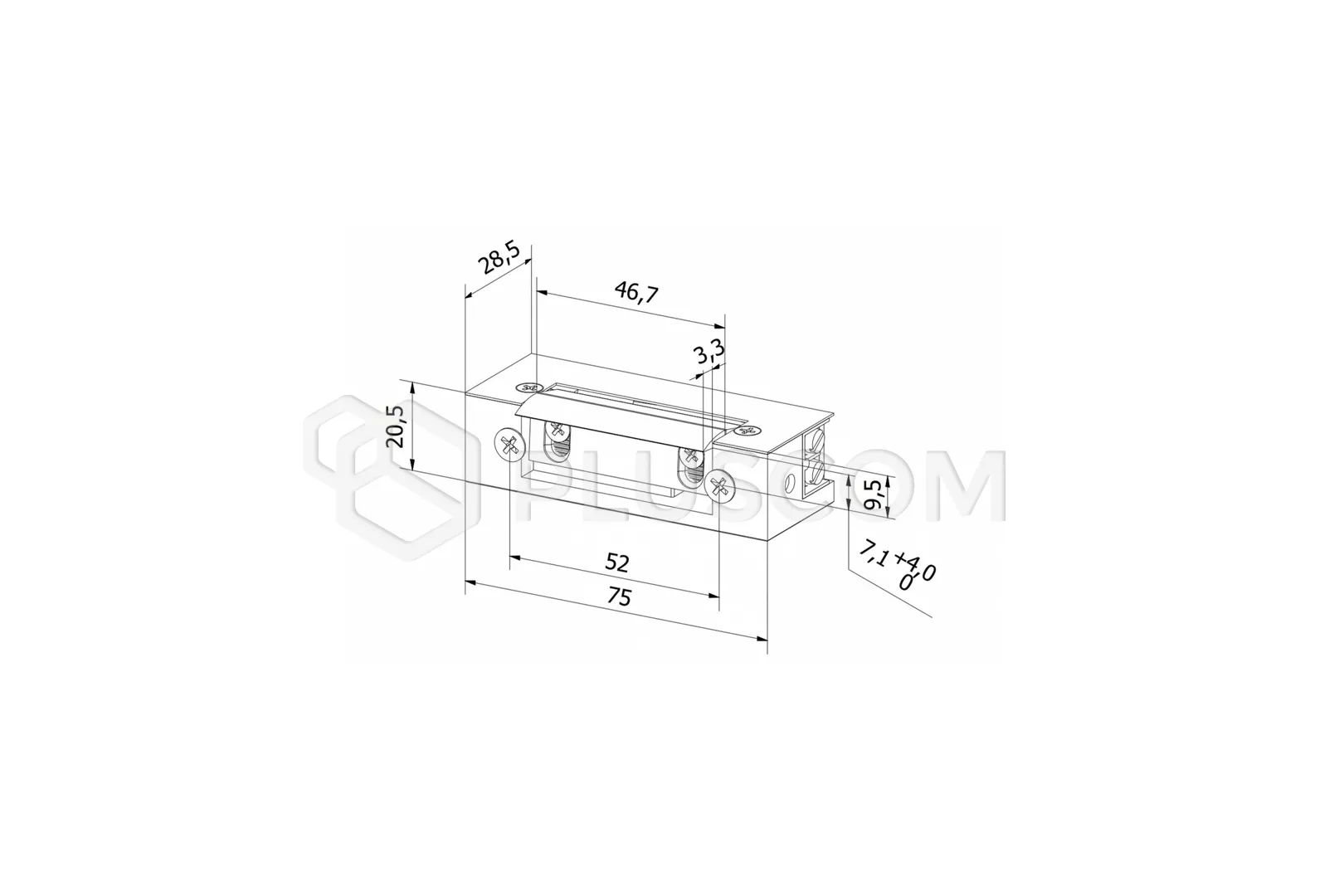

  • Dimensions: 20.5 x 75 x 28.5 mm
  • 4 mm adjustable hook
  • Symmetrical design
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

PSG 63.388 Symmetrical electric strike 12V AC/DC with memory and switch


The S series electric strike has a symmetrical housing - it is adjustable within 4 mm. It is most often used in wooden, steel, aluminum and PVC doors.

The product cooperates with other elements of the access control system - it is often used in multi-family, office and commercial buildings.

FEATURES:

  • Internal memory
  • Switch
  • The electric strike is universal: Suitable for left- and right-hand doors
  • Operation type: NC
  • Symmetrical design
  • Mechanical strength: 3500 N (350 kg)
  • Number of opening cycles: 200,000
  • 4 mm adjustable strike

Technical data:

  • Dimensions: Width 20.5 mm, height 75 mm, depth 28.5 mm
  • Voltage tolerance (V): 10-14
  • Resistance (O): 21
  • AC Current Consumption (mA): 400
  • DC Current Consumption (mA): 570
  • Continuous operation under current (100% ED): no
