PSG 63.387 Symmetrical electric strike 12V AC/DC with memory

30,66 EUR including 20.00% VAT
Product code: #42052
  • Power supply: 12AC/DC
  • Dimensions: 20.5 x 75 x 28.5 mm
  • Universal (right and left side)
  • Tongue adjustment: 4 mm
Delivery and tax:
France metropolitan VAT: 20.00% change
Shipping cost from:
12,76 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

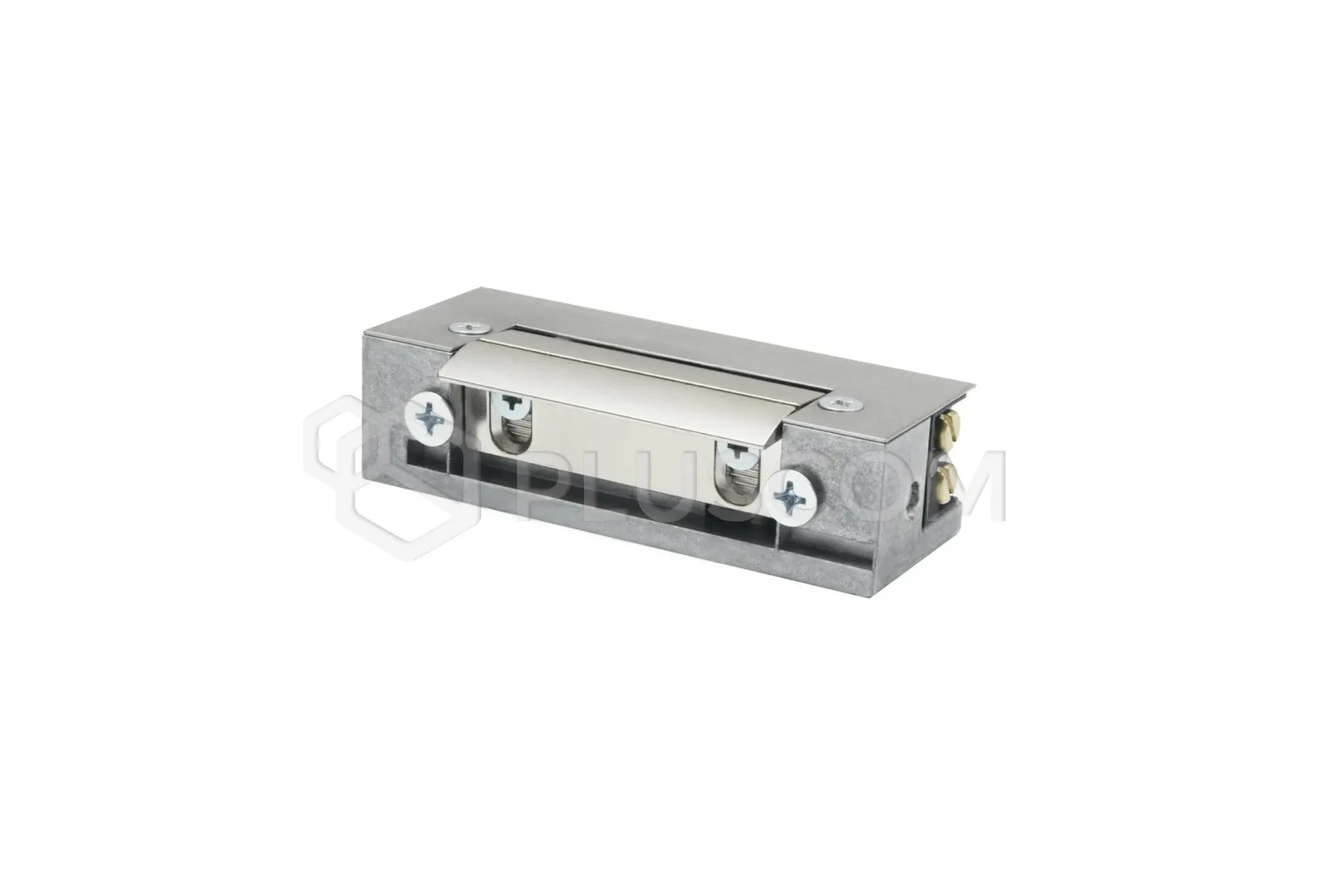

PSG 63.387 Symmetrical electric strike 12V AC/DC with memory


The S series electric strike has a symmetrical housing - it is adjustable within 4 mm. It is most often used in wooden, steel, aluminum and PVC doors.

The product cooperates with other elements of the access control system - it is often used in multi-family, office and commercial buildings.

FEATURES:

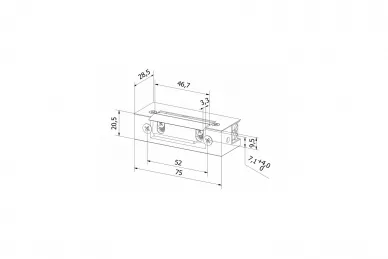

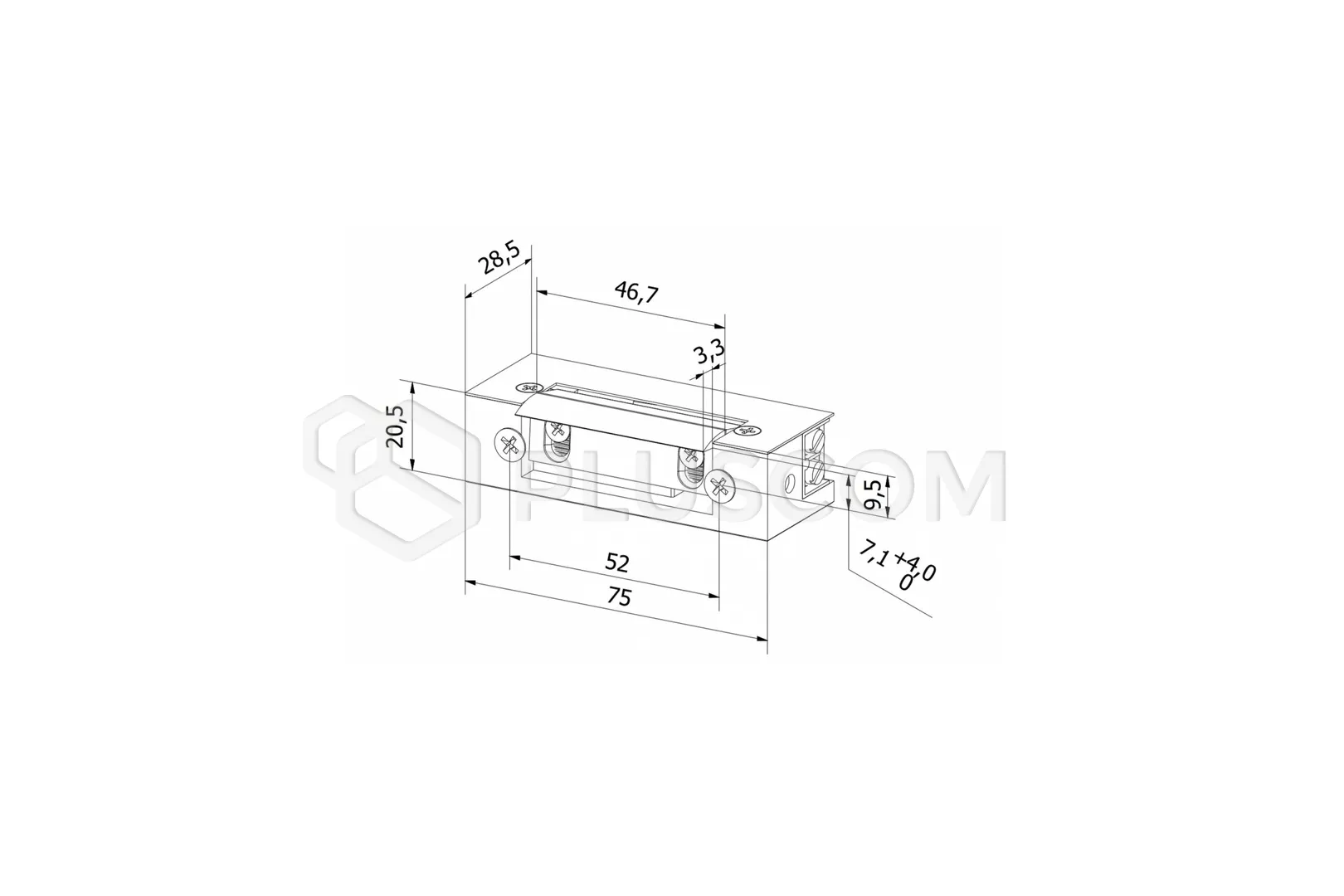

  • Dimensions: Width 20.5 mm, height 75 mm, depth 28.5 mm
  • The electric strike is universal: Suitable for left- and right-hand doors
  • Operation type: NC
  • Symmetrical design
  • Internal memory
  • Mechanical strength: 3500 N (350 kg)
  • Number of opening cycles: 200,000
  • 4 mm adjustable strike

Technical data:

  • Voltage tolerance (V): 10-14
  • Resistance (Ohm): 21
  • AC Current Consumption (mA): 400
  • DC Current Consumption (mA): 570
  • Continuous operation under current (100% ED): no
