PSG 63.385 Narrow symmetrical electric strike 12V AC/DC standard with slip

43,42 EUR including 19.00% VAT
Product code: #42067
  • Power supply: 12AC/DC
  • Dimensions: 16.2 x 67 x 28 mm
  • Hook adjustable within 3.5 mm
  • For left and right doors
Delivery and tax:
Germany VAT: 19.00% change
Shipping cost from:
10,84 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

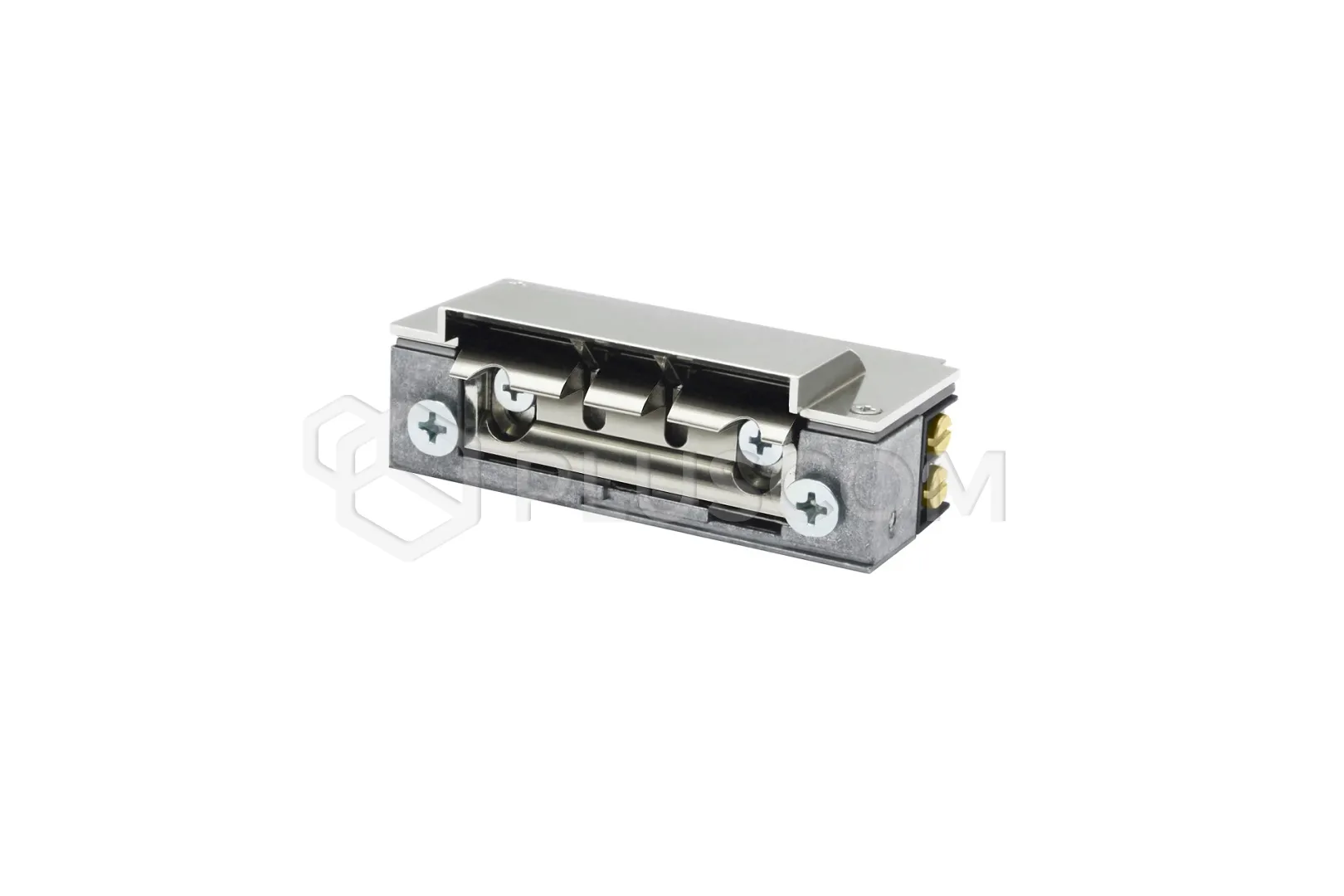

PSG 63.385 Narrow symmetrical electric strike 12V AC/DC standard with slip


The XS12U-C electric strike with small dimensions (only 16.2 mm wide) enables installation in narrow profiles and door frames. The symmetrical electric strike - works perfectly in left and right doors of various types. The strike can be adjusted within 3.5 mm and has a radial shape (does not go beyond the outline of the electric lock). It requires smaller holes, which makes installation easier and faster.

FEATURES:

  • NC (Normally Closed) operation type
  • Electric strike with slip
  • Symmetrical design

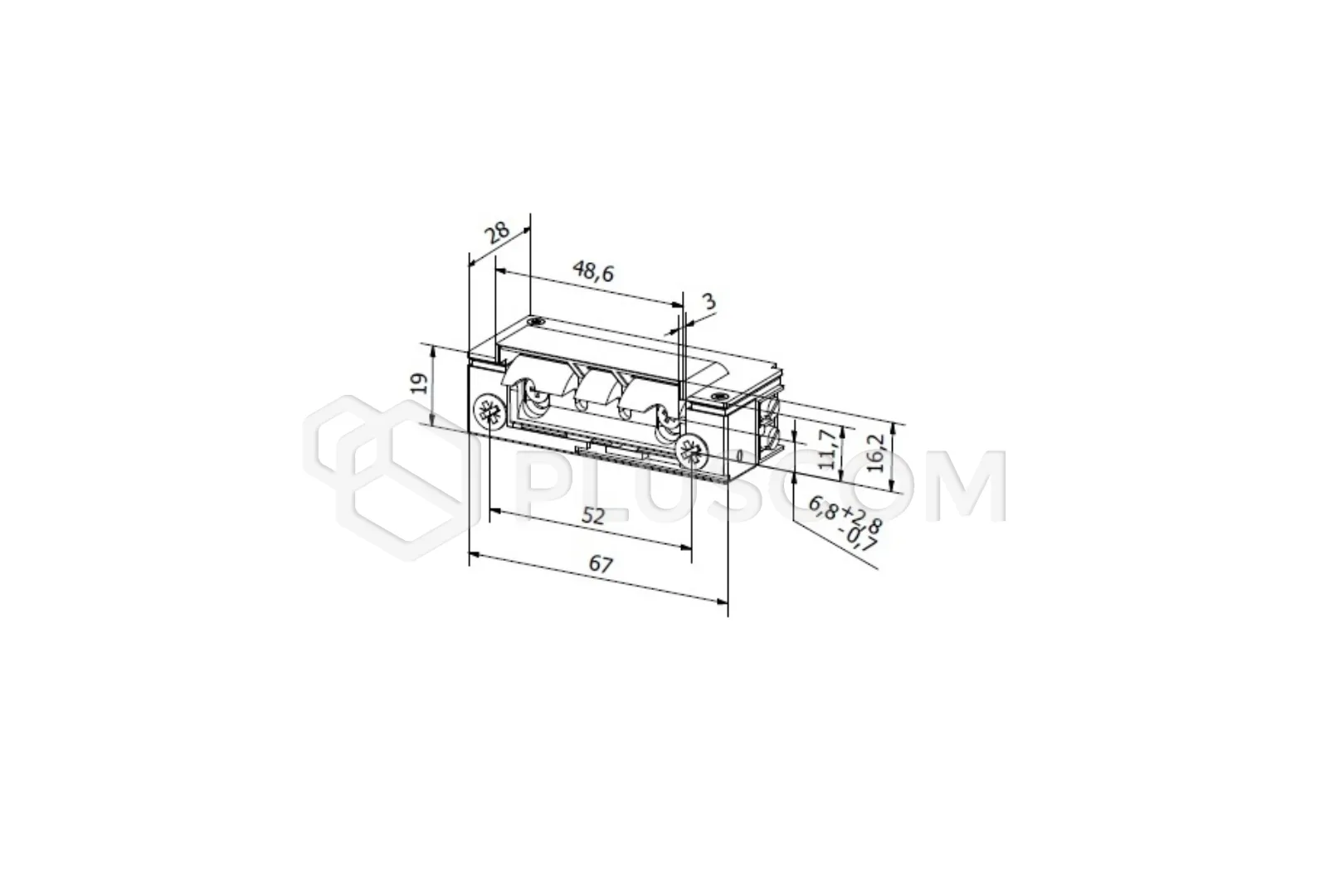

  • Dimensions: Width 16.2 mm, height 67 mm, depth 28 mm
  • Mechanical strength – Pressure 3000N (300 kg)
  • Mechanical strength – Opening cycles 200,000
  • For left and right doors
  • Adjustable strike within 3.5 mm
  • Radial strike shape – When opening, the strike does not go beyond the outline of the lock
The slip function ensures the guidance of the lock tongue and protection for electric strike. Enables smooth operation when closing and opening the door. It prevents the lock tongue from falling into the hole between the door frame and the electric strike while closing the door. Slippage is necessary when the electric strike is mounted in the central part of the door frame.

Technical data:

  • Power supply: 12AC/DC
  • Voltage tolerance (V): AC 10-14/DC 10-14
  • Resistance (Ohm): 17.6
  • AC current consumption (mA): 480
  • DC current consumption (mA): 680
