PSG 63.384 Narrow symmetrical electric strike 12V AC/DC standard - reinforced spring

35,00 EUR including 22.00% VAT
Product code: #42064
  • Power supply: 12AC/DC
  • Dimensions: 16.2 x 67 x 28 mm
  • Hook adjustable within 3.5mm
  • For left and right doors
Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,35 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

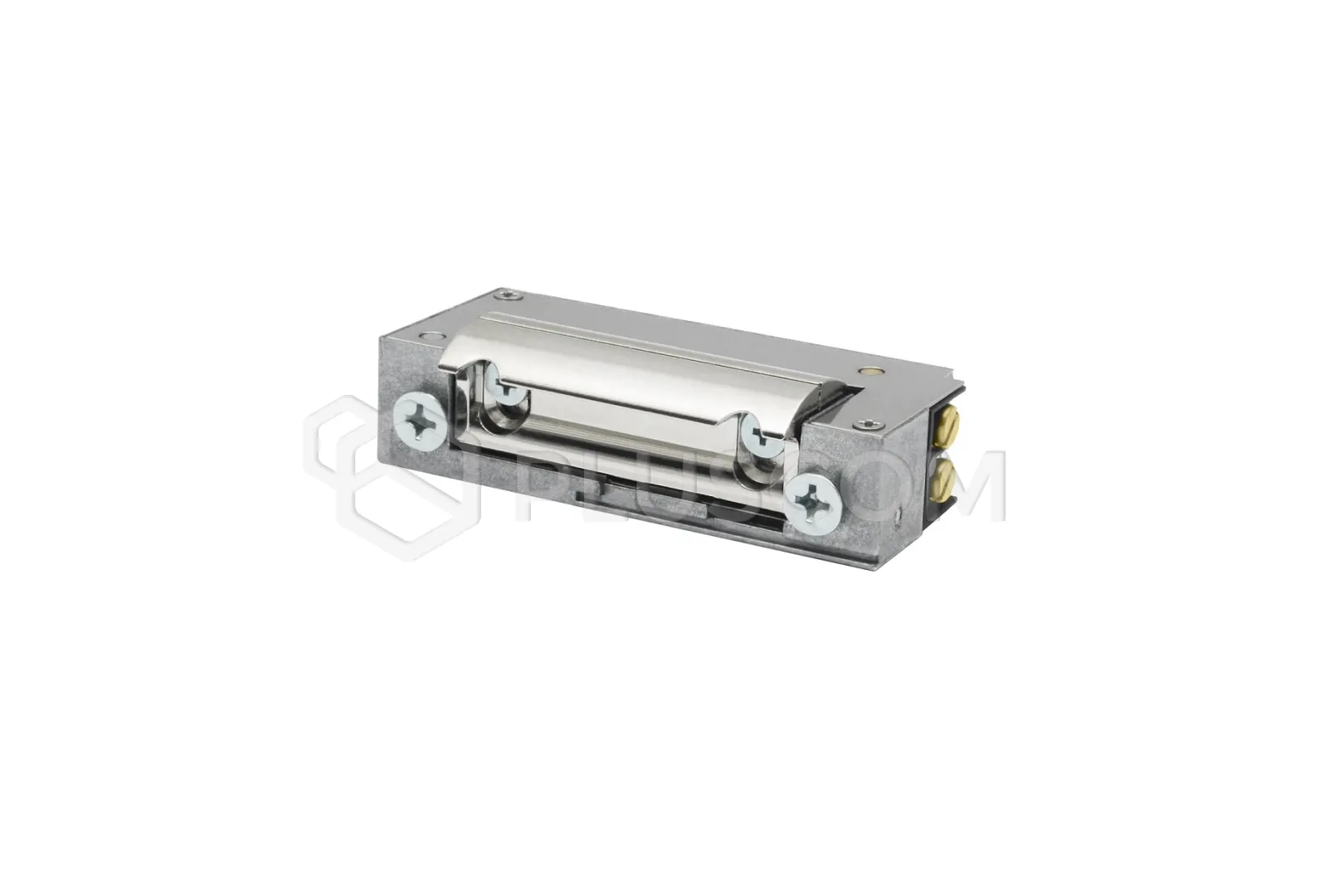

PSG 63.384 Narrow symmetrical electric strike 12V AC/DC standard - reinforced spring


Electric strike XS 12U-B with small dimensions (only 16.2 mm wide), enables installation in narrow profiles and door frames. Symmetrical electric strike - works perfectly in left and right doors of various types.

The strike can be adjusted within 3.5 mm and has a radial shape (does not extend beyond the outline of the electric lock). It requires smaller holes, which makes installation easier and faster.

FEATURES:

  • NC (Normally Closed) operation type
  • Electric strike with a reinforced spring
  • Symmetrical design

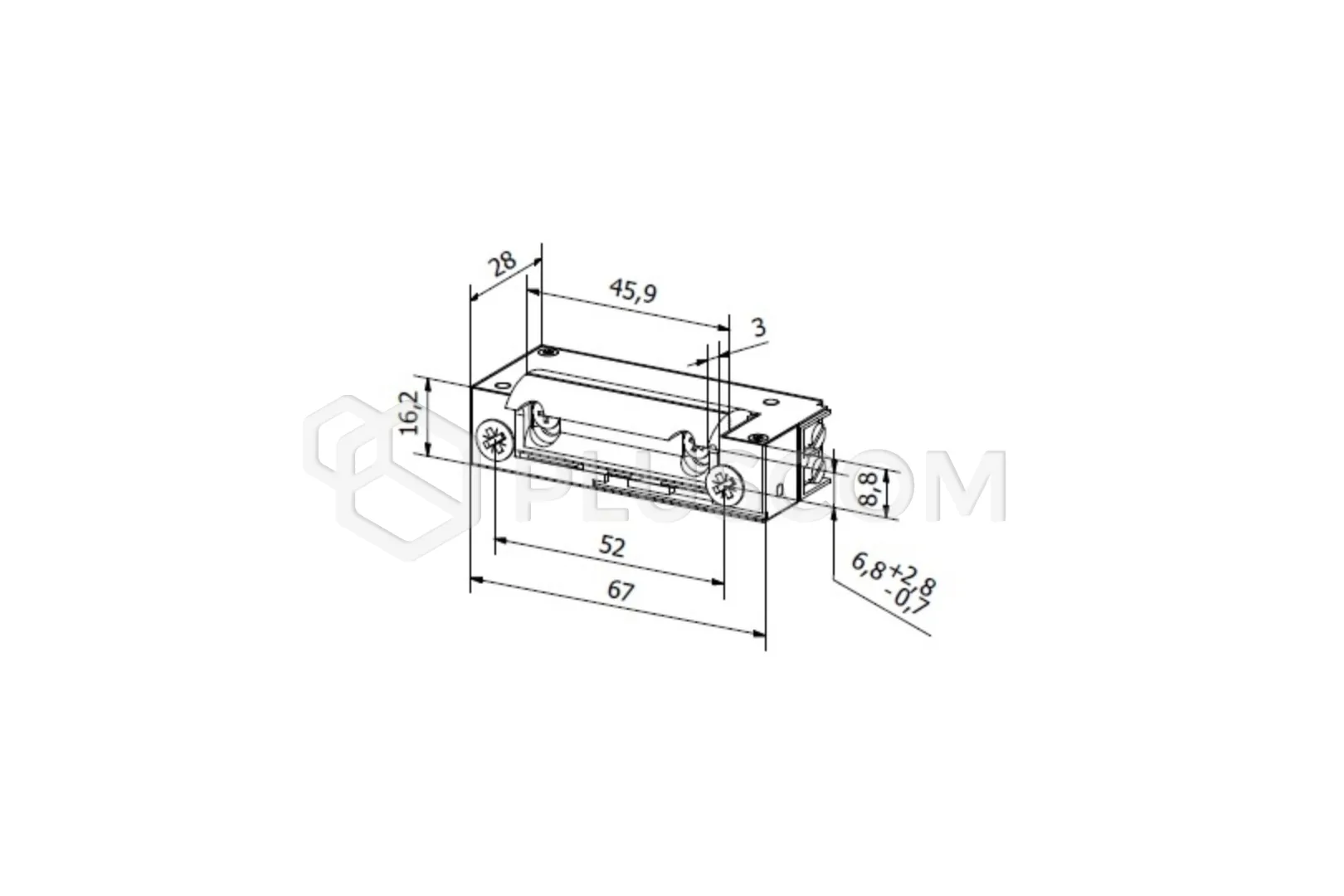

  • Dimensions: Width 16.2mm, height 67mm, depth 28mm
  • Mechanical strength - Pressure 3000N (300kg)
  • Mechanical strength - Opening cycles 200,000
  • For left and right doors
  • Adjustable strike within 3.5mm
  • Radial strike shape - When opening, the strike does not go beyond the outline of the lock
A reinforced spring is particularly important in when there is a lot of pressure of the lock tongue on the latch. This solution is helpful in doors with a double seal system, as well as in deformed, old wooden doors - when there is no adjustment anymore.

The resistance of electric strikes with a reinforced spring is 2-3 times greater compared to basic models. Reinforced with a latch spring - holds the door with greater force and greater pressure is required to open the door. Therefore, this function may make it difficult to open the door every day if the problem does not exist.

Technical data:

  • Power supply: 12AC/DC
  • Voltage tolerance (V): AC 10-14/DC 10-14
  • Resistance (Ohm): 17.6
  • AC current consumption (mA): 480
  • DC current consumption (mA): 680
