PSG 63.383 Narrow symmetrical electric strike 12V AC/DC with memory and switch

35,61 EUR including 22.00% VAT
Product code: #42065
  • Power supply: 12AC/DC
  • Dimensions: 16.2 x 67 x 28mm
  • Hook adjustable within 3.5mm
  • For left and right doors
Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,35 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

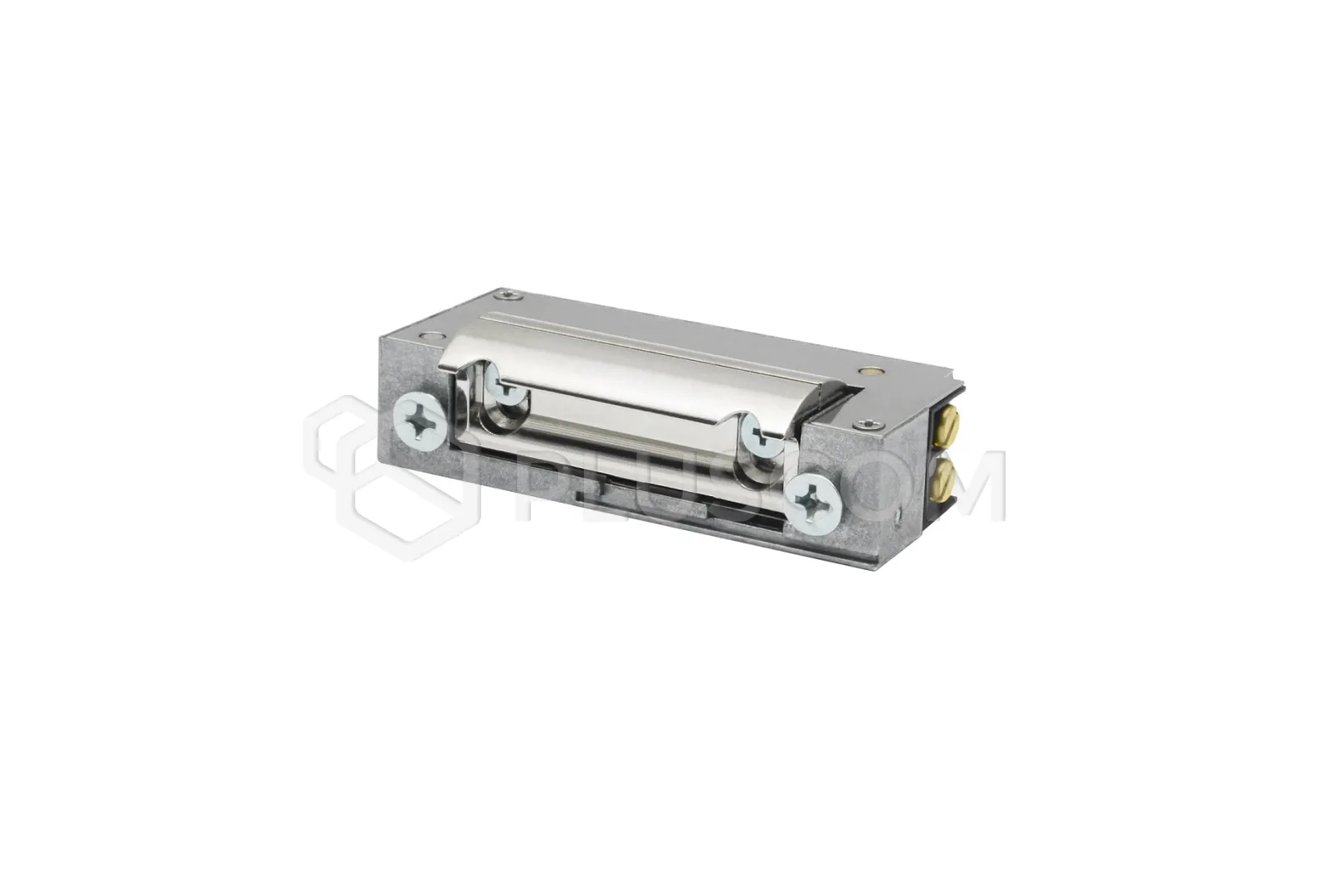

PSG 63.383 Narrow symmetrical electric strike 12V AC/DC with memory and switch


The XS 12UPW electric strike with small dimensions (only 16.2 mm wide) enables installation in narrow profiles and door frames. The symmetrical electric strike - works perfectly in left and right doors of various types. The strike can be adjusted within a range of 3.5 mm and has a radial shape (does not extend beyond the outline of the electric lock). It requires smaller holes, which makes installation easier and faster.

FEATURES:

  • Operation type: NC (Normally Closed)
  • Electric strike with memory and switch
  • Symmetrical design

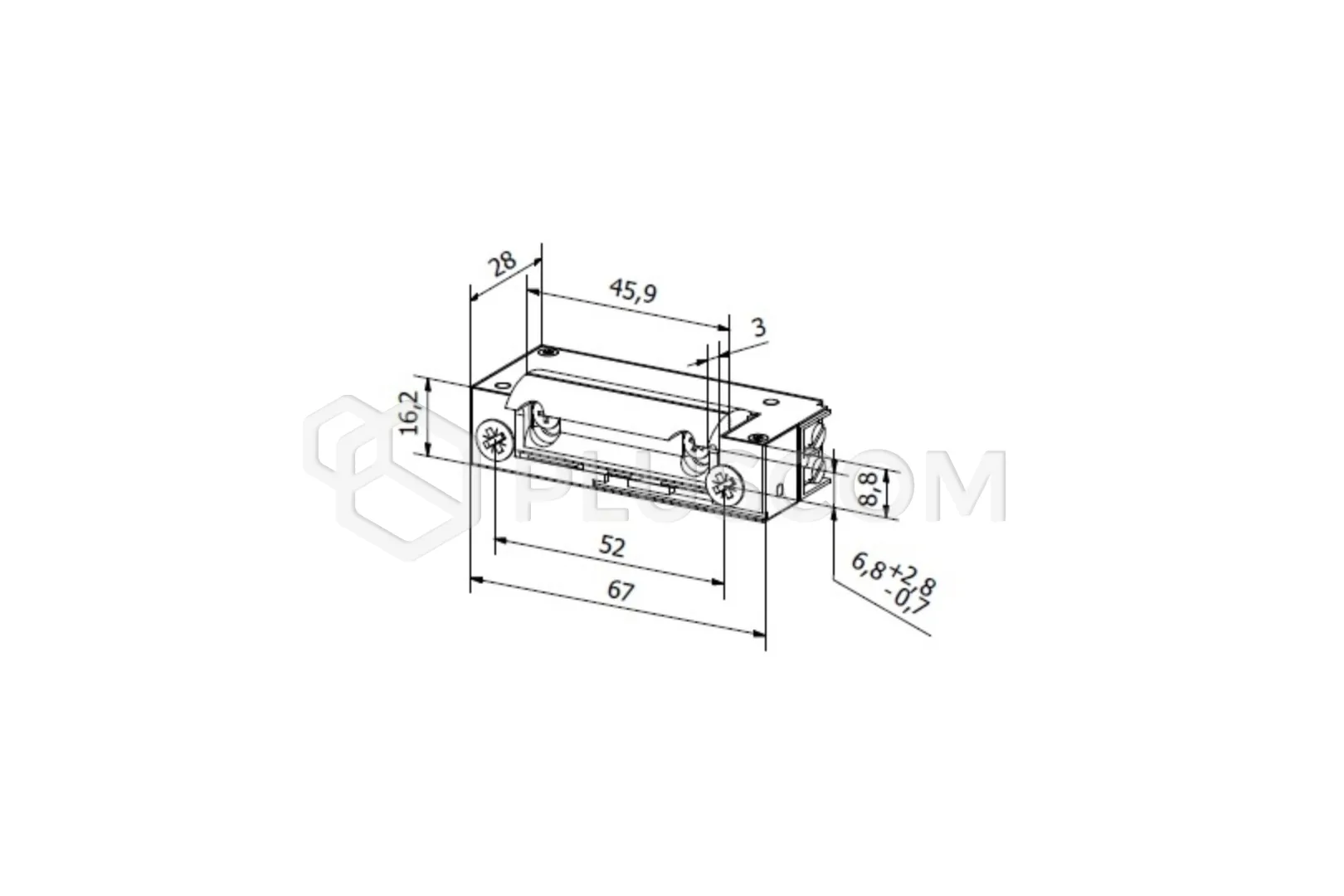

  • Dimensions: Width 16.2mm, height 67mm, depth 28mm
  • Mechanical strength - Pressure 3000N (300kg)
  • Mechanical strength - Opening cycles 200,000
  • For left and right doors
  • Adjustable strike within 3.5mm
  • Radial strike shape - When opening, the strike does not go beyond the outline of the lock

Data technical:

  • Power supply: 12AC/DC
  • Voltage tolerance (V): AC 10-14/DC 10-14
  • Resistance (Ohm): 17.6
  • AC current consumption (mA): 480
  • DC current consumption (mA): 680
