PSG 63.381 Narrow symmetrical electric strike 12V AC/DC standard

31,54 EUR including 20.00% VAT
Product code: #42063
  • Power supply: 12AC/DC
  • Dimensions: 16.2 x 67 x 28mm
  • Hook adjustable within 3.5mm
  • For left and right doors
Delivery and tax:
France metropolitan VAT: 20.00% change
Shipping cost from:
12,76 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

PSG 63.381 Narrow symmetrical electric strike 12V AC/DC standard

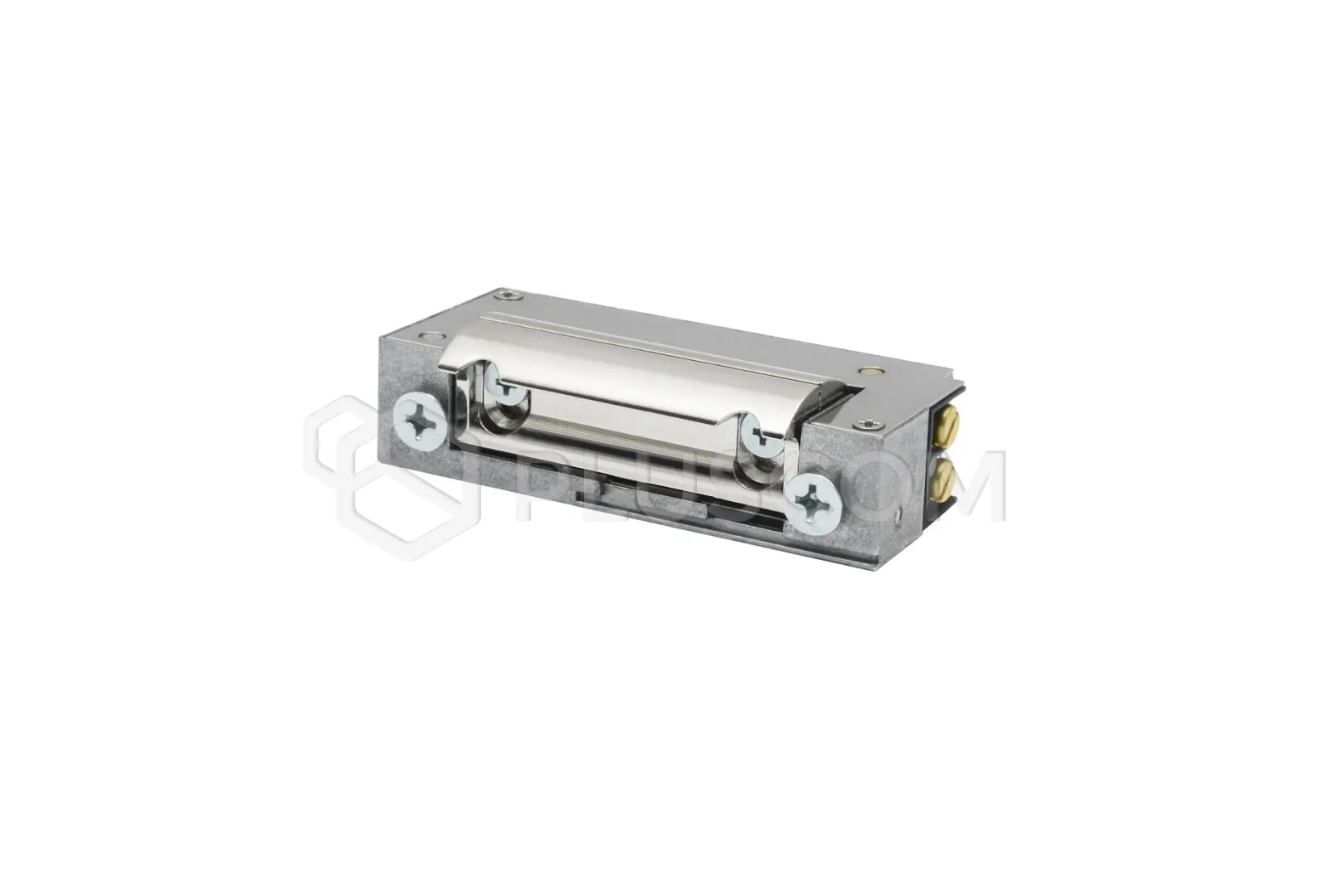

The XS 12U electric strike with small dimensions (only 16.2 mm wide) enables installation in narrow profiles and door frames. The symmetrical electric strike - works perfectly in left and right doors of various types.

The strike can be adjusted within a range of 3.5 mm and has a radial shape (does not extend beyond the outline of the electric lock). It requires smaller holes, which makes installation easier and faster.

FEATURES:

  • NC (Normally Closed) operation type
  • Symmetrical design

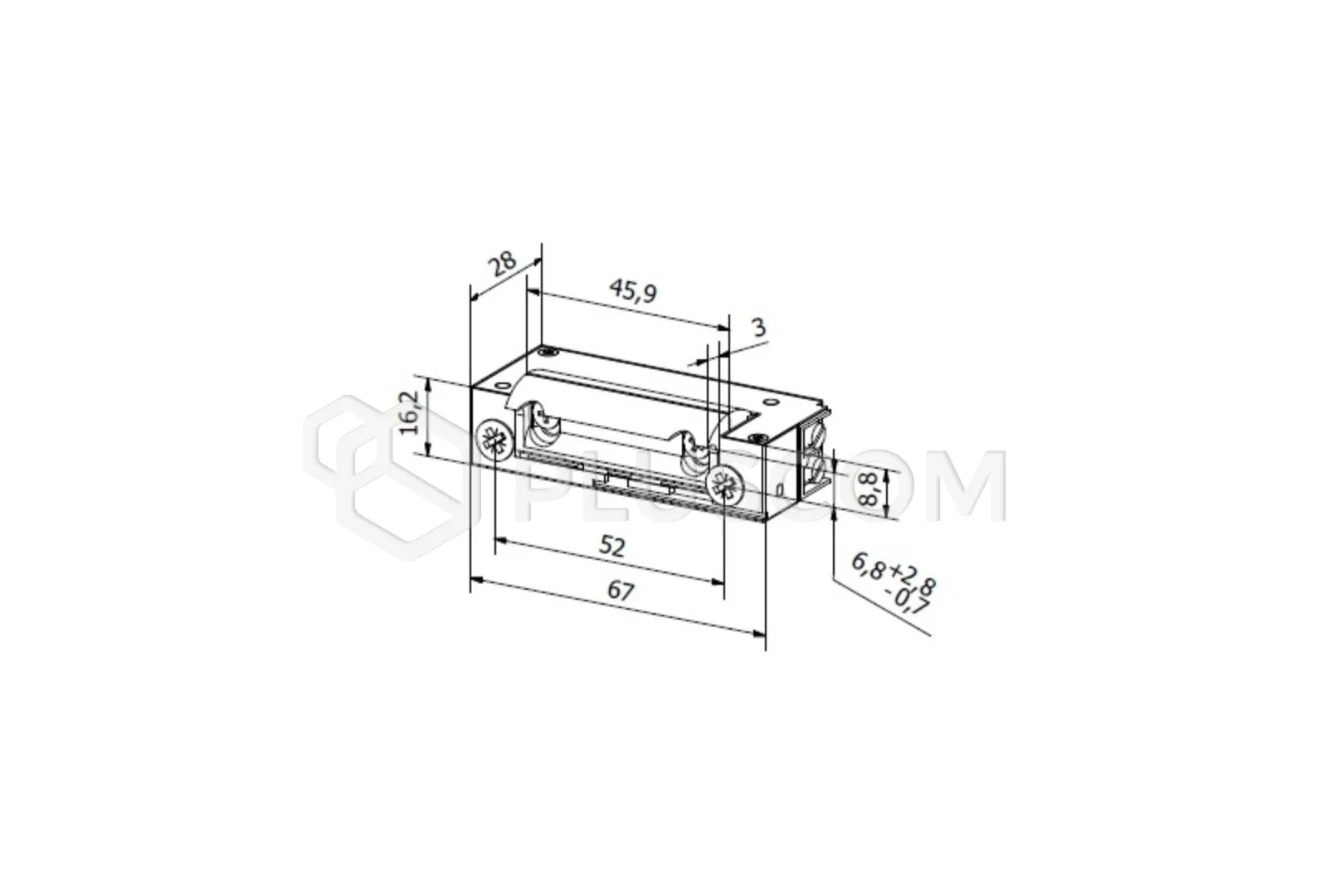

  • Dimensions: Width 16.2mm, height 67mm, depth 28mm
  • Mechanical strength – Pressure 3000N (300kg)
  • Mechanical strength – Opening cycles 200,000
  • For left and right doors
  • Adjustable striker within 3.5mm
  • Radial striker shape – when opening, the striker does not protrude beyond the outline of the lock

Technical data:

  • Power supply: 12AC/DC
  • Voltage Tolerance (V): AC 10-14/DC 10-14
  • Resistance (Ohm): 17.6
  • AC Current Consumption (mA): 480
  • DC Current Consumption (mA): 680
