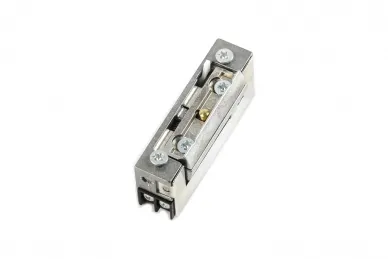

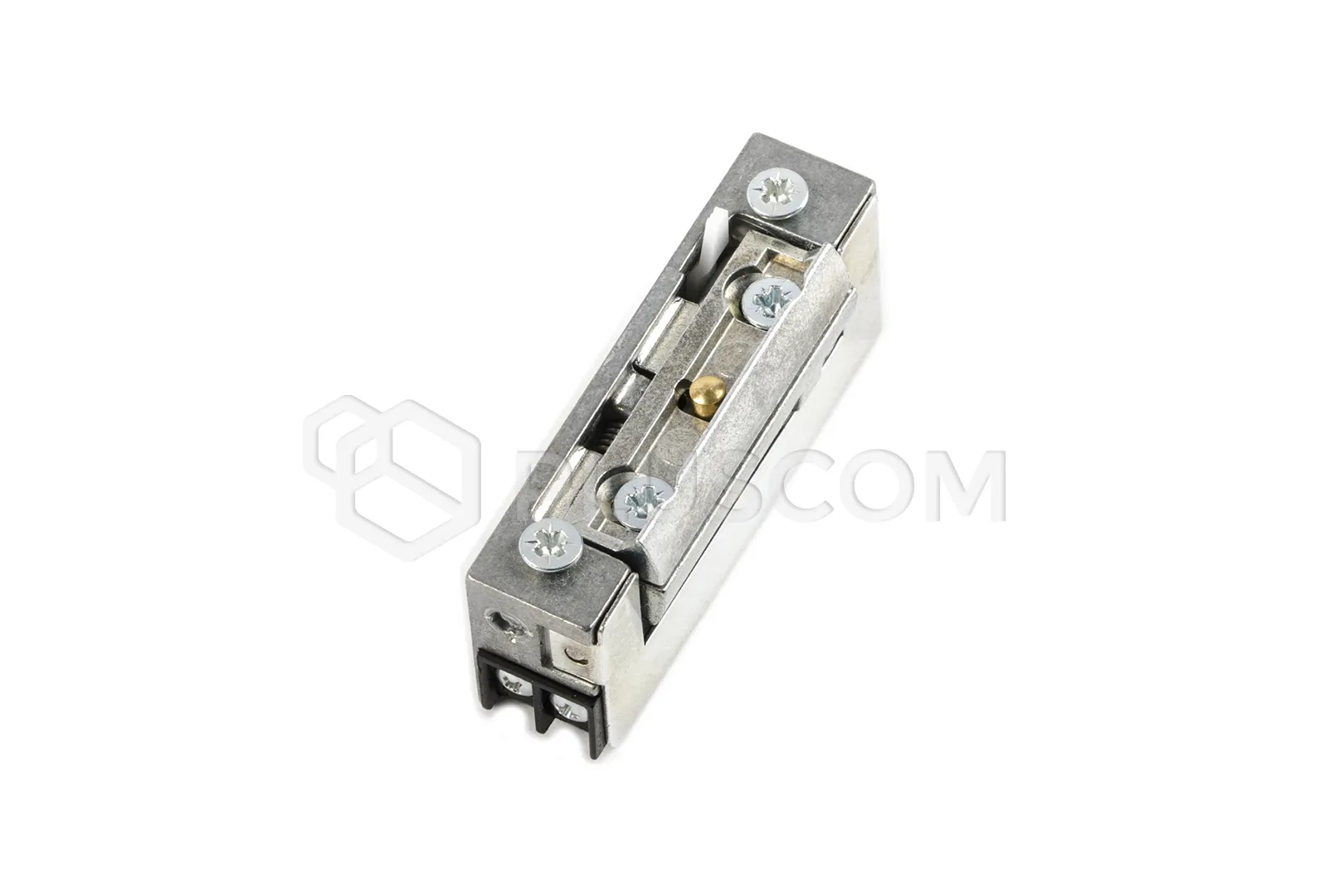

PSG 63.355 Electric strike symmetrical 16.5 mm with adjustment, memory and lock 12V

32,82 EUR including 20.00% VAT
Product code: #42055
  • Power supply: 12V
  • Dimensions: 16.5 x 29 x 68 mm
  • It is not spill-proof
Delivery and tax:
France metropolitan VAT: 20.00% change
Shipping cost from:
12,76 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

PSG 63.355 Electric strike symmetrical 16.5 mm with adjustment, memory and 12V lock


Electric strike designed for remote opening of all types of doors, gates and even sliding gate systems.
  • Product adapted to work with latch-bolt or latch locks
  • Electric strike control can be performed via an intercom, video intercom or simple bell system
  • Possibility of installing the electric strike in both left and right doors, thanks to its small size and symmetrical design
  • Reduced height of the electromagnetic strike to 16.5 mm and lowered axis of rotation of the bolt, enable its installation in doors made of aluminum or PVC profiles, with simultaneous, smaller undercutting of the door frame
  • Electric strike equipped with a latch lock mechanism, enabling permanent opening of the door without using an electric impulse
  • Internal memory function, gives the user the ability to open the door without using a key, after previously giving an electric impulse from uniphone
  • Adjustable clearance up to 3mm
  • Product made of high-quality corrosion-resistant materials, which allows it to be installed in outdoor conditions
  • Electric strike is not flood-proof

Technical data

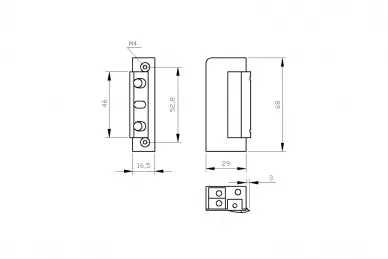

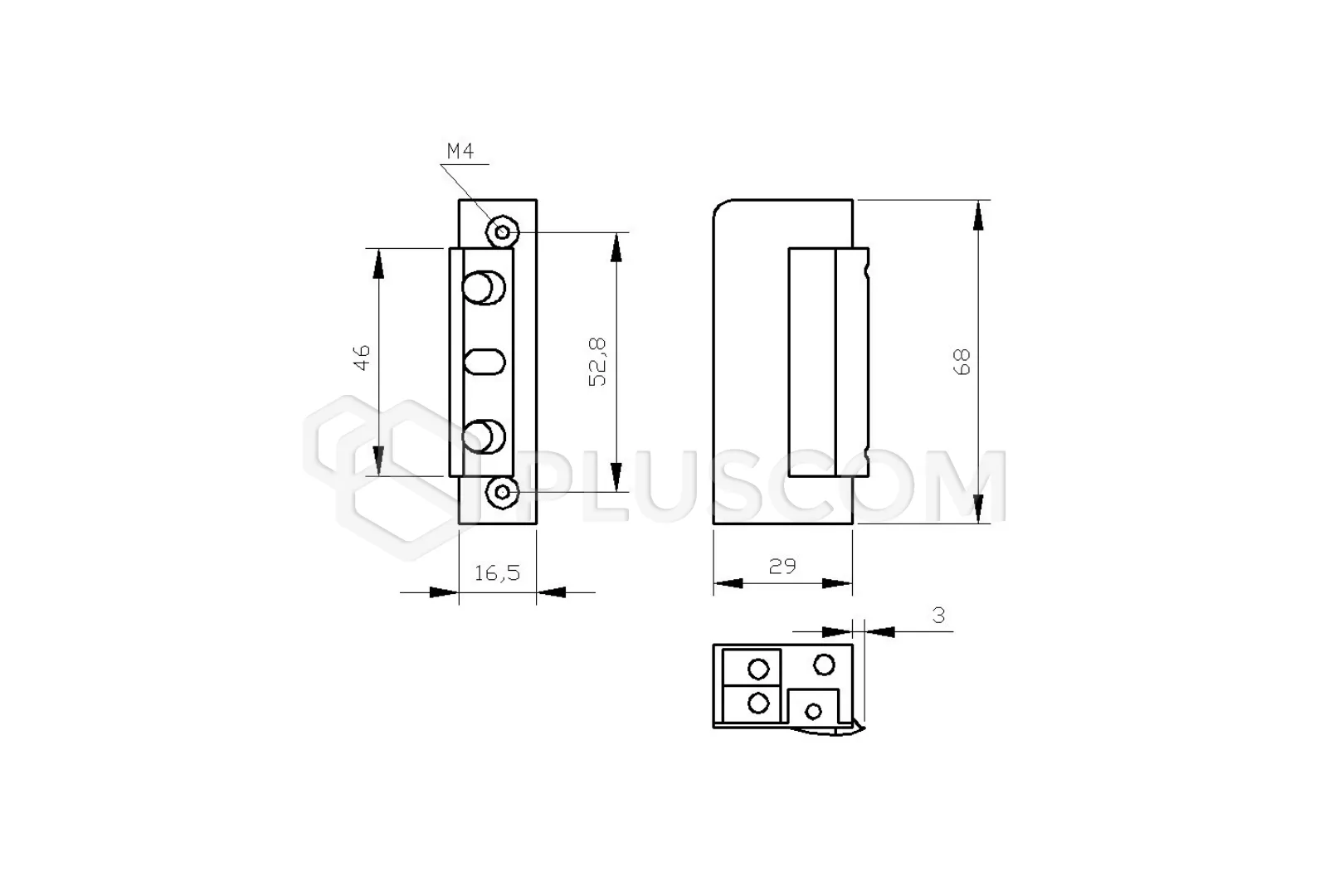

External dimensions of the housing: 16.5 x 29 x 68 mm
Weight: 0.139 kg
Permissible pressure on the door when releasing the latch: 30 N (3 kg)
Permissible door load acting on the catch: 3000 N (300 kg)
Rated voltage: 10 +- 2 V
Permissible uninterrupted operation time: 30 min.
Latch adjustment range: 3 mm
