PSG 63.350 Electric strike symmetrical 16.5 mm with 12V regulation

28,16 EUR including 19.00% VAT
Product code: #42056
  • Power supply: 12VPower supply: 12V
  • Dimensions: 16.5 x 29 x 68mm
Delivery and tax:
Germany VAT: 19.00% change
Shipping cost from:
10,84 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

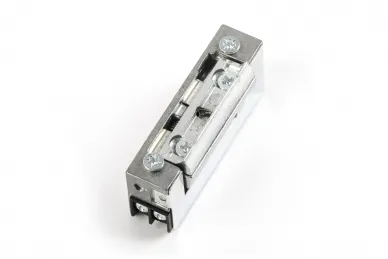

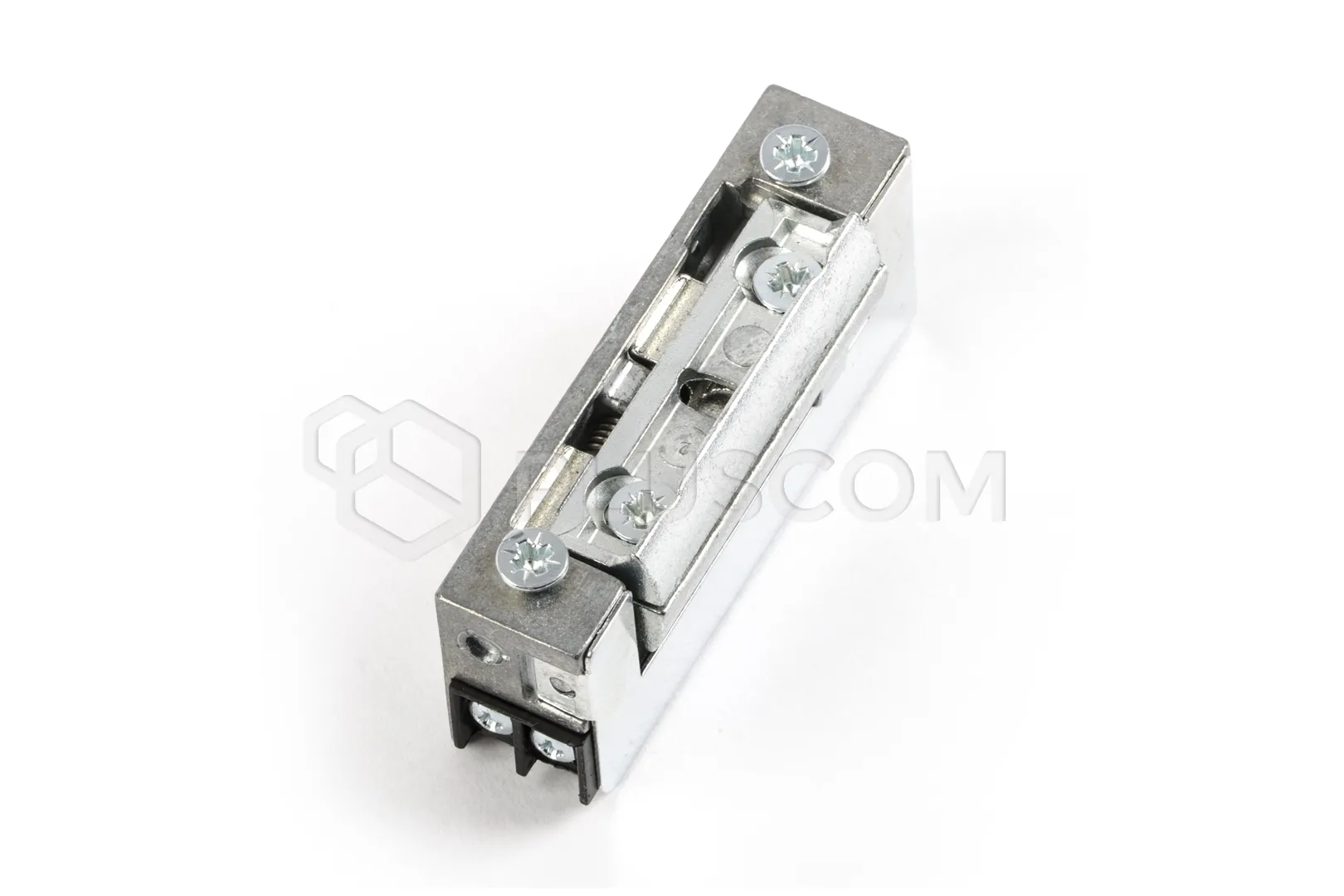

PSG 63.350 Symmetrical electric strike 16.5 mm with 12V regulation


Electric strike designed for remote opening of all types of doors, gates and even sliding gate systems.

FEATURES:

  • Product adapted to work with latch-bolt or latch locks
  • Electric strike can be controlled via an intercom, video intercom or simple bell system
  • Possibility of installing the electric strike in both left and right doors, thanks to its small size and symmetrical design
  • Reduced height of the electromagnetic strike to 16.5 mm and lowered axis of rotation of the bolt, enable its installation in doors made of aluminum or PVC profiles, with simultaneous, smaller undercutting of the door frame
  • Possibility of adjusting the clearance in the range of up to 3 mm
  • Product made of high-quality corrosion-resistant materials, which allows its installation in external
  • The electric strike is not it is flood-proof


Product specifications:

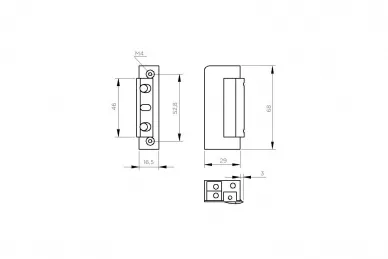

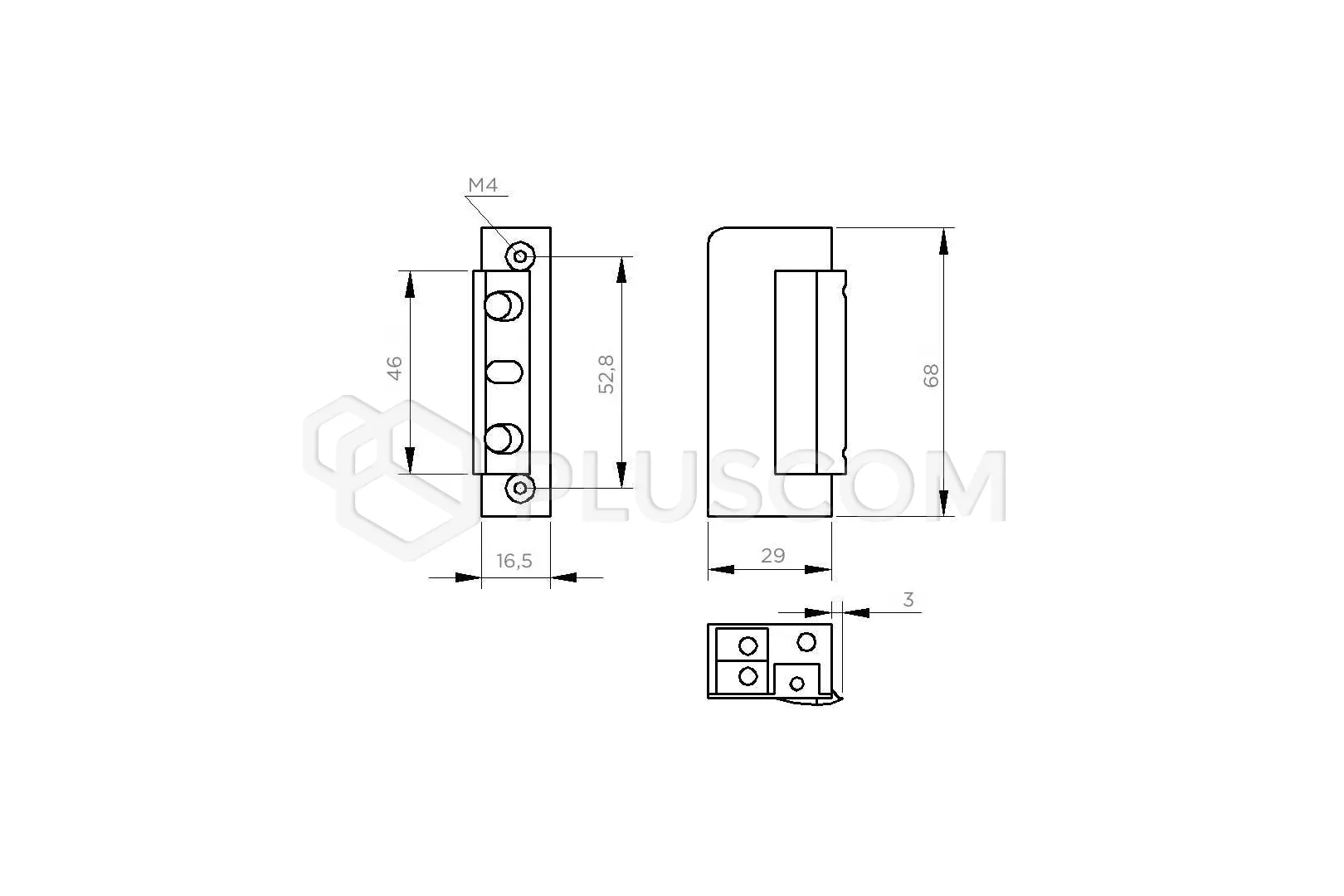

External housing dimensions: 16.5 x 29 x 68 mm
Weight: 0.135 kg
Permissible pressure on the door when releasing the latch:
30 N (3 kg)
Permissible door load acting on the catch:
3000 N (300 kg)
Nominal voltage:
10 +- 2 V
Permissible continuous operation time: 30 min.
Range of ratchet adjustment: 3 mm
