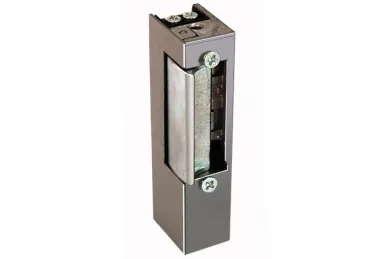

PSG 63.330 Asymmetrical electric strike 810 12V AC/DC without adjustment
The asymmetrical electric strike is a universal
solution for doors or gates. Its asymmetrical structure and universal
design make it easy to install in both left-handed and right-handed
doors.
Certified in accordance with the PN-EN 14846:2010 standard,
meets the highest safety and quality standards, making it ideal for
buildings with high traffic, such as public facilities.
The product is also distinguished by its high durability and
low power consumption, which translates into savings and long-term,
problem-free operation.
FEATURES:
- Universal (left and right): Thanks to the universal
design, the electric strike can be easily used in various types of doors, which
gives great installation flexibility
- 90 mm height: Compact size, enabling easy
installation in most standard doors and gates
- NC (Normally Closed): The electric strike remains closed in
the rest state, which increases the level of security
- 52 mm mounting screw spacing: Standard
mounting dimensions that facilitate quick installation
- Low power consumption: Increases energy efficiency, which
translates into lower operating costs
- 200,000 cycle durability: Durability guarantees long
life, even in places of intensive use
- Use category - class 3: Suitable for public buildings, where doors are often opened and closed
- PN-EN 14846:2010 Certificate: Confirmation of compliance with
European safety and quality standards
Versatility - versatility of use
The versatility of this electric strike makes it
extremely practical in various installation conditions. Thanks to
its design, which allows for installation in both left and right doors,
it eliminates the need to adjust the electric strike to a specific side
of the door.
This significantly simplifies the installation process, reducing
time and costs. Additionally, the versatility of use means that this electric strike
can be used in various types of facilities - from public buildings to
private properties, making it a universal solution and easy to adapt to
many environments.
Durability of 200,000 cycles
The asymmetrical electric strike has been designed
for long-term use. With a durability of 200,000 cycles, it can withstand even intensive use in places with
high traffic, such as offices, schools or government offices. Such
durability means that the electric strike will operate without failure for many
years, which minimizes the need for servicing and replacement.
Technical data:
- Asymmetrical electric strike
- Nominal voltage: 12 V AC/DC
- Tolerance: ±5%
- Continuous operation: 100% 12 V DC | 1 min. 12 V AC
- Resistance: 40
- DC current consumption: 12 V / 300 mA
- AC current consumption: 12 / 250 mA
- Admissible DC pre-load: 10 N
- Admissible AC pre-load: 90 N

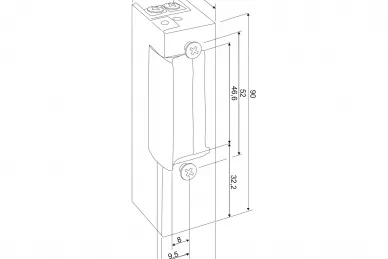

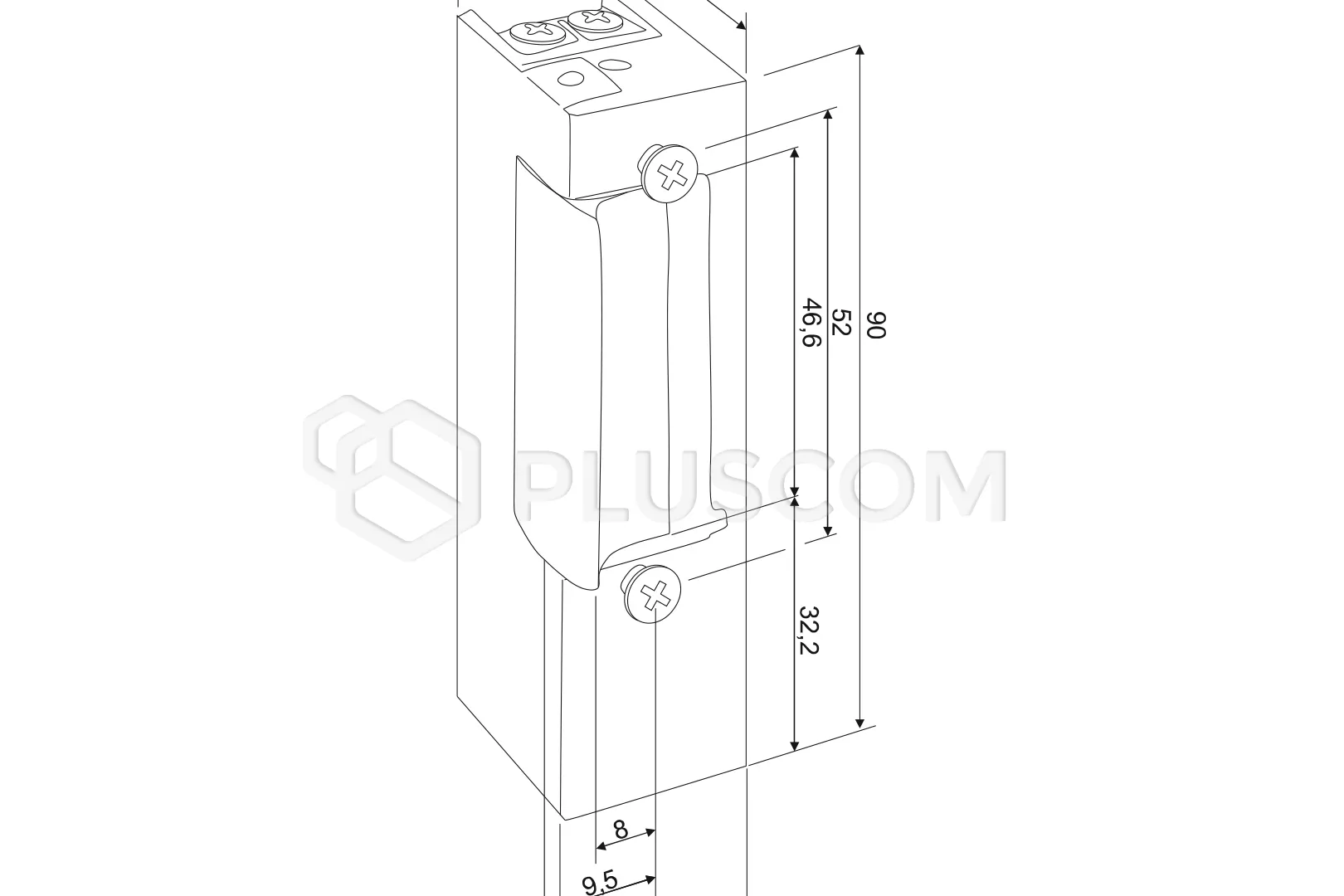

- Height: 90 mm
- Mounting screw spacing: 52 mm
- Durability: 200,000 cycles
- Usage category: Class 3
- Certificate: PN-EN 14846:2010
