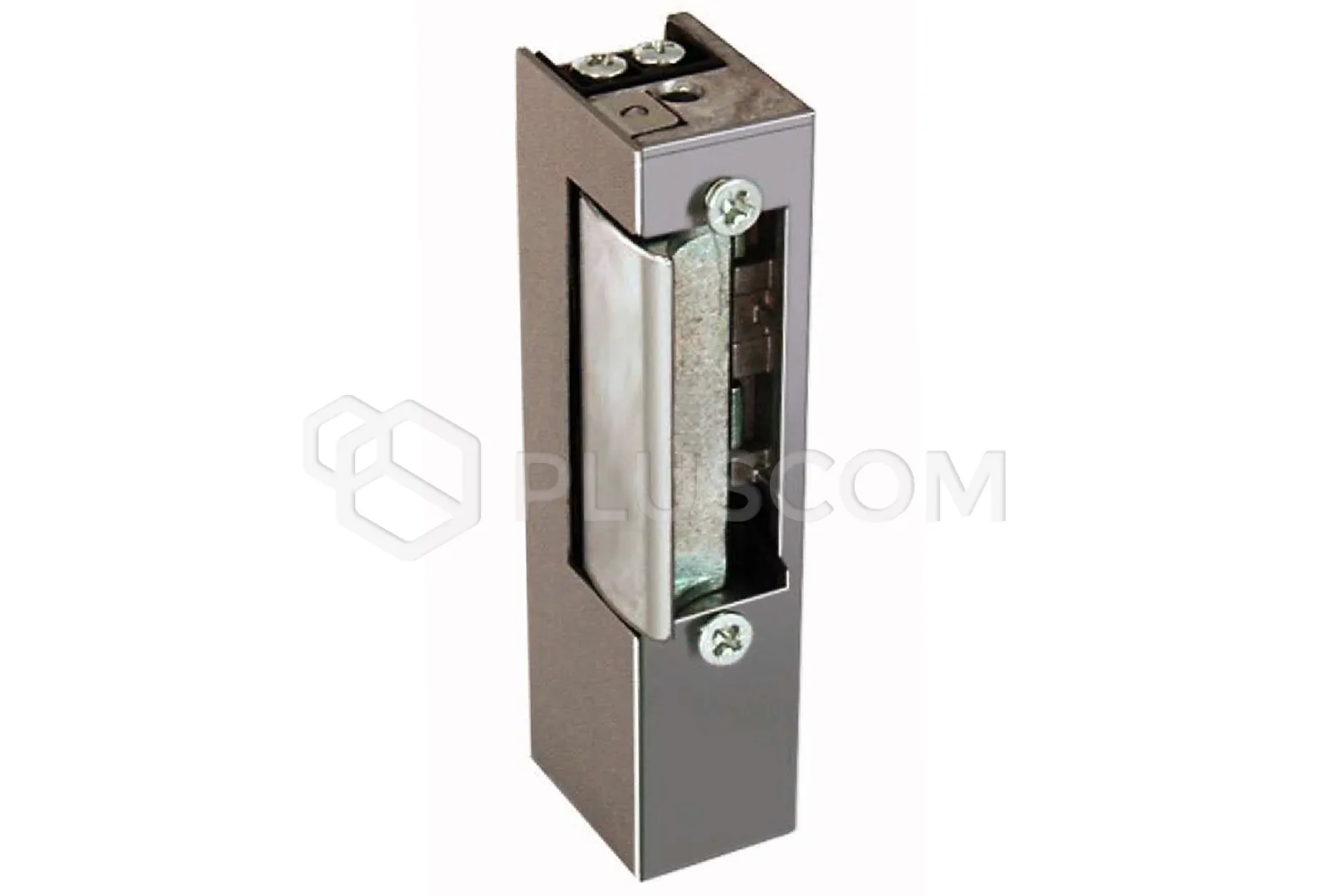

PSG 63.329 Asymmetrical electric strike with memory and lock - H90 mm, universal
The electric strike with memory and lock is an excellent
choice for people looking for a reliable, universal closing mechanism that will work in both left and right
doors.
This model is characterized by high durability, which makes it ideal for intensively used facilities, such as
public buildings.
Thanks to certification in accordance with PN-EN
14846:2010 and class 3 use, it offers the solidity and safety
that you can expect from the highest quality products.
FEATURES:
- Universal (left and right): Thanks to its universal
design, the electric strike fits various types of doors, making it easy to
install and versatile to use

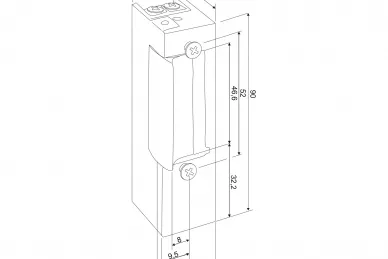

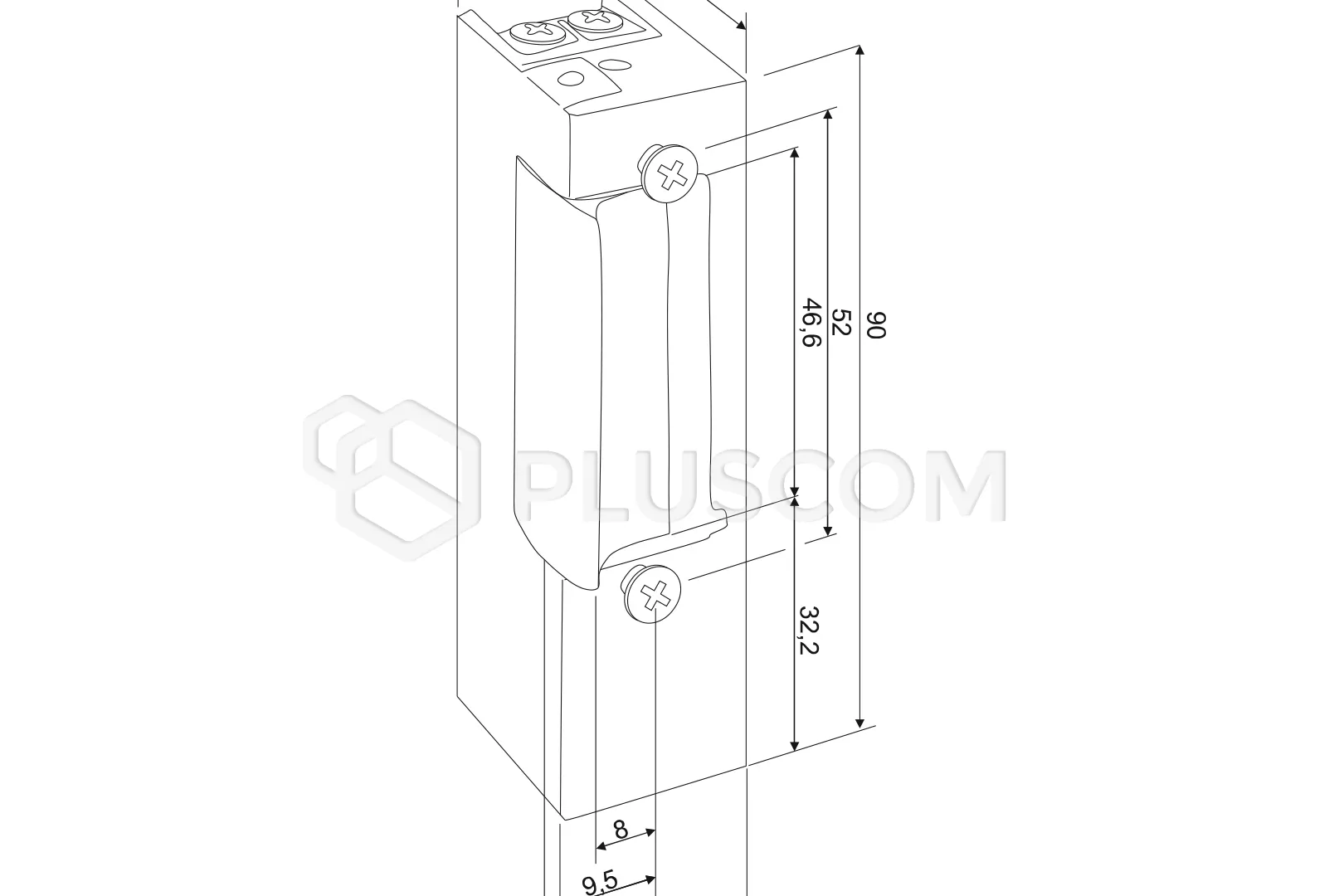

- 90 mm high: Compact size allows installation in most
standard doors
- NC (Normally Closed): The electric strike remains closed
in the rest state, providing additional security
- Low power consumption: Provides energy
saving and longer system life
- Durability: 200,000 cycles: The durability of this electric
strike guarantees long-term and trouble-free operation even with
intensive use
- Class 3 usage category: Suitable for public
buildings where there is a large number of door opening and
closing cycles
- PN-EN certificate 14846:2010: Compliance with European
standards confirms the quality and safety of the product
- 52 mm mounting screw spacing: Standard spacing
facilitates assembly, which speeds up the installation process
Certification in accordance with the PN-EN 14846:2010 standard
Safety is essential in public buildings, which is why this electric strike
has been designed in accordance with strict European standards.
The PN-EN 14846:2010 certificate confirms that the product meets the requirements
for electromechanical locks, which ensures a high level of
protection. This means that the electric strike has been properly tested
for durability, safety and resistance to intensive use.
Durability of 200,000 cycles
This means that it is designed to work in places where doors
are frequently used, such as public buildings, offices or
shops. Such durability ensures that the product will operate
reliably for a long time, which minimizes the need for replacement or
service, saving time and money.
Technical data:
- Nominal voltage: 12-24 V AC/DC
- Tolerance: ±5%
- Continuous operation: 100% 12 V DC | 1 min. 12 V AC | 1 min. 24 V AC/DC
- Resistance: 40
- DC current consumption: 12 V / 300 mA | 24 V / 600 mA
- AC current consumption: 12 V / 250 mA | 24 V / 510 mA
- Admissible DC preload: 10 N
- Admissible AC preload: 90 N
- Recommended front plates: 900, 901, 902, 903, 913
- Application: Universal (right and left)
- Mounting screw spacing: 52 mm
- Durability: 200,000 cycles
- Usage category: Class 3
- Certificate: PN-EN 14846:2010
