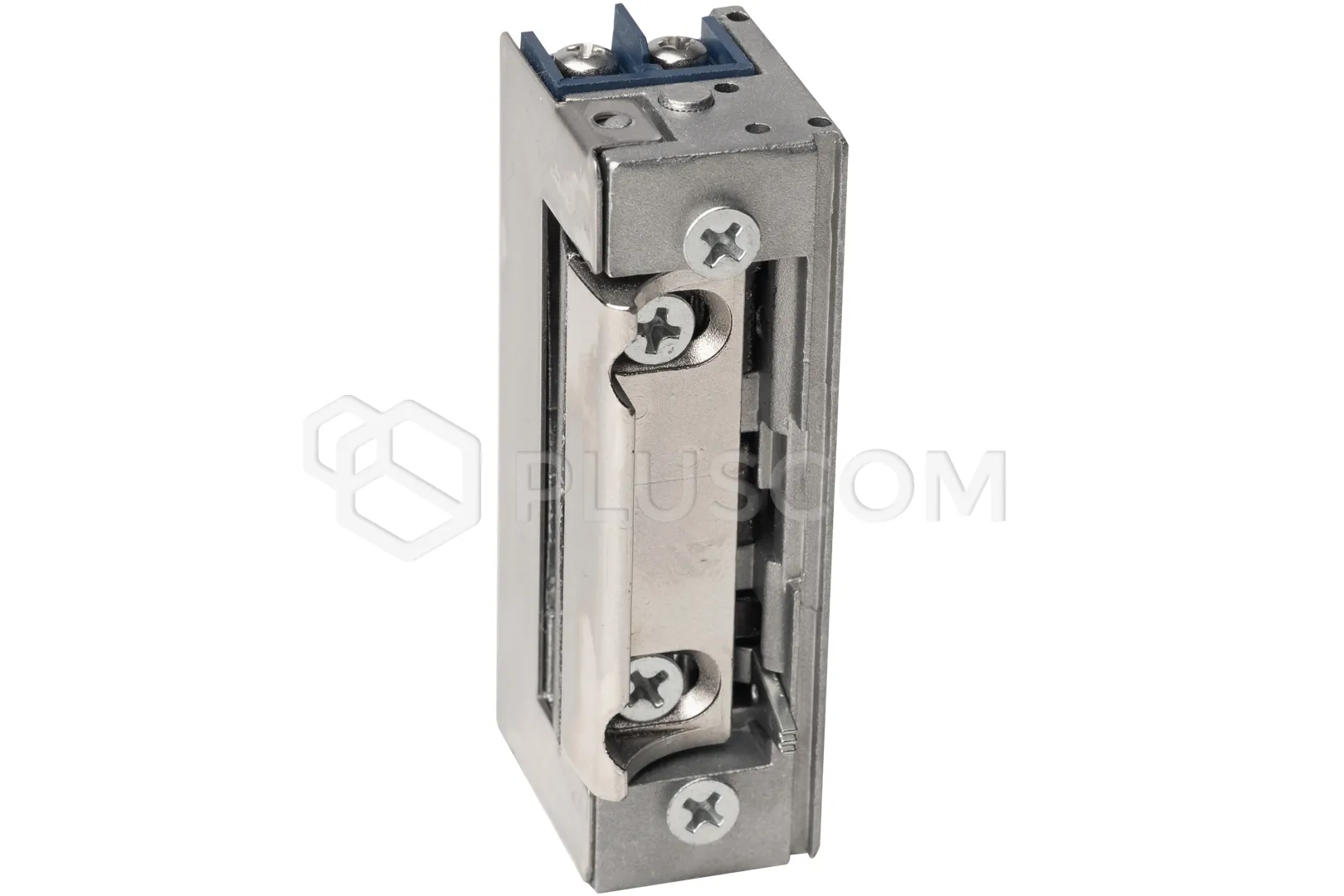

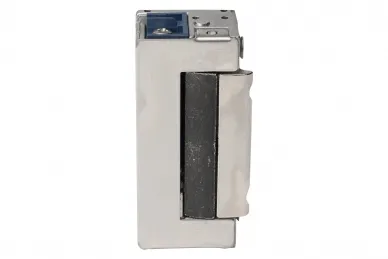

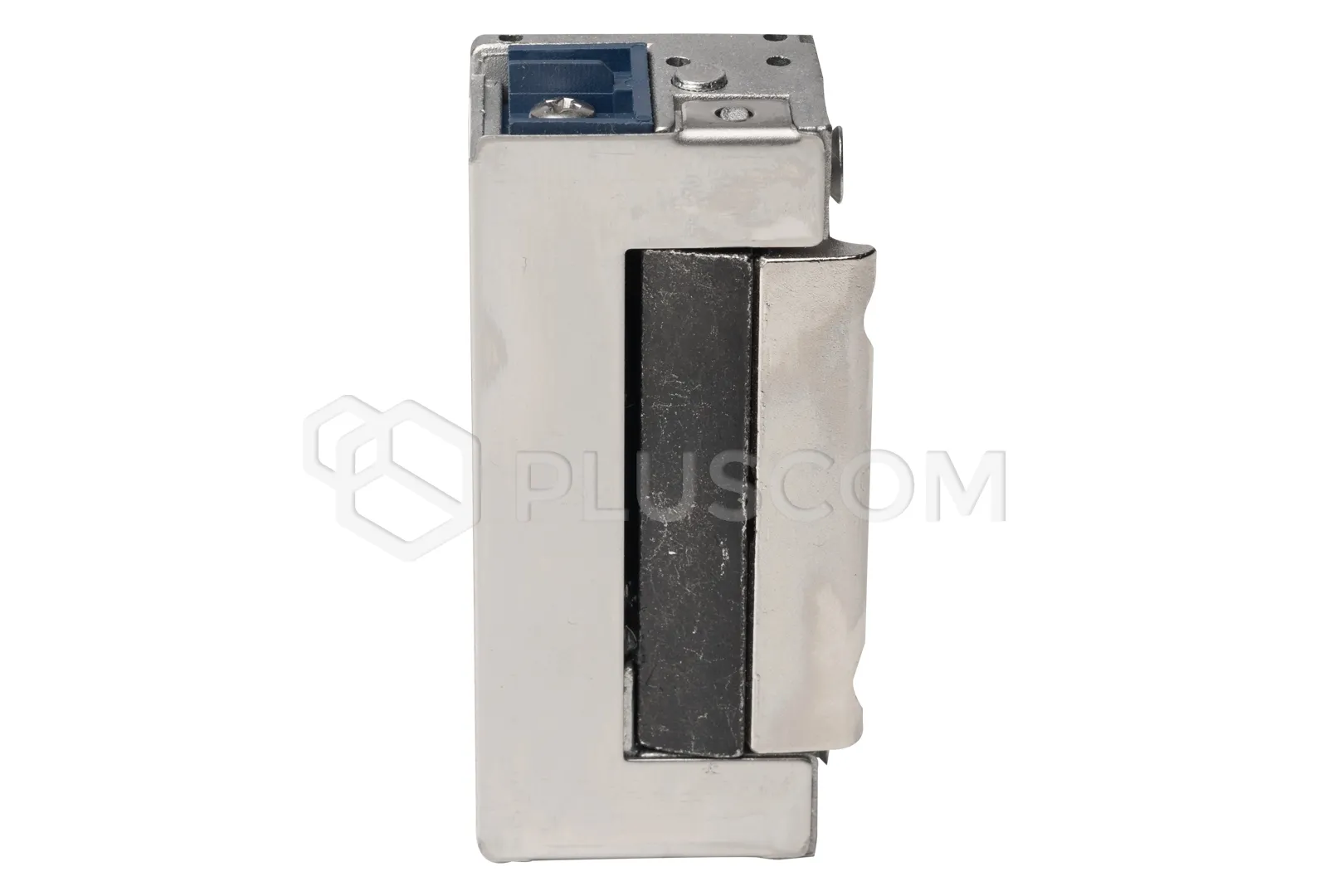

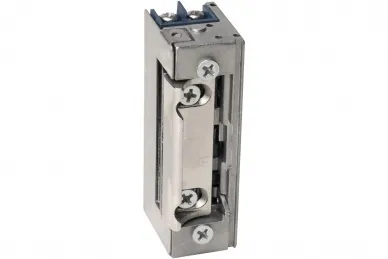

PSG 63.320 Symmetrical electric strike 1743r 12-24 V AC/DC with switch and memory - narrow, adjustable, 20.5 mm wide
The symmetrical electric strike 1743R is
an exceptionally versatile solution, ideal for both left-handed and right-handed
doors.
Thanks to its solid construction and innovative
functions, this electric strike will work perfectly in places with high traffic,
such as public buildings, where reliability and safety are
a priority.
The 1743R electric strike is designed for use
on narrow profiles, which makes it extremely flexible in assembly
applications.
Its durability, confirmed by the PN-EN 14846:2010 certificate,
guarantees reliability even with intensive use.
FEATURES:
- Designed for installation in left and right doors,
which allows for a wide range of applications in various types of installations
- Compact dimensions of 67 mm in height and 20.5 mm in width make the electric strike ideal for installation on narrow
door profiles
- 52 mm mounting screw spacing: Standard, facilitates
installation and adjustment to most door structures
- 4 mm tongue adjustment: Ensures precise adjustment,
which increases functionality and safety
- Designed for continuous operation, which makes them
an ideal solution for access control systems in places with high
traffic
- Durability of 200,000 cycles: ensures reliability even with
intensive use
- Usage category - class 3: suitable for use in public buildings, meeting the requirements of high-class utility
- PN-EN 14846:2010 Certificate: Certification in accordance with
European standards ensures the highest level of safety and quality
Reliability and durability:
The 1743R symmetrical electric strike was designed with
long-term use in mind, which is confirmed by its exceptional durability of 200,000
cycles. This makes it an ideal solution for places with high traffic, such as public buildings, offices or
hotels.
The high durability of the materials used in its production and the precision of
manufacturing guarantee that this electric strike will maintain its properties for a long
time, even with intensive use. Its compliance with the PN-EN 14846:2010 standard
additionally emphasizes its reliability and high quality.
Lock (switch) function:
The product is equipped with a switch function, which makes it an extremely
practical solution.
Thanks to the small mechanical lever, the user can easily and quickly
unlock the electric strike, setting it in the permanently open position.
This function is particularly useful in situations where it is necessary to temporarily
disable access control, for example during intensive traffic in public buildings,
during events or during office hours.
The mechanical lock is an ideal combination of security and
functionality, meeting the requirements of even the most demanding access control
systems.
Technical data:
- Nominal voltage: 12-24 V AC/DC
- Tolerance: ± 5%
- Continuous operation: 1 min
- Resistance; 20
- DC current consumption: 12V / 600mA | 24V / 1100mA
- AC current consumption: 12V / 500mA | 24 V / 1000 mA
- Permissible DC preload: 10 N
- Permissible AC preload: 90 N

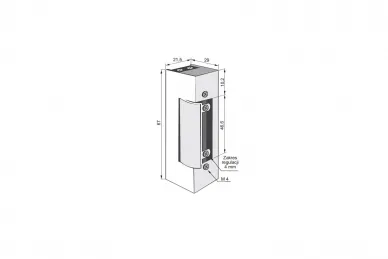

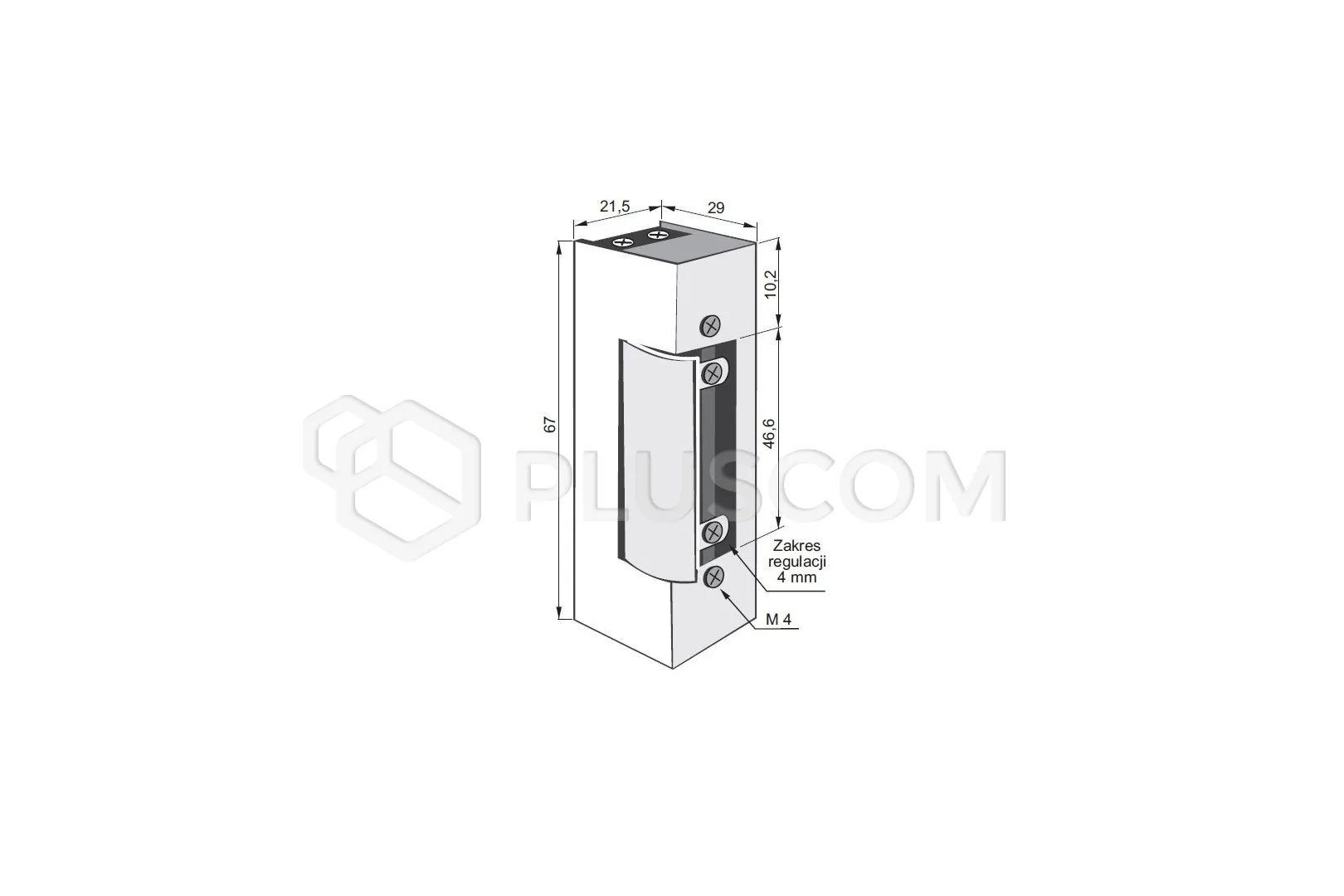

- Height: 67 mm
- Width: 20.5 mm
- Fixing screw spacing: 52 mm
- Tongue adjustment: 4 mm
- Durability: 200,000 cycles
- Category of use: Class 3 (suitable for public buildings)
- Certificate: PN-EN 14846:2010
- Recommended front plates: 900, 901, 902, 904, 906, 907, 908, 903, 913, 905, 915, CE196E series
- Mounting: Universal (left and right)
- Type: NC (Normally Closed)
