PSG 63.319 Symmetrical electric strike 1733r 12-24V AC/DC with memory - narrow, adjustable, 20.5 mm wide
The symmetrical electric strike 1733R is a modern and reliable solution
designed for places with high traffic, such as public buildings, offices, or hotels.
Its compact design makes it ideal for mounting on narrow
profiles, and its universal design allows for mounting in both left-hand and right-hand doors.
The 1733R electric strike, thanks to the NC (Normally Closed) function,
ensures the highest level of security, and its durability and compliance with
European standards guarantee long-term, trouble-free use.
Additionally, the built-in internal memory allows the open state to be maintained after
temporary unlocking.
FEATURES:
- Universal (left and right), symmetrical: Can be
mounted in left and right doors, increasing installation flexibility
- Dimensions: 67 x 20.5 mm, making the electric strike
perfect for use on narrow profiles
- 52 mm mounting screw spacing: Standard spacing
enables easy installation in a variety of door types
- NC (Normally Closed) function: Ensures that the door
remains closed in the event of a power outage, increasing
safety
- 4 mm tongue adjustment: Allows precise adjustment
to the door structure, ensuring reliable operation
- Continuous operation: Designed for uninterrupted
operation, ideal for high-traffic systems
- 200,000 cycle life cycles: Guarantee of long-term and reliable use, even with intensive use
- Use category - class 3: Suitable for
use in public buildings, meeting high-class utility requirements
Internal memory function:
Electric strikes with a memory function are commonly used in
public places, such as apartment blocks, offices, offices
or schools. Thanks to the memory function, the door can remain open without
time limits, which allows free passage.
What's more, they do not require holding the button until the
door is opened - a single electric impulse is enough for the electric strike
to "remember" the open position and remain unlocked until the door is
physically opened.
Durability and reliability:
The 1733R symmetrical electric strike is distinguished by its exceptional
durability, confirmed by the possibility of performing up to 200,000 opening and
closing cycles. This means that the product is designed for long-term
use, even in places with intensive use.
Its solid construction and the use of high-quality materials mean that
the electric strike maintains its properties for years. Compliance with
the PN-EN 14846:2010 standard additionally confirms its reliability, making it
an excellent choice for demanding applications.
Technical data:
- Nominal voltage: 12-24 V AC/DC
- Tolerance: ± 5 %
- Continuous operation: 1 min
- Resistance: 20
- DC current consumption: 12 V / 600 mA | 24 V / 1100 mA
- AC current consumption: 12 V / 500 mA | 24 V / 1000 mA
- Permissible DC preload: 10 N
- Permissible AC preload: 90 N=

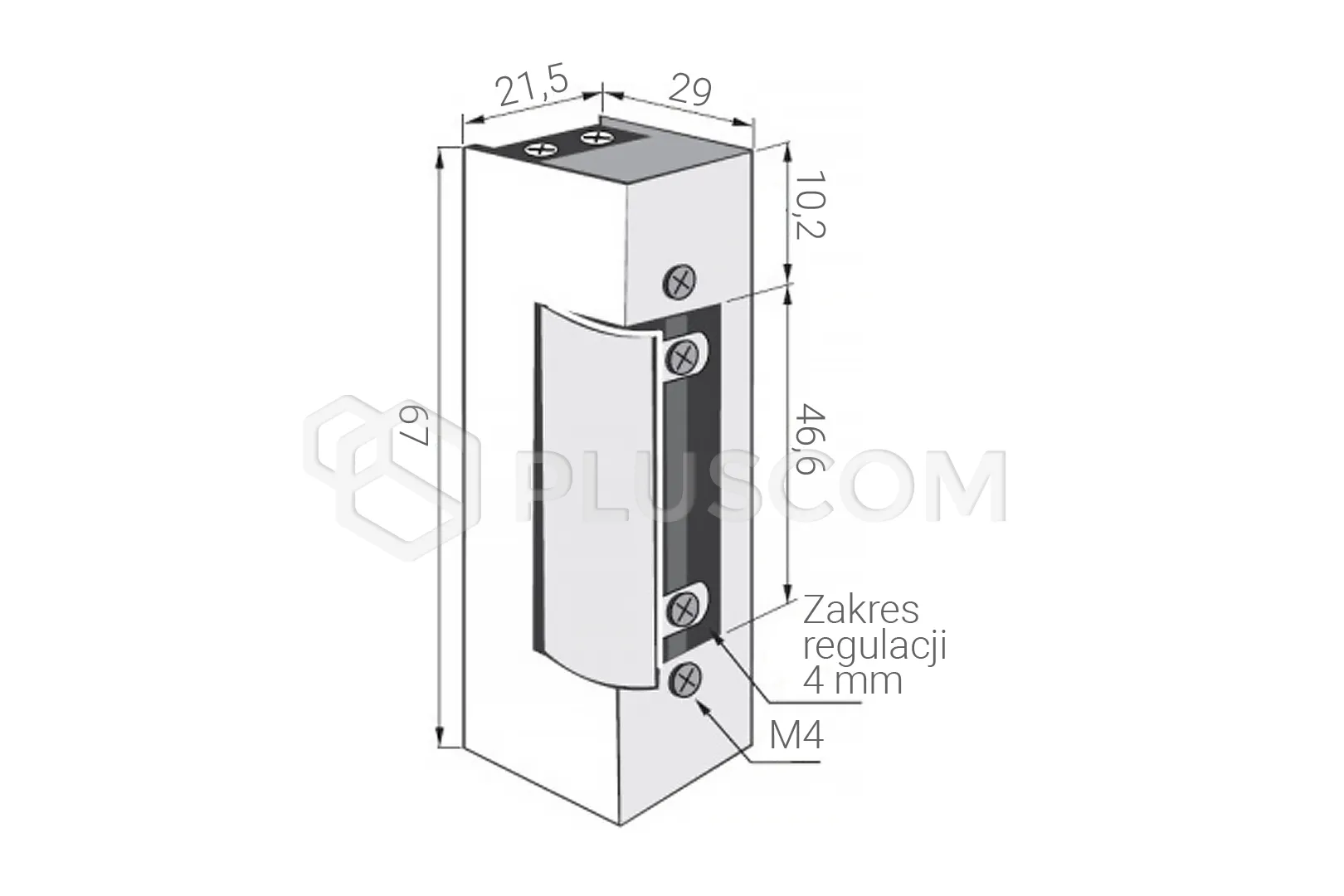

- Height: 67 mm
- Width: 20.5 mm
- Spacing of mounting screws: 52 mm
- Tongue adjustment: 4 mm
- Durability: 200,000 cycles
- Use category: Class 3 (suitable for public buildings)
- Certificate: PN-EN 14846:2010
- Recommended front plates: 900, 901, 902, 904, 906, 907, 908, 903, 913, 905, 915, CE196E series
- Mounting: Universal (left and right)
- Type: NC (Normally Closed)
- Additional features: Internal memory
- Lock (switch): no
