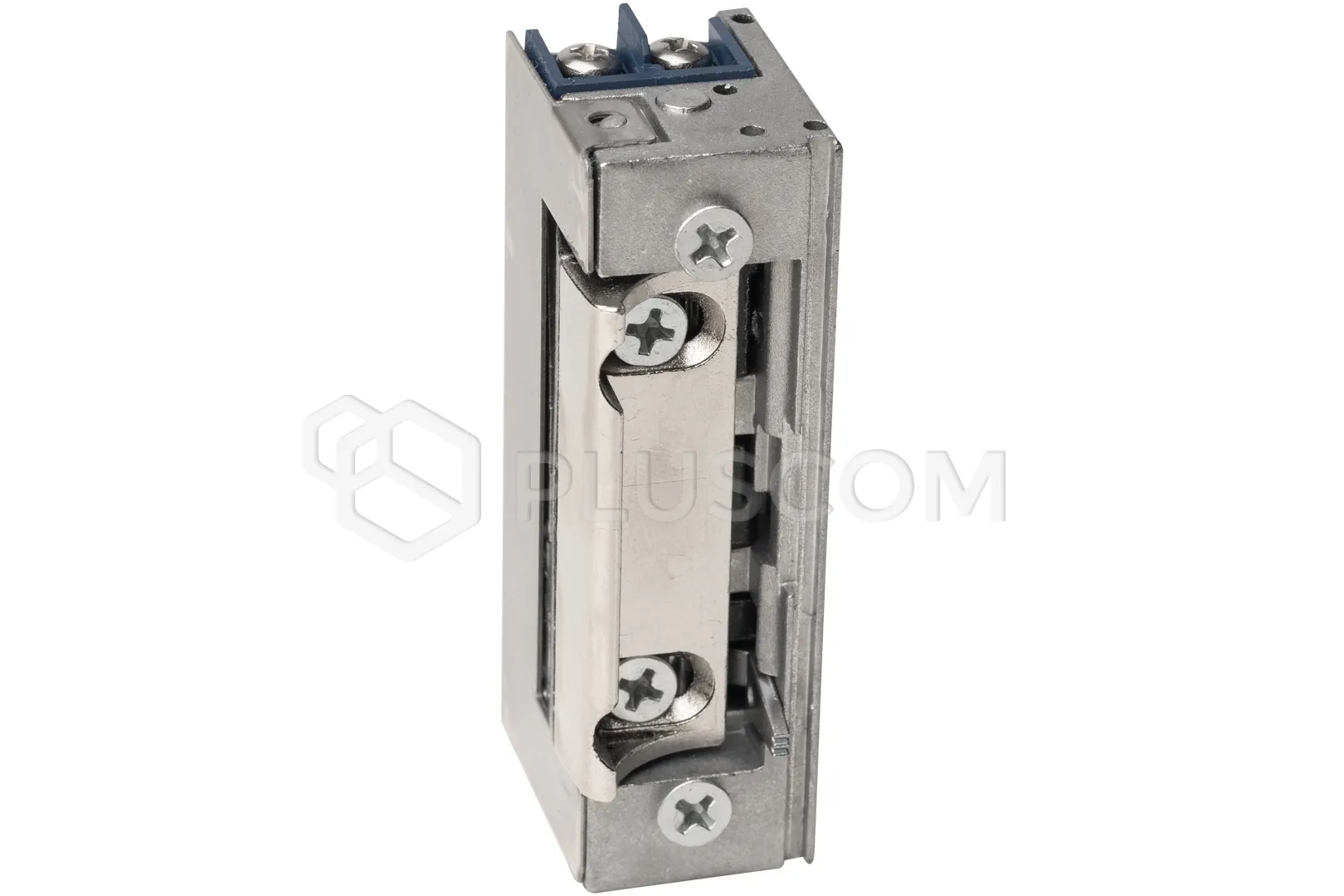

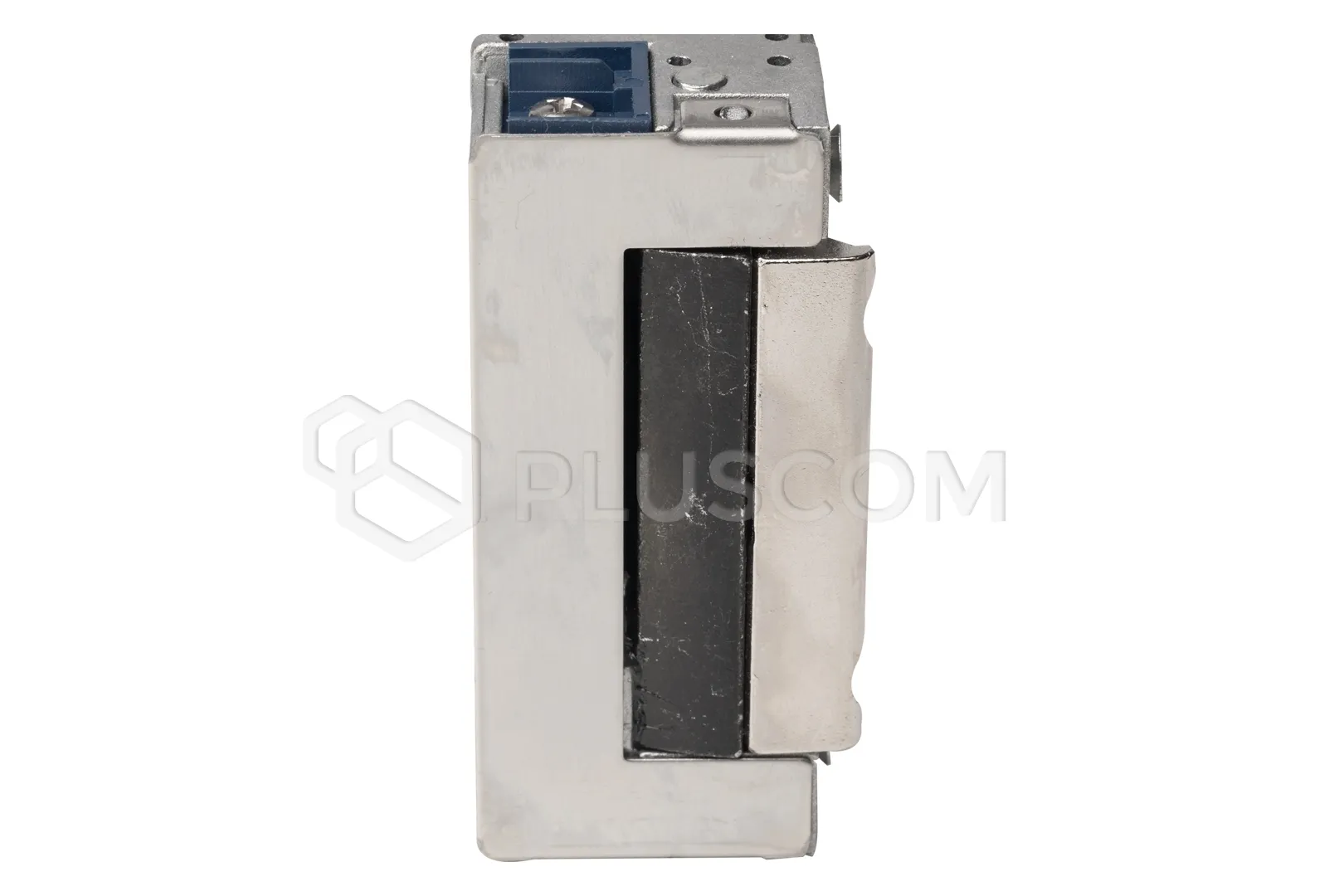

PSG 63.318 Symmetrical electric strike 1720R 12-24V AC/DC with lock - narrow, adjustable, 20.5 mm wide
The symmetrical electric strike 1720R is a modern and reliable device, designed to ensure
safety in places with high traffic, such as public buildings, offices, schools, or apartment blocks.
The compact design allows for installation on narrow
profiles, making it an ideal solution for various structures.
The 1720R electric strike combines functionality and
durability, meeting the requirements of the PN-EN 14846:2010 standard. Thanks to the
lock function, users have the ability to control access.
FEATURES:
- Dimensions: 67 x 20.5 mm, make the electric strike suitable
for mounting on narrow profiles, which allows for versatile
application
- NC function (Normally Closed): ensures that the door
remains closed in the event of a power failure, which significantly
increases the level of security
- Universal (left and right), symmetrical: Can be
mounted in both left and right doors, which increases
the flexibility of use
- 4 mm tongue adjustment: This function allows for
precise adjustment of the tongue to the door structure, which ensures
smooth operation of the lock
- The electric strike has been designed for continuous
operation, which makes it an ideal choice for high-traffic areas
- Use category - class 3: Which means that it is
suitable for use in public buildings, where a high level of reliability is required
- PN-EN 14846:2010 Certificate: Confirmation of compliance with
European standards, which guarantees the highest level of quality and
safety
- Durability of 200,000 cycles: Ensures reliable
operation even with intensive use, which minimizes the need for
maintenance
Lock (switch) function:
One of the key advantages of the 1720R electric strike
is the built-in lock function, which allows users to permanently unlock
the door.
This function is extremely practical in situations
where temporary disabling of access control is required, for example
during intensive traffic in public buildings or during special events.
Thanks to this option, you can easily manage access,
keeping the door open without the need for constant supervision.
Durability and reliability:
The 1720R symmetrical electric strike has been designed with
long-term operation in mind, as confirmed by its ability to perform up to 200,000
opening and closing cycles.
This exceptional durability makes the device perfect for
high-traffic areas, such as public buildings or offices.
Thanks to its solid construction and high-quality materials, the 1720R electric strike offers
reliable operation for many years. Compliance with the PN-EN 14846:2010 standard further emphasizes its reliability and high
quality standards.
Technical data:
- Nominal voltage: 12-24 V AC/DC
- Tolerance: ± 5 %
- Continuous operation: 1 min
- Resistance: 20
- DC current consumption: 12 V / 600 mA | 24 V / 1100 mA
- AC current consumption: 12 V / 500 mA | 24 V / 1000 mA
- Permissible DC preload: 10 N
- Permissible AC preload: 90 N

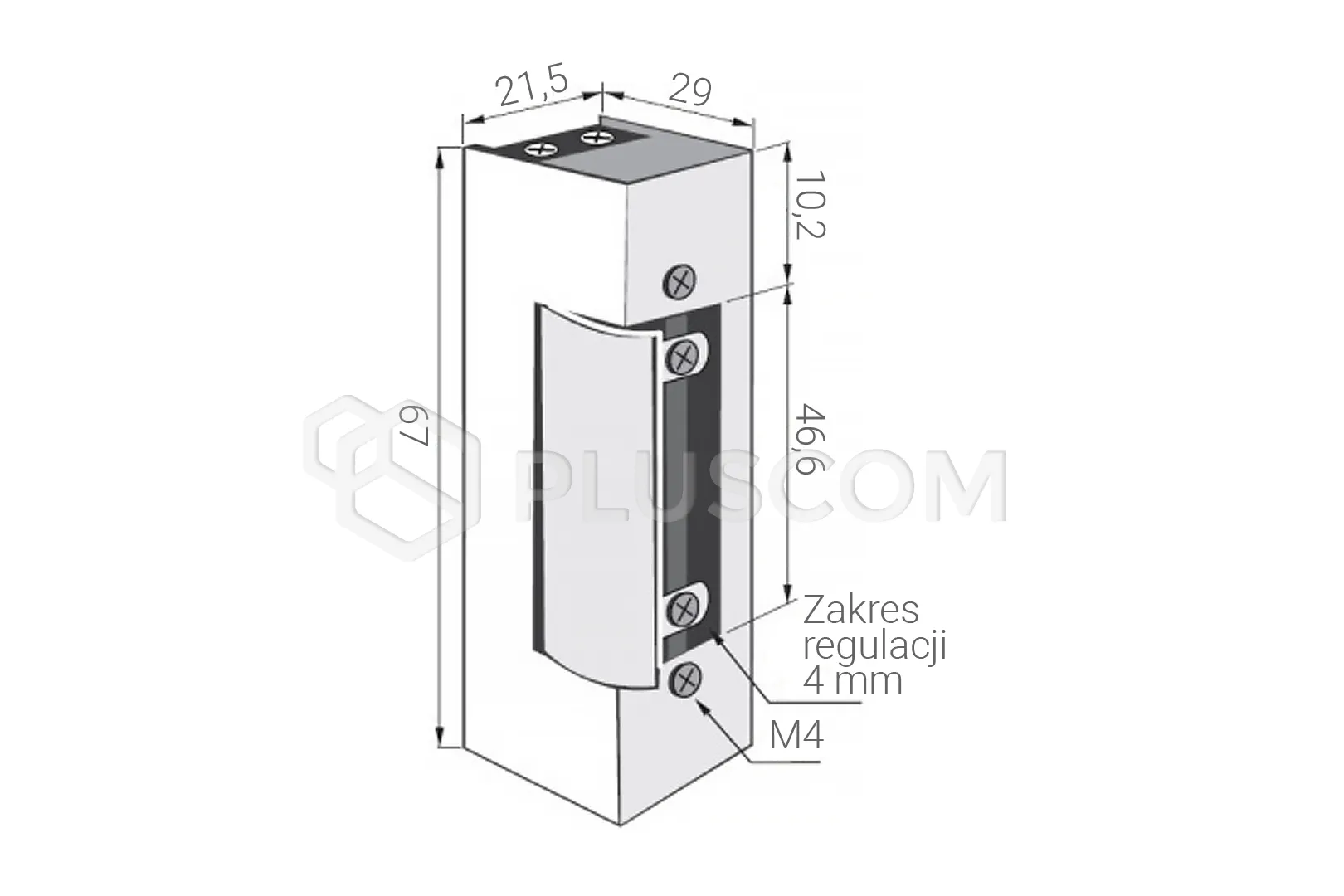

- Height: 67 mm
- Width: 20.5 mm
- Spacing of mounting screws: 52 mm
- Tongue adjustment: 4 mm
- Durability: 200,000 cycles
- Use category: Class 3 (suitable for public buildings)
- Certificate: PN-EN 14846:2010
- Recommended front plates: 900, 901, 902, 904, 906, 907, 908, 903, 913, 905, 915, CE196E series
- Mounting: Universal (left and right)
- Type: NC (Normally Closed)
- Additional features: Lock
- Internal memory: No
