PSG 63.317 Symmetric electric strike 1710R 12-24V AC/DC basic - narrow,
adjustable

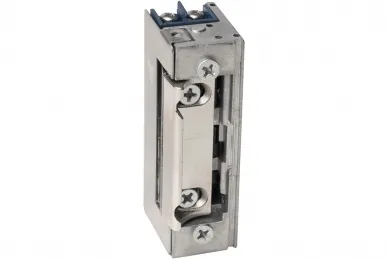

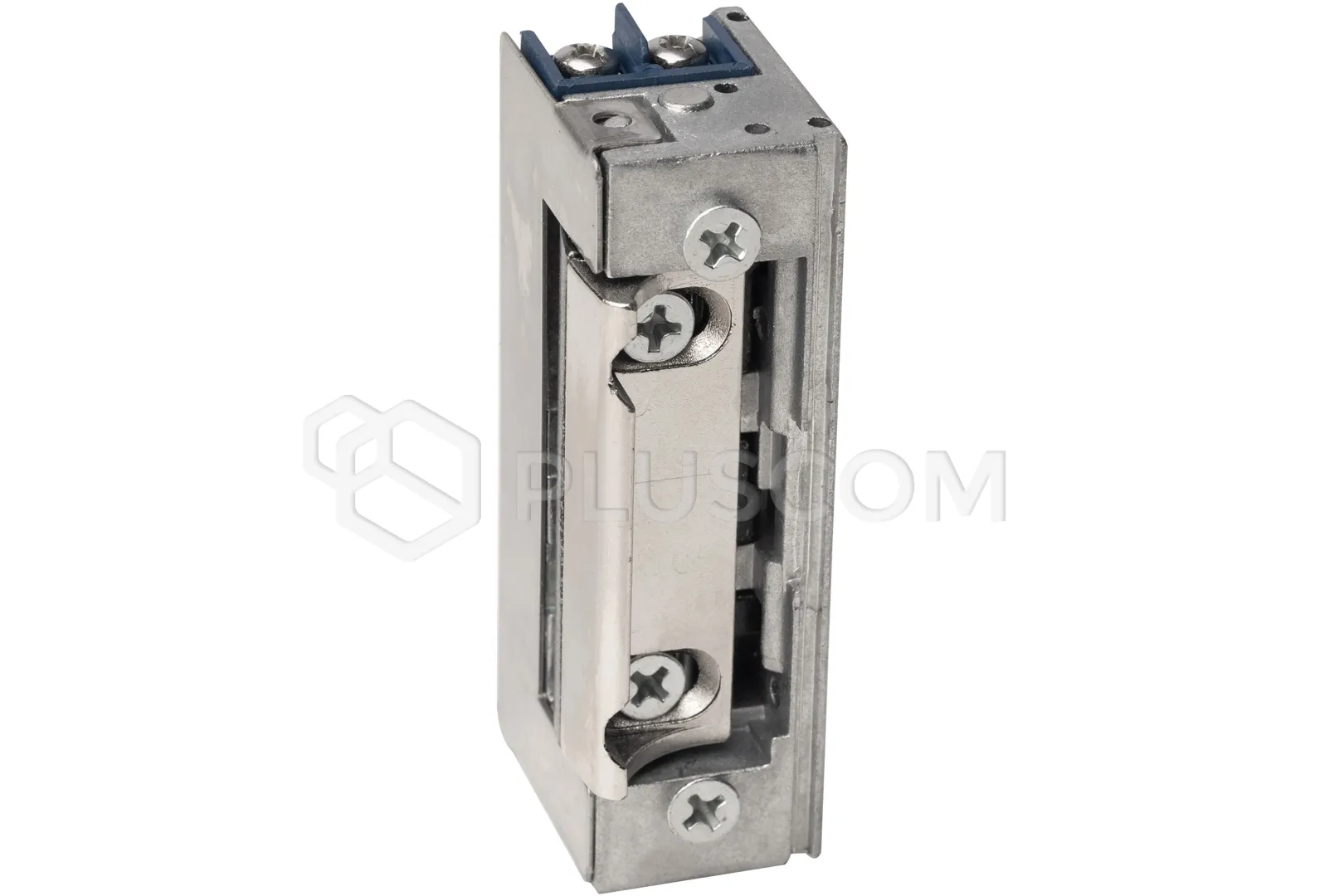

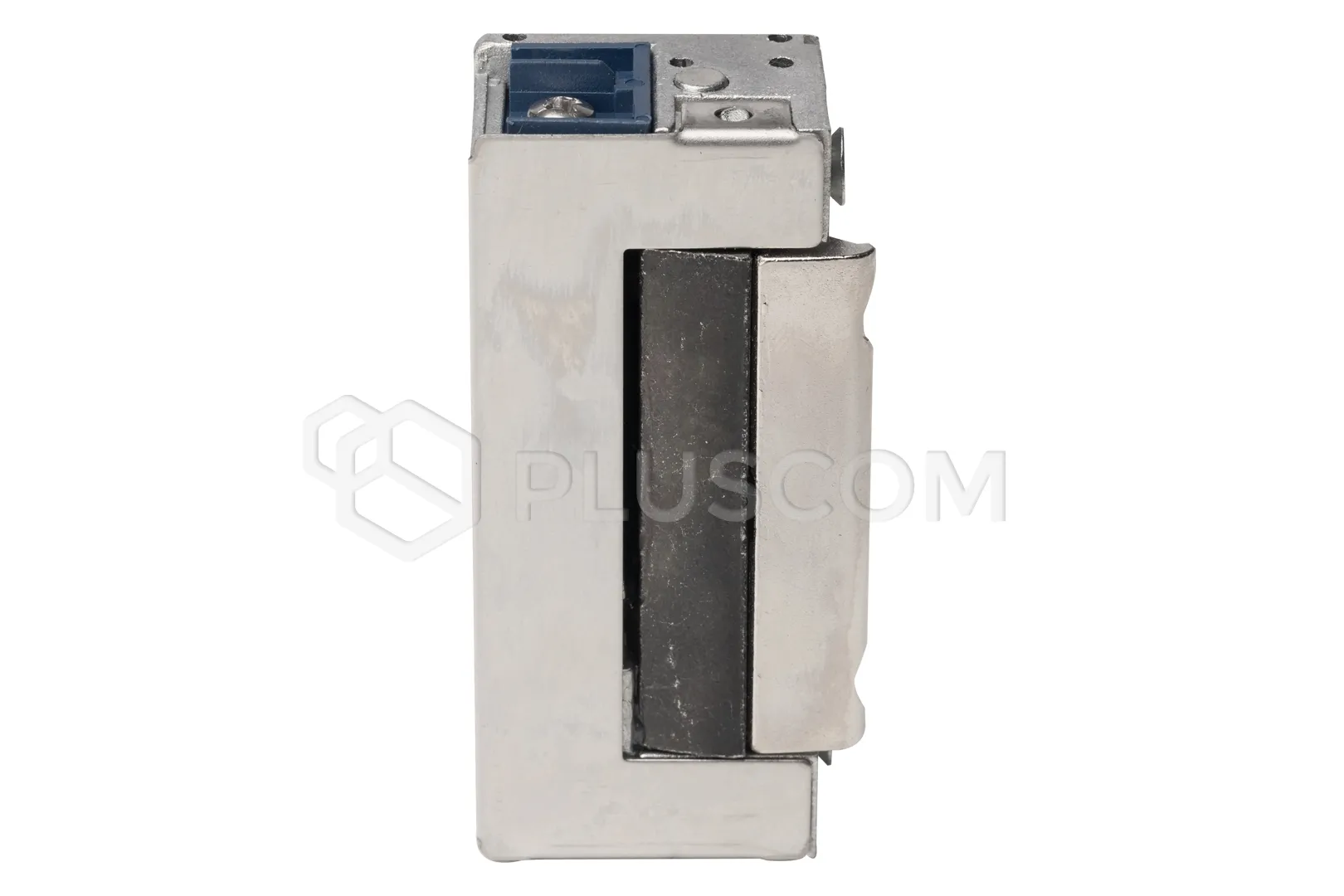

The symmetric electric strike 1710R is a
reliable and solid device designed to provide
security and access control in various buildings, including public
offices and apartments.
Thanks to its universal design, the
1710R electric strike is an ideal solution for use on narrow
profiles, while offering exceptional durability and compliance with European
standards.
Built for long-term use, it is suitable for high-traffic areas,
guaranteeing safety and peace of mind for users.
FEATURES:

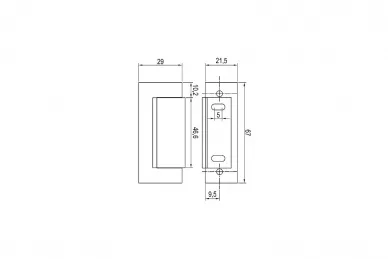

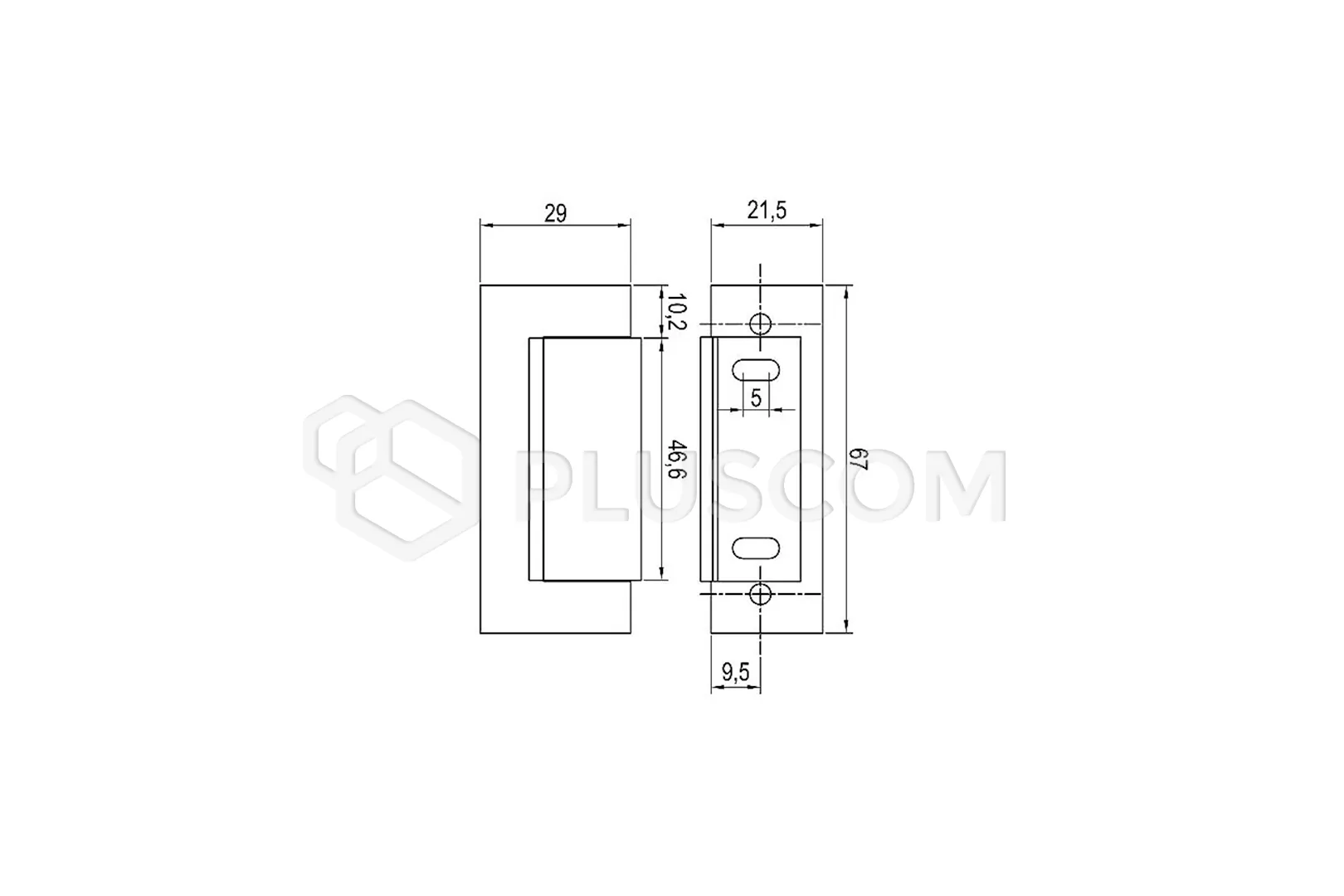

- Dimensions 67 x 20.5 mm: Makes the 1710R electric strike
perfect for mounting on narrow profiles
- Universal (left and right), symmetrical: This increases
its versatility and flexibility of use
- NC function (Normally Closed): The door remains
closed in the event of a power failure, which increases the level of security and
access protection
- 52 mm mounting screw spacing: Allows easy and
quick installation
- 4 mm tongue adjustment: Allows precise adjustment
of the lock to the door, ensuring smooth and reliable operation
- 200,000 cycle durability: Ensures reliable operation,
minimizing the need for servicing and replacement
- Usage category - Class 3: Which means it is
ideal for use in public buildings that require a high
level of reliability
- PN-EN 14846:2010 Certificate: The product is certified
for compliance with European standards, which guarantees the highest
standard of quality and safety
4 mm tongue adjustment:
This function allows you to precisely adjust the position of the lock tongue to
the door structure, which is crucial for smooth and reliable operation.
The tongue adjustment allows you to adjust the lock to different thicknesses and
types of doors, which increases installation flexibility and improves safety and
convenience of use.
NC (Normally Closed) function:
This function ensures that the door remains closed in the event of a
power outage, which is an important safety element in any access control
system.
Thanks to this function, the 1710R electric strike ensures that access to
secured premises is always controlled, even in the event of a power failure.
This solution is particularly useful in public buildings,
offices and places where security and access control are
a priority.
Technical data:
- Nominal voltage: 12-24 V AC/DC
- Tolerance: ± 5 %
- Continuous operation: 1 min
- Resistance: 20
- DC current consumption: 12 V / 600 mA | 24 V / 1100 mA
- AC current consumption: 12 V / 500 mA | 24 V / 1000 mA
- Permissible DC preload: 10 N
- Permissible AC preload: 90 N
- Height: 67 mm
- Width: 20.5 mm
- Spacing of mounting screws: 52 mm
- Tongue adjustment: 4 mm
- Durability: 200,000 cycles
- Use category: Class 3 (suitable for public buildings)
- Certificate: PN-EN 14846:2010
- Recommended front plates: 900, 901, 902, 904, 906, 907, 908, 903, 913, 905, 915, CE196E series
- Mounting: Universal (left and right)
- Type: NC (Normally Closed)
