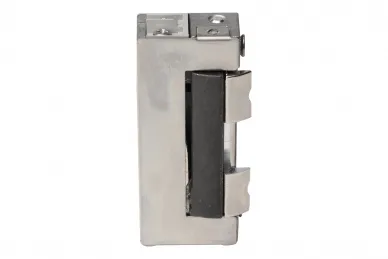

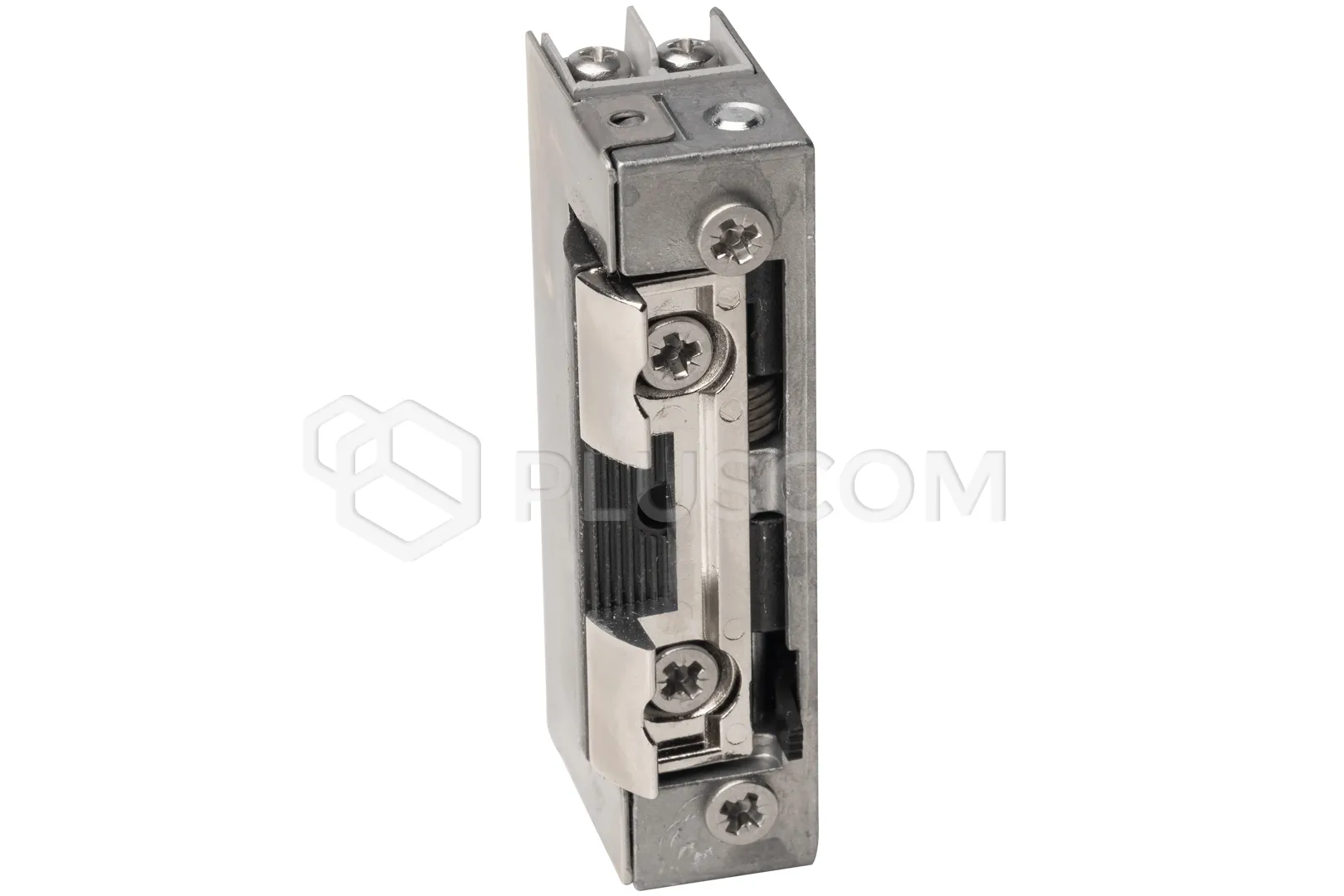

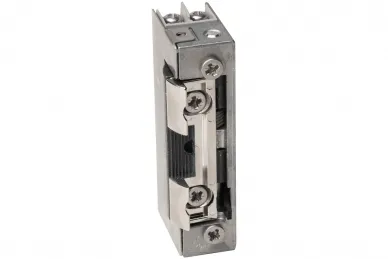

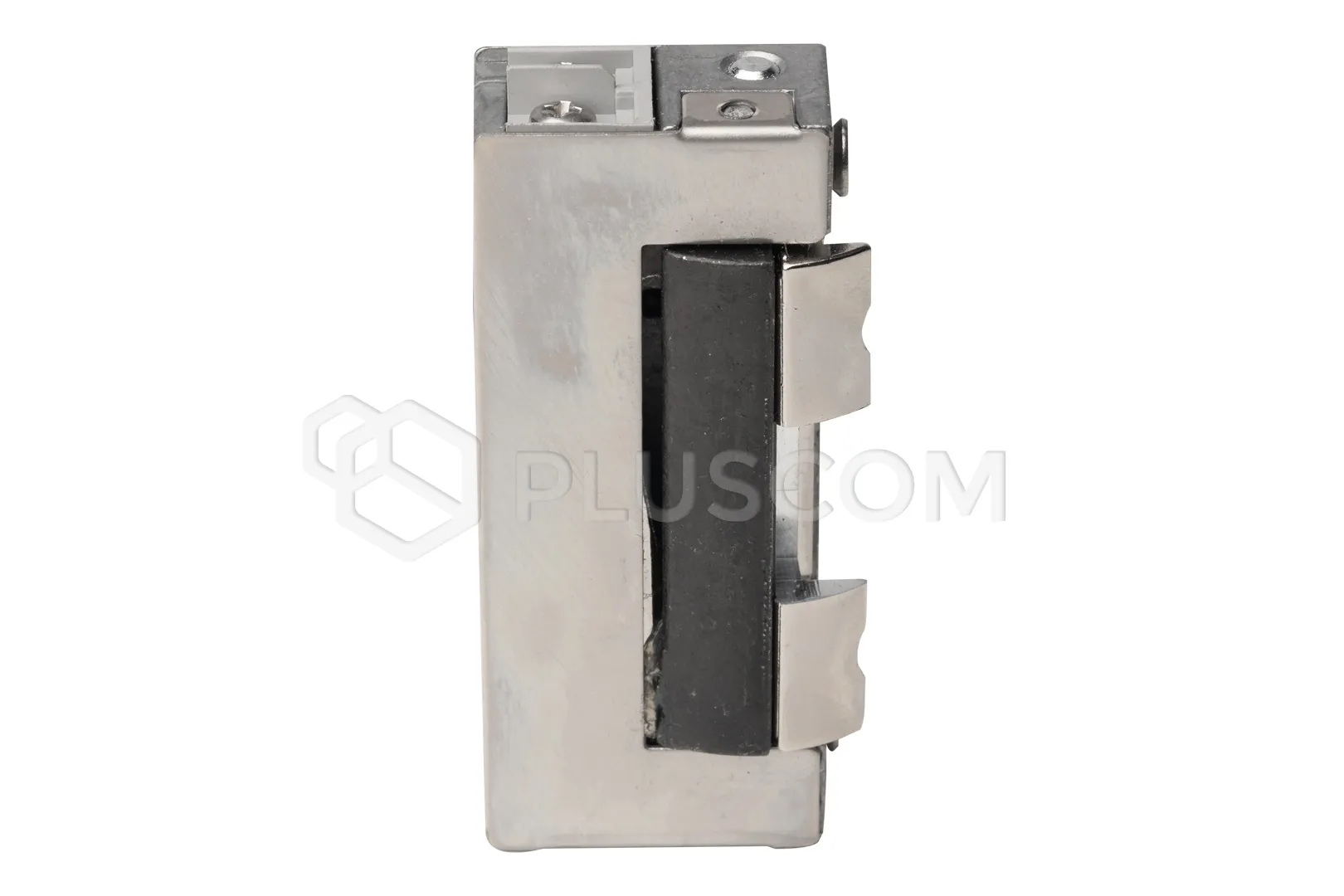

PSG 63.316 Symmetrical electric strike for sheets with slide 1443rfw 12-24V AC/DC with lock - narrow, adjustable, radial
The 1443RFW symmetrical electric strike provides the highest standard of security and access control in various types of buildings,
including public, commercial and residential buildings.
Thanks to its innovative radial design, this electric strike enables quick and safe opening with minimal
deflection, which significantly improves the comfort of use.
Its compact dimensions make it ideal for installation in narrow profiles, while offering durability and reliability, which are confirmed by the certificate of compliance with the PN-EN 14846:2010 standard.
FEATURES:
- Radial design with latch slip
of the lock: Enables quick opening with minimal swing
- Universal (left and right): Ideal for installation in various
types of doors, which increases its versatility
- 52 mm mounting bolt spacing: Easier installation,
adapting to standard door designs
- 2 mm tongue adjustment: Allows precise
adjustment of the lock to the door
- Continuous operation: Essential in places with high
traffic intensity
- 200,000 cycle durability: Ensures reliability and
long-term use, even in heavy traffic
- Class 3 usage category: Ideal for use in public buildings where a high
level of safety is required safety
- PN-EN 14846:2010 Certificate: Confirms compliance with
European standards, guaranteeing the highest quality
Radial design with latch slide:
Thanks to this innovative solution, the electric strike enables
quick and easy opening of the door with minimal deflection.
This function not only increases the comfort of use, but also significantly
reduces the time needed to access rooms, which is extremely important in
high-traffic areas, such as public buildings or offices.
Additionally, the lack of the need to cut the door frame during installation
significantly simplifies installation.
Advanced functions: Lock and internal memory
The electric strike offers advanced functions, such as
lock and internal memory, which increase its functionality and comfort
of use.
The locking function with a small
mechanical lever, which allows the electric strike to be locked in the
permanent open position, is an ideal solution in situations
that require long-term access, such as intensive traffic in the building
or evacuation.
In turn, the internal memory function provides even greater
flexibility in access management.
The built-in elastic plate allows the latch to be automatically unlocked after
a short voltage supply, keeping the door open until it is closed once. After the door is closed, the latch automatically locks,
restoring the security state without the need for manual intervention.
Thanks to these advanced functions, the electric strike ensures both
ease of use and high safety standards, making it an ideal choice for high-traffic areas such as offices, schools
or public buildings.
Technical data:
- Nominal voltage: 12-24 V AC/DC
- Tolerance: ± 5 %
- Continuous operation: 1 min
- Resistance: 20
- DC current consumption: 12V / 600 | 24V / 1100
- AC current consumption: 12V / 500 | 24V / 1000
- Permissible DC pre-load: 10 N
- Permissible AC pre-load: 90 N

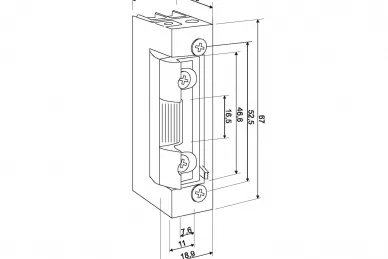

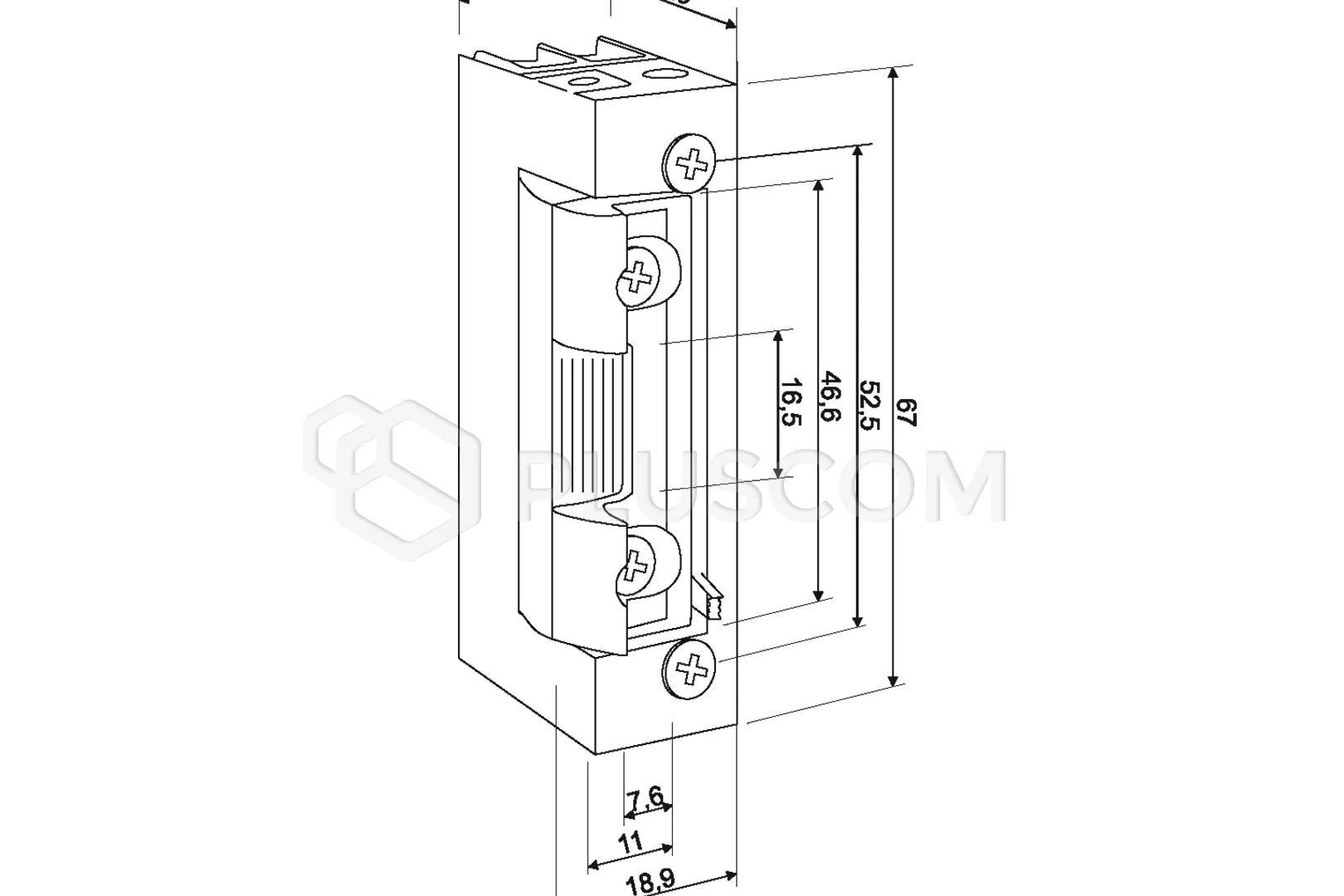

- Dimensions: Height 67 mm; Width 16.5 mm
- Mounting screw spacing: 52.5 mm
- Tongue adjustment: 2 mm
- Durability: 200,000 cycles
- Use category: Class 3 (suitable for public buildings)
- Certificate: PN-EN 14846:2010
- Recommended front plates: 902EP/28-RFW, 902EL/28-RFW, 902EP/A/24RFW, 902EL/A/24-RFW, 900X/A/25-RFW and CE 196E/6U-RFW
- Mounting: Universal (left and right)
- Additional functions: Lock and memory
- Type: Radial for strike plate with latch slide
- Mounting: Without undercutting the frame
- Opening with minimal deflection
