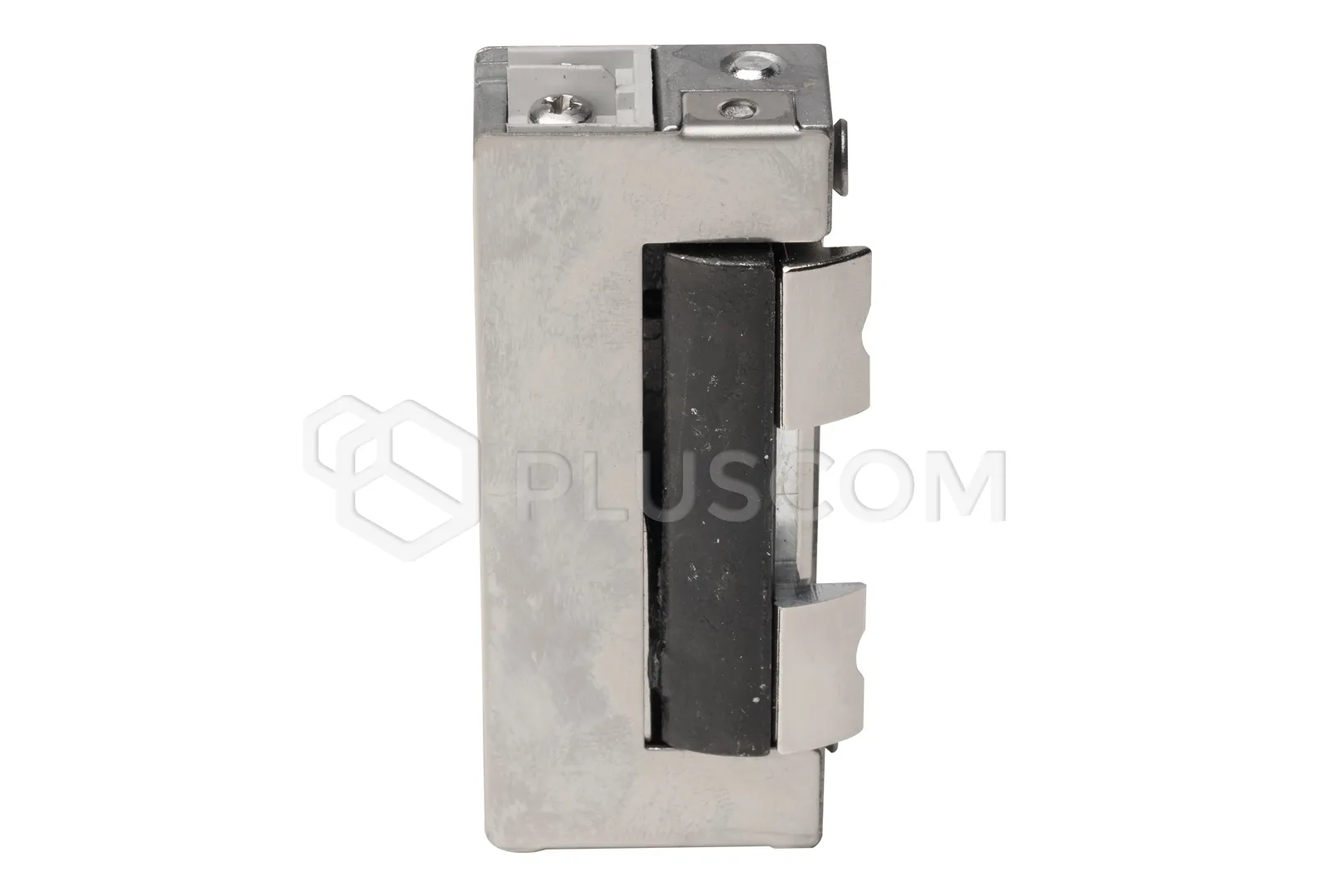

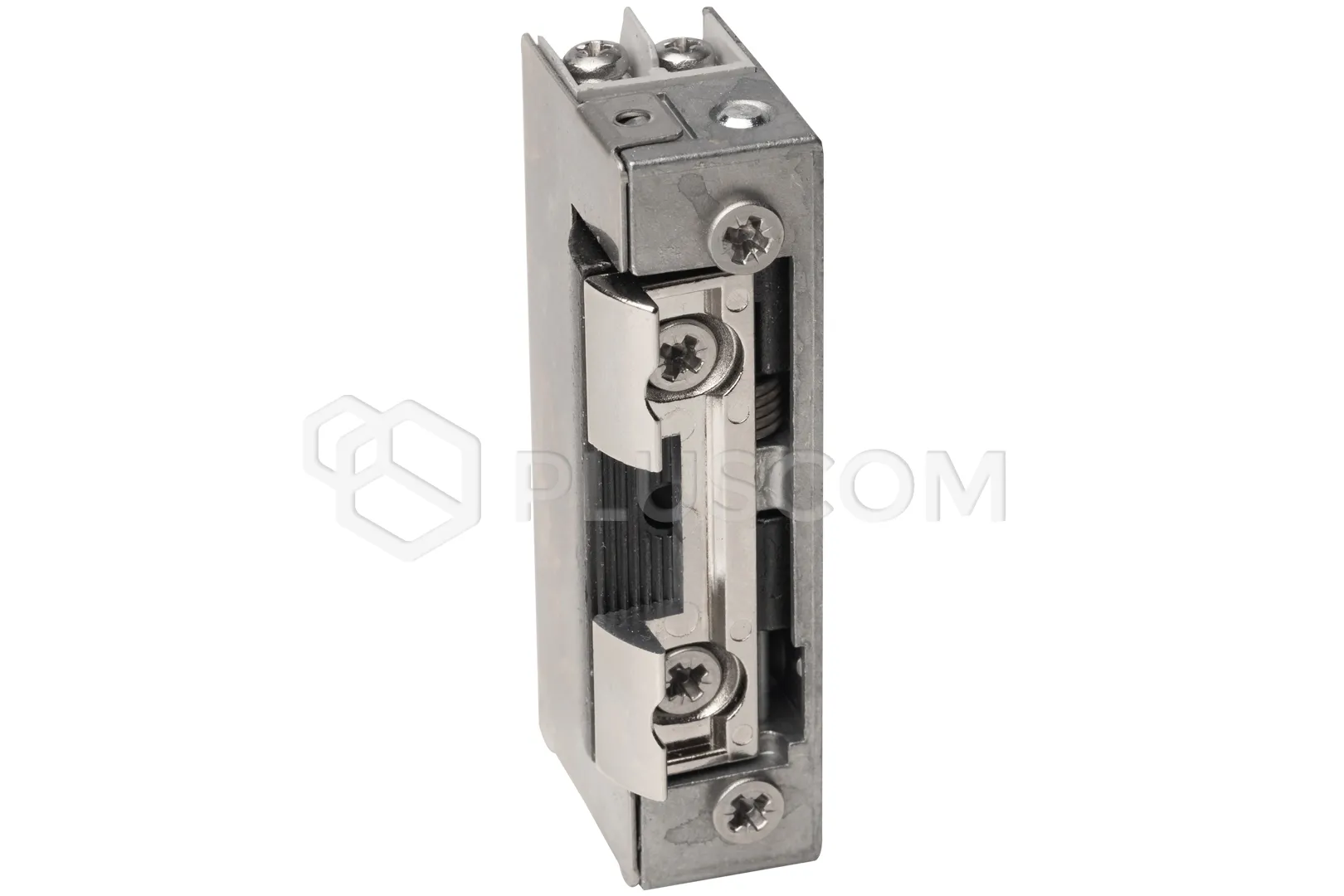

PSG 63.315 Symmetrical electric strike for sheets with slide 1433rfw 12-24V AC/DC with memory - narrow, adjustable, radial
The 1433RFW electric strike with memory is a universal and versatile device
that will work perfectly in various applications, both in left-hand and right-hand doors.
Its symmetrical design and innovative radial striker
ensure quick and efficient opening with minimal movement, which
is particularly important in places with high traffic, such as offices,
public buildings or commercial facilities.
FEATURES:
- Radial design with latch slide: Allows quick opening with minimal tilt
- Universal (left and right): Which increases its
versatility and application
- 52.5 mm mounting screw spacing: Easier installation,
adapting to many types of structures
- 2 mm tongue adjustment: Allows precise
adjustment of the lock to the door
- Continuous operation: Ideal for places with high
traffic
- 200,000 cycle durability: Guarantees reliability and
long-term use, even with heavy traffic
- Usage category - class 3: Ideal for use in public buildings
where a high level of security is required
- Function memory: Allows the door to be kept in an unlocked state after a short voltage supply
Radial design with lock latch slip:
The 1433RFW electric strike is distinguished by its innovative radial design
with lock latch slip, which allows the door to be opened with minimal
deflection.
This unique feature not only increases the speed and convenience of operation, but also
enables the installation of the electric strike without the need to cut the door frame, which
significantly simplifies installation.
Thanks to this solution, the door can be opened easily and quickly, which is
particularly important in places with high traffic, such as offices,
schools or public buildings. The radial design also ensures an aesthetic appearance and minimal interference with the door structure.
Memory function:
The 1433RFW electric strike is equipped with an advanced memory function that
significantly increases its functionality and comfort of use. The memory function
allows the door to be kept unlocked after a short voltage supply, without the need to
continuously hold the button or provide constant power supply.
When the door is closed again, the latch automatically returns to the closed
position, restoring the security state.
Technical data:
- Nominal voltage: 12-24 V AC/DC
- Tolerance: ±5%
- Continuous operation: 1 min
- Resistance: 20
- DC current consumption: 12 V / 680 mA | 24V / 1080mA
- AC Power Consumption: 24V / 570mA | 24 V / 1170 mA
- Permissible DC preload: 10 N
- Permissible AC preload: 90 N

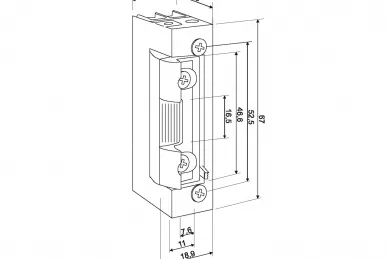

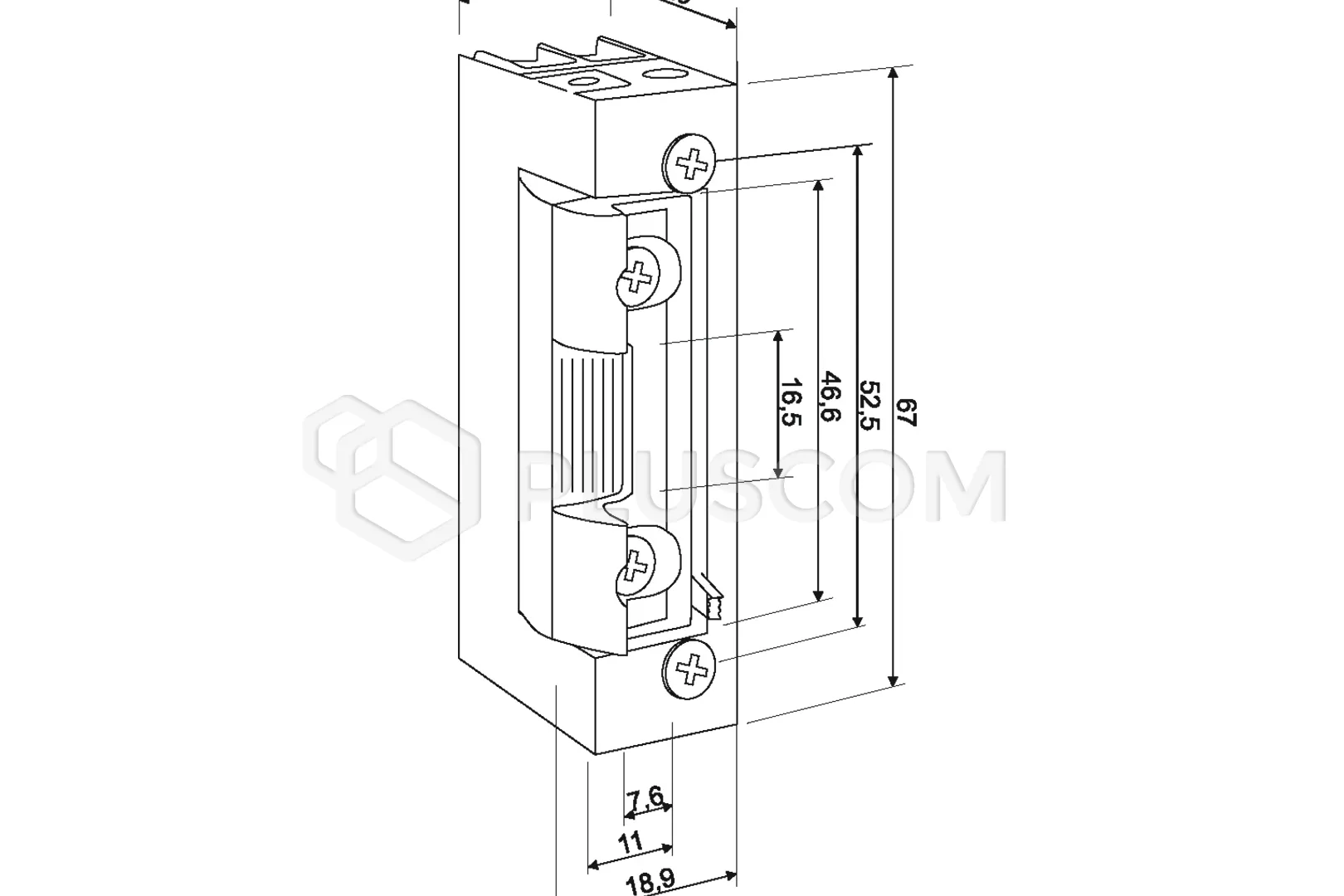

- Height: 67 mm
- Width: 16.5 mm
- Mounting screw spacing: 52.5 mm
- Tongue adjustment: 2 mm
- Durability: 200,000 cycles
- Use category: Class 3 (suitable for public buildings)
- Certificate: PN-EN 14846:2010
- Recommended front plates: 902EP/28-RFW, 902EL/28-RFW, 902EP/A/24RFW, 902EL/A/24-RFW, 900X/A/25-RFW and CE 196E/6U-RFW
- Mounting: Universal (left and right)
- Additional functions: Internal memory
- Type: Radial for strike plate with latch slide
- Mounting: Without undercutting the frame
- Opening with minimal deflection
