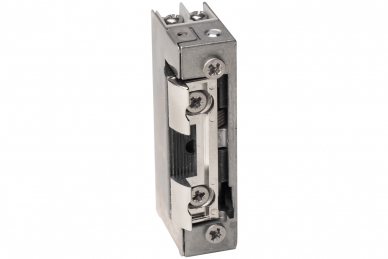

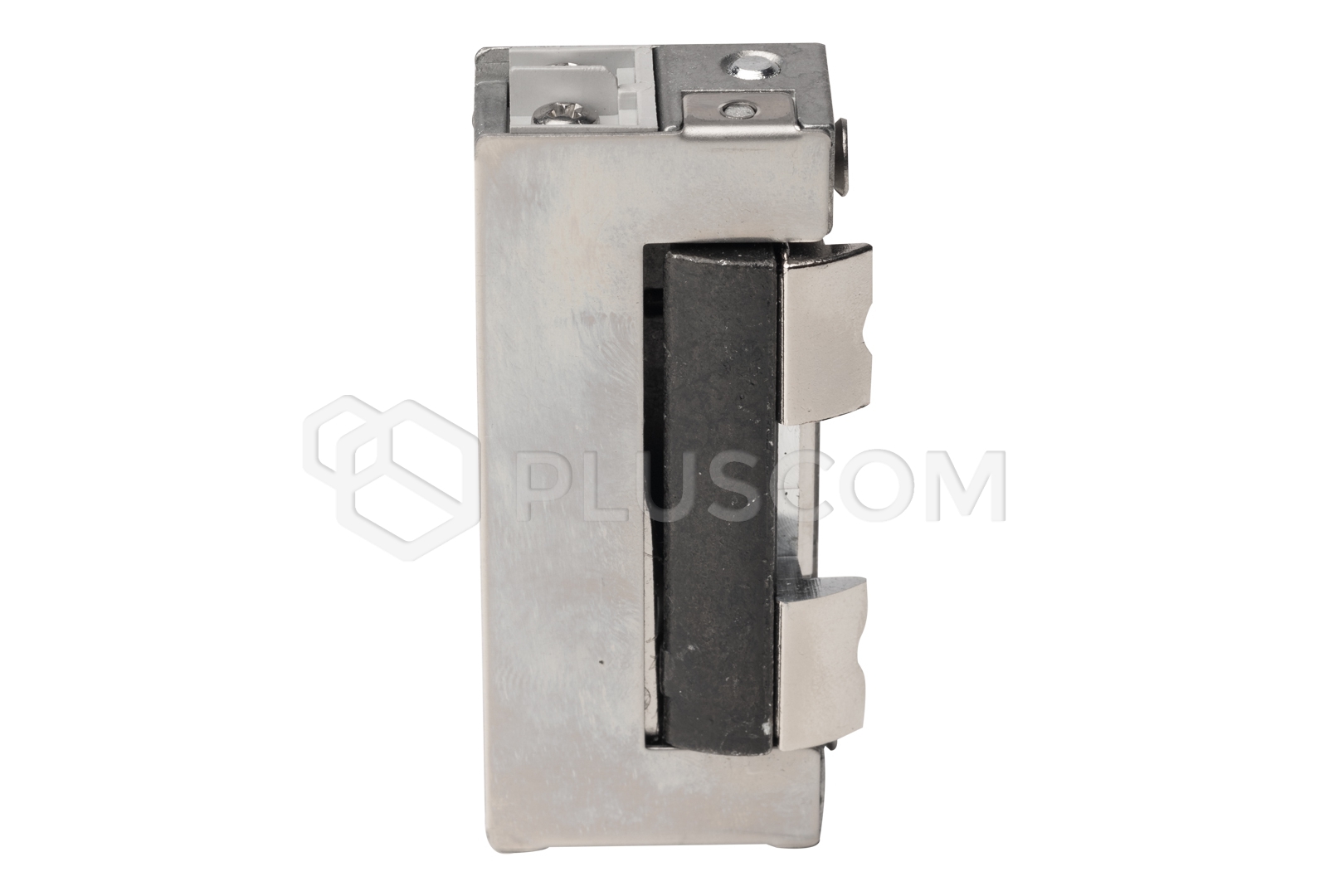

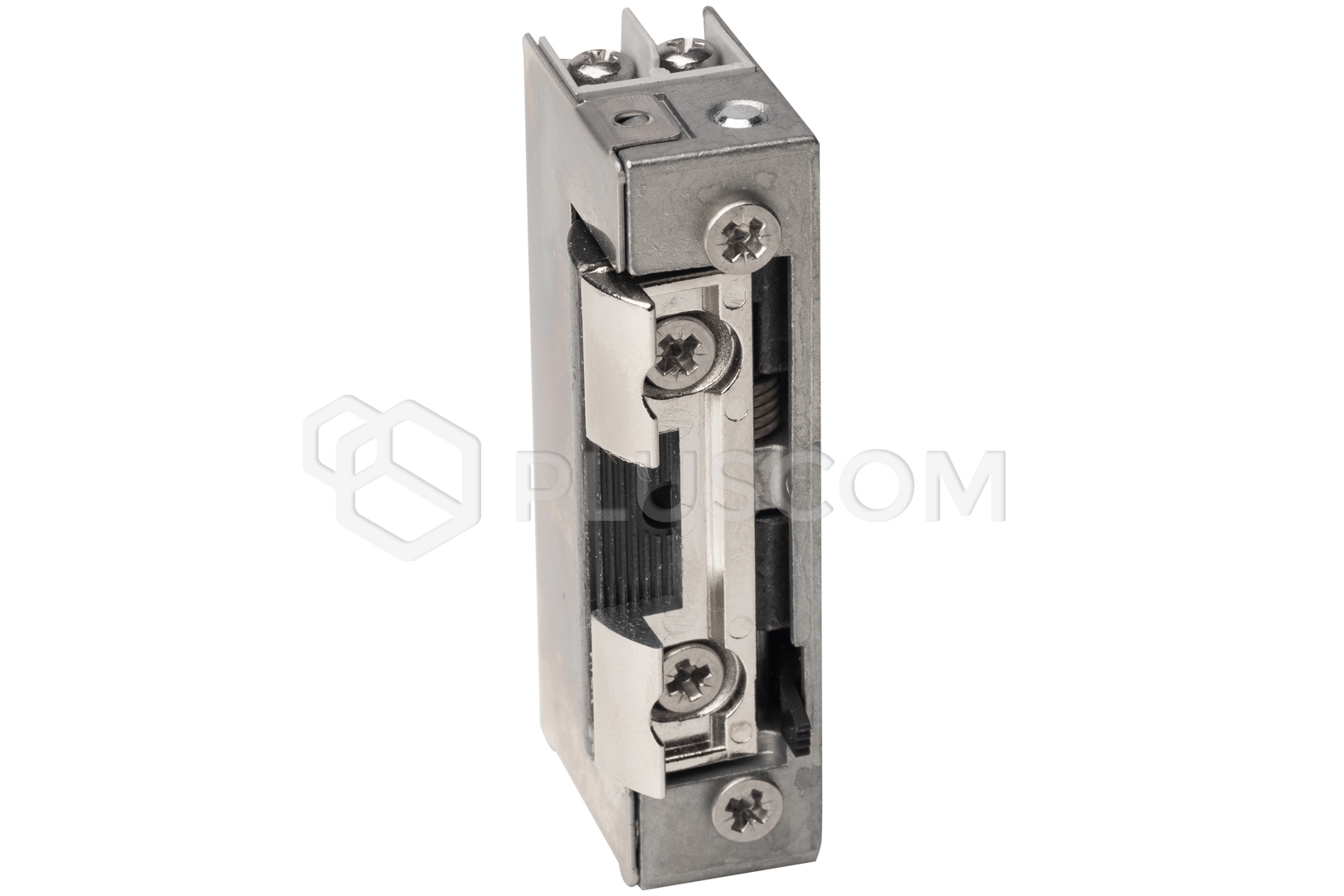

PSG 63.314 Electric strike symmetrical with slip for sheets narrow
adjustable radial with lock 1420RFW 12-24V AC/DC
The symmetrical electric strike with slip and lock 1420RFW 12-24V AC/DC is a
modern device designed to control access in residential buildings, office
buildings and public utility facilities.
Thanks to its universal design, the electric strike can be mounted in narrow
door profiles, offering reliability and comfort of use.
Ideal for installation in places with high traffic, ensuring safety and ease of
use.
FEATURES:
- Universal left/right mounting: The 1420RFW electric strike has been
designed to be mounted on both the left and right side of the door. This
allows one model to be used in different door configurations, simplifying the
purchase and installation process, as well as reducing the number of required
spare parts
- Low power consumption for greater efficiency: Operating at 12-24V AC/DC,
the electric strike is characterized by exceptionally low energy consumption.
This not only reduces operating costs, but also reduces the load on the
electrical installation, which is important in the case of large buildings
where every energy saving counts,
- Precise tongue adjustment: The ability to adjust the tongue within a
range of 2 mm allows for precise adjustment of the electric strike to the
specific needs of the door. Thanks to this, installers have greater control
over the installation, which translates into better functionality of the door
and minimizing the risk of its damage
- High durability for years of intensive use: The 1420RFW electric strike
has been designed to work for a minimum of 200,000 cycles, making it an ideal
solution for intensively used places, such as office buildings, schools or
offices. This durability ensures that the locking system will operate
reliably for a long time without the need for frequent replacements or
repairs
- Safety in accordance with standards: The electric strike meets the
requirements of the PN-EN 14846:2010 standard and is classified in class 3 of
the use category. This means that it has been tested for strength and safety,
making it suitable for use in public places where user safety is a
priority
- Simple installation without complications: The specially designed opening
mechanism with minimal swing allows the electric strike to be installed
without the need to cut the door frame. This significantly simplifies
installation, reduces the time needed for installation and minimises the risk
of damage to the door during installation
RADIALITY - INNOVATIVE DESIGN
A radial electric strike means that the
tongue mechanism opens with a minimal rotational movement.
This type of design is more compact and precise than traditional solutions. The
advantage is not only space saving, which is crucial in narrow door profiles,
but also quieter and smoother operation. T
Thanks to the radial opening mechanism, the electric strike works effectively
and reliably even in the most demanding conditions.
LOCK FUNCTION - COMFORT AND FLEXIBILITY
The lock function in the
1420RFW electric strike allows temporary unlocking of the lock, which is
invaluable in places where the door must remain open for a specified period of
time, e.g. during office hours.
The mechanical lever allows the lock to be manually switched to the permanently
open position.
This solution not only increases the comfort of use, but also contributes to
better organization of traffic in the building, eliminating the need for
constant manual opening of the door.
SLIP FUNCTION - SMOOTH OPERATION
Slip is a mechanism that ensures
smooth insertion and extension of the lock tongue from the catch. This means
that the door opens and closes with minimal resistance, which increases the
comfort of use and reduces mechanical wear.
The slip function is particularly important in places where doors are
frequently opened and closed, as it ensures a longer service life of both the
electric strike and the door itself.
RADIAL
A radial electric strike, such as the 1420RFW model, operates on
the principle of the rotational movement of the tongue, which allows the door
to be opened with minimal deflection.
This innovative approach to the design of the lock mechanism allows for more
efficient and quiet operation compared to traditional electric strikes.
Radiality also allows for easier installation in narrow door profiles, making
it an ideal solution for modern, minimalist interior designs.
Technical data:
- Nominal voltage: 12-24 V AC/DC
- Tolerance: ±5%
- Continuous operation: <1 min
- Resistance: 20
- DC current consumption:
- 12 V / 680 mA
- 24 V / 1080 mA
- AC current consumption:
- 4 V / 570
- 24 V / 1170 mA
- Permissible DC pre-pressure: 10 N
- Permissible AC pre-pressure: 90 N
- Height: 67 mm
- Width: 16.5 mm
- Mounting screw spacing: 52.5 mm
- Tongue adjustment: 2 mm
- Durability: 200,000 cycles
- Use category: Class 3 (suitable for public buildings)
- Certificate: PN-EN 14846:2010
- Recommended front plates: 902EP/28-RFW, 902EL/28-RFW, 902EP/A/24RFW,
902EL/A/24-RFW, 900X/A/25-RFW and CE 196E/6U-RFW
- Mounting: Universal (left and right)
- Additional functions: Internal memory
- Type: Radial for striker plate with lock latch slide
- Installation: Without undercutting the door frame
