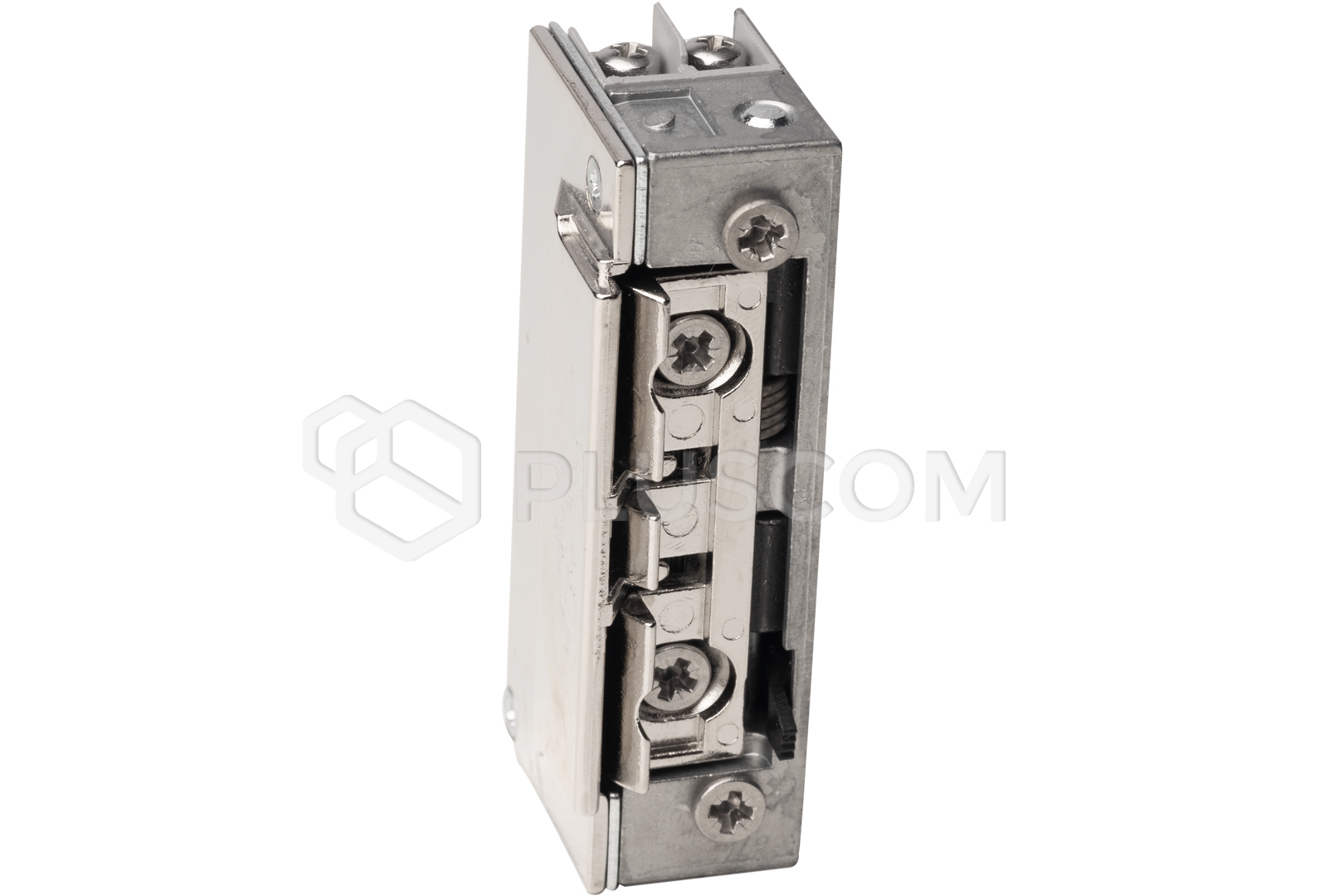

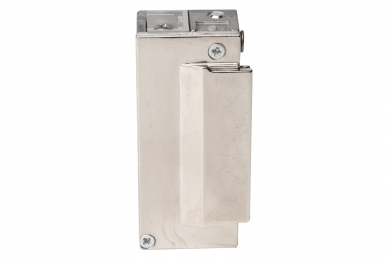

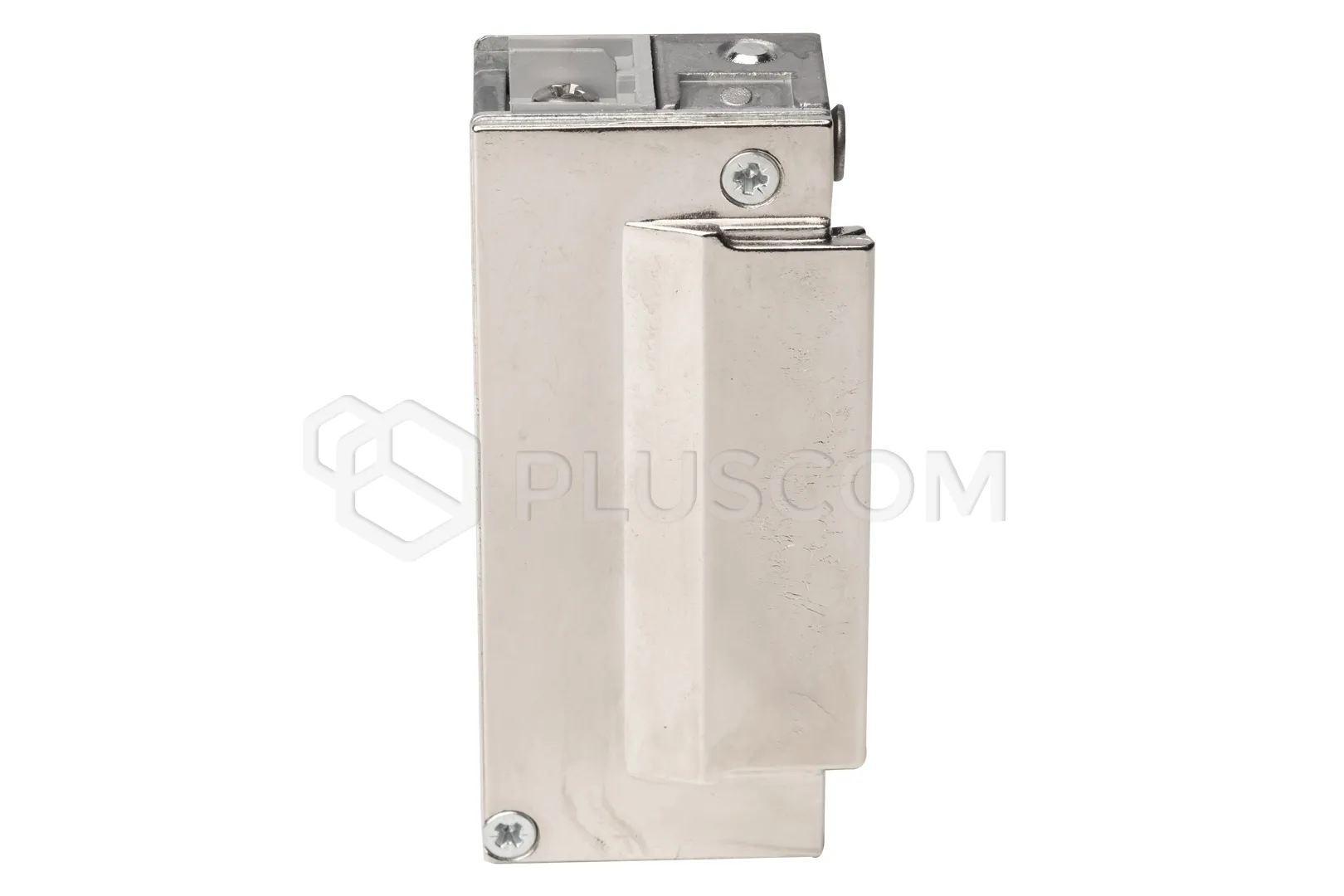

PSG 63.313 Electric strike symmetrical with sliding narrow adjustable
radial with lock and memory 1443RFT 12-24V AC/DC
The symmetrical electric strike 1443RFT 12-24V AC/DC is an innovative device
designed for access control, ideal for use in public buildings, office
buildings and industrial facilities.
Its functionality and ease of installation make it an excellent solution for
left and right doors, offering convenience of use and increased safety. Thanks
to modern technologies and durable construction, this electric strike is a
reliable element of access control systems.
FEATURES:
- Symmetrical construction: The electric strike is symmetrical, which means
that it can be installed in both left and right doors. Thanks to this, it is
versatile and easy to install, regardless of the direction of opening the
door
- Tongue adjustment: The electric strike has the ability to adjust the
tongue extension in the range of 1-2 mm. This allows precise adjustment of
the mechanism to various types of doors and frames, which ensures smooth
operation and reduced component wear
- Minimal undercutting of the frame: The special design of the tongue
mechanism allows the door to be opened with minimal deflection, which allows
the electric strike to be installed without the need to undercut the frame.
This is particularly important in the case of installation in existing doors,
where modifications can be expensive
- Power supply: The electric strike operates on direct voltage (DC) and
alternating voltage (AC) of 12V or 24V. This power supply versatility enables
easy integration with various electrical systems and increases the
flexibility of its application
- Use category class 3: The product meets the requirements of Class 3,
which means that it is suitable for intensive use in public buildings. This
guarantees reliability and durability even in difficult conditions
- Internal memory function: The electric strike is equipped with an
internal memory function that allows the door to be opened with a single
electrical impulse and left unlocked until it is closed again. This function
is extremely convenient in places with high traffic
RADIAL MECHANISM
The radial mechanism in the 1443RFT electric strike
means that the axis of rotation of the tongue is offset, which allows the
tongue to hide deeper in the housing when opening the door.
This eliminates the need to cut the door frame, which greatly simplifies
installation, especially in doors with narrow profiles.
The radial mechanism also ensures smoother door opening and less mechanical
wear, which translates into a longer lifespan of the device.
INTERNAL MEMORY FUNCTION
The electric strike with an internal memory
function is equipped with a special elastic plate that allows the latch to be
unlocked after a short electrical impulse.
The door remains unlocked until it is opened once, and after closing it, the
latch automatically locks.
This function is particularly useful in high-traffic areas where there is often
a need to open and close the door quickly, providing convenience and saving
time.
SLIP FUNCTION
Slip is an innovative function that covers the electric
strike tongue, enabling the door to be opened with minimal tongue deflection.
This not only ensures smooth operation, but also protects the mechanism from
damage, which is crucial in heavily used facilities.
Thanks to slip, the door can be opened effortlessly, which improves the comfort
of use and extends the durability of the electric strike.
LOCK FUNCTION
The lock function in the 1443RFT electric strike is a
practical solution that allows the strike to be permanently unlocked. This is
possible thanks to a mechanical lever that allows the user to manually set the
striker in the open position.
This function is particularly useful in emergency situations or when servicing
doors, when access must be permanently provided.
Thanks to this, users have full control over access and can adapt the operation
of the electric strike to their needs.
The symmetrical electric strike with a narrow, radial, adjustable, slip-out,
with memory 1443RFT 12-24V AC/DC is an advanced device that combines modern
technologies with ease of use, offering reliability, safety, and flexibility in
managing access to rooms.
Technical data:
- Type: Radial with slide, lock and memory
- Universal (symmetrical): For left and right doors
- Application: Access control
- Power supply: 12-24 V AC/DC
- Latch adjustment: 1 or 2 mm

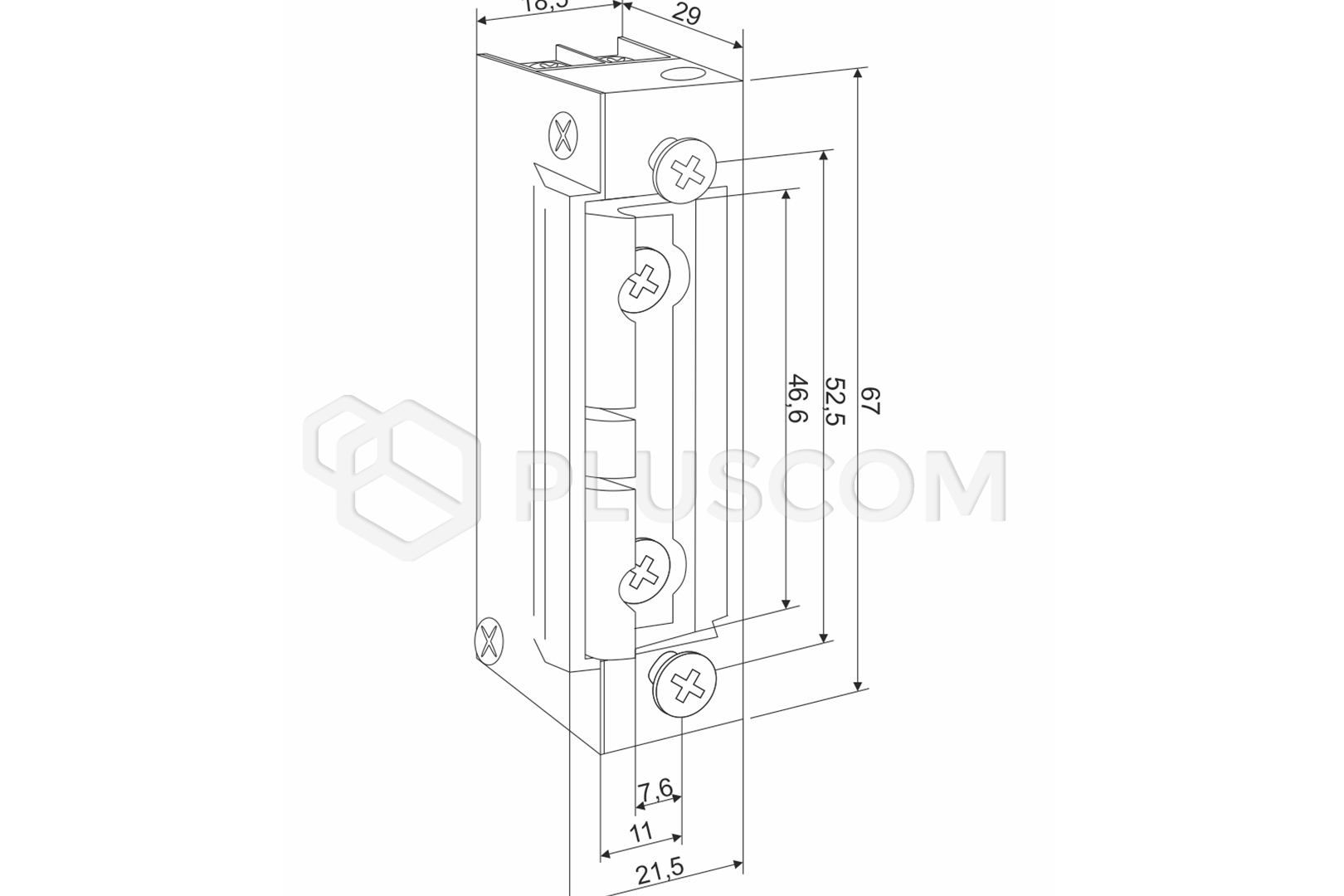

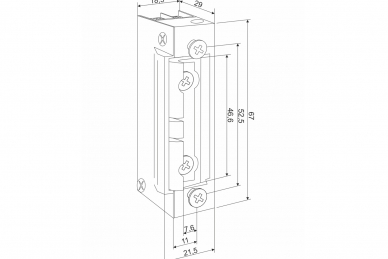

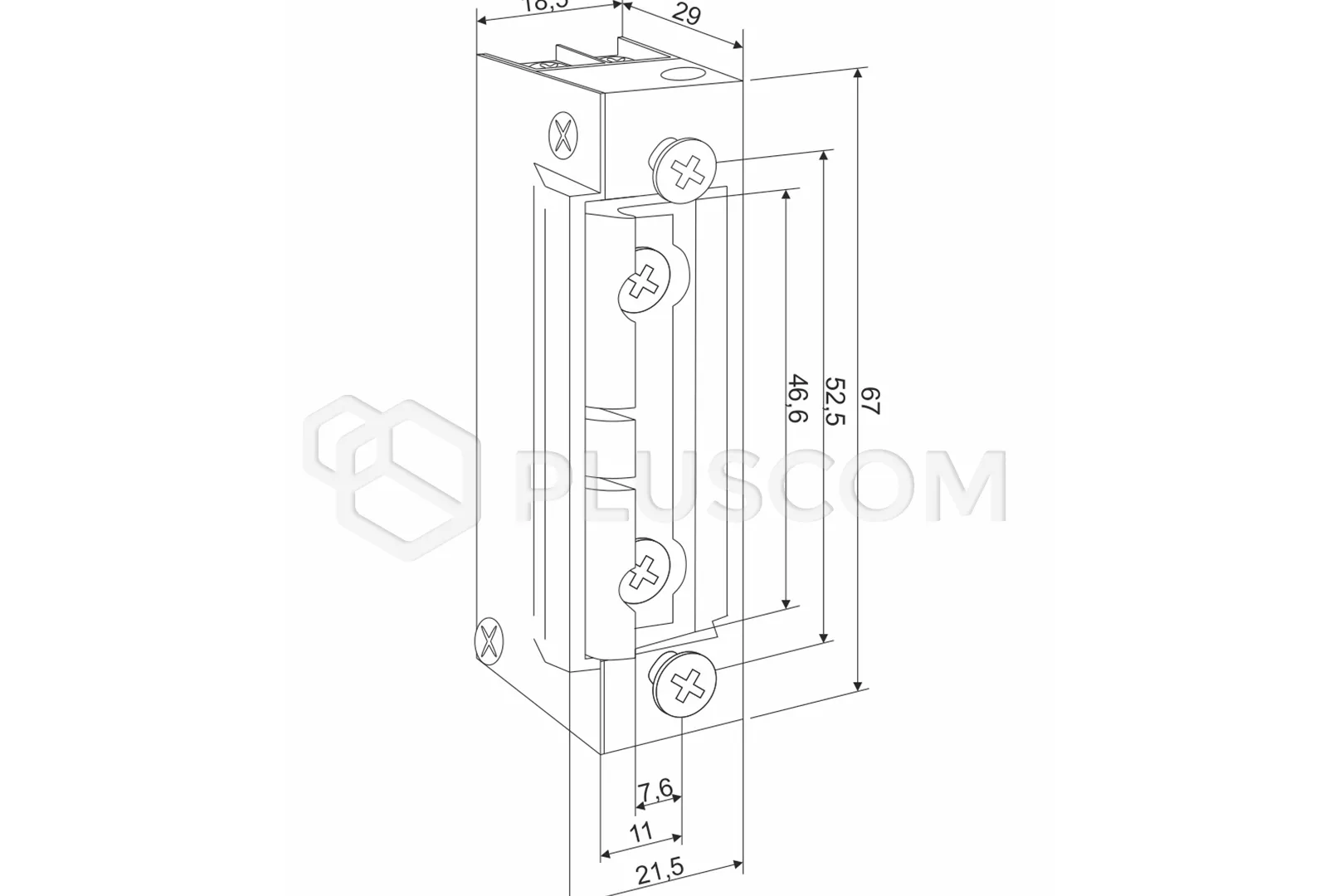

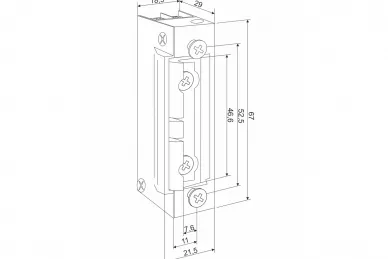

- Mounting screw spacing: 52 mm
- Continuous operation: < 1 min.
- Resistance: 20
- DC current consumption: 12V/ 680 - 24 V 1080
- AC current consumption: 12 V/ 570 - 24 V 1170
- DC permissible initial pressure: 10 N
- AC permissible initial pressure: 90 N
- Durability: 200,000 cycles
- Use category: Class 3 - suitable for public buildings
- Certificate: PN-EN 14846:2010
