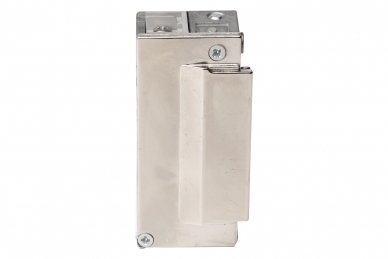

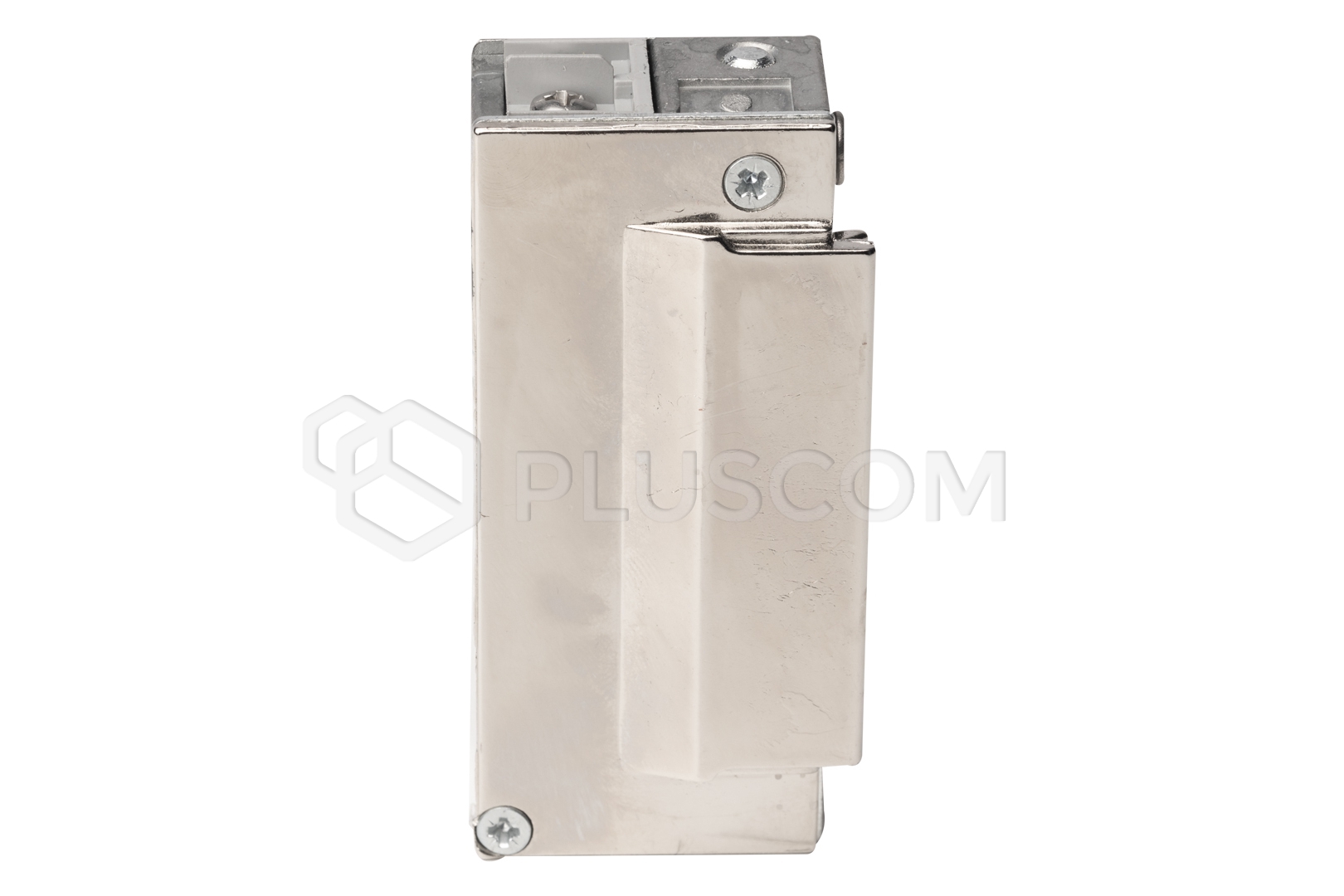

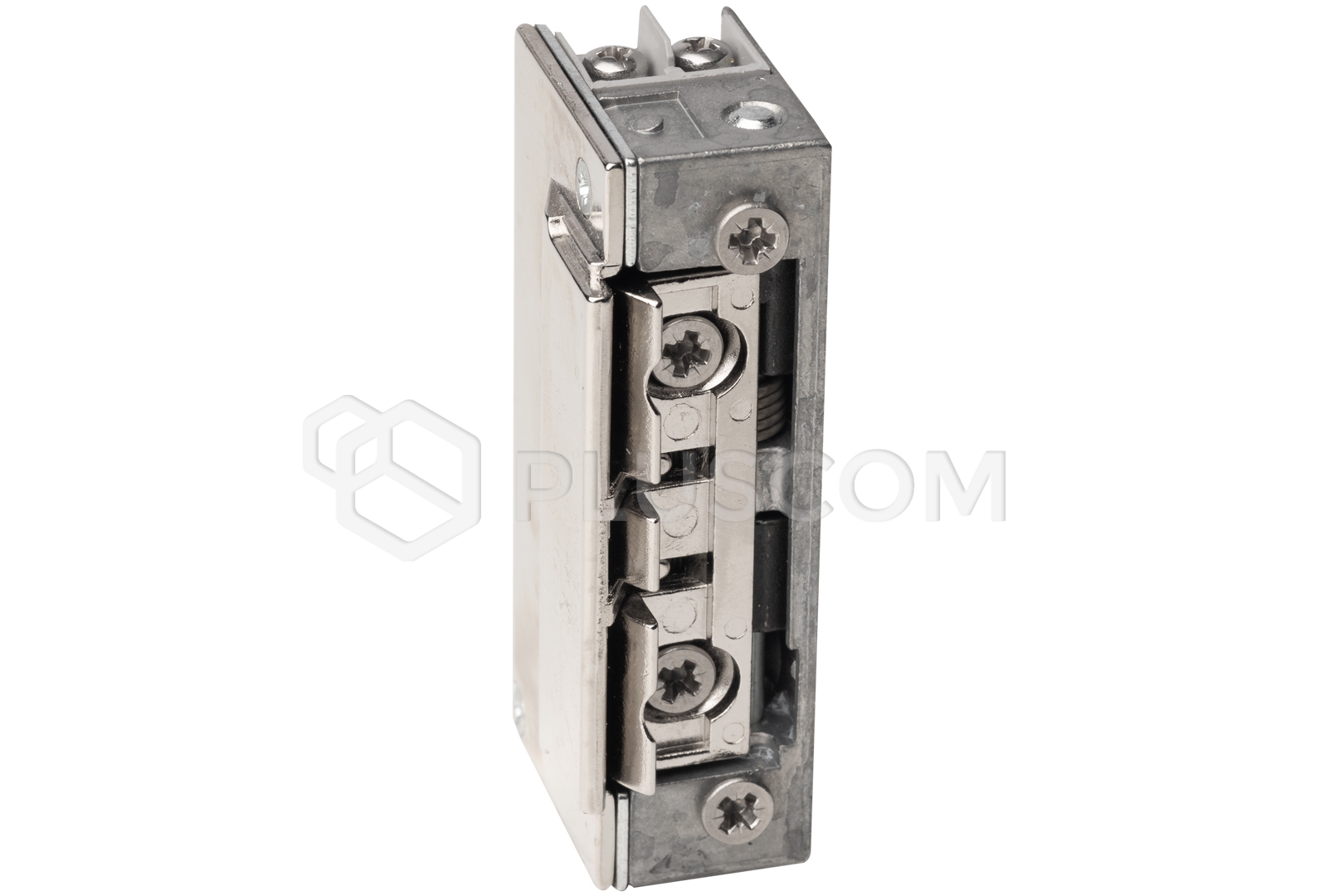

PSG 63.312 Electric strike symmetrical with slip, narrow, adjustable,
radial, with memory 1433RFT 12-24V AC/DC
The electric strike symmetrical with slip and memory 1433RFT 12-24V AC/DC is an
advanced device designed for access control, ideal for installation in doors in
public buildings, office buildings or industrial facilities.
The design of the electric strike allows for quick and safe opening and closing
of doors, which makes it irreplaceable wherever safety, comfort and efficiency
matter.
FEATURES:
- Universal installation: The electric strike is symmetrical, which means
that it can be installed in both left and right doors. This is a significant
advantage, as it facilitates installation planning and eliminates the need to
have different models of strikes for different types of doors
- Power supply: The device supports direct current (DC) and alternating
current (AC) of 12V or 24V. Thanks to this, it can be powered from different
energy sources, which increases its versatility and ease of integration with
existing power supply systems
- Tongue adjustment: The electric strike has the ability to adjust the
tongue extension in the range of 1-2 mm. Such adjustment allows for precise
adjustment of the mechanism to different types of doors and door frames,
which translates into reliable operation of the strike
- Easy installation: The special design of the mechanism allows for the
installation of the electric strike with minimal undercutting of the door
frame. This means that installation is less invasive and easier, which is
particularly beneficial when modernizing existing buildings
- Internal memory: The electric strike is equipped with an internal memory
function that allows the strike to be opened with one short impulse and then
left unlocked until the door is opened and closed again. This function is
particularly useful in high-traffic areas where quick and effective access
management is required
- Use class: The product meets the requirements of Class 3, which means
that it is intended for intensive use in public buildings. This guarantees
its durability and reliability even in demanding operating conditions
RADIAL MECHANISM
The radial type electric strike is characterized by
the fact that its axis of tongue rotation is offset, which allows the tongue to
hide deeper in the housing.
Thanks to this solution, there is no need to cut the door frame, which
significantly facilitates installation, especially in the case of doors with
narrow profiles.
The radial mechanism ensures smooth door opening with minimal tongue
deflection, which translates into lower wear of mechanical elements and longer
service life of the device.
INTERNAL MEMORY FUNCTION
The internal memory function in the electric
strike allows the latch to be unlocked after a short electric pulse, and then
the door to be left open until it is opened once.
When the door is closed, the electric strike automatically locks. This solution
increases the comfort of use, especially in places where doors are frequently
opened and closed, reducing the need for constant access control and device
operation.
SLIP FUNCTION
Slip is a structural element that covers the electric
strike tongue, enabling easier door opening with minimal tongue deflection.
Thanks to the slip function, the strike mechanism is better protected against
damage, and the door can be opened smoothly and without effort. This solution
is crucial in intensively used facilities, where doors are often opened,
ensuring reliability and longer life of the device.
Symmetrical electric strike with slip, narrow, adjustable, radial, with memory
1433RFT 12-24V AC/DC is a well-thought-out and functional solution that meets
the expectations of even the most demanding users, offering high quality,
reliability and ease of use.
Technical data:
- Type: Radial with slide and memory
- Universal (symmetrical): For left and right doors
- Application: Access control
- Power supply: 12-24 V AC/DC
- Latch adjustment: 1 or 2 mm

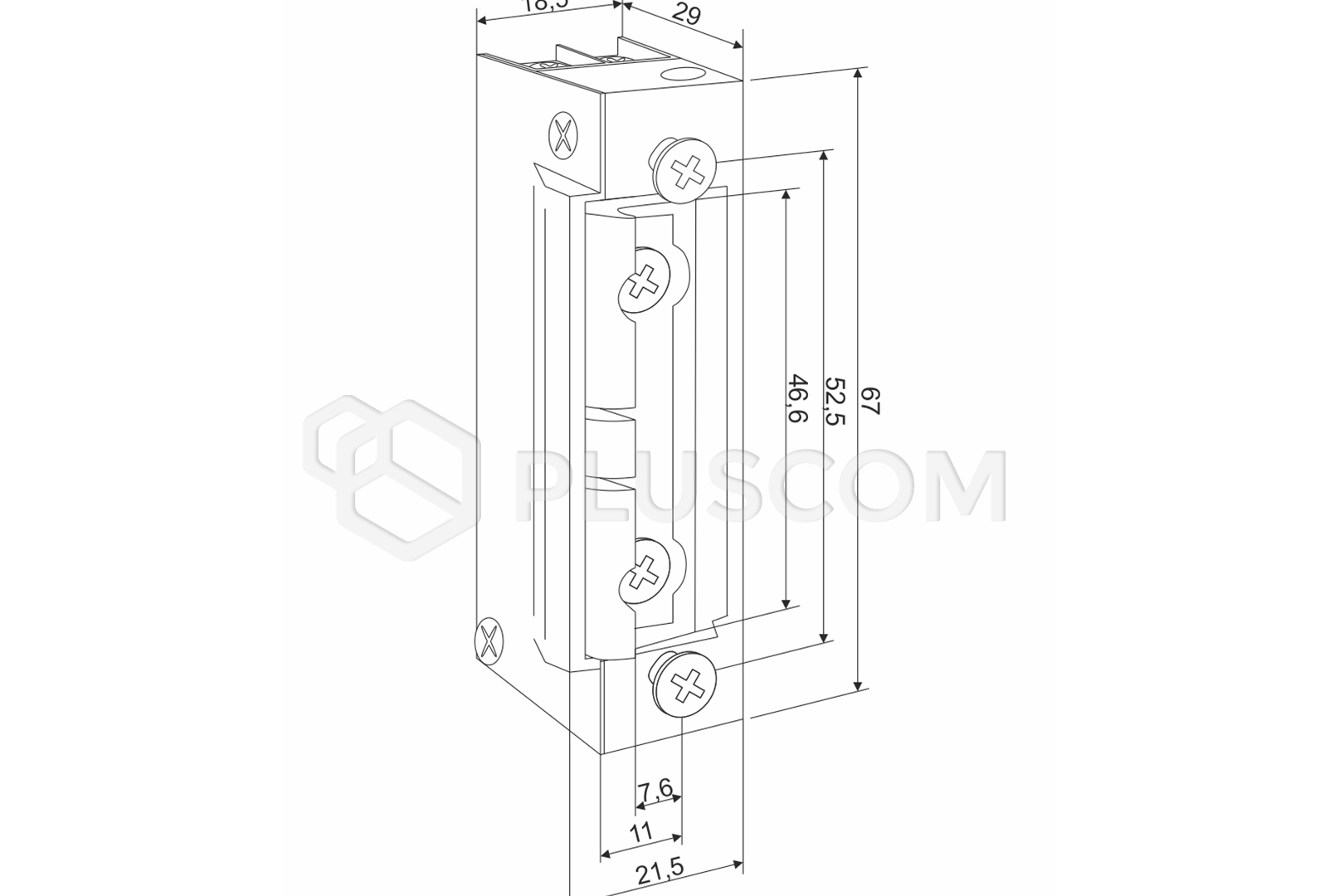

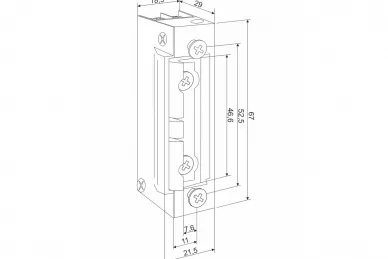

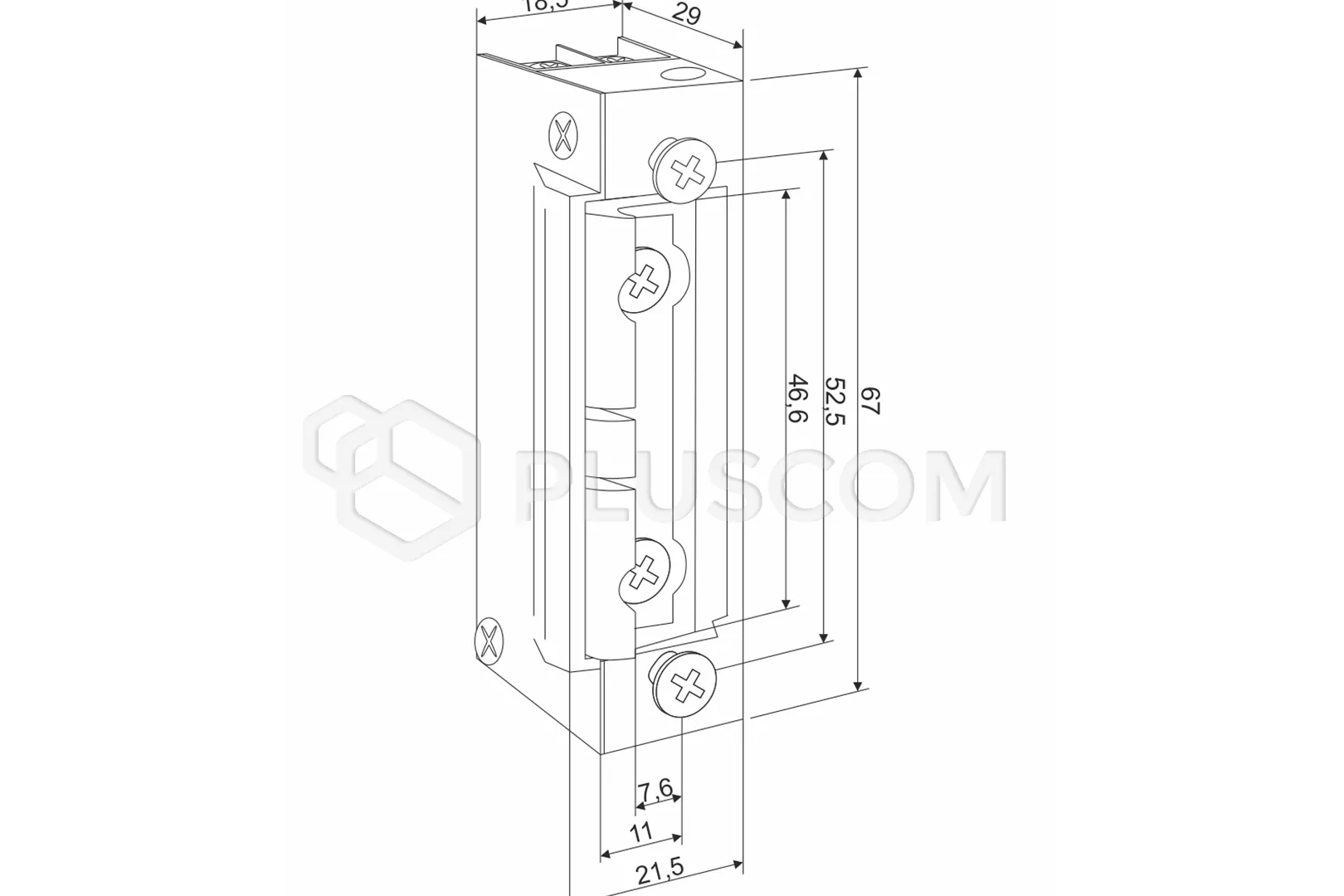

- Mounting screw spacing: 52 mm
- Continuous operation: < 1 min.
- Resistance: 20
- DC current consumption: 12V/ 680 - 24 V 1080
- AC current consumption: 12 V/ 570 - 24 V 1170
- DC permissible initial pressure: 10 N
- AC permissible initial pressure: 90 N
- Durability: 200,000 cycles
- Usage category: Class 3 - suitable for public buildings
- Certificate: PN-EN 14846:2010
